Flexalighting Lotus 2 IP67 LED Recessed Downlight

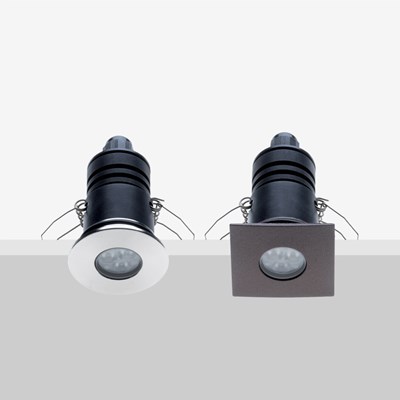

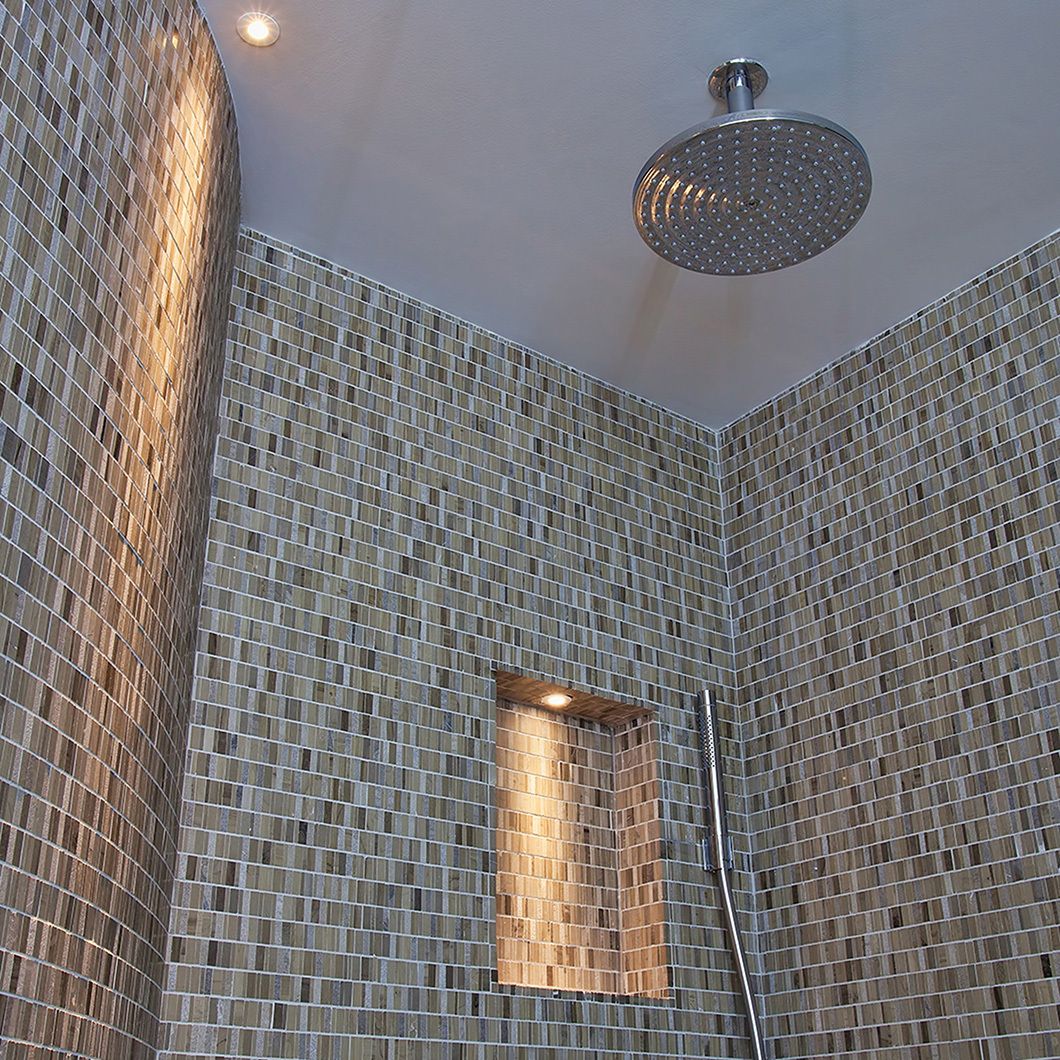

Lotus 2 by Flexalighting is a recessed downlight, complete with an IP67 rating for installation in outdoor areas, steam rooms, and wet rooms. Lotus 2 is a petite downlight available in round or square variations. Made from anodised aluminium, Lotus 2 is available in white, black, grey, CORTEN, or INOX AISI 316L finishes. Choose between four beam angles ranging from a narrow 10°, to a medium 25°, a wide 60°, or a flood 120°. The miniature downlight also offers 6 colour temperatures: 2700K, 3000K, 4200K, 6000K, Blue, Green, or Red.

Lotus 2 has optional accessories such as a recessing box and a low-luminance filter. A 300mA or 500mA driver is required for this fitting. Please see the specification and downloads tabs for more information on the options available.

IP67
Class III

Materials: Anodised aluminium, extra-clear tempered glass, ATEX cable gland, and neoprene cable
Finishes: White | Grey | Black | CORTEN | INOX AISI 316L

1-2W LED
350-500mA
Series wiring
CRI 85

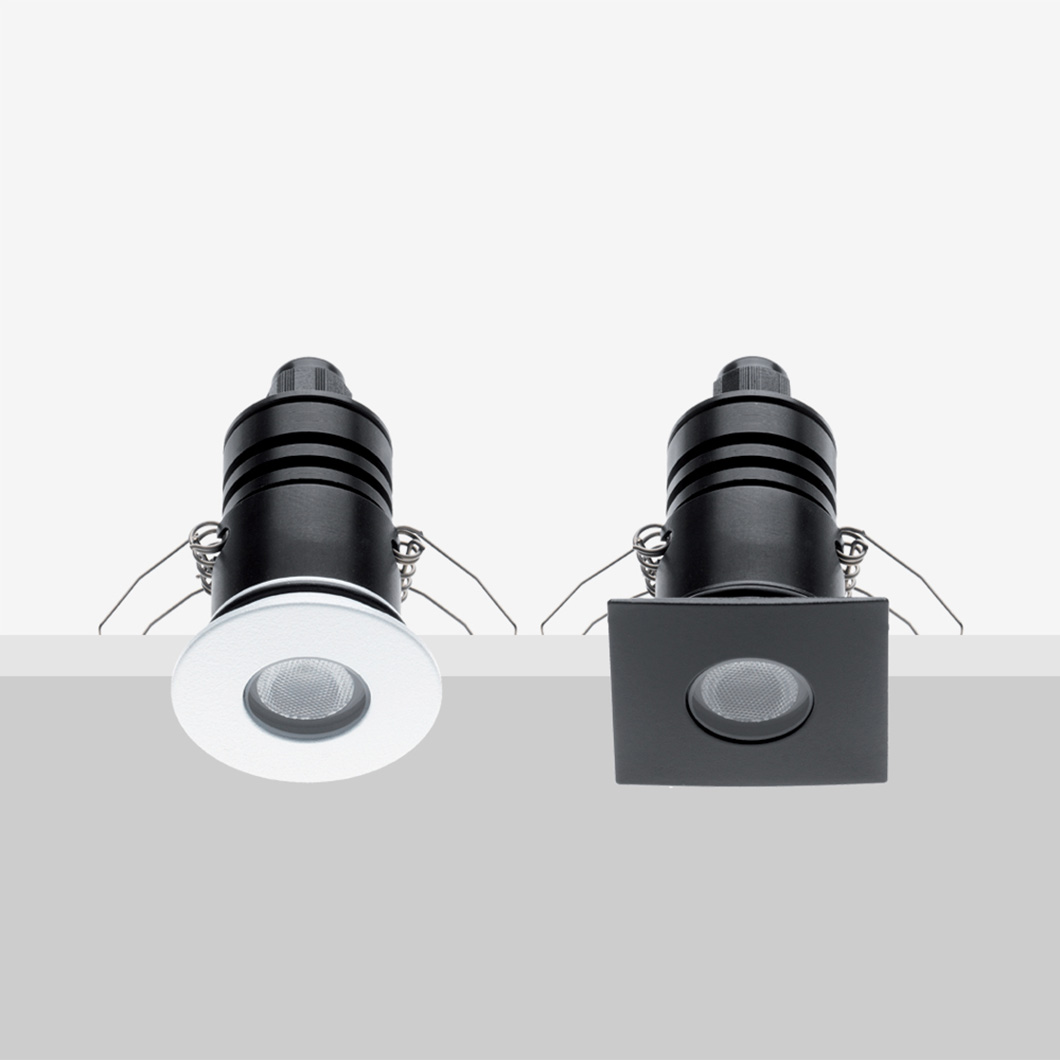

Shape: Round | Square
Optic: 10° | 25° | 60° | 120°
Colour temperatures: 2700K | 3000K | 4200K | 6000K | Blue | Green | Red

Colour temperature/Luminous Flux:
2700K - 89lm 350mA | 128lm 500mA
3000K - 93lm 350mA | 133lm 500mA
4200K - 103lm 350mA | 154lm 500mA
6000K - 114lm 350mA | 165lm 500mA

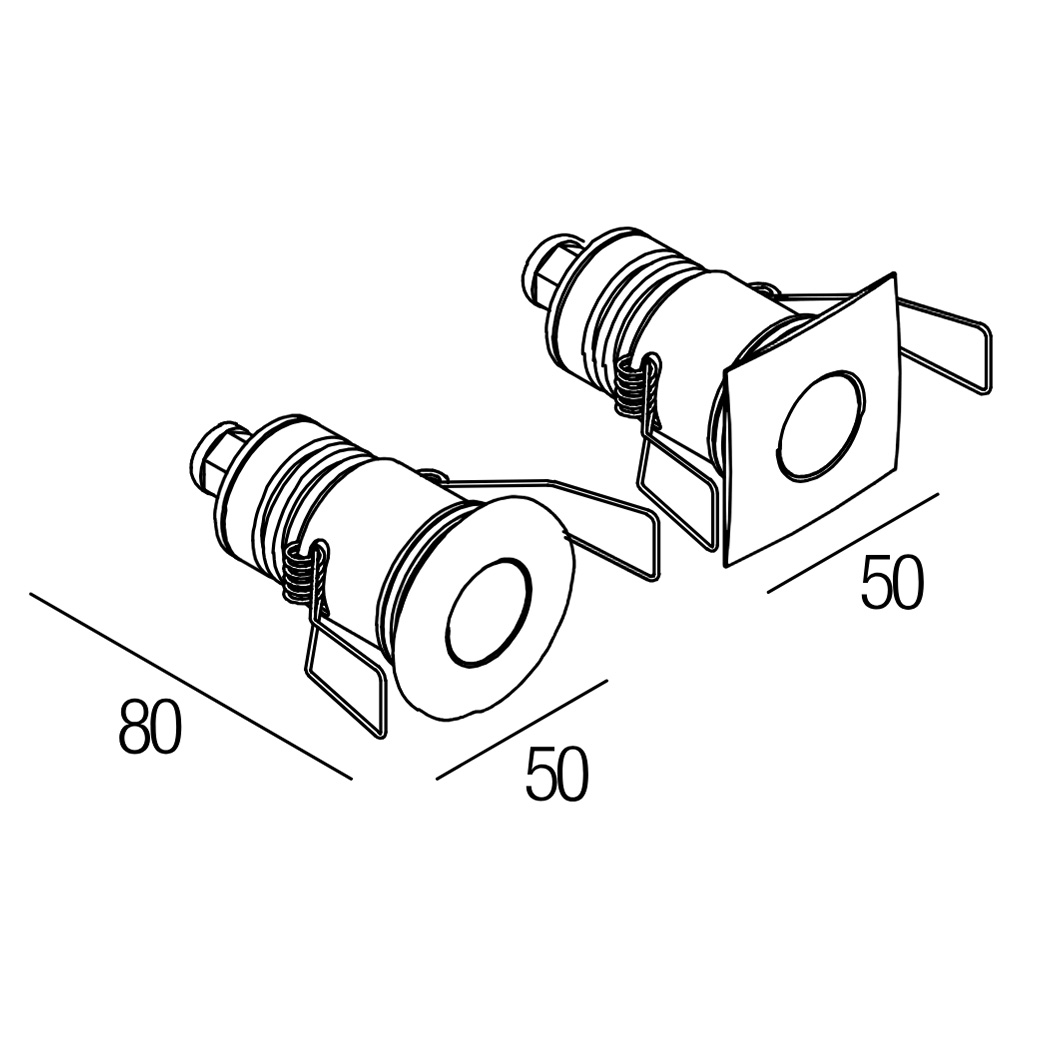

Dimensions:
Ø50mm x 80mm
Cutout: 40mm

Accessories:
Recessing box
Low-luminance louver

Driver required - see 'You may also need' below
Constant Current Driver | No. units powered
L-Tech 6W 350-700mA NFC CC TRIAC Ultra Small LED Driver | 1-3 units
L-Tech 20W 300-650mA CC Triac LED Driver | 2-18 units (1W)
L-Tech 20W 300-650mA CC Triac LED Driver | 2-9 units (2W)

Lamp type: 1-2W LED

Product dimensions: D.80mm x Diameter.50mm

• Data Sheet PDF
• Installation Instructions PDF
• Data Sheet Flexalighting Drivers PDF
• Bathroom Zones & IP Ratings Explained PDF
• Lighting File | LOTUS 2 2700K 10DG 350Ma IES
• Lighting File | LOTUS 2 2700K 10DG 500Ma IES
• Lighting File | LOTUS 2 2700K 25DG 350Ma IES
• Lighting File | LOTUS 2 2700K 25DG 500Ma IES
• Lighting File | LOTUS 2 2700K 60DG 350Ma IES
• Lighting File | LOTUS 2 2700K 60DG 500Ma IES
• Lighting File | LOTUS 2 2700K 120DG 350Ma IES
• Lighting File | LOTUS 2 2700K 120DG 500Ma IES
• Lighting File | LOTUS 2 3000K 10DG 350Ma IES
• Lighting File | LOTUS 2 3000K 10DG 500Ma IES
• Lighting File | LOTUS 2 3000K 25DG 350Ma IES
• Lighting File | LOTUS 2 3000K 25DG 500Ma IES
• Lighting File | LOTUS 2 3000K 60DG 350Ma IES
• Lighting File | LOTUS 2 3000K 60DG 500Ma IES
• Lighting File | LOTUS 2 3000K 120DG 350Ma IES
• Lighting File | LOTUS 2 3000K 120DG 500Ma IES
• Lighting File | LOTUS 2 4200K 10DG 350Ma IES
• Lighting File | LOTUS 2 4200K 10DG 500Ma IES
• Lighting File | LOTUS 2 4200K 25DG 350Ma IES
• Lighting File | LOTUS 2 4200K 25DG 500Ma IES
• Lighting File | LOTUS 2 4200K 60DG 350Ma IES
• Lighting File | LOTUS 2 4200K 60DG 500Ma IES
• Lighting File | LOTUS 2 4200K 120DG 350Ma IES
• Lighting File | LOTUS 2 4200K 120DG 500Ma IES
• Lighting File | LOTUS 2 6000K 10DG 350Ma IES
• Lighting File | LOTUS 2 6000K 10DG 500Ma IES
• Lighting File | LOTUS 2 6000K 25DG 350Ma IES
• Lighting File | LOTUS 2 6000K 25DG 500Ma IES
• Lighting File | LOTUS 2 6000K 60DG 350Ma IES
• Lighting File | LOTUS 2 6000K 60DG 500Ma IES
• Lighting File | LOTUS 2 6000K 120DG 350Ma IES
• Lighting File | LOTUS 2 6000K 120DG 500Ma IES

 Delivery

Delivery usually within 2-3 weeks
