Flexalighting Jos F2 Trimless Projector Spot Light

Description

Flexalighting Jos F2 LED spot light offers an adjustable projector for ceiling installation, combining minimal design with outstanding performance. Suitable for accent lighting, highlighting artwork/architectural features, or for angling general lighting to an awkward spot.

A 90° tilt and 358° rotation allows maximum flexibility. Finished in white or black, and available in 20° or 40° beam angles, and in 2700K, 3000K or 4000K light colour temperatures. High quality CRI98 and R9 93 LED technology. Can be fitted with an anti-glare filter for maximum visual comfort. Plasterboard recessing frame is required for installation, and included in the price.

Versions with extended arm length are available on request.

Driver required - see Optional Items.

Delivery usually in 1-2 weeks

Specification

IP20
Power: 2W
Supply current: 500mA (2.9V)
Wired in series
2-Step MacAdam

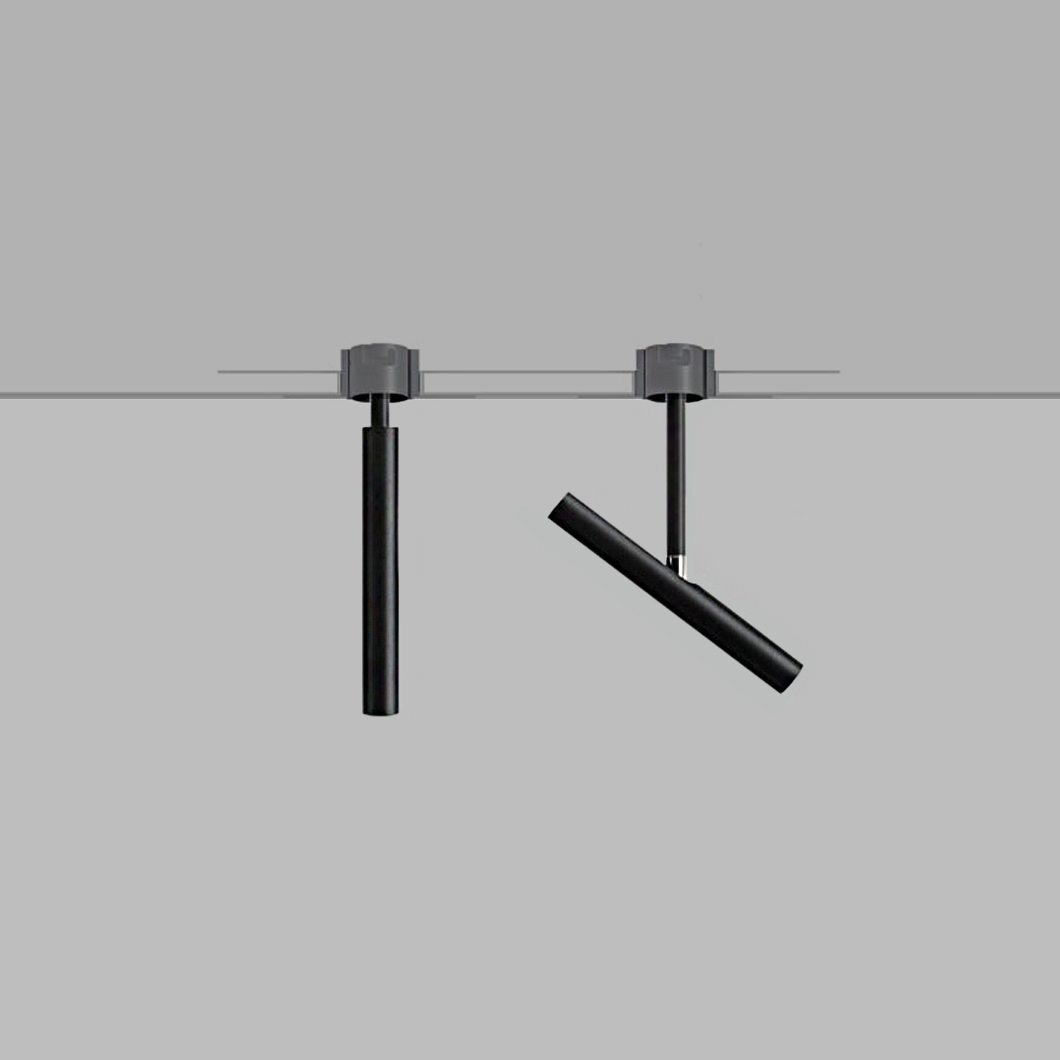

Adjustable tilt: 90°
Adjustable rotation: 358°

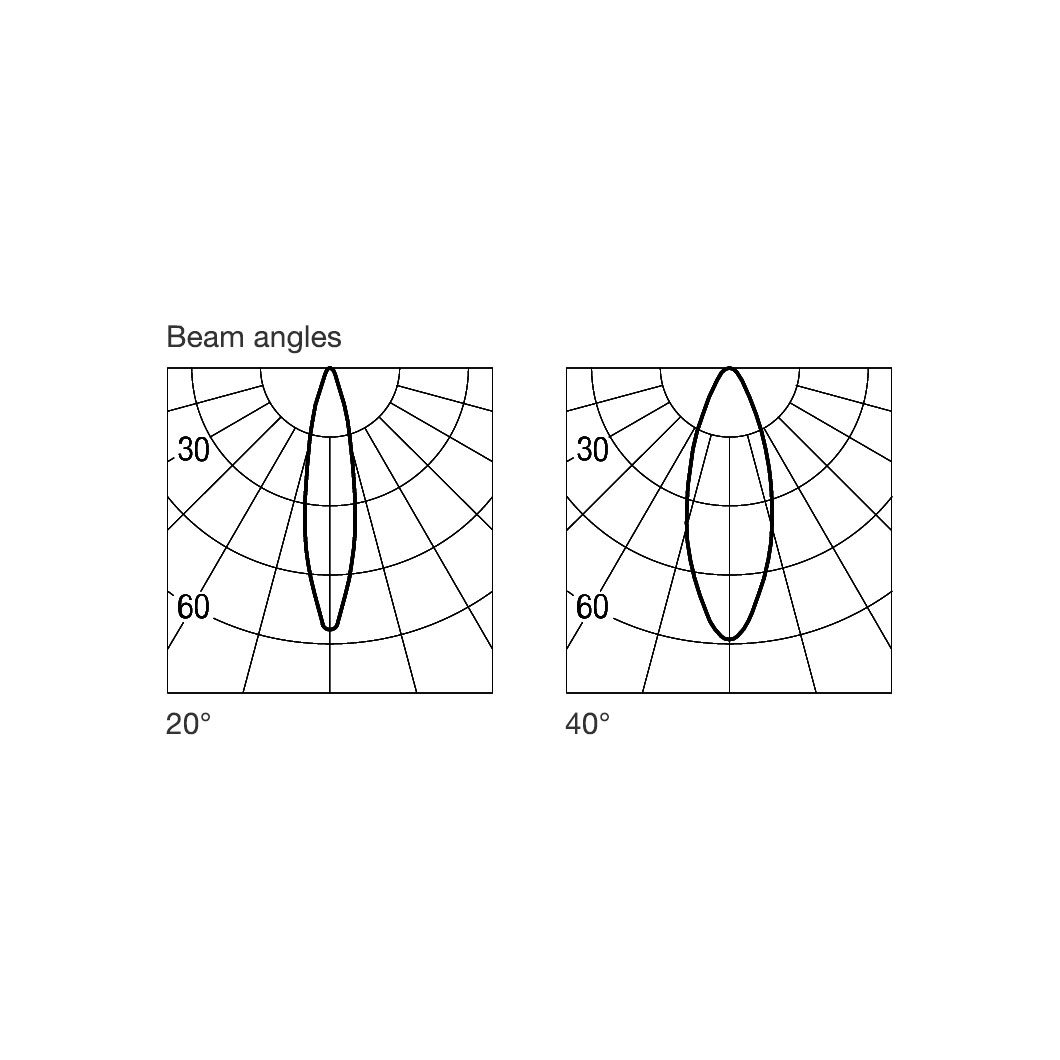

Beam angle: 20°, 40°
Light temp.: 2700°K, 3000°K, 4200°K

CCT/CRI/Flux
2700K - 128 lm
3000K - 133 lm
4200K - 154 lm

*versions with extended arm length are available on request

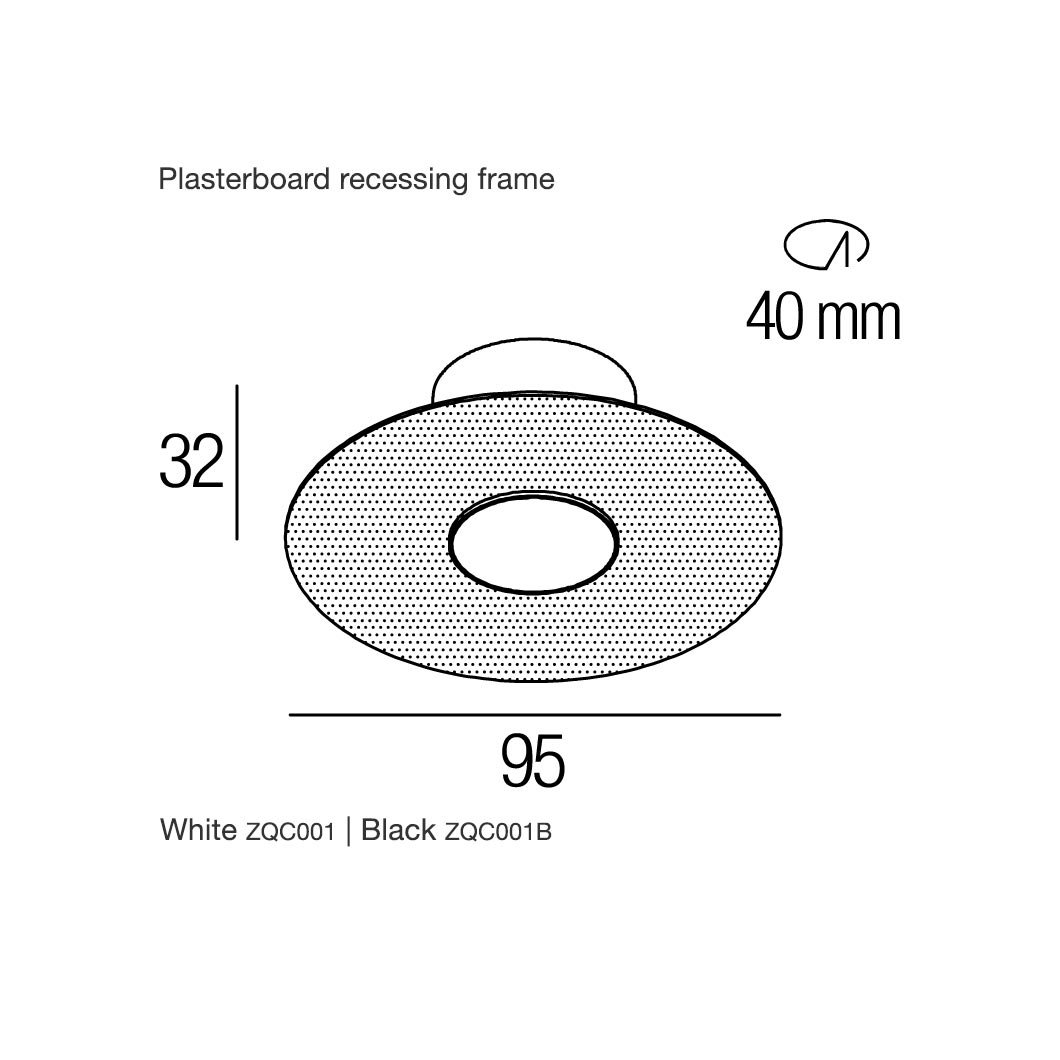

Plasterboard recessing frame: Diameter. 95mm D.32mm
Cutout diameter: 40mm
White (ZQC001), Black (ZQC001B)

Driver required - see Optional Items below
Constant Current Driver | No. units powered
Sunpower 350mA 18W TRIAC dim | 1-6 units (3W)
Sunpower 500mA 18W TRIAC dim | 1-3 units (6W)

Lamp type: LED 2W 500mA

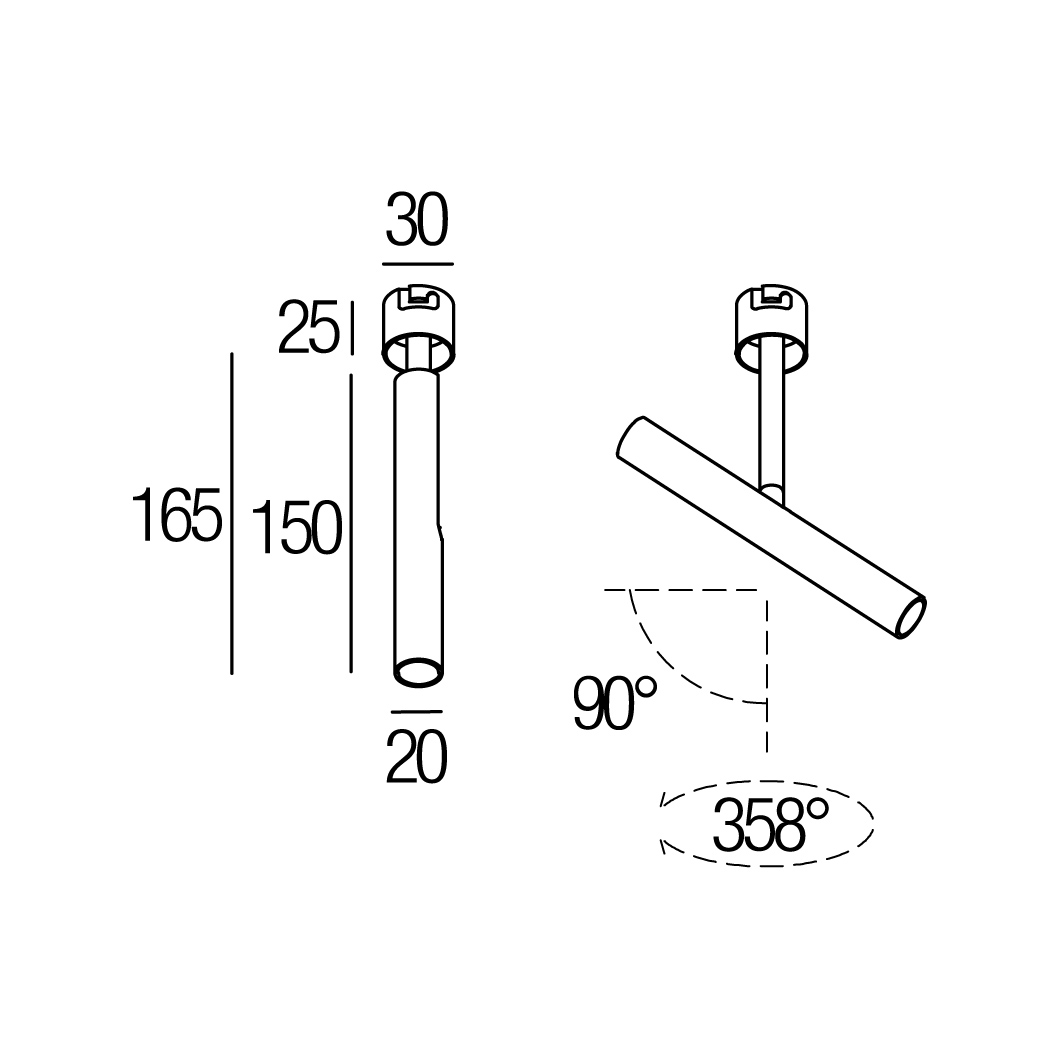

Dimensions

Product dimensions: H.165mm x Diameter.20mm

Cutout dimensions: Dia.40mm

Downloads

• Flexalighting Jos F2 Data Sheet PDF
• Flexalighting Jos F2 Install Instructions PDF
• Flexalighting Jos F2 Certifications PDF
• Photometrics Jos F2 20D 2700K IES
• Photometrics Jos F2 40D 2700K IES
• Photometrics Jos F2 20D 3000K IES
• Photometrics Jos F2 40D 3000K IES
• Photometrics Jos F2 20D 4200K IES
• Photometrics Jos F2 40D 4200K IES
• Photometrics Jos F2 20D 2700K LDT
• Photometrics Jos F2 40D 2700K LDT
• Photometrics Jos F2 20D 3000K LDT
• Photometrics Jos F2 40D 3000K LDT
• Photometrics Jos F2 20D 4200K LDT
• Photometrics Jos F2 40D 4200K LDT

Delivery and warranty

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
