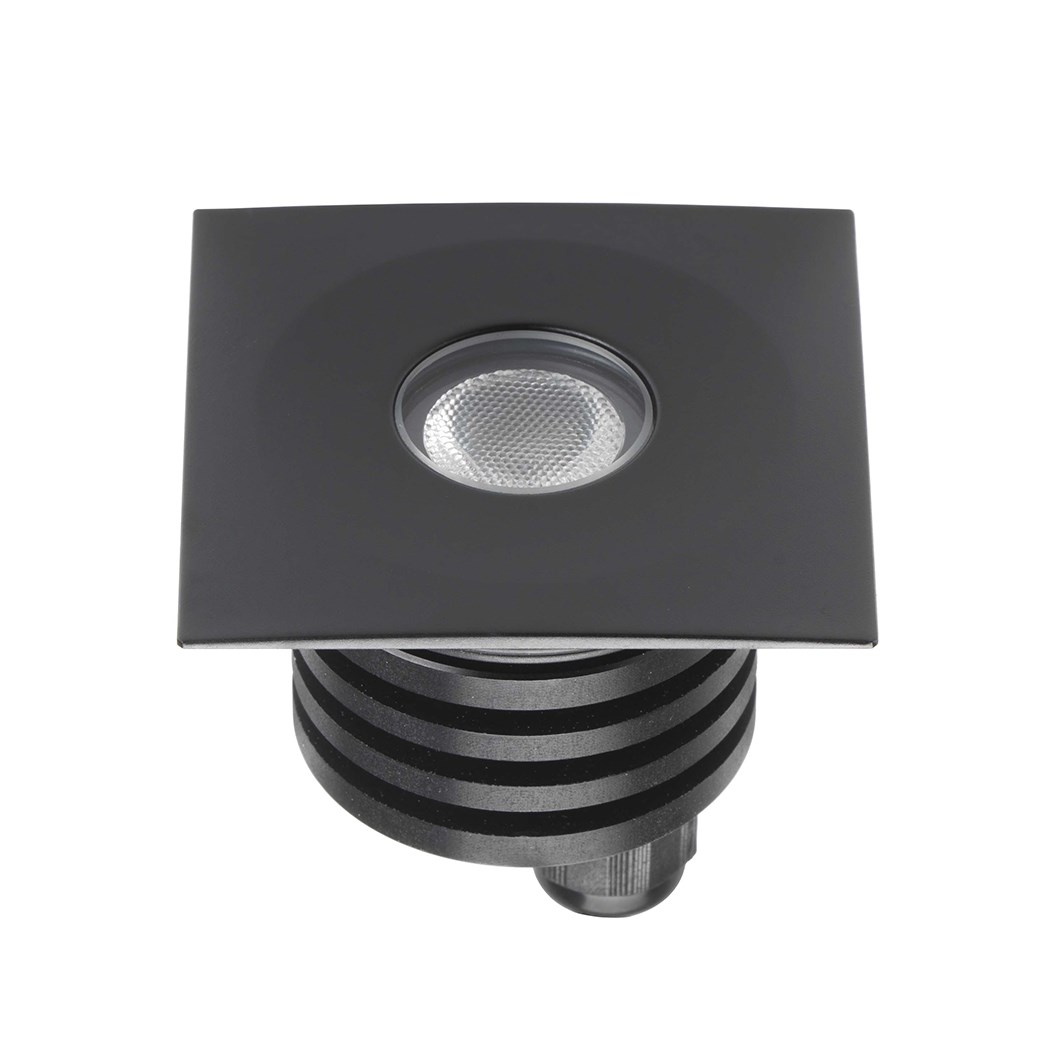

Flexalighting Fatboy 2 Square LED IP67 Recessed Floor Uplight

Flexalighting Fatboy 2 Square LED IP67 in-ground recessed floor uplight boasts high construction quality and excellent optical performance. The use of advanced waterproofing technologies ensures absolute product reliability. Anodized aluminium body with double powder coated aluminium front finished in Grey, Black or COR-TEN. Front also in stainless steel AISI 316L. IP67 and IK09 ratings mean this fitting can be used outside (with recessing box CSFB01) and is strong enough to take the weight of a human. The stainless steel finish is IK10 rated, which means it can be driven over.

See Related Products below.

IP67
Stainless Steel: IK10 (can be driven over)
Other finishes: IK09 (can be walked over)

1W 350mA
2W 500mA
Wired in series

Beam angle: 10°, 25°, 60° or 120°

CSFB01 recessing box:
Diameter:95mm H:75mm

Driver required - see 'You May Also Need' below
Constant Current Driver | No. units powered
L-Tech 20W 300-650mA CC Triac LED Driver | 2-18 units (1W)
L-Tech 20W 300-650mA CC Triac LED Driver | 2-9 units (2W)

Lamp type: 1W LED (350mA) or 2W LED (500mA)

Product dimensions: W.60mm x D.60mm x H.56mm

• Data Sheet PDF
• Install Instructions PDF
• Data Sheet Flexalighting Drivers PDF
• Bathroom Zones & IP Ratings Explained PDF
• Lighting File | FATBOY 2700K 10DG 350Ma IES
• Lighting File | FATBOY 2700K 10DG 500Ma IES
• Lighting File | FATBOY 2700K 25DG 350Ma IES
• Lighting File | FATBOY 2700K 25DG 500Ma IES
• Lighting File | FATBOY 2700K 60DG 350Ma IES
• Lighting File | FATBOY 2700K 60DG 500Ma IES
• Lighting File | FATBOY 2700K 120DG 350Ma IES
• Lighting File | FATBOY 2700K 120DG 500Ma IES
• Lighting File | FATBOY 3000K 10DG 350Ma IES
• Lighting File | FATBOY 3000K 10DG 500Ma IES
• Lighting File | FATBOY 3000K 25DG 350Ma IES
• Lighting File | FATBOY 3000K 25DG 500Ma IES
• Lighting File | FATBOY 3000K 60DG 350Ma IES
• Lighting File | FATBOY 3000K 60DG 500Ma IES
• Lighting File | FATBOY 3000K 120DG 350Ma IES
• Lighting File | FATBOY 3000K 120DG 500Ma IES
• Lighting File | FATBOY 4200K 10DG 350Ma IES
• Lighting File | FATBOY 4200K 10DG 500Ma IES
• Lighting File | FATBOY 4200K 25DG 350Ma IES
• Lighting File | FATBOY 4200K 25DG 500Ma IES
• Lighting File | FATBOY 4200K 60DG 350Ma IES
• Lighting File | FATBOY 4200K 60DG 500Ma IES
• Lighting File | FATBOY 4200K 120DG 350Ma IES
• Lighting File | FATBOY 4200K 120DG 500Ma IES
• Lighting File | FATBOY 6000K 10DG 350Ma IES
• Lighting File | FATBOY 6000K 10DG 500Ma IES
• Lighting File | FATBOY 6000K 25DG 350Ma IES
• Lighting File | FATBOY 6000K 25DG 500Ma IES
• Lighting File | FATBOY 6000K 60DG 350Ma IES
• Lighting File | FATBOY 6000K 60DG 500Ma IES
• Lighting File | FATBOY 6000K 120DG 350Ma IES
• Lighting File | FATBOY 6000K 120DG 500Ma IES

 Delivery

Delivery usually within 2-3 weeks

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
