Flexalighting Adan LED IP65 Recessed Directional Downlight

Description

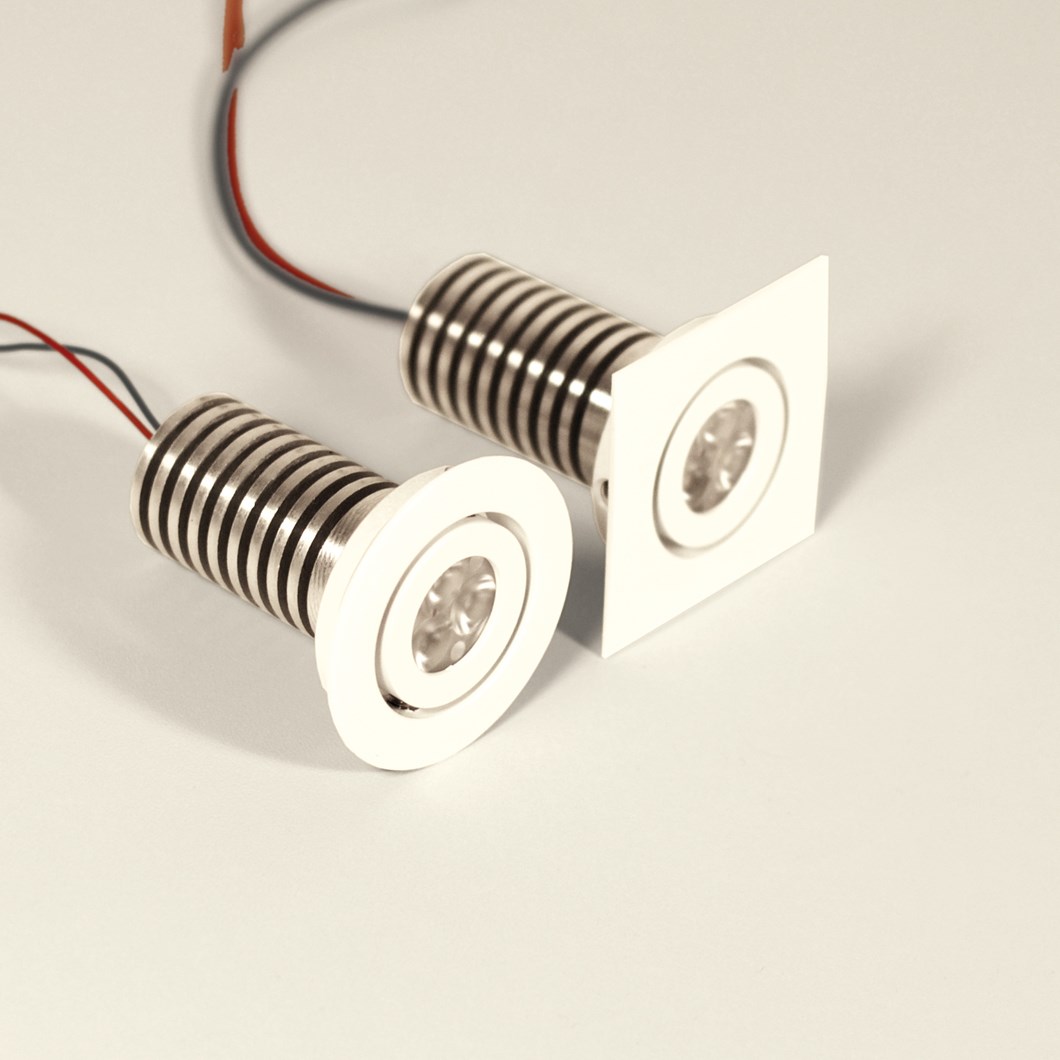

Adan LED IP65 ceiling or wall recessed adjustable downlights are extremely compact in size and combined with luminous fluxes that are suited to general lighting of residential environments and hotels. Thanks to its IP65 rating, it can be installed in interior, exterior and wet areas. Available in round or square optic versions and in 7 finishes. Optional glare guard available. CS1005 recessing box available for installation into brickwork or concrete.

IP65 rated, suitable for installation in bathroom zones 1, 2 and 3.

Driver and fire hood required - see Optional Items below.

Delivery usually in 1-2 weeks

Specification

IP65 - suitable for bathroom zones 1, 2 and 3
3W 350mA
6W 500mA
Wired in series
Spring fixing

25° adjustable tilt
18° or 40° beam angle

Circular 40mm cutout

CS1005 recessing box:
Diameter:70mm H:80mm

Driver not included - see Optional Items:
Constant Current Driver | No. units powered
Sunpower 350mA 18W  | 1-6 Adan (3W)
Sunpower 500mA 18W  | 1-3 Adan (6W)

Lamp type: 3W, 350mA or 6W, 500mA

Dimensions

Product dimensions: W.48mm x D.48mm x H.53mm x Diameter.48mm

Cutout dimensions: Dia.40mm

Downloads

• adan-datasheet-1.pdf
• adan-datasheet-2.pdf
• Adan-Energy-Label.pdf
• Flexa-Drivers-Datasheet27.pdf
• Darklight-Bathroom-Zones30.pdf
• ADAN 18DG 3000K 350mA.ies
• ADAN 18DG 3000K 500mA.ies
• ADAN 40DG 3000K 500mA.ies
• ADAN 40DG 3000K 350mA.ies
• ADAN 18DG 3000K 350mA.ldt
• ADAN 18DG 3000K 500mA.ldt
• ADAN 40DG 3000K 350mA.ldt
• ADAN 40DG 3000K 500mA.ldt

Delivery and warranty

Delivery usually within 1-2 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
