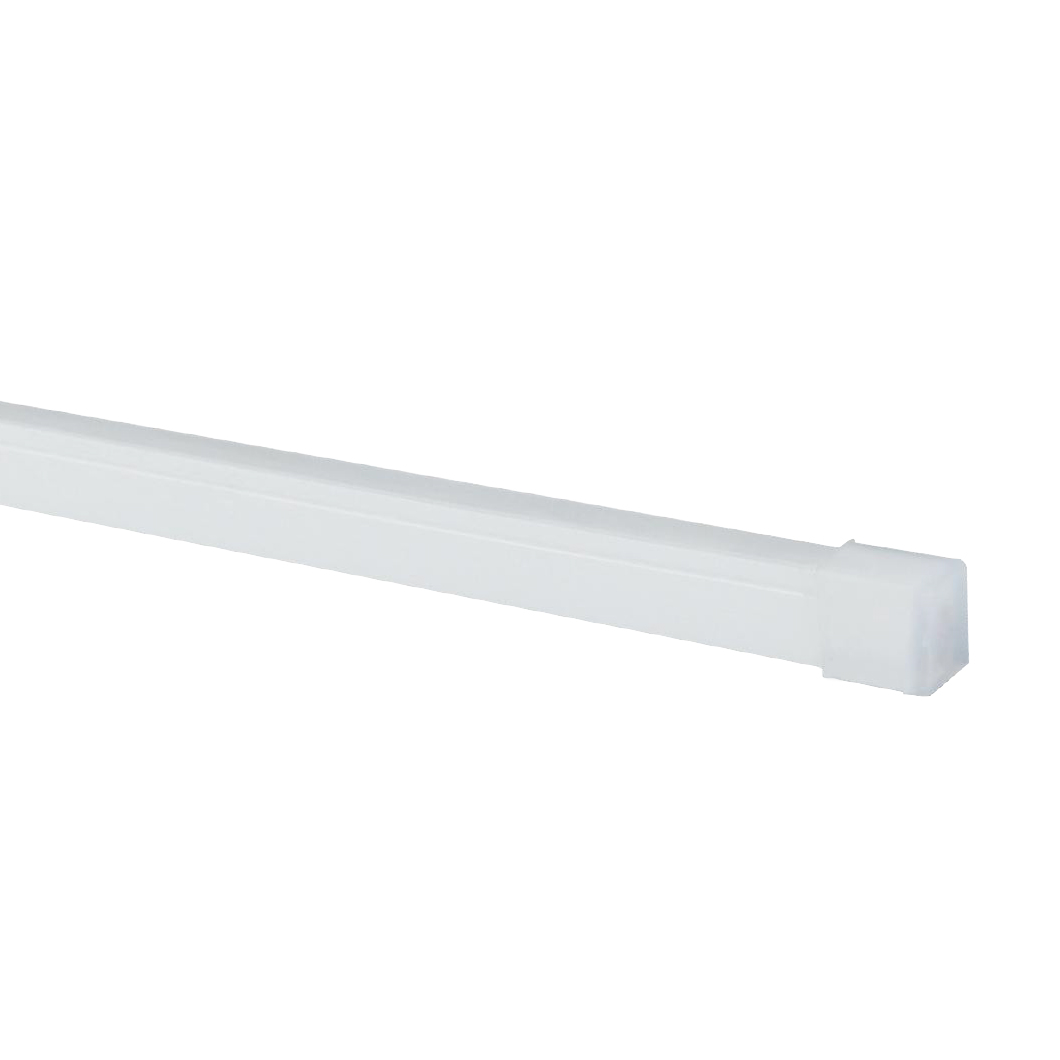

DLD Lightflow Infinity Side View CRI90 IP66 14.4W Linear LED Tape

Manufacturer: DLD Architectural

£95

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

DLD Lightflow Infinity is our flexible linear LED tape - simply bend it to fit the shape. DLD Infinity range uses Neon tape, a waterproof IP66 tape providing outstanding heat dissipation and efficiency, whilst maintaining a small size and light weight. With dimensions of 11mm x 6.5mm, Lightflow Infinity is suitable for use with most profiles. Available with a choice of 2700K and 3000K temperatures, with 4000K and 5000K versions available on request with a 4 week lead time. Supplied in a 5m or 10m roll with self adhesive on the back, the tape can be cut every 7mm making it extremely versatile.

Suitable for use in architectural and residential projects, back-lighting signage, arch edge lighting, residential or commercial applications and even car decoration. IP66 - suitable for indoor and outdoor use.

Dimmable by 0-10V, PWM, TRIAC and DALI depending on driver - not supplied.

Wireless dimming from your smartphone

This Lightflow linear LED can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Orders placed before midday are delivered next working day if in stock

If not in stock delivery is usually 4 weeks

Recommended for installation with an aluminium profile, as this acts as a heat sink and prolongs the lifespan of the LED tape.

Specification

Electrical Data
Light Beads: 2835
Number Led/M: 140pcs
Voltage: 24V DC
Power (±10%): 14.4W/m
Power (W/0.5m): 4.8
Lumens per Watt: 30lm/W
Lumens per 1m: 432lm
PCB width: 8mm
Standard length(10% voltage drop): 5m
Cut size: 7mm
Trimmable: 50mm

CCT: 2700K | 3000K
IP66
CRI: >90

Standards / Normative Requirements
Protection class : EN 60529
Safety Requirements : EN 62031 IEC 60598-1
EMC / radio disturbance characteristics: EN 55015
ROHS: Yes
CE: Yes

Dimmable by 0-10V, PWM, TRIAC and DALI - driver not included

Lamp type: Neon 140 LED Chip

Dimensions

Product dimensions: D.11mm x H.6mm

Delivery and warranty

Delivery varies for each product, please see product description

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
