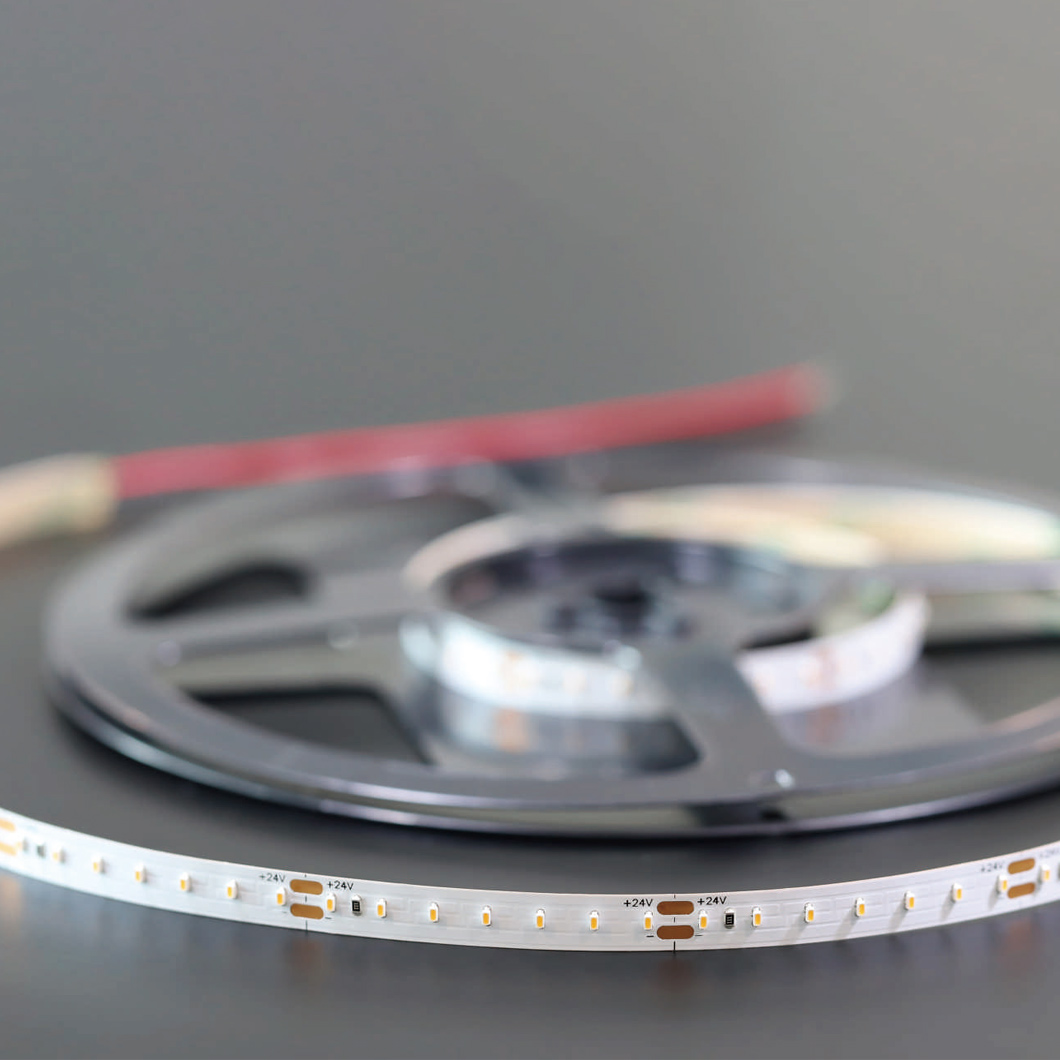

Roll of DLD Lightflow IP66 9.6W dimmable LED Tape
Dimensions diagram for DLD Lightflow LED Tape 9.6W IP66
DLD Lightflow 9.6W IP66 True Colour CRI98 Linear LED Tape - Next Day Delivery| Image : 1
DLD Lightflow 9.6W IP66 True Colour CRI98 Linear LED Tape - Next Day Delivery| Image:0
DLD Lightflow 9.6W IP66 True Colour CRI98 Linear LED Tape - Next Day Delivery| Image:1
Roll of DLD Lightflow IP66 9.6W dimmable LED Tape
Dimensions diagram for DLD Lightflow LED Tape 9.6W IP66

DLD Lightflow 9.6W IP66 True Colour CRI98 Linear LED Tape - Next Day Delivery

Manufacturer: DLD Architectural

£221

One tree planted
Trustpilot Rating
Free UK delivery
Next Day Delivery
365 Day returns

View product details

Description

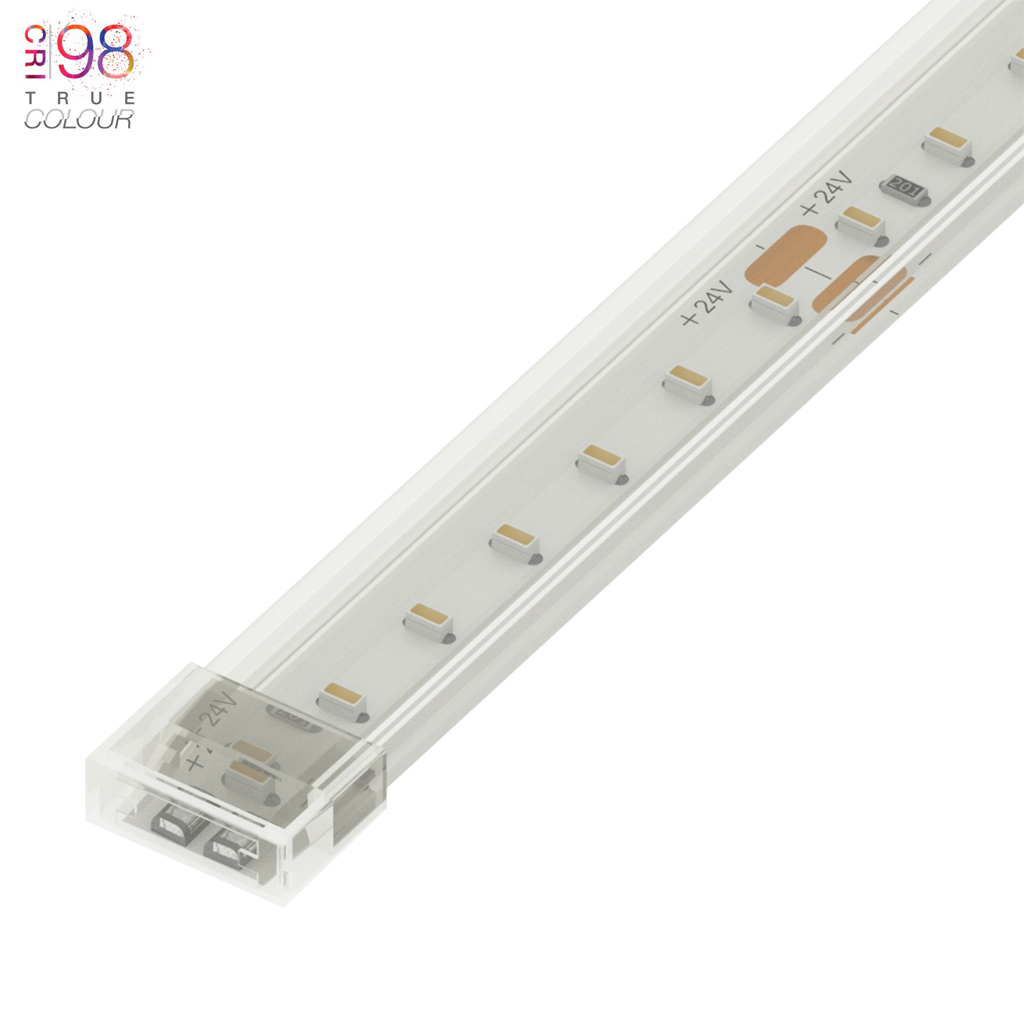

With a water-tight silicon covering and an IP66 rating, the DLD Lightflow high CRI linear LED tape is perfect for creating contemporary light effects in bathrooms and outdoor lighting projects. Offering a soft and home warming amber light colour temperature of 2700K, a warm 3000K or a crisp 4000K, the Lightflow LED strip emits a dependable 816 lumens per metre and a wide 115° beam angle. A slim width of 8mm makes Lightflow suitable for use with most profiles. Running at 9.6W per metre, 24V and with 140 LEDs per metre. Supplied in a 5m roll with 3M self adhesive on the back, the tape can be cut every 7 LEDs (50mm) along the cut mark.

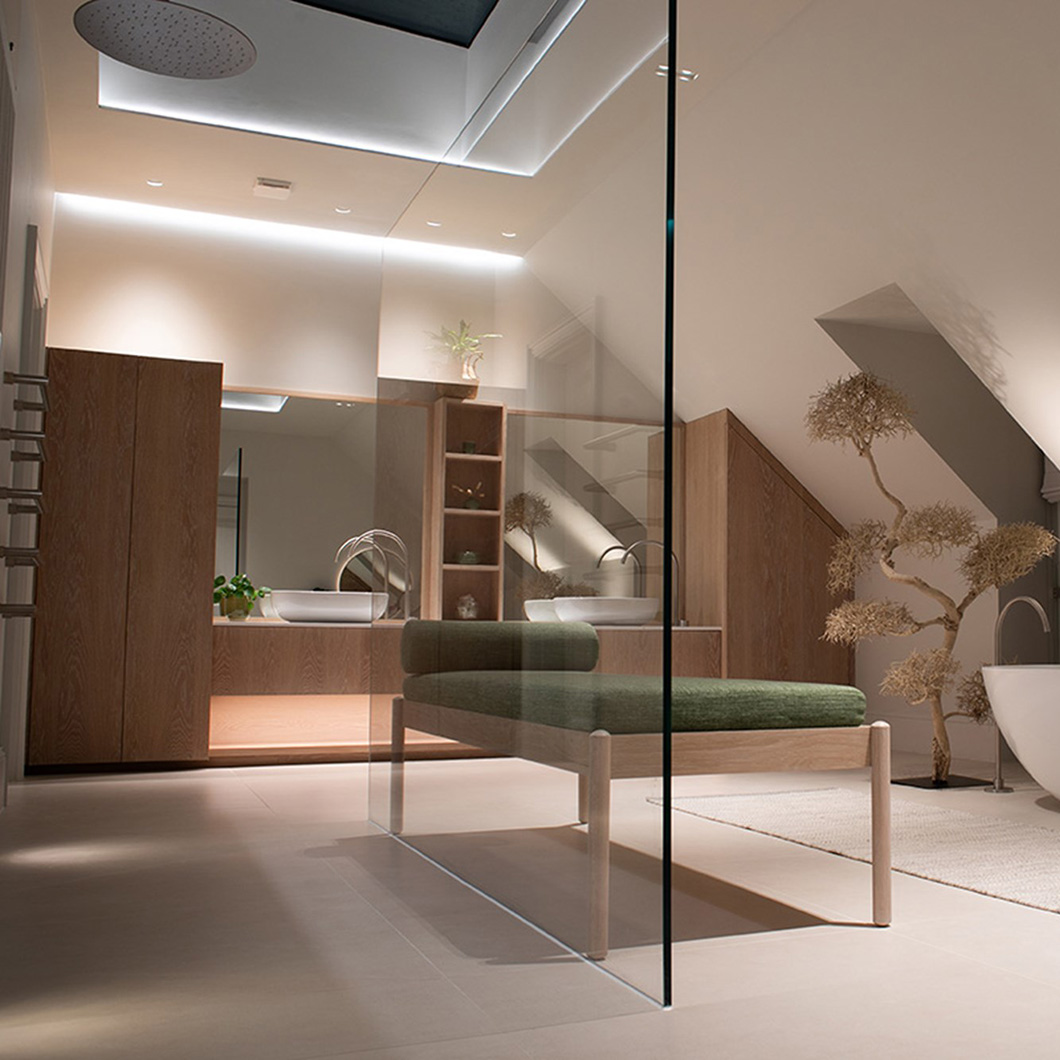

Suitable for use in both architectural and residential outdoor lighting schemes, and for installation in bathroom zones 1, 2 and 3. Also available in standard IP20 versions.

Dimmable by 0-10V, PWM, TRIAC and DALI depending on driver - not supplied.

Wireless dimming from your smartphone

This Lightflow linear LED can also be used with the Casambi dimming units to give flexible control of the lighting in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Usually in stock with quick delivery.
If not in stock delivery is usually 4 weeks.

Recommended for installation with an aluminium profile, as this acts as a heat sink and prolongs the lifespan of the LED tape.

Specification

Voltage: 24V DC
Power (±10%): 9.6W/m
Lumens per Watt: 85lm/W
Lumens per Metre: 816lm/m
LED quantity: 140 LEDs/m
PCB width: 8mm
Cut size: 50mm (every 7 LEDs)
Maximum length (10% voltage drop): 5m

IP66 - suitable for bathroom zones 1/2/3 and outdoors
High CRI: 98
R9: >60
DUV: ±0.0033
Beam radiance angle: 115.5°
3M adhesive tape

Dimmable by 0-10V, PWM, TRIAC and DALI - driver not included

Lamp type: 2110 SMD 140 LED/m

Dimensions

Product dimensions: W.5000mm x D.8mm
