- Description
-

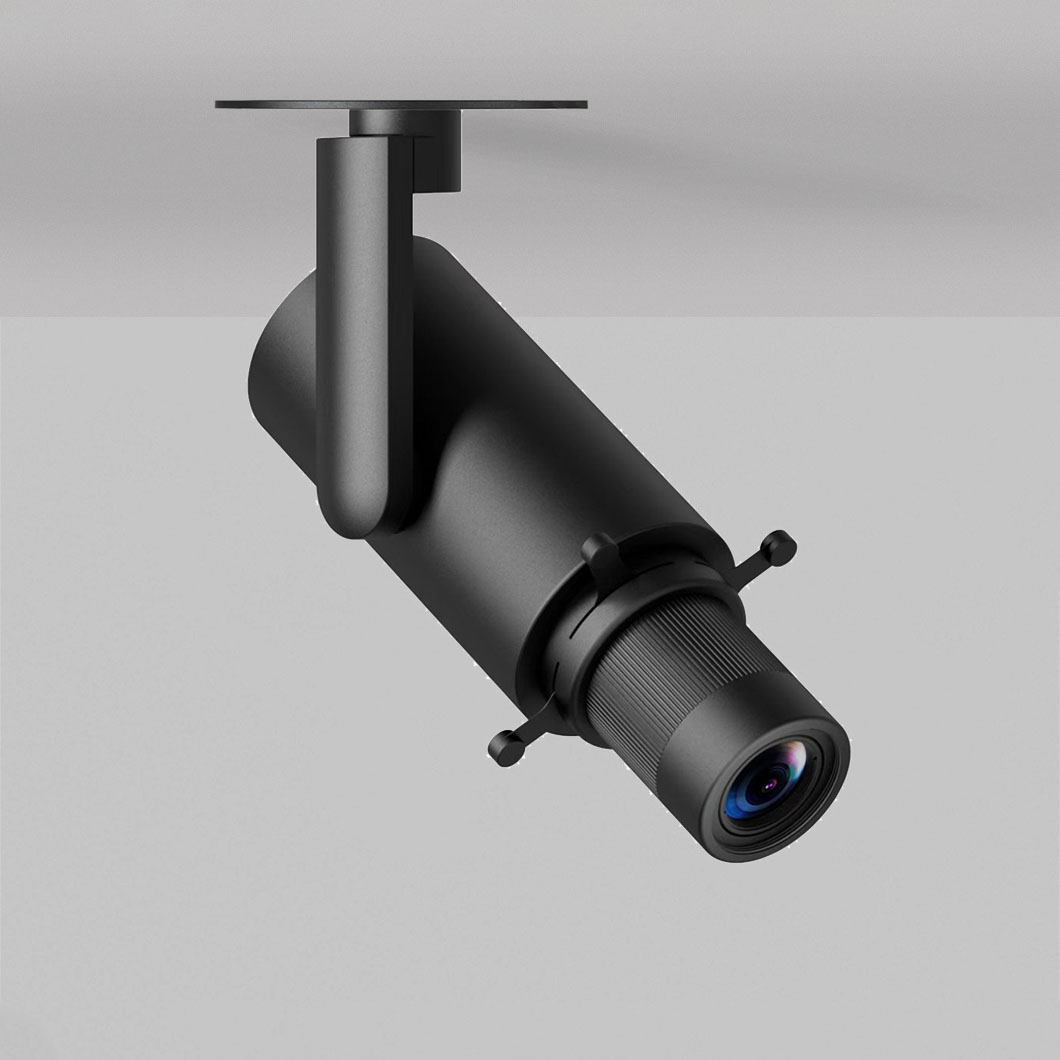

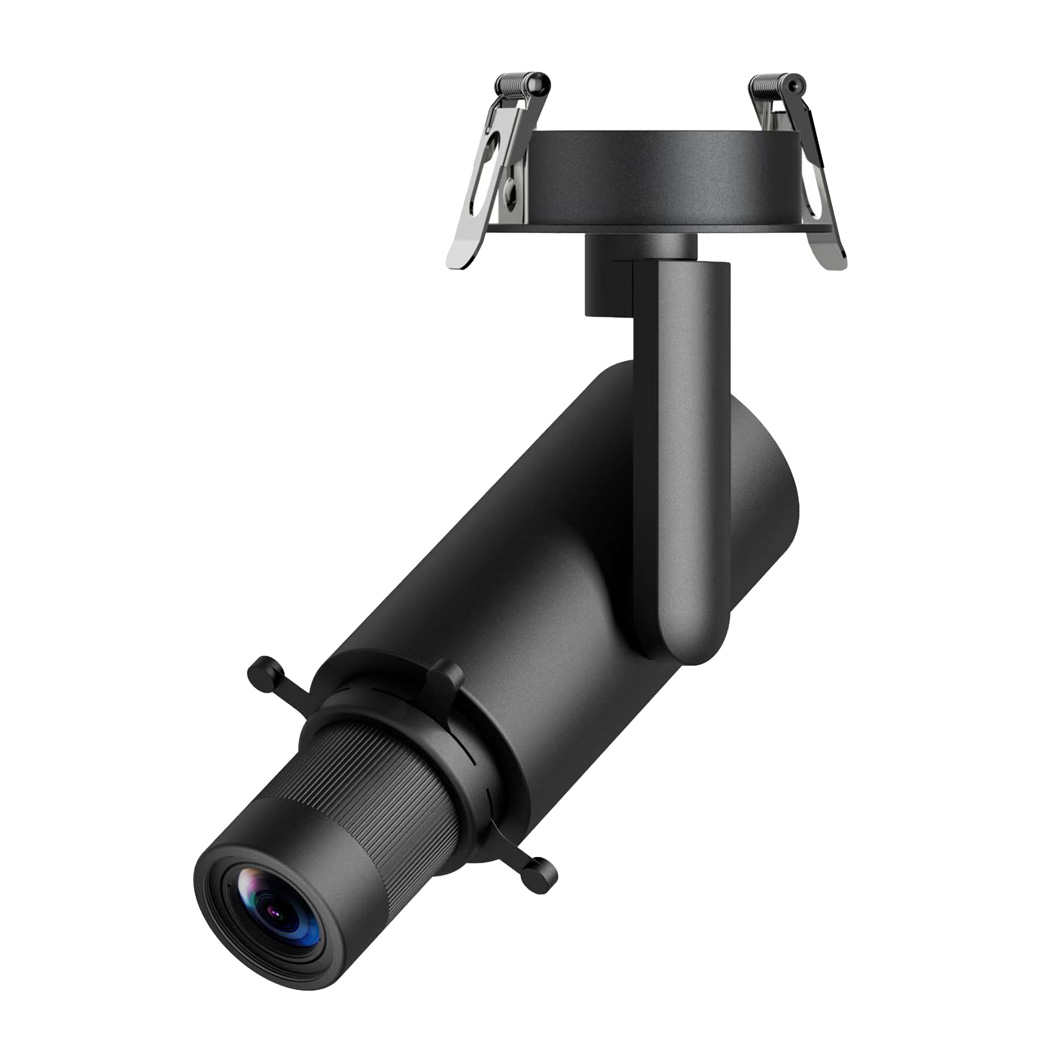

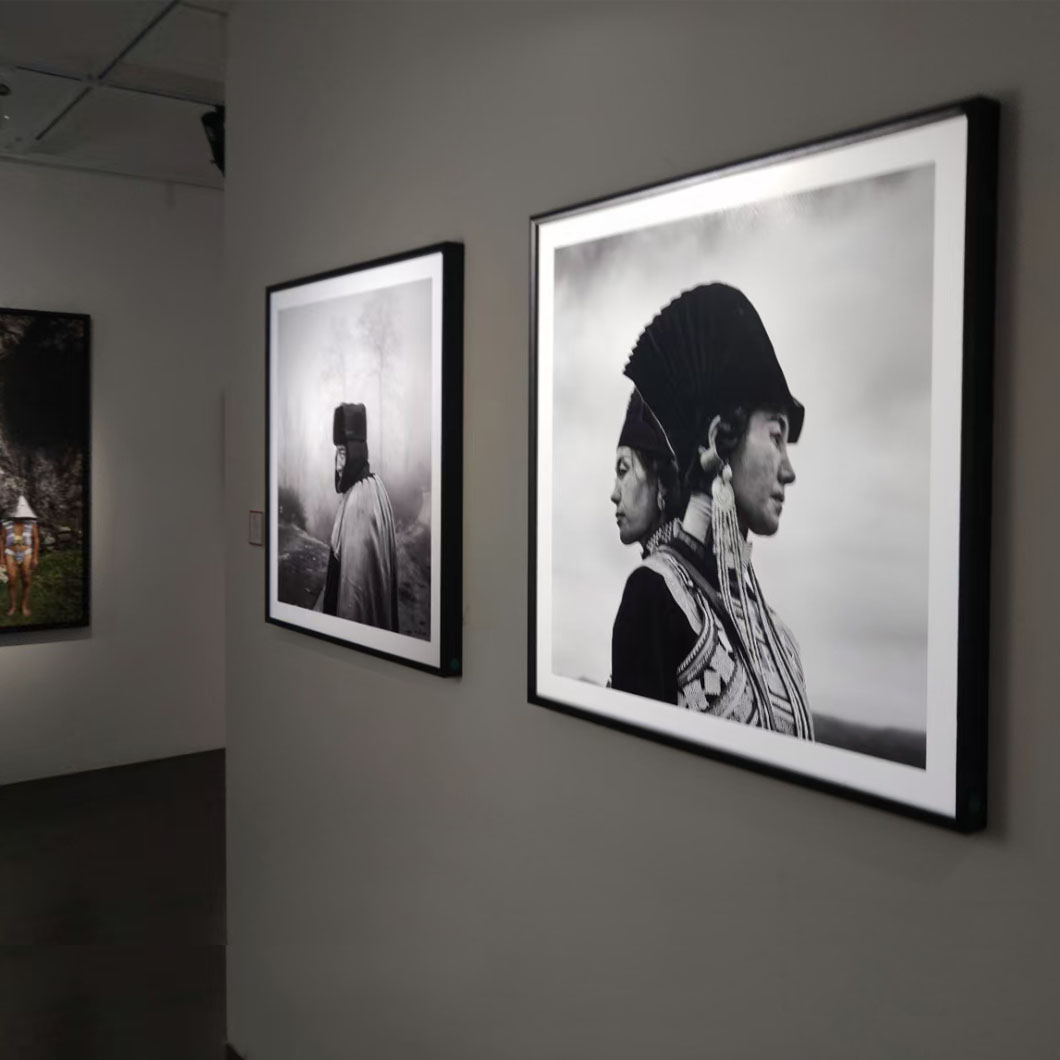

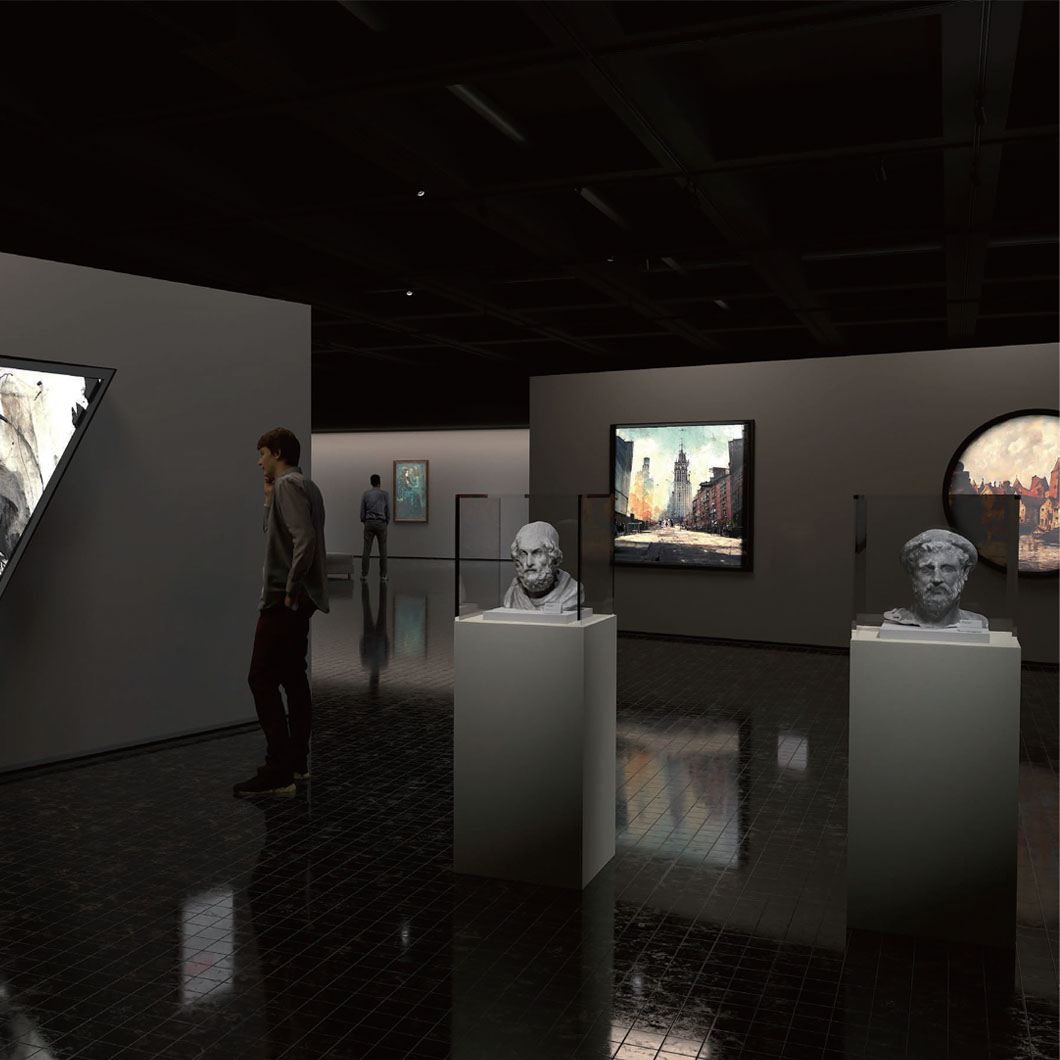

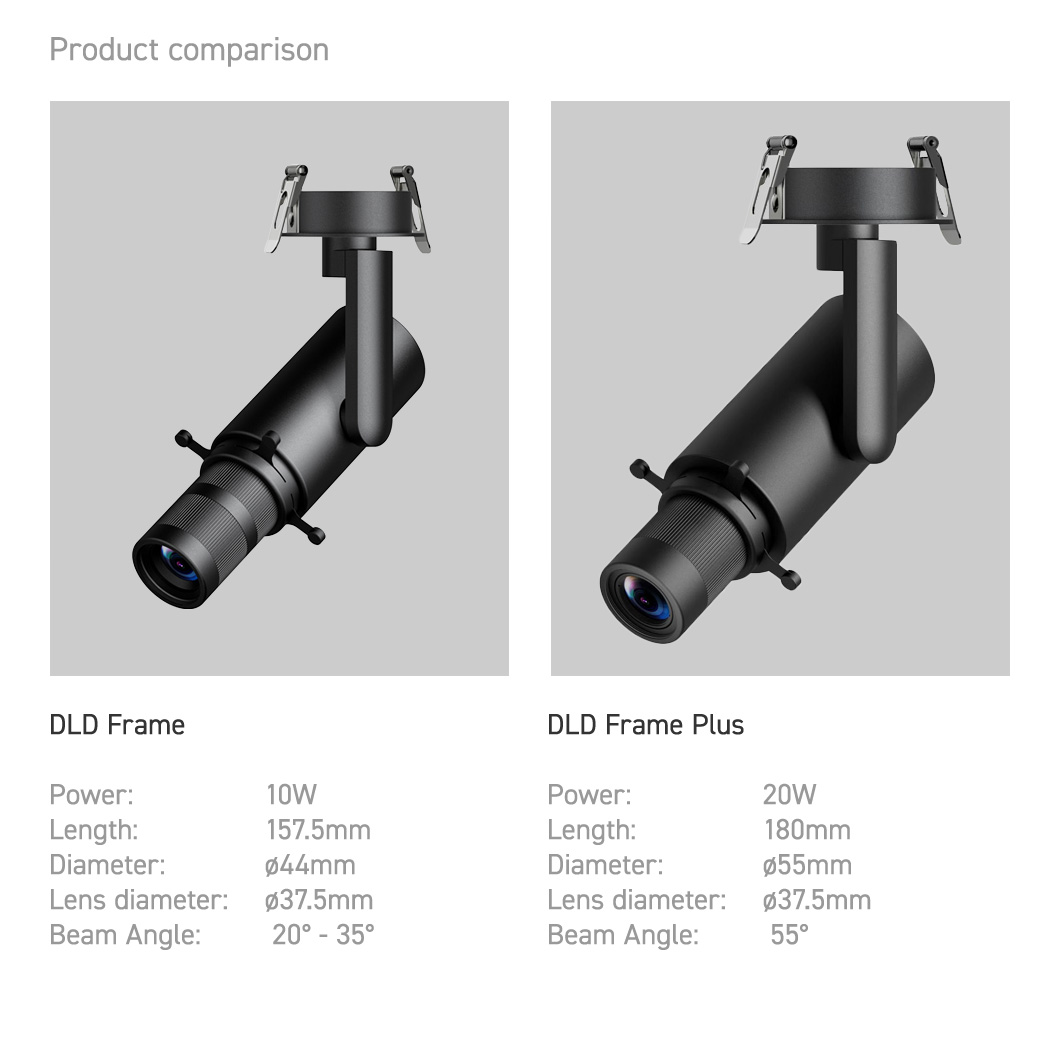

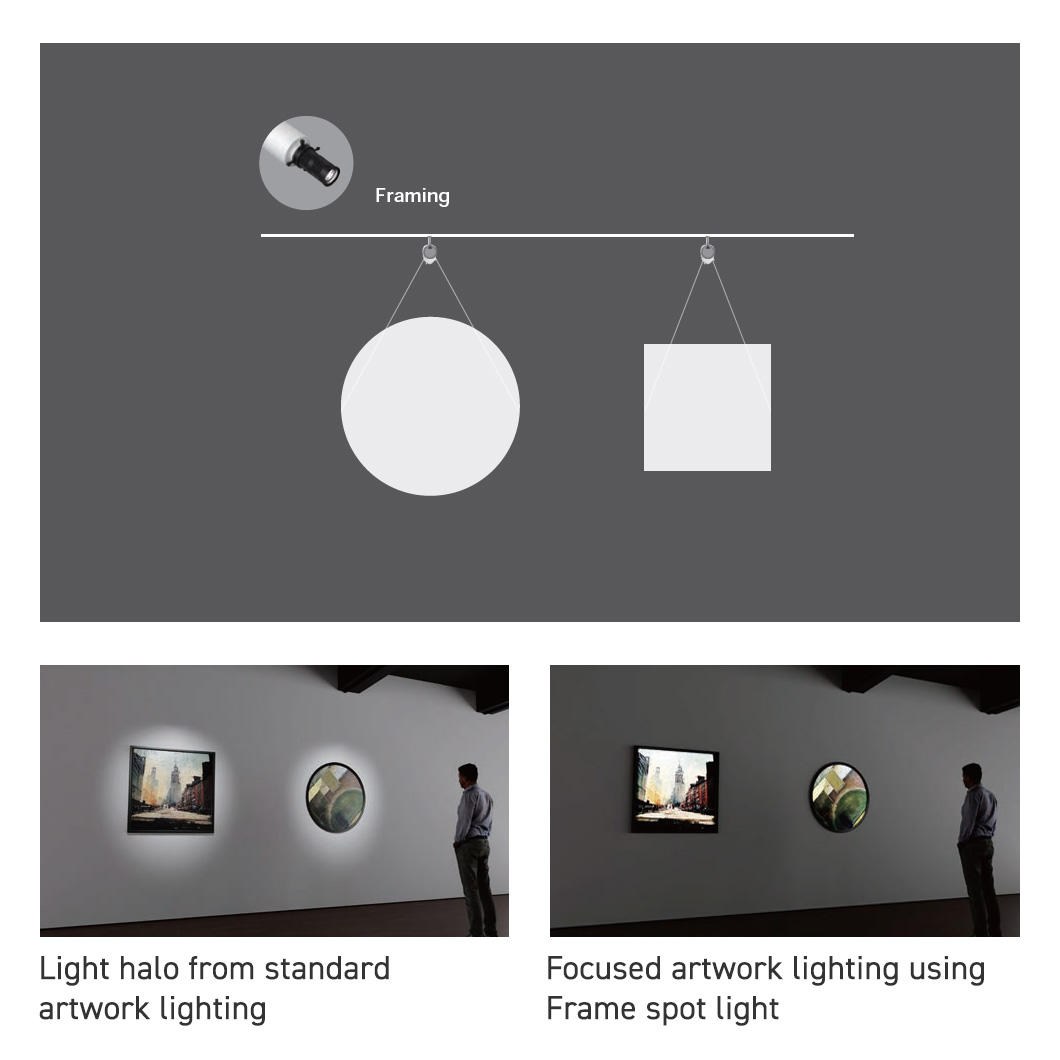

The higher power DLD Frame Plus semi-recessed spot is perfect for museums, galleries or for the home. Powered at 20W compared to the standard DLD Frame which is 10W, Frame Plus is specifically designed for lighting artwork from a greater distance. With an adjustable tilt of 90° and rotation of 355°, the DLD Frame Plus also boasts a wider 55° projection beam angle. Baffle and lens unit in black, whilst the body and housing is available in black or white. Choose from warm white 2700K or cooler white 3000K colour temperatures depending on usage.
Integral driver supports phase/mains dimming.
For optimal install distances see the Specifications tab below.
For the rest of the DLD Frame family, see 'More Like This' below.
- Specification
-
Power: 20W
250mA
Integral Driver: phase/mains dimmable
Optic: Lens

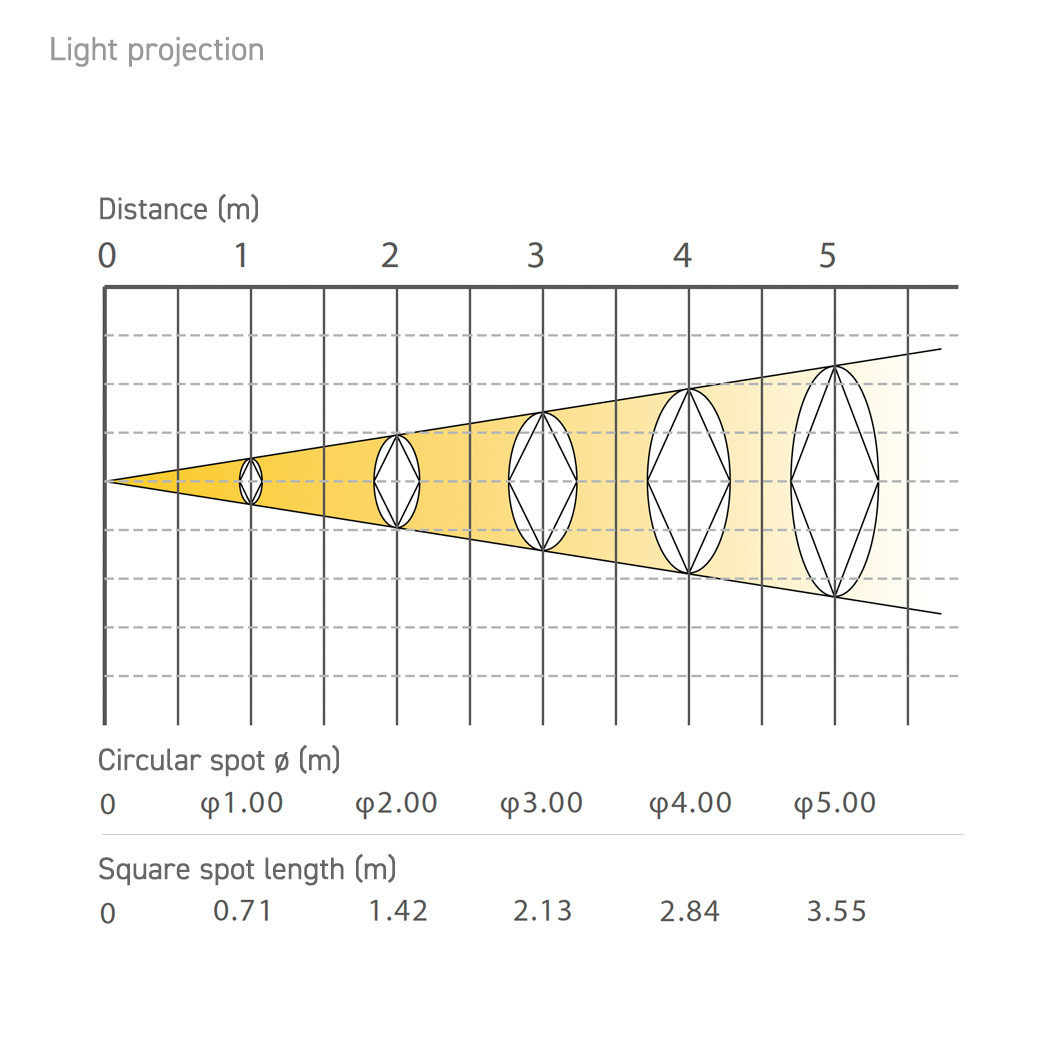

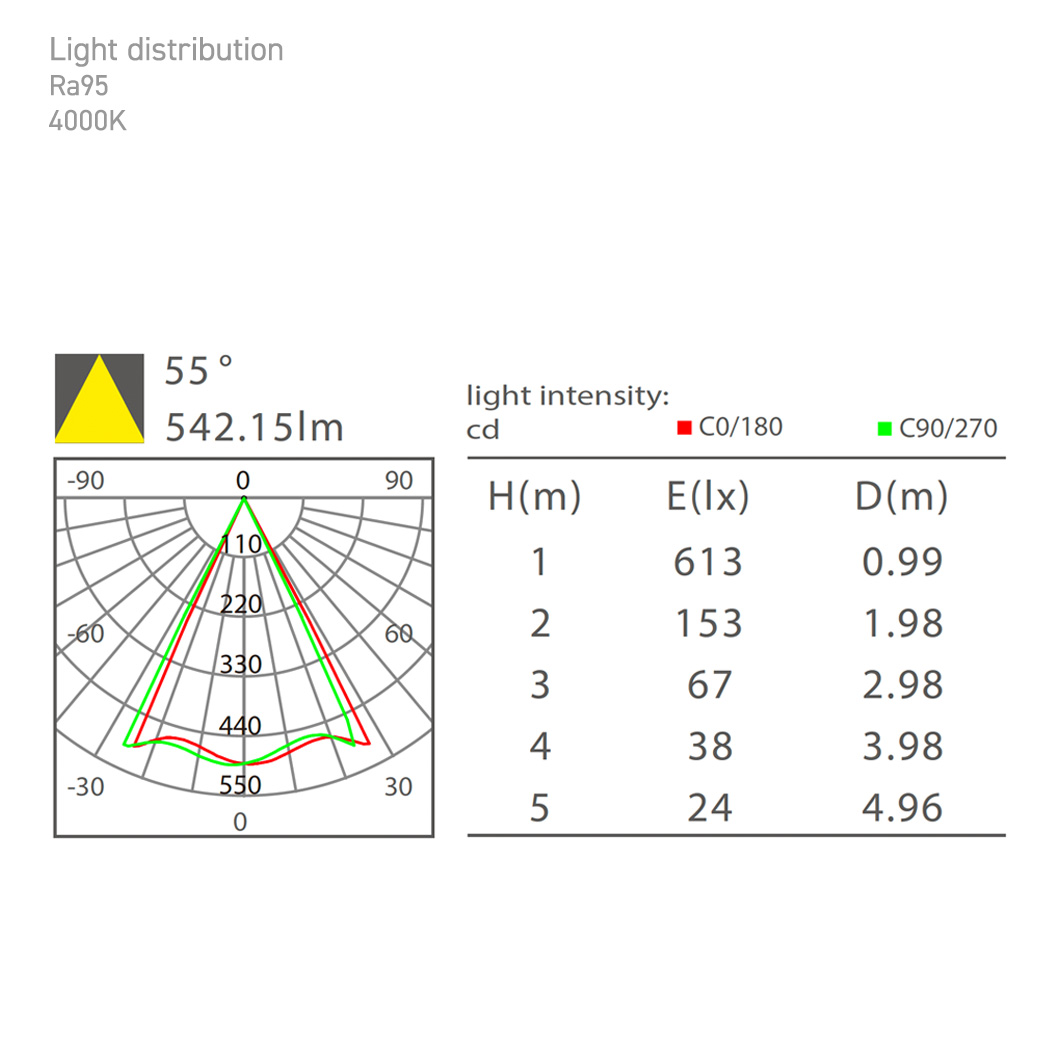

Beam Angle: 55°
CRI: >95
CCT: 2700K | 3000K
Chromaticity Tolerance: 3 MacAdam
IP Rating: IP20
Class: Class III
Finish: Black | White
Housing Material: Aluminium Die Cast
LED Lifespan: 50,000h
Warranty: 5 years
Optimal installation distances:
- Artwork A: H.2675mm x W.2489mm x D.75mm | Distance 3.7m
- Artwork B: H.1575mm x W.2075mm x D.40mm | Distance 2.6m
- Artwork C: H.2458mm x W.1238mm x D.unknown | Distance 2.9m
- Artwork D: H.1996mm x W.1523mm x D.35mm | Distance 2.6m
Lamp type: 20W LED | Integral driver
- Dimensions
-

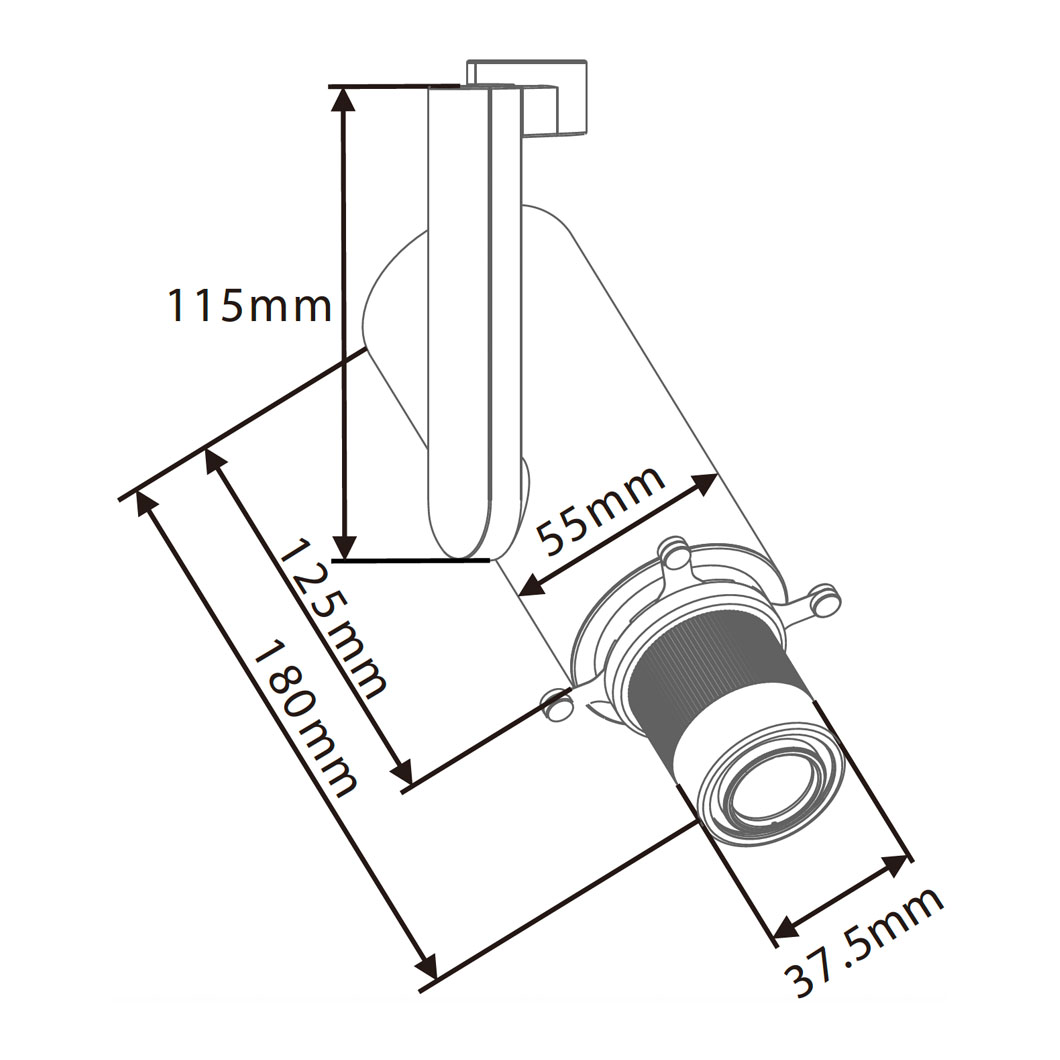

Product dimensions: H.180mm x Diameter.55mm
Lens dimensions: Dia.37mm
- Delivery and warranty
-
Delivery
Delivery varies for each product, please see product description
- About the manufacturer
-
Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
For more information on our products and services please call 01189 882294 or email [email protected].
