- Description
-

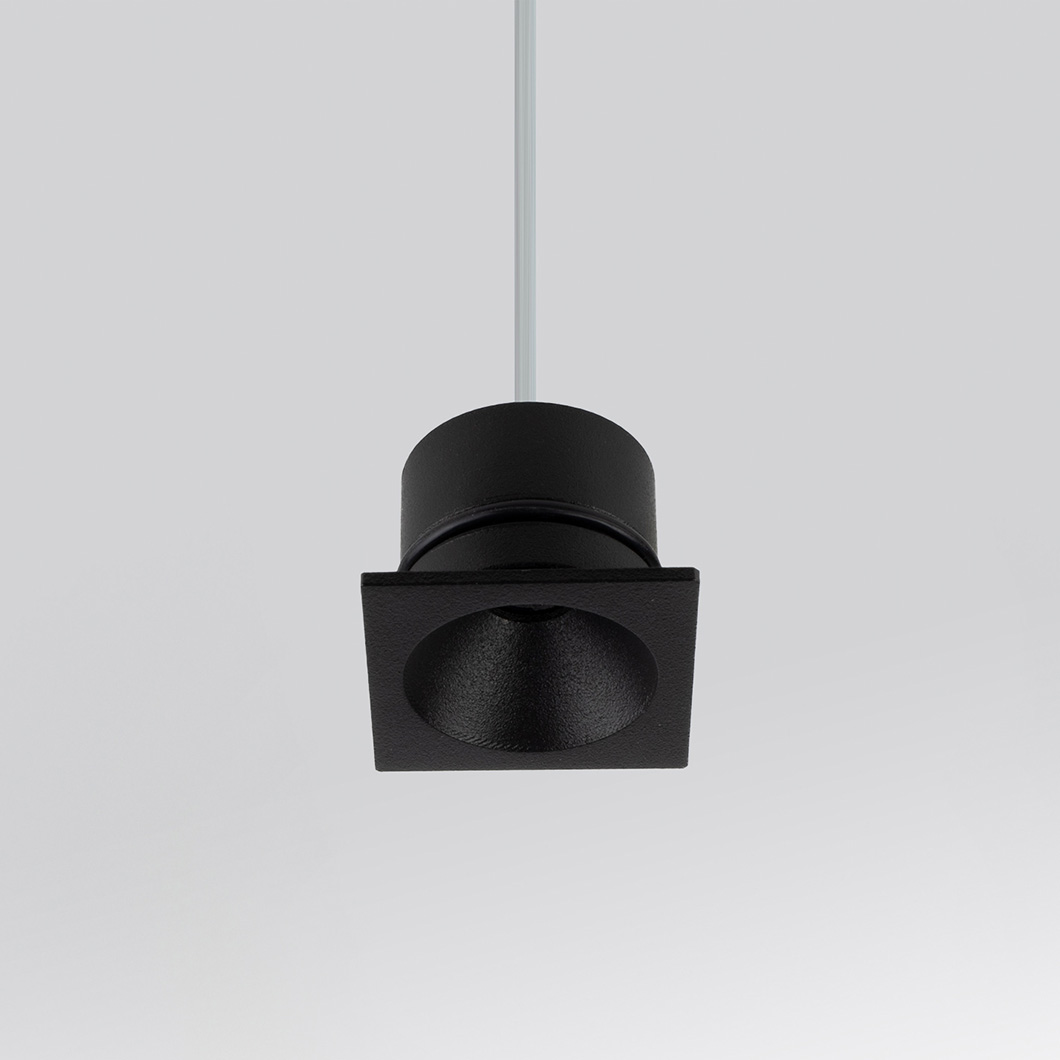

The LLD Demetra square is a lighting solution as a niche light for ceiling or false ceiling installations, suitable for illuminating shop windows, displays, bookcases, shelves, steps and more. Crafted from anti-corrosive aluminium and a PMMA lens. With a square bezel at 30x30mm, choose between 3 finishes: anodised aluminium, chrome-plated or matt white.
Equipped with an energy efficient integral 1-2W LED light source at either a narrow 15°, medium 28° or wide 60° beam angle. Constant current and wired in series with a choice of 2700K, 3000K, 4000K or 5000K light temperatures.
Supplied with a 250mm cable. Can be installed in plasterboard or wood using the spring, or installed into brickwork using the housing box. Round version also available.
350mA or 500mA driver required. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP40
1W (350mA driver) or 2W (500mA driver)
Class III
Cutout: Ø25mm
250mm cable
Push, 1-10V, DALI, DMX and phase cut dimmable
Constant current - wired in series
350mA (1W) or 500mA (2W) driver required
CCT | Lumens (1W-2W)
2700°K | 105-146lm
3000°K | 111-155lm
4000°K | 125-172lm
5000°K (on request)
Beam angle: 15° | 28° | 64°
Optional spring (ML025): W.56mm D.19mm
Optional housing box (CAE25): Ø29mm D.53mm
Lamp type: Integral LED: 1x 1W/2W, CRI90+
- Dimensions
-

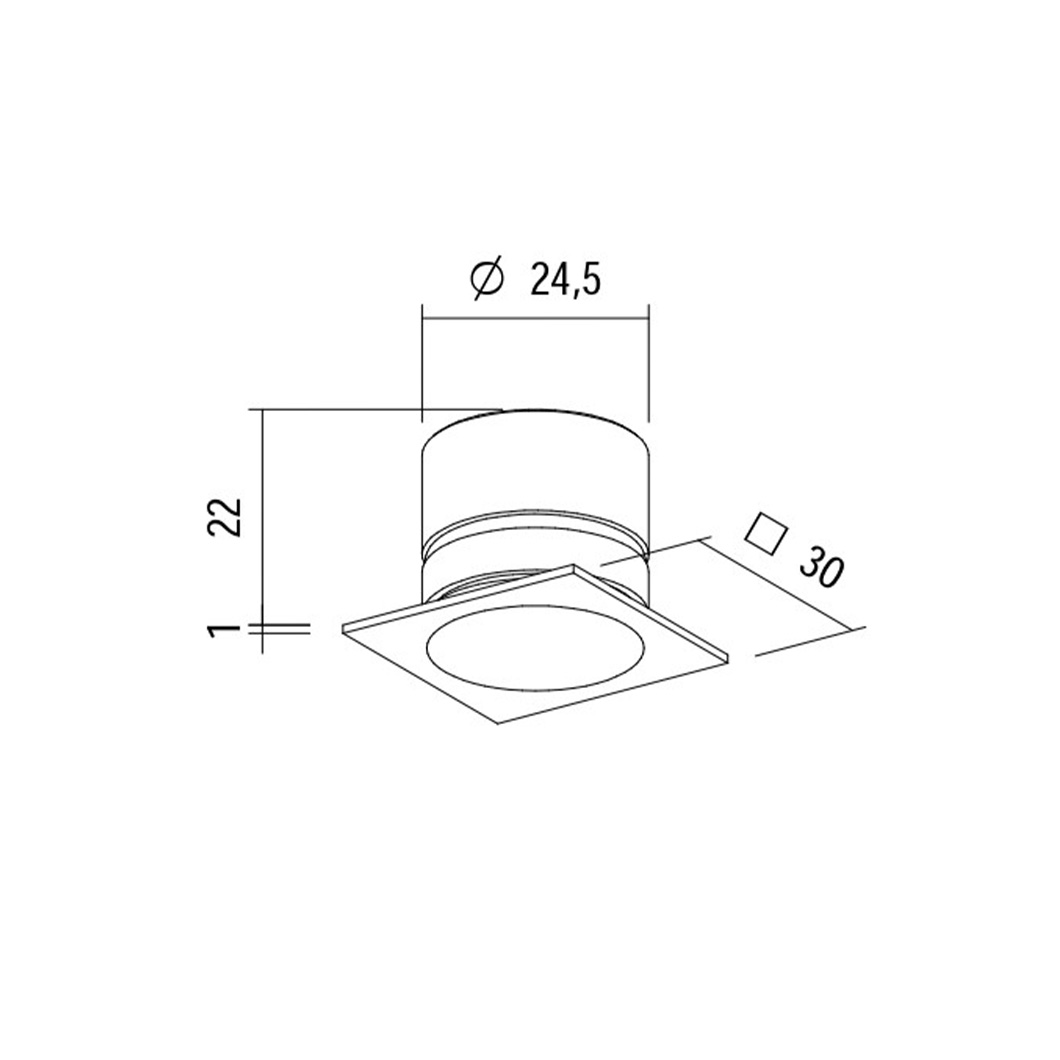

Product dimensions: W.30mm x D.30mm x H.22mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
