- Description
-
Recessed low power emergency light, the Dot CR is designed as a self-contained emergency luminaire with a primary role of illuminating escape and fire routes in the event of mains power failure. Featuring an integrated energy-efficient LED light module with offers a light output of 450lm, Dot CR is perfect for modernisation of an existing safety light installation. Available with a choice of 4 optical options - general narrow, general wide, corridor narrow or corridor wide. A built-in Li-ion battery provides an emergency operating time of 1 hour or 3 hours. Autotest (AT) version available. Finished in white or black.

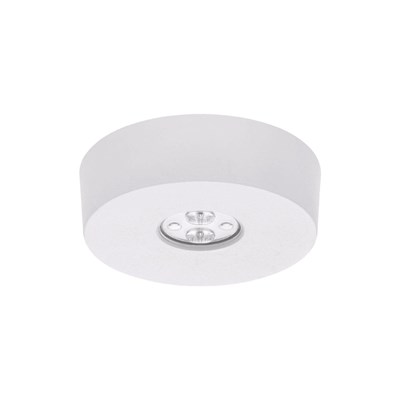

Dot CS surface mounted also available.
- Specification
-
Ingress protection: IP20 / IP65
Impact resistance: IK07
Rated power: 3W
Luminous flux: 450lm
Colour temperature: 4000K
Material: PC
Diffuser material: PMMA
Diffuser type: lens
Optics material: PC
Beam angle [°]: CRCHB | CRCLB | CRHB | CRLB
Battery: Li-Ion
Operating mode: NM
Working temperature: from +5 to +35°C
Mounting version: recessed
Dimensions: ø135mm D.30mm
CNBOP certificate: 4958/2023
Due to the amount of versions available, LDT Lighting files available on request
Lamp type: Integrated LED | 3W | 450lm | 4000K
- Dimensions
-
Product dimensions: D.30mm x Diameter.135mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery approximately 3-4 weeks
Warranty
Supplied with 5 year warranty
