- Description
-
The Shot Light Surface LED Ceiling Light by Arkoslight conceals its light source, using an anti-glare screen to offer maximum visual comfort. The luminaire also features a specially designed micro-reflector that generates a perfectly defined beam of light. The S model has a diameter of 57mm and a height of 67mm, making it a discreet, minimal addition to an interior.

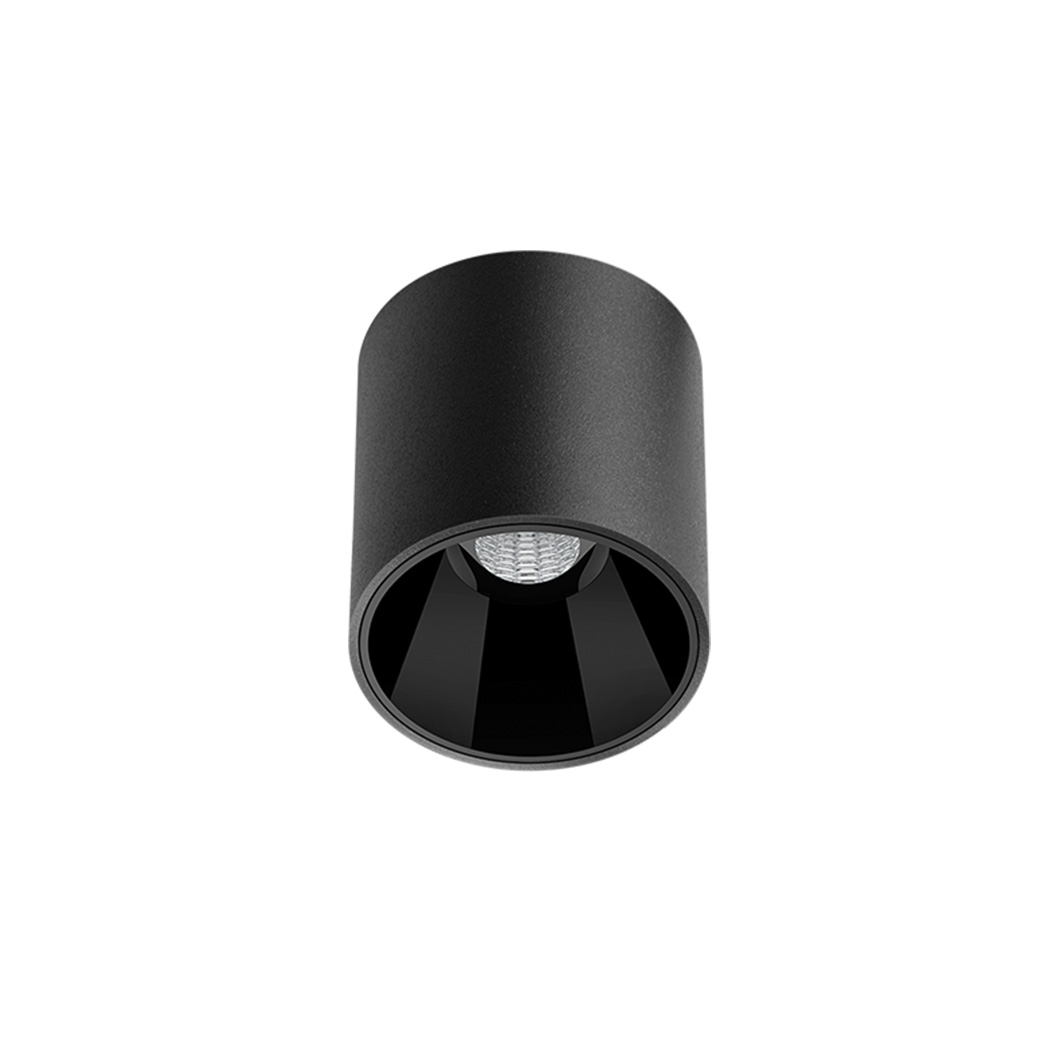

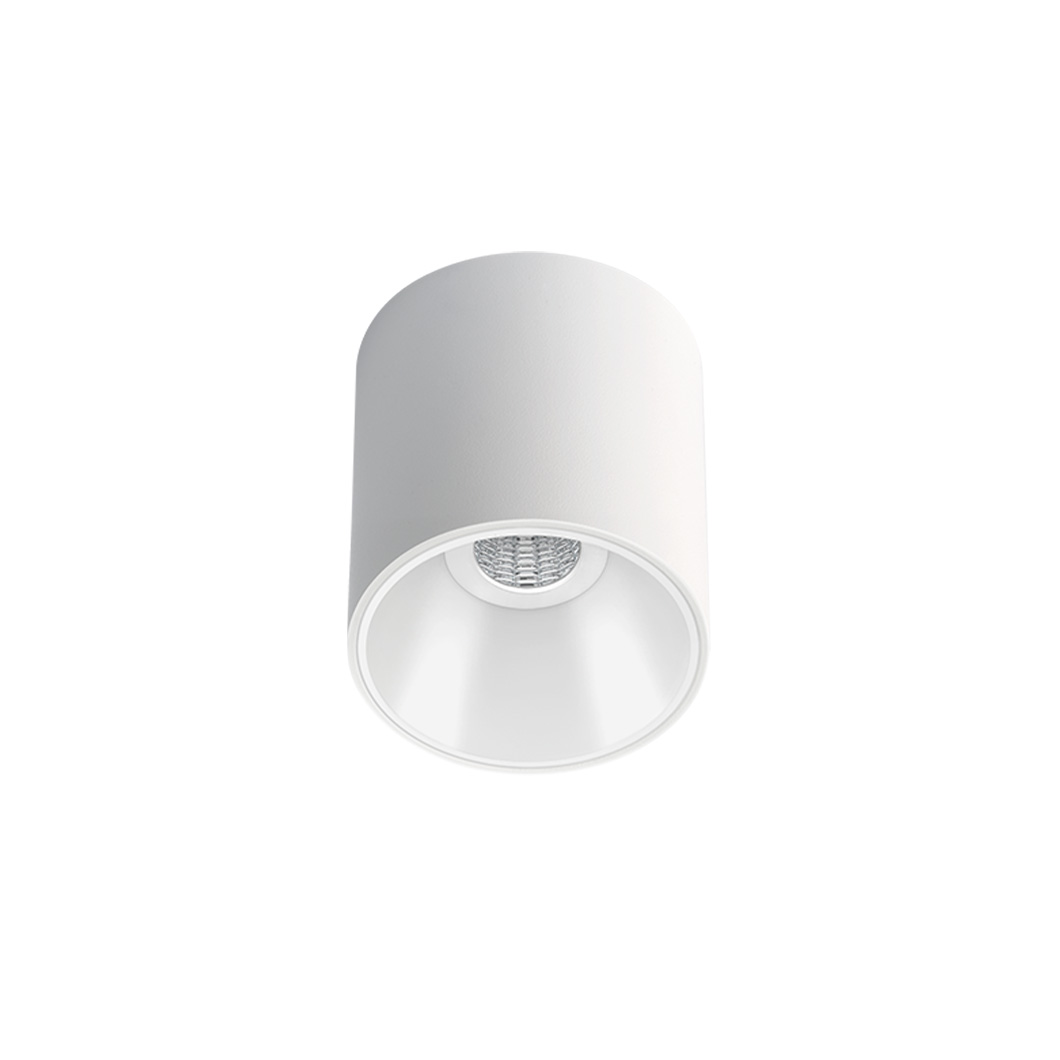

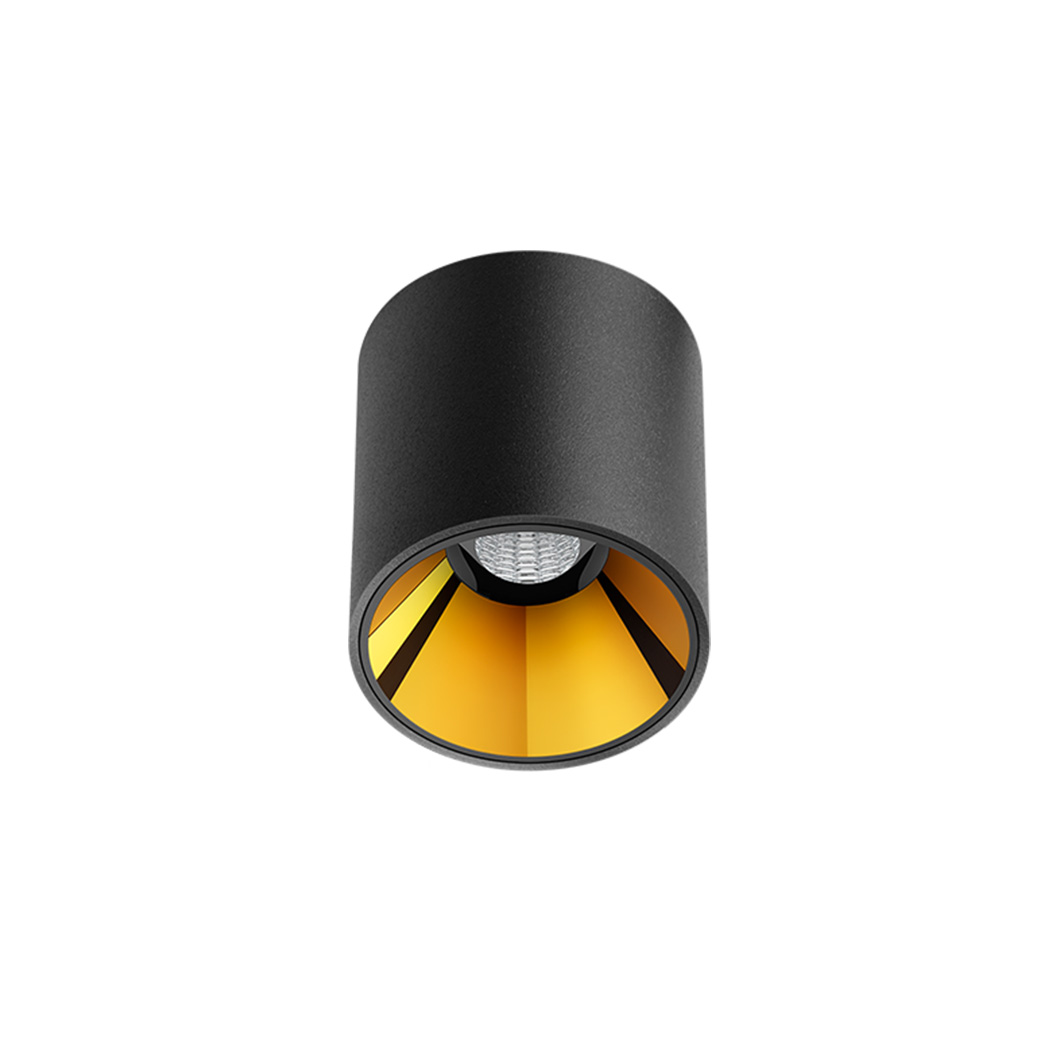

The Shot Light S Surface is powered by an LED light source, available in 4W, 6W, or 9W variants. Adapt the precision of your lighting with a narrow 23° beam angle, or a wider 39°. The surface-mounted ceiling light is available in 4 colour temperatures: 2700K, 3000K, 3500K, 4000K. Finally, select between 4 finishes: all black, white with black interior, all white, or black with gold interior.
This fixture is dimmable via DALI or DALI-PUSH. Remote driver required.

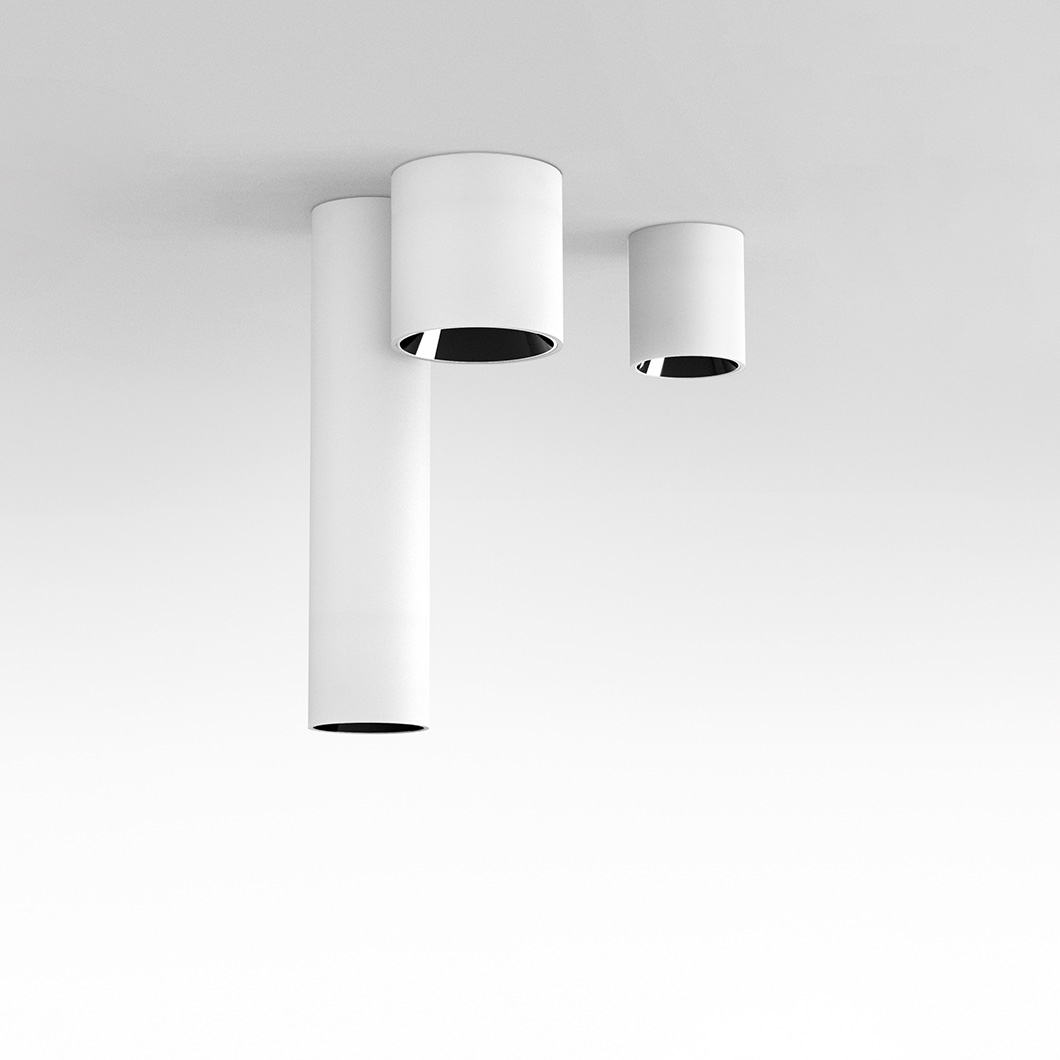

Find similar items in the Shot Light family in our 'More Like This' section below.
- Specification
-
IP20
Materials:
Aluminium / Acrylonitrile Butadiene Styrene / Polycarbonate
Shot Light S 4W
2700K 470lm
3000K 490lm
3500K 510lm
4000K 520lm
350mA
Beam angle: 23° / 39°
Remote driver required
Non-dimming / DALI / DALI - PUSH
Shot Light S 6W
2700K 620lm
3000K 650lm
3500K 680lm
4000K 690lm
500mA
Beam angle: 23° / 39°
Remote driver required
Non-dimming / DALI / DALI - PUSH
Shot Light S 9W
2700K 790lm
3000K 820lm
3500K 860lm
4000K 880lm
700mA
Beam angle: 23° / 39°
Remote driver required
Non-dimming / DALI / DALI - PUSH
Drivers
ON/OFF:
42W 350mA - 1-3 4W Shot Light S Surface
42W 500mA - 1-3 6W Shot Light S Surface
42W 700mA - 1-3 9W Shot Light S Surface
DALI:
32W 700mA - 1-3 Shot Light S Surface
DALI/PUSH:
50W 700mA - 1-3 Shot Light S Surface
Lamp type: LED 4W / 6W / 9W
- Dimensions
-

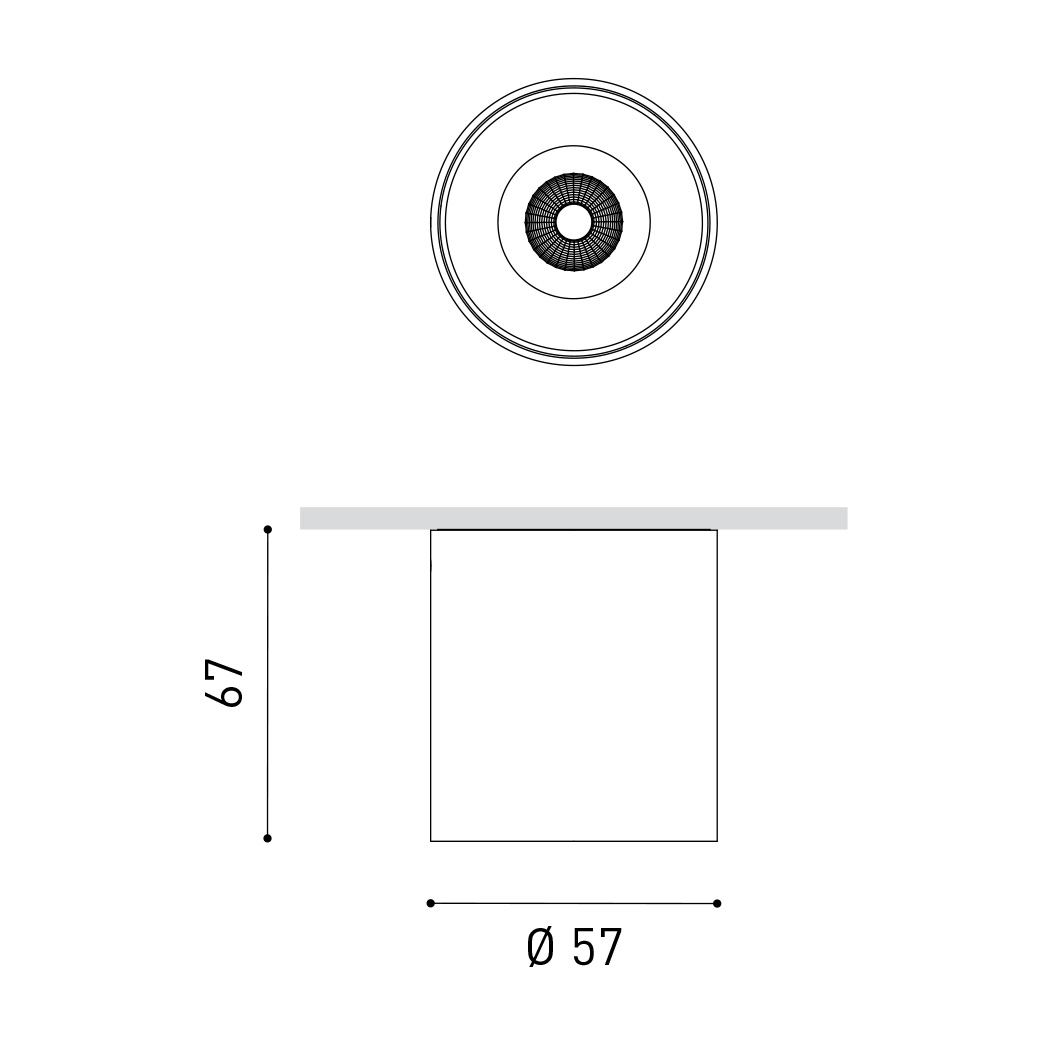

Product dimensions: H.67mm x Diameter.57mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery usually in 3-4 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
- About the manufacturer
-
Boasting more than three decades experience in the lighting field and offering an extensive range of luminaires, Arkoslight have established themselves as a brand built on providing the best possible lighting solutions. Each and every product in this range has been thoroughly researched to feature state-of-the-art technological innovations. These distinguished creations have been designed to assure they meet their high standards of quality.
Browse the full 2019 catalogue
