- Description
-

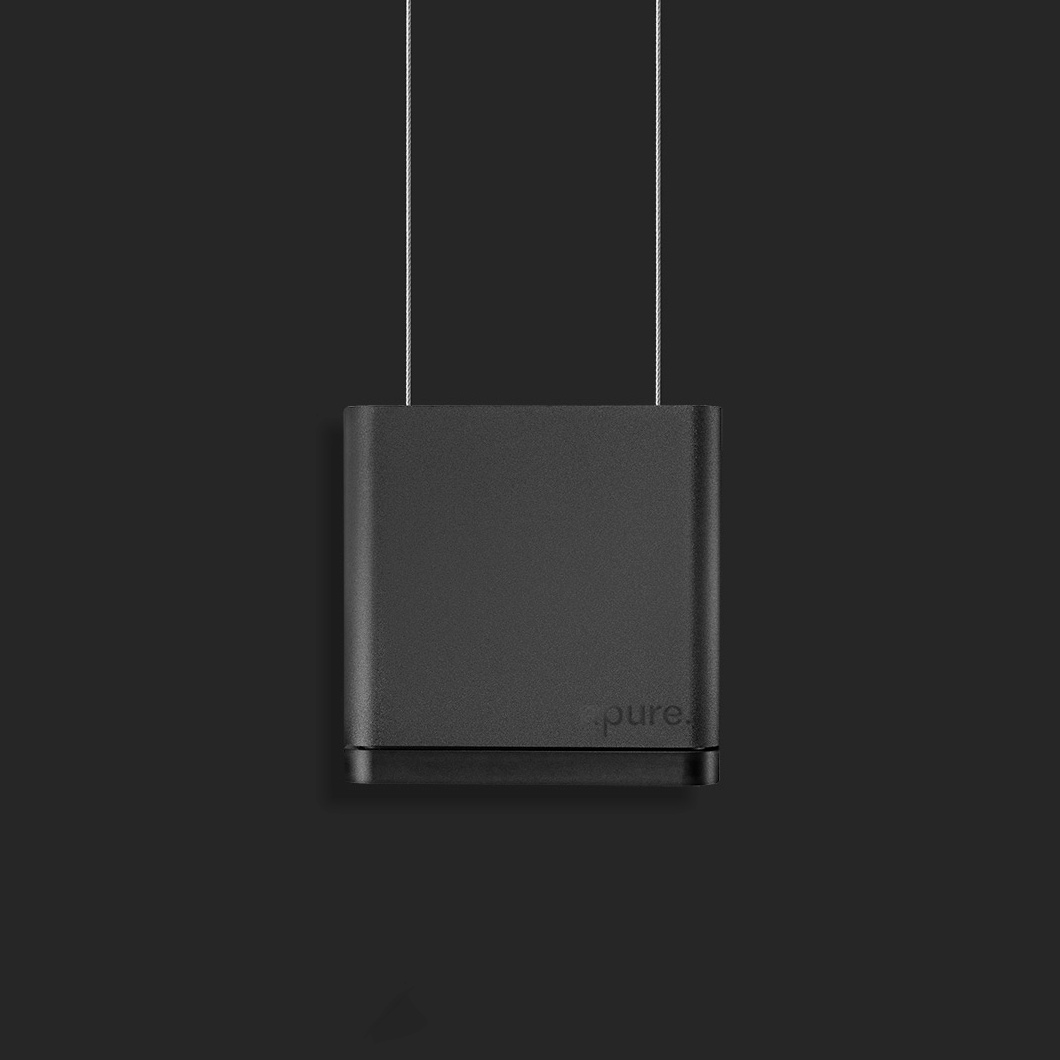

The ARTUS UNUS by Apure successfully combines the sophistication of the ARTUS series with state-of-the-art cable engineering and advanced glare prevention to create a minimalist suspended pendant spotlight.
With 1mm suspension cables, the effortlessly sleek 55mm x 55mm pendant can be suspended up to 6 meters (20 feet) in the air. ARTUS UNUS uses an integrated hexagon louver for optimal glare free light output in either Narrow Flood (25º) or Wide Flood (55º) beam angles.

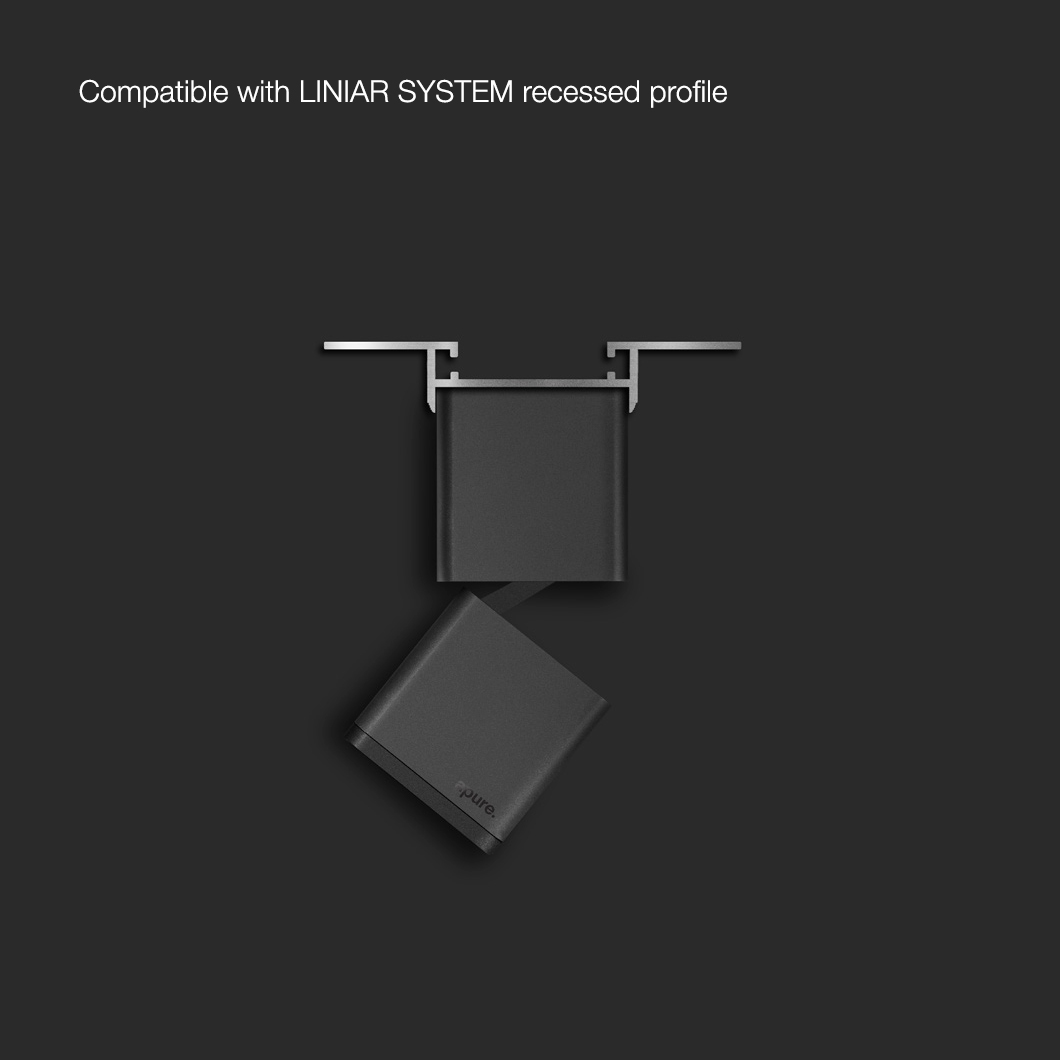

ARTUS can be surface mounted on drywall, wood and stone ceilings. The fitting can also be installed with the LINIAR SYSTEM recessed profile or magnetically attached with the NEXU SYSTEM. See downloads tab for more info.
Key Info
• Remote Powered, Class 2 Fixture
• 12W Cree LED
• Finished in black or white
• 1000lm source light output
• Available in Warm White (2700K) and Soft White (3000K)
• In 2 beam angles: Narrow Flood (25º), Wide Flood (55º)
• 2-step SDCM ellipse for accurate color consistency between fixtures
• Full dimming range via remote power supply
• Engineered and made in Germany
- Specification
-
Construction
• Extruded aluminum fixture body, featuring Apure’s signature louver designed by Studio F·A·Porsche
• 50,000 hours LED lifetime
• Approximate fixture weight: 720g (1.58lbs)
• Operating Temperature: 10ºC to 50ºC
• Features Apure’s magnetic installation bracket system for tool free luminaire servicing
Fixture Size

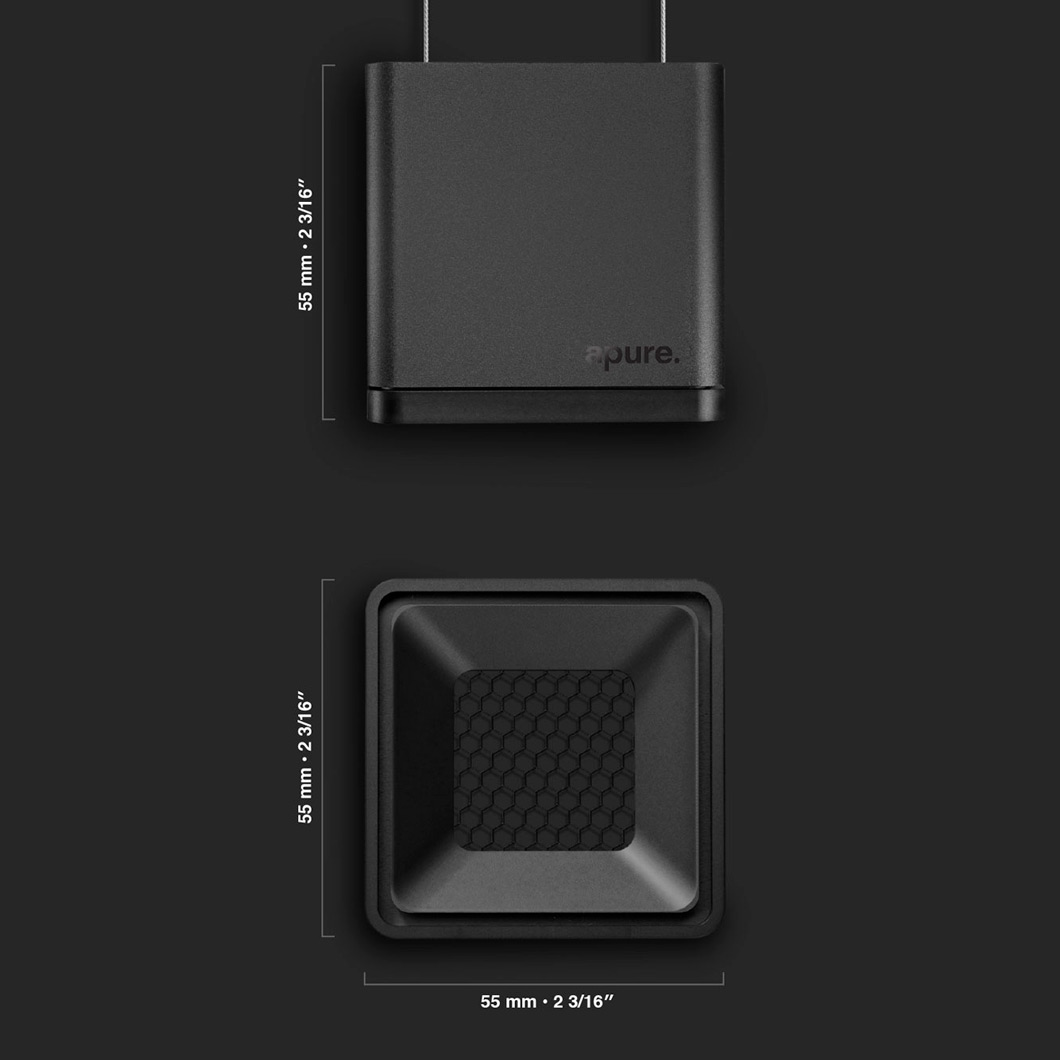

• Visible Dimensions: 55mm x 55 mm × 55 mm (2-3/16” x 2-3/16″ × 2-3/16″)
• Recess Depth: N/A - junction box not required
Light Output
• High performance Cree LED, available in various color temperatures
• 1000lm source light output
• 2-step SDCM ellipse
• Color rendering index (CRI) min. 90
• Integral microprocessor controlled thermal protection
Electrical Specifications
• Class 2 Fixture
• 12V DC, Constant Current 1000mA Input for EU/INT’L
• 7W Power Consumption
• 60W 500mA Constant Current Power Supply Required (powers up to 4 fixtures)
• Recommended wire, min. 16 AWG plenum rated (CMP) up to 82ft from remote transformer
Installation Types
• Surface-Mounted: Standard installation to most ceiling surfaces using anchors or screws (not provided)
• Profile: Surface-mounted in the LINIAR System profile using anchors or screws (not provided)
• Semi-Recessed: Magnetically attached in the NEXU System enclosure (not provided)
Listings
• UL Listed, CE Conform
• Suitable for dry and damp locations
Lamp type: 12W Cree LED | 50,000 hours LED lifetime
- Dimensions
-
Product dimensions: W.55mm x D.55mm x H.55mm
Cable dimensions: Total maximum drop: 6000<
- Downloads
-
- Delivery and warranty
-
Usually delivered in 6-8 weeks
LED Lighting Fixtures – 2 Years*
Power Supplies & Drivers – 2 Years*
Linear Profiles – 5 Years*
Housings – 5 Years*
*From delivery date
Apure Warranty PDF
- About the manufacturer
-
Created in 2013, Apure develop state-of-the-art architectural lighting whilst maintaining a minimalist aesthetic. In collaboration with the world-renowned Porsche Design Studio, each product is designed and engineered in Germany with a clear purpose to solve a specific problem. Combined with a tradition of fine craftsmanship and attention to detail, Apure has achieved its goal with a line of sophisticated and specialised products that are perfect for architects, interior designers and lighting professionals.
