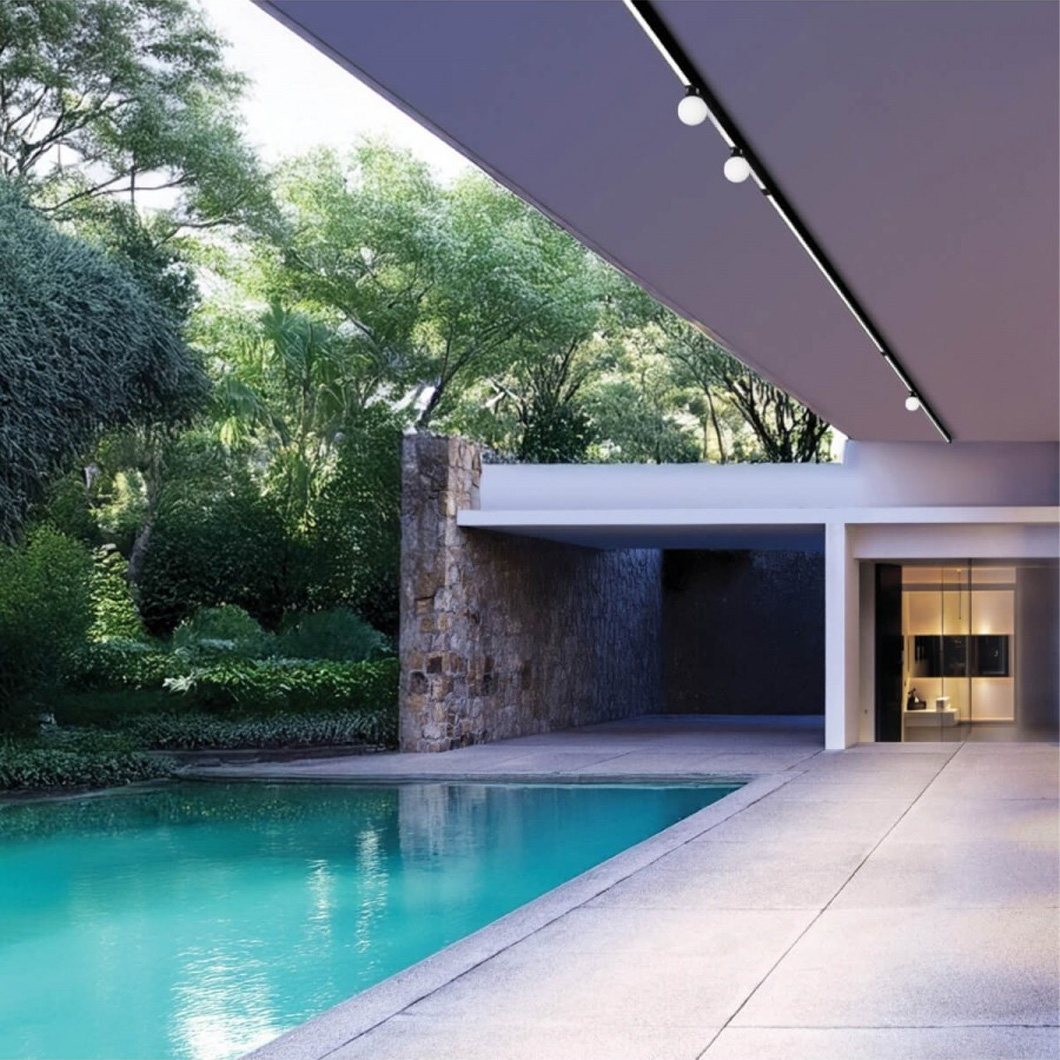

Build your own unique outdoor track system. The 48V Surface-Mounted IP65 Track System by Zambelis offers modular components to help you create a personalised, modern composition for outdoor installation. The ultrafine track is designed to seamlessly blend into a contemporary outdoor setting, with a sandy black finish and unobtrusive, simple LED modules that illuminate the space and match the minimalist aesthetic.
Choose your track pieces

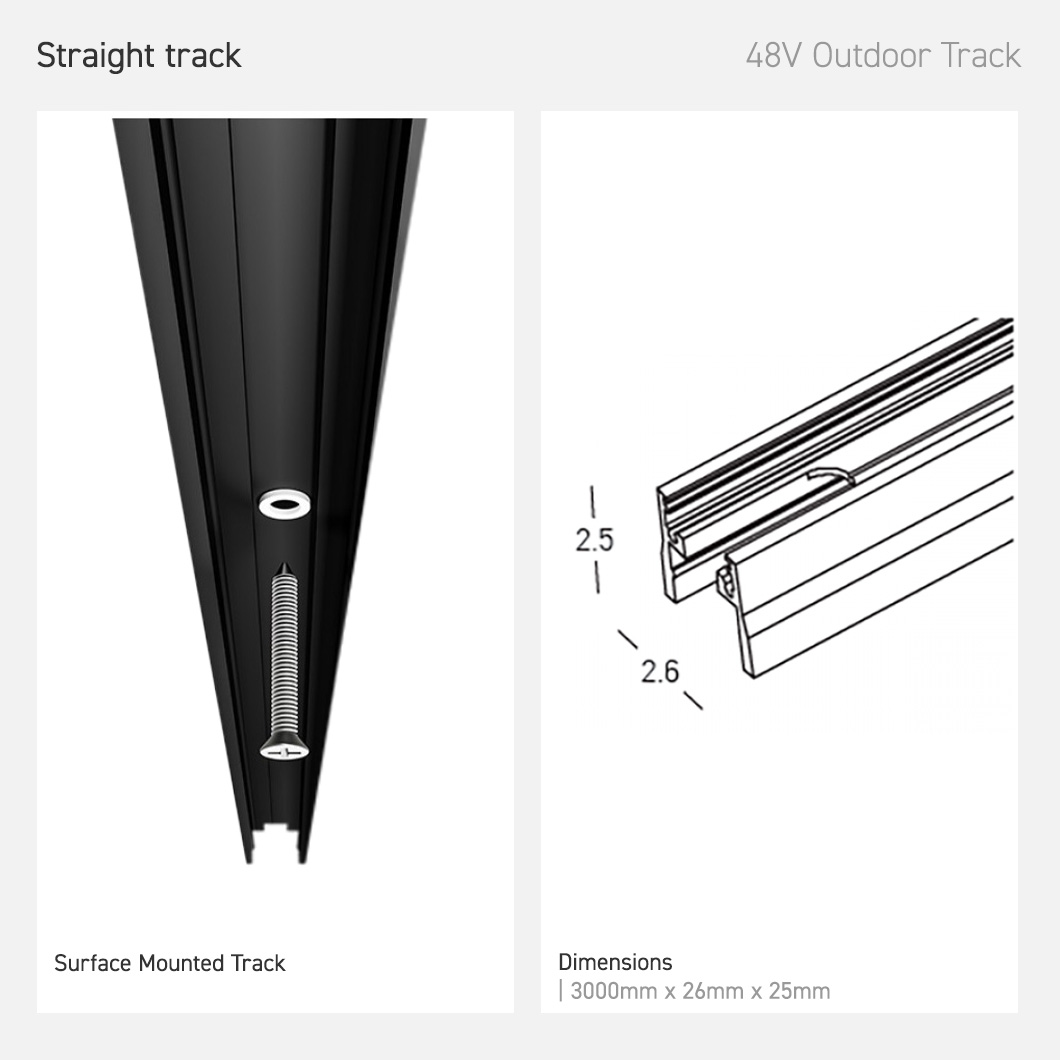

Zambelis’s 48V slim surface-mounted track profile is 3 metres long, 26mm wide, and 25mm tall, finished in sandy black. Crafted from precision-engineered aluminium, the robust, reliable profile seamlessly integrates into outdoor settings, whether installed as a single track or a unique composition. Customise your track system with various track connector components, including corner pieces, to elongate your track or change its direction.Select your LED modules

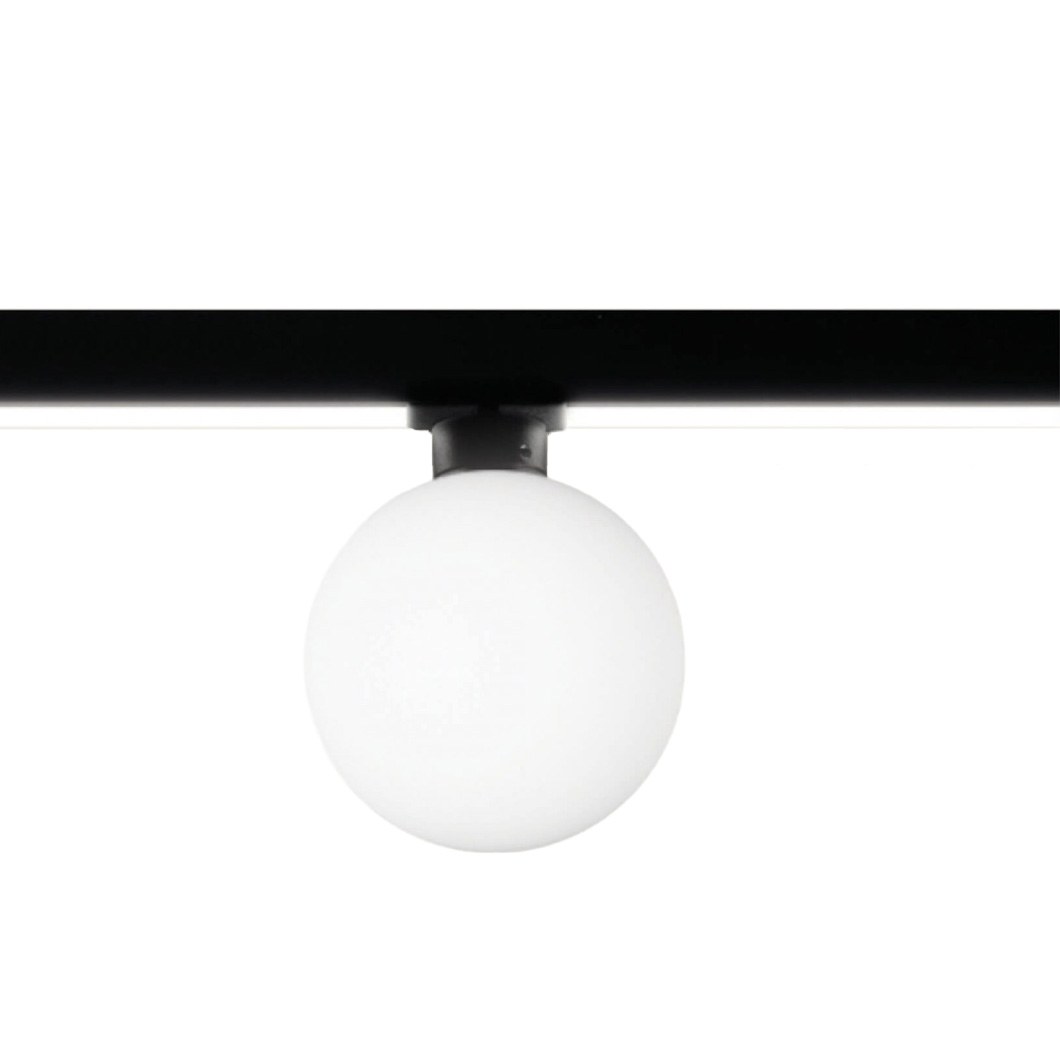

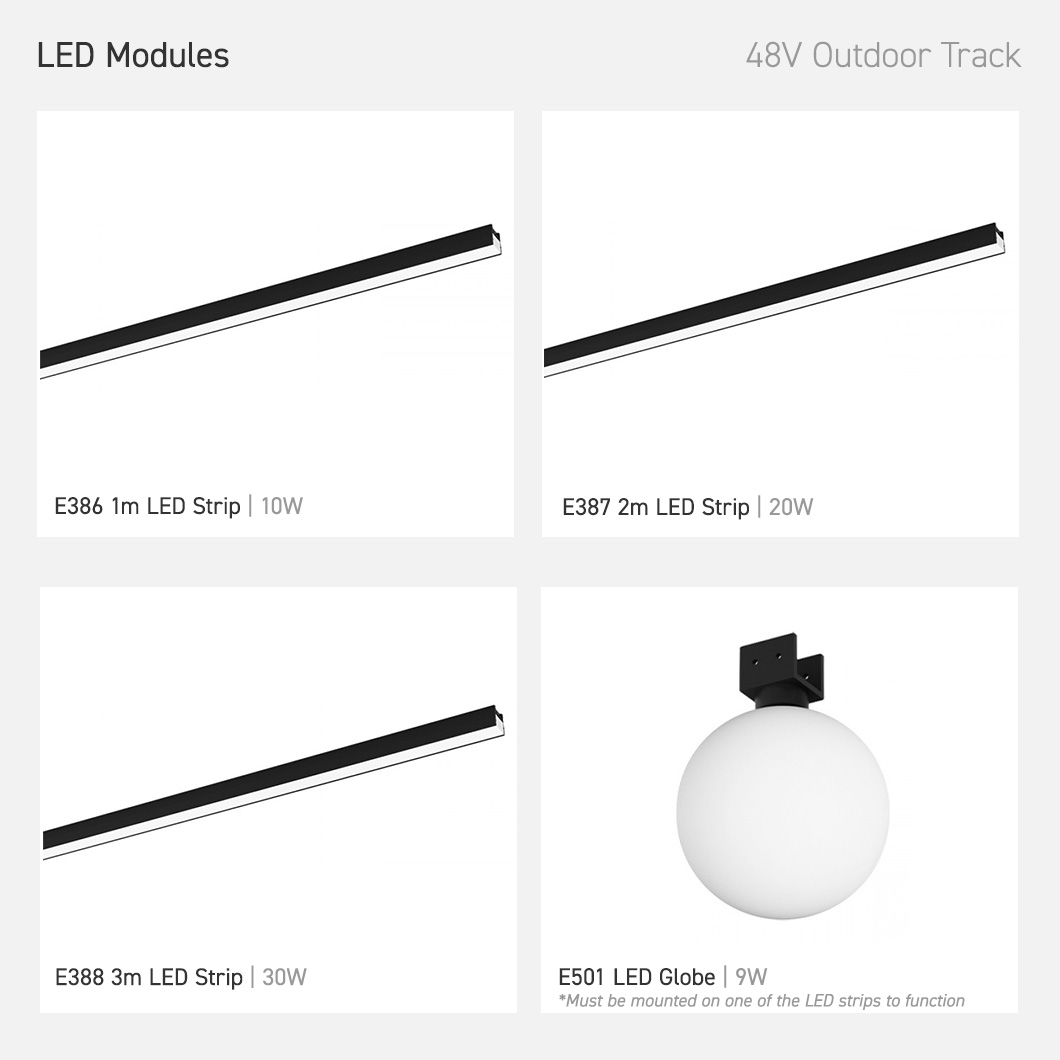

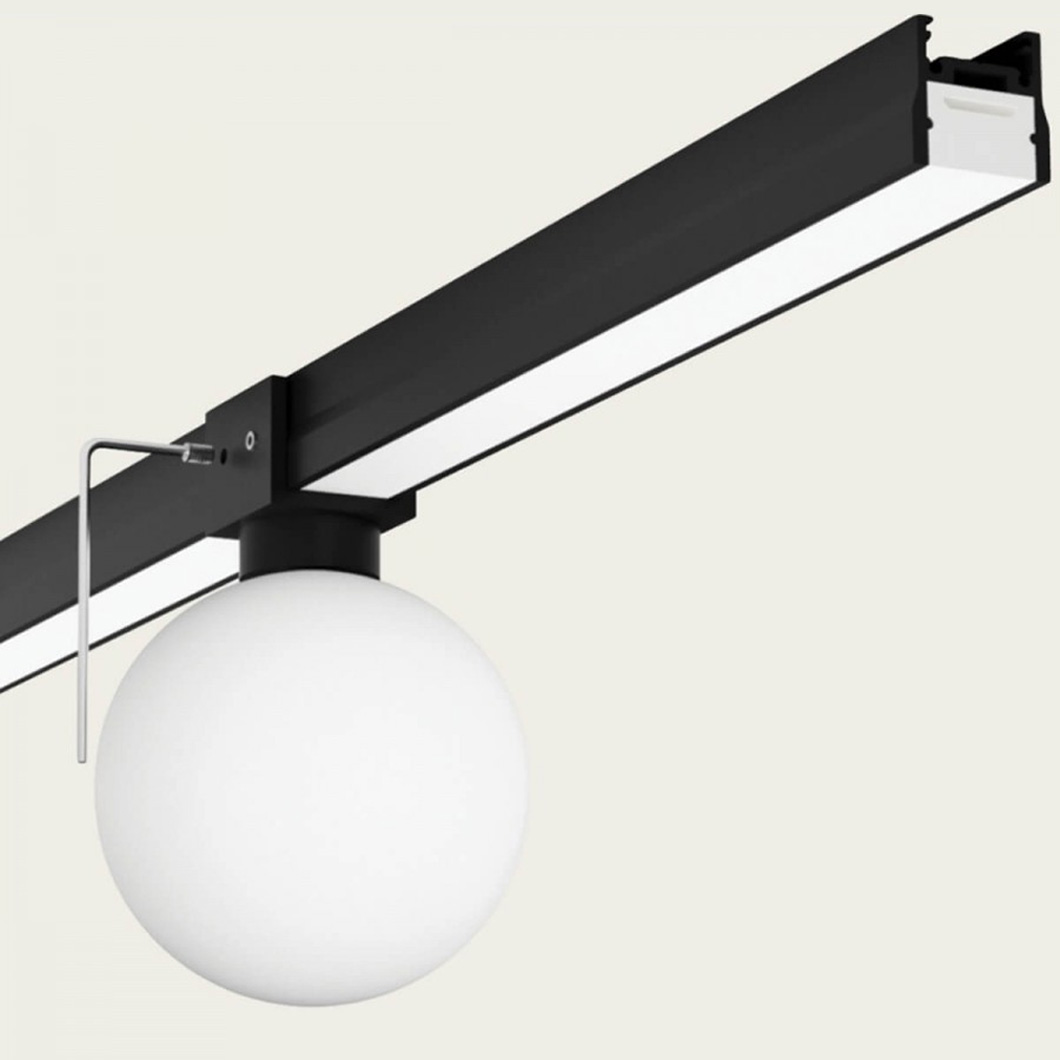

The available LED modules help maintain the minimalist, modern aesthetic of the 48V outdoor track system. The simple designs, combined with effective LED illumination and an IP65 rating, light up exterior spaces. The LED strip module offers powerful illumination in a discreet, unobtrusive design in three lengths: 1m, 2m, or 3m. The petite LED globe luminaire adds a touch of understated elegance to the track system with its opal white Ø120mm spherical diffuser. The LED globe module does not operate independently; it must be mounted on one of the LED strip modules.Dimming, drivers & accessories

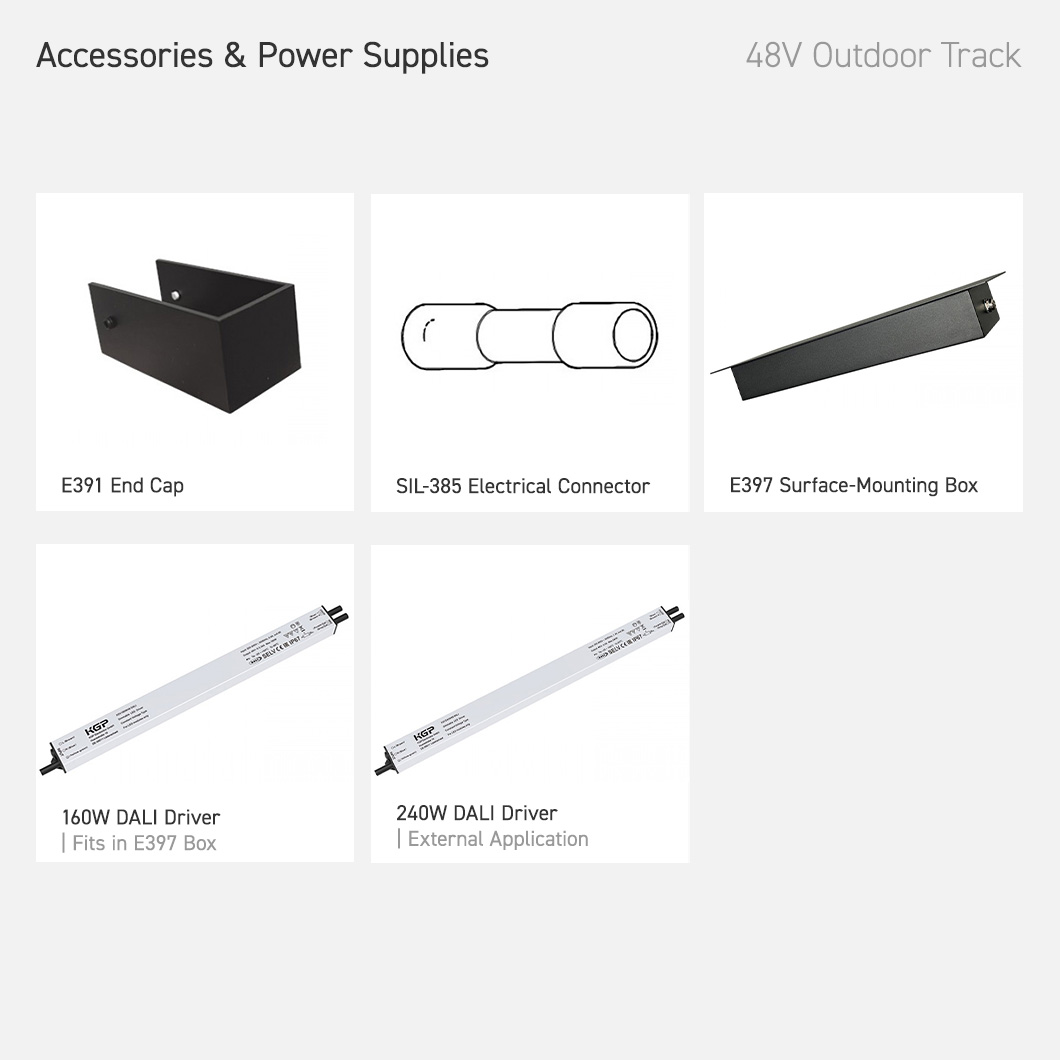

The 48V Outdoor Track is DALI dimmable with a compatible driver. See the specification tab or the drop-downs for suitable driver options. The surface-mounting box is only suitable for the 160W driver; the larger driver requires an external application. Optional accessories are available both to aid with track installation and for aesthetic purposes. Sandy black end caps are available to match the track profile's finish. The electrical connector accessory is an insulating electrical wiring connector that provides a secure, watertight cable connection for a safe, reliable lighting system.
- Our Top Tips -How do I order a track?
We know track lighting can be confusing, so we've simplified it the best we can for you!- First, choose your desired number of track profiles from the dropdown options. If required, also select a connector track component from the dropdown options.
- Then, select your LED modules from the dropdown options. See the technical specification for more information on each module.
- Finally, choose your driver and add any extra accessories you wish to include.
- It's as easy as that! Simply add to your basket when you're ready to complete your purchase.
If you require any assistance, please reach out to the team at [email protected] or call us on 01189 882294.
What driver do I need?
- 48V Outdoor Track requires a 48V power supply. Simply add up the total number of watts from each module component included in your system (refer to the Specification tab). As a bare minimum, select a driver which is over the total wattage amount. However, we recommend choosing the next largest driver in case of future upgrades.
