- Description
-
The Trizo21 Bilo LED Wall Light offers a subtle modern look with its minimalist form. The circular fitting is crafted from aluminium with a choice between 5 sleek metallic finishes. Bilo is available in matt or frosted finishes, the former with sandblasted glass and the latter with transparent glass and a screen-printed inner side.
Tailor the petite wall light to your interior and choose between the following colours: black, white, bronze, gold, or alu. The wall fitting is available in two colour temperatures 2700K or 2300K. Bilo is available for installation in a false wall or concrete wall - see the downloads tab below for installation instructions.
For this fitting, a remote-mounted driver is required - see the specification tab below for more information.
- Specification
-
IP50
Materials:

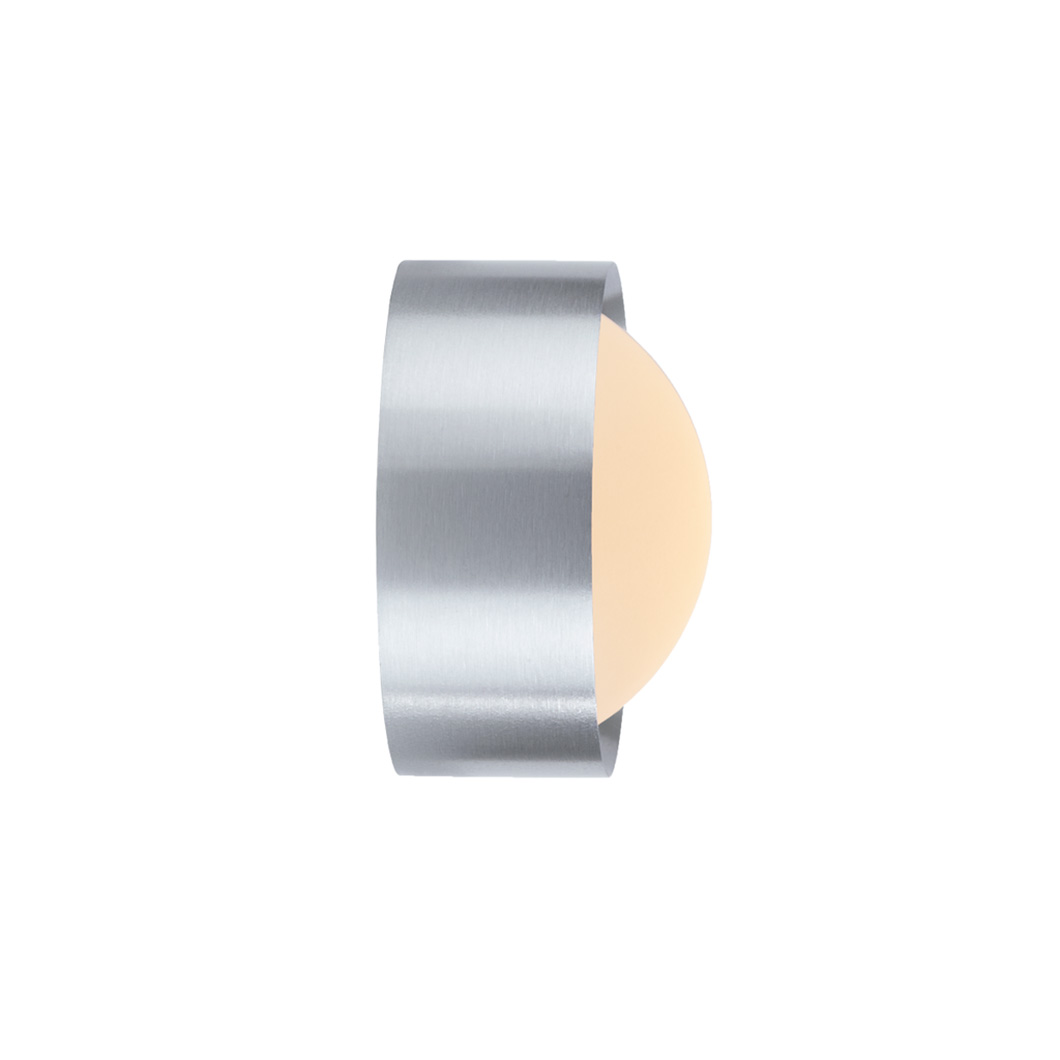

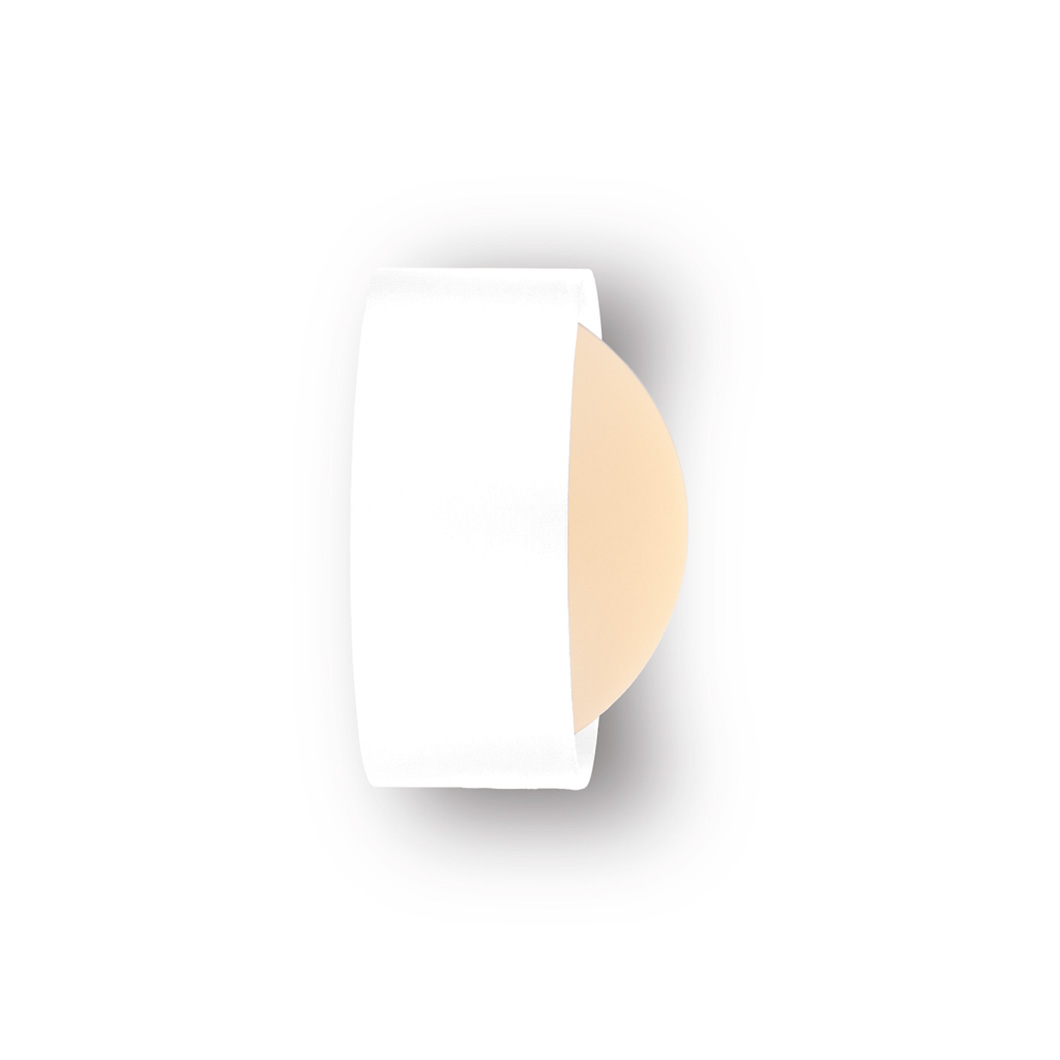

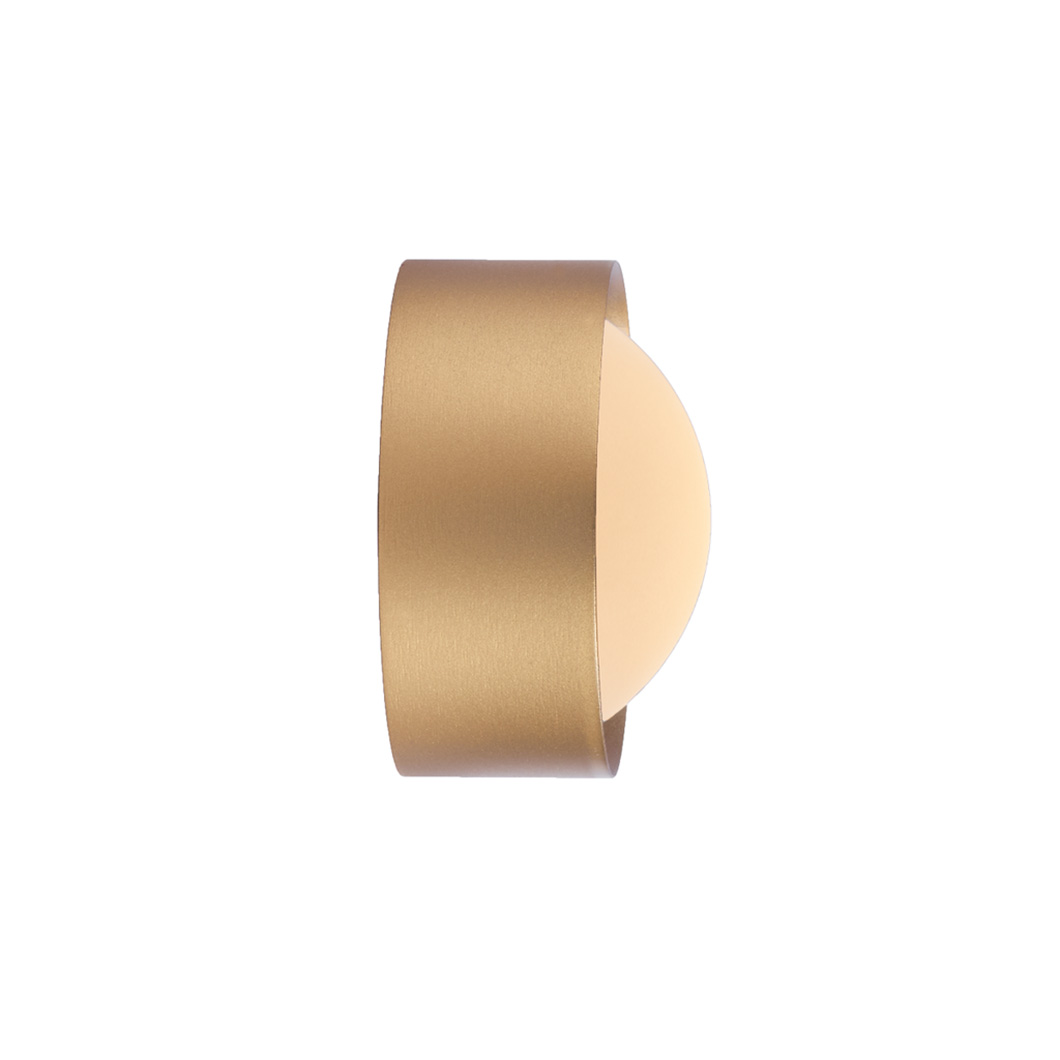

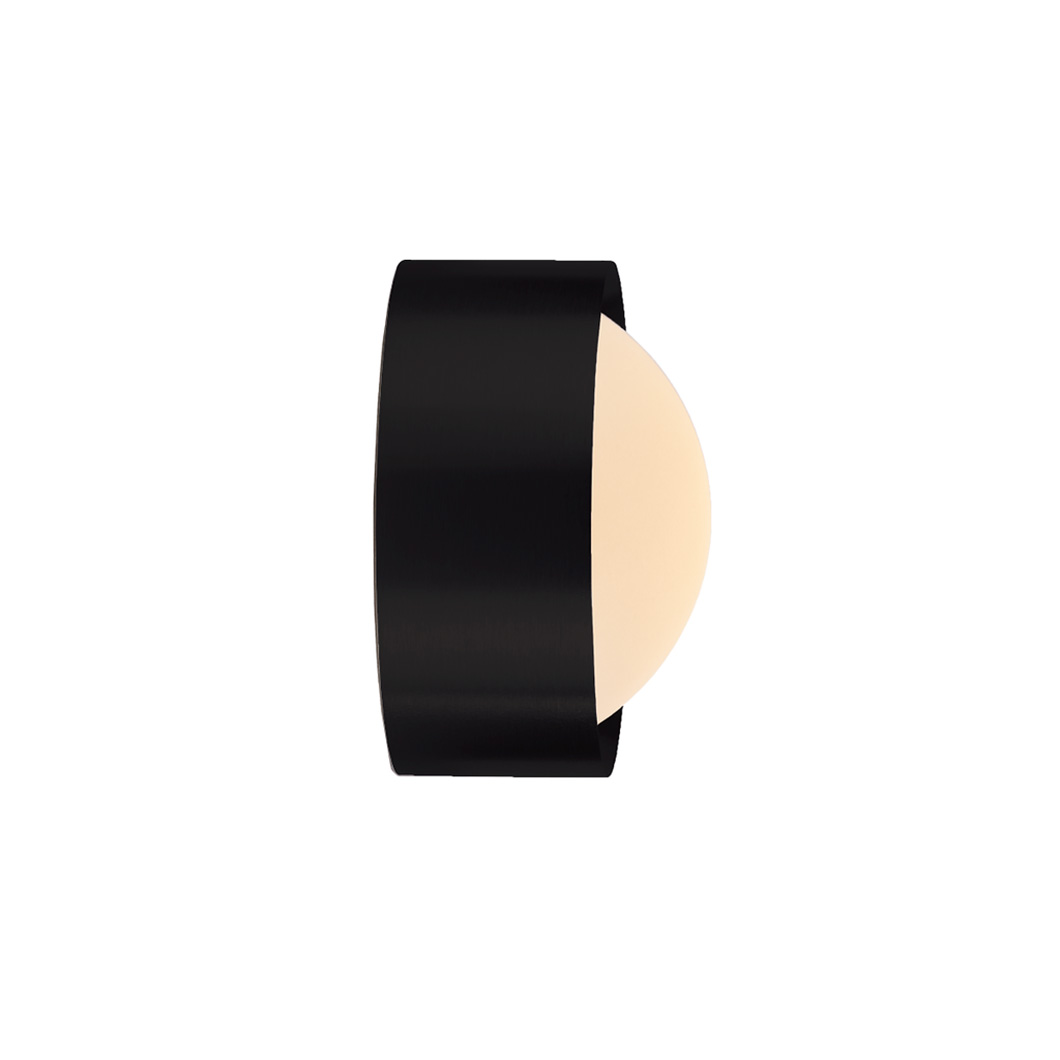

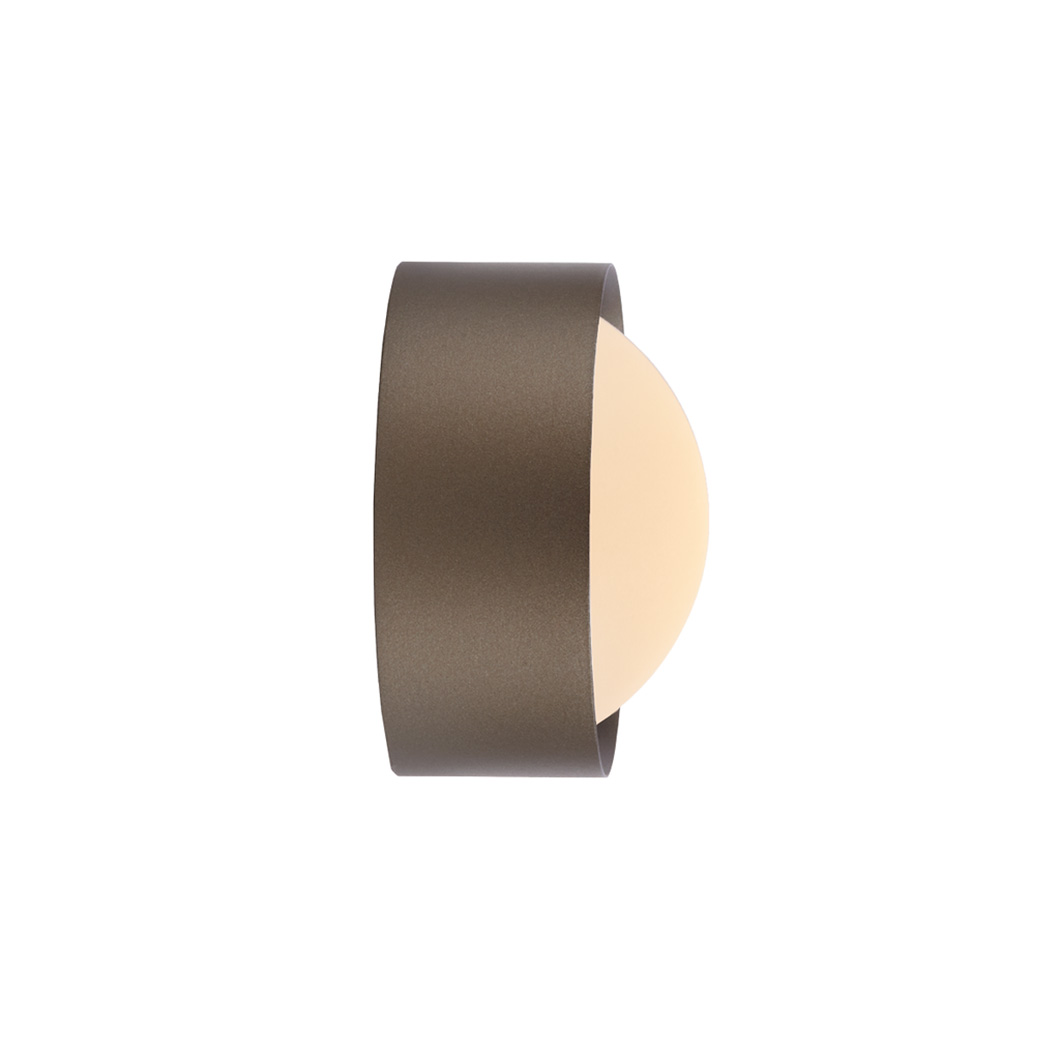

Matt version: Aluminium & sandblasted glass

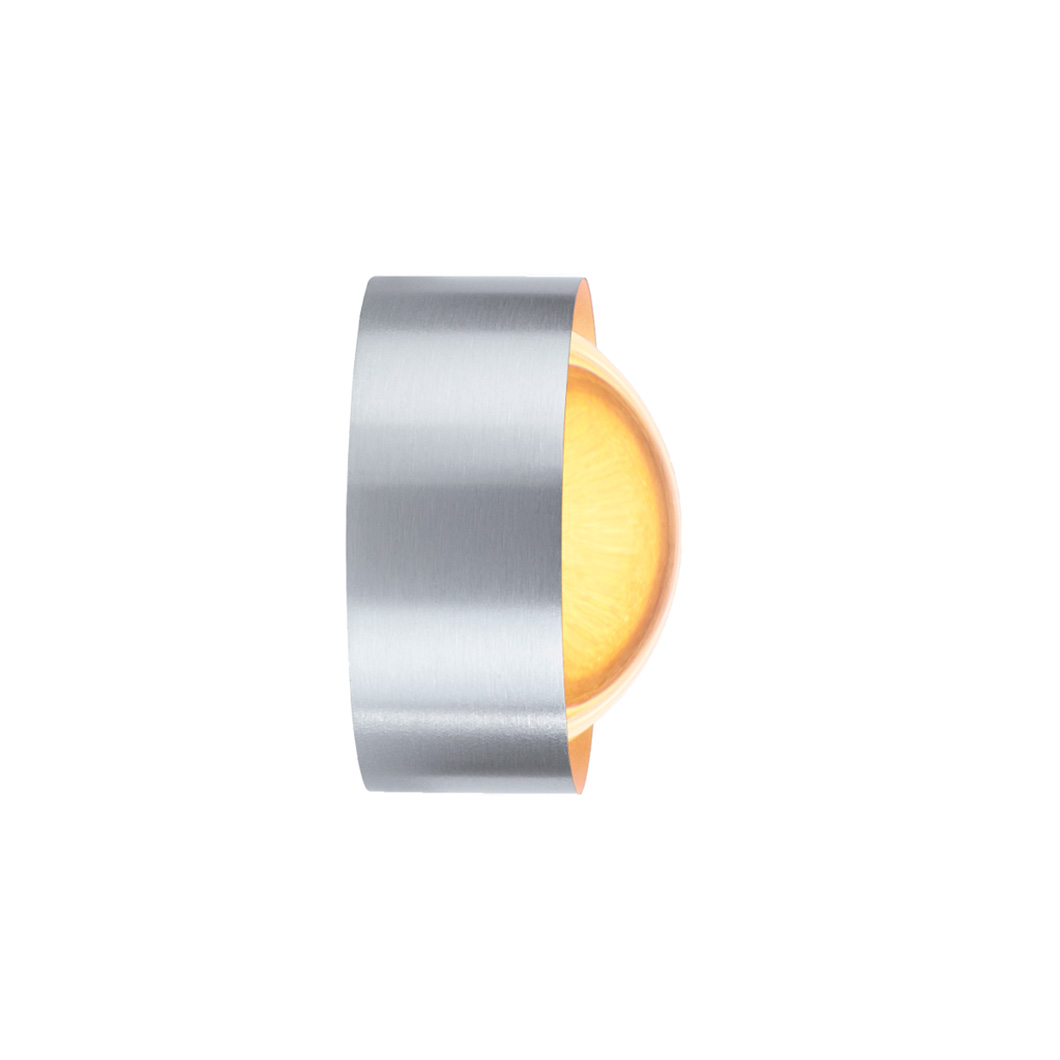

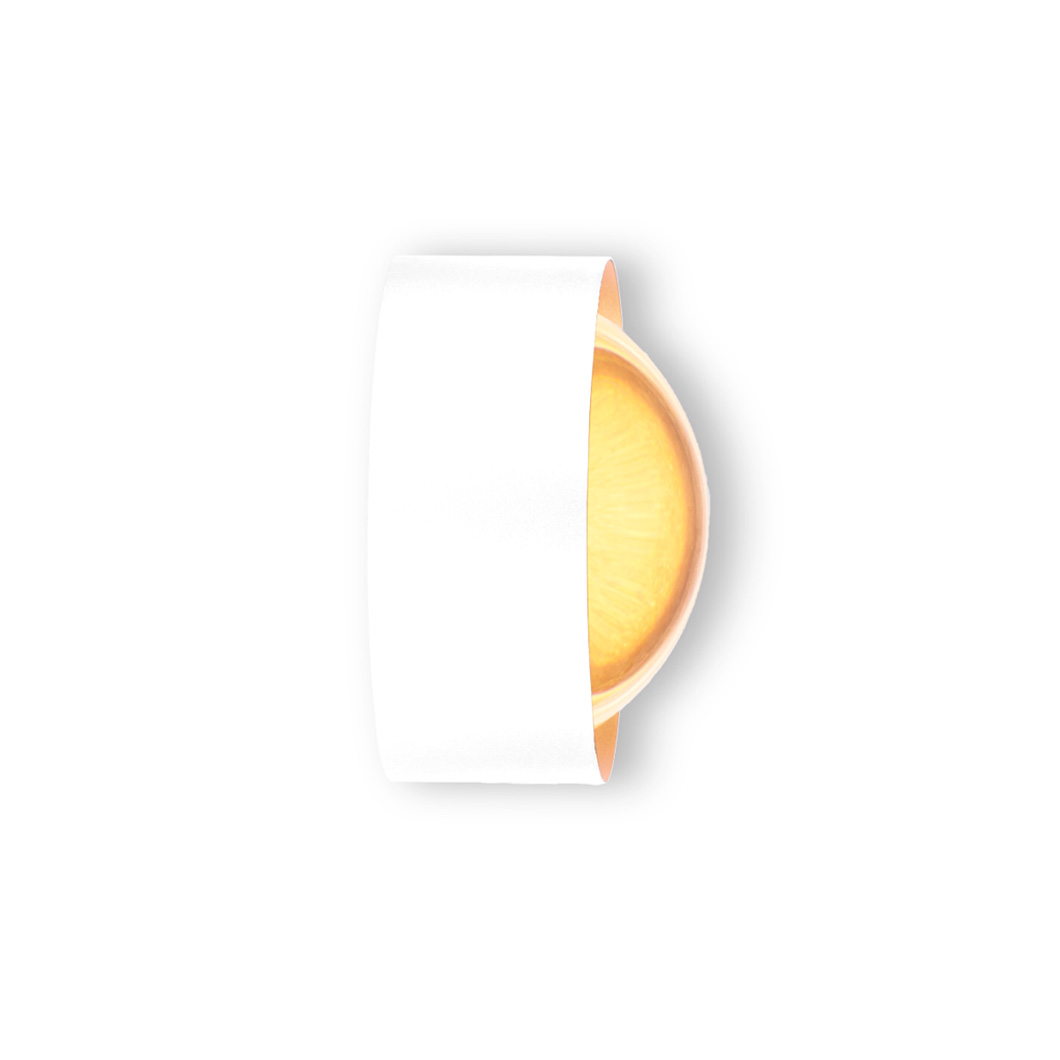

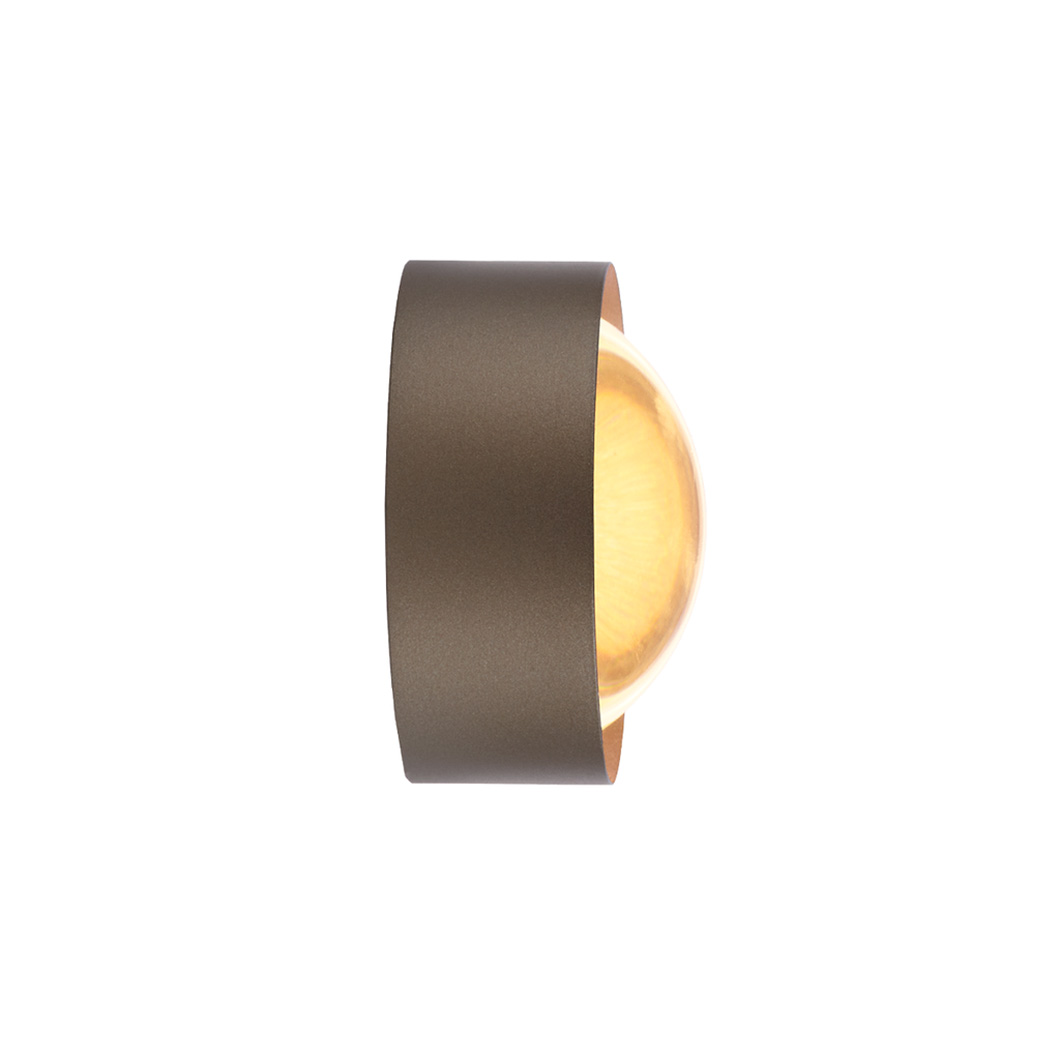

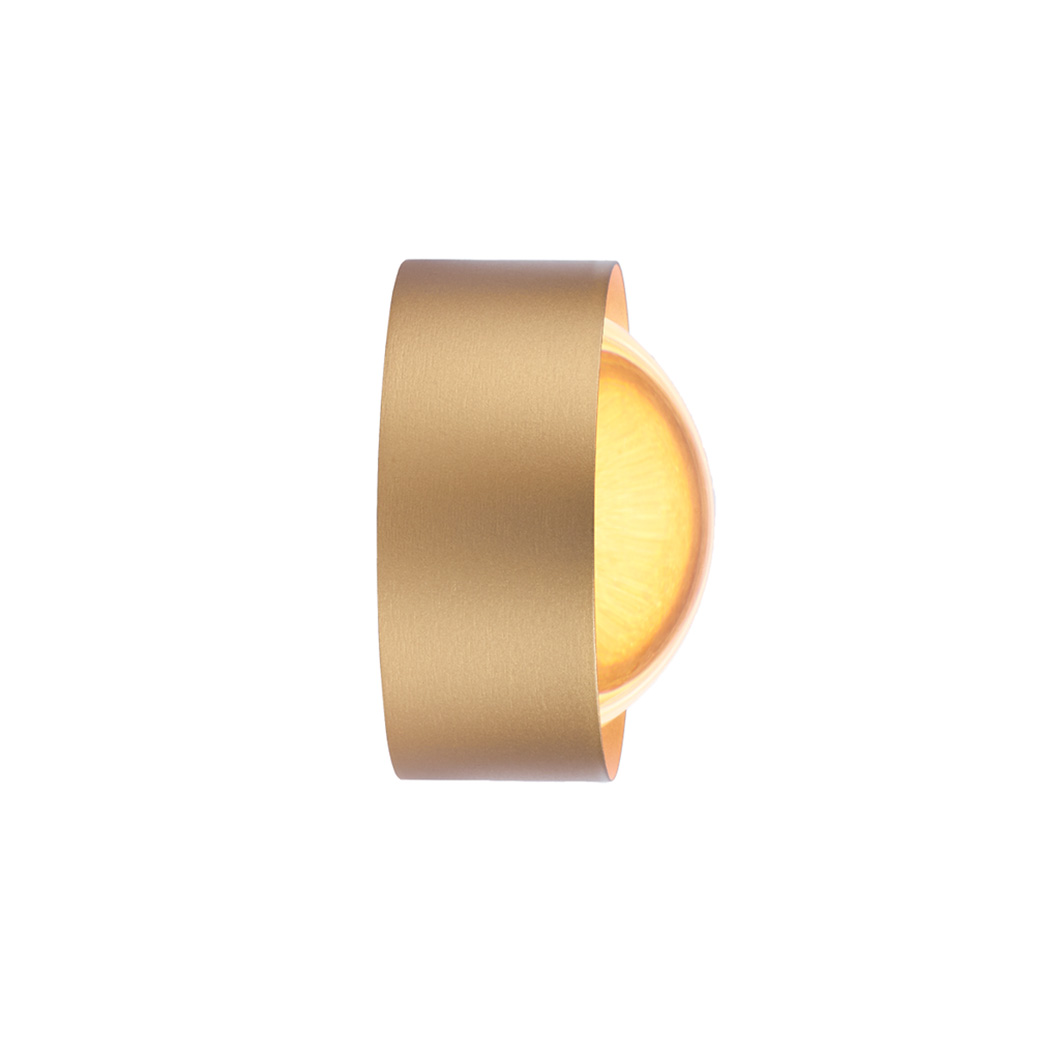

Frosted version: Aluminium, transparent glass & screen printed inner side
Finishes: black, white, bronze, gold, alu
Dimensions:
Ø80mm x 32mm
Accessory for concrete wall:
Plaster kit Ø200mm
Lightsource:
1x 21 LED 0,14W (LED incl.)
2300K / 2700K
CRI 90
Connection:
For false wall: remote mounted driver (350mA), aperture: Ø67 - depth: min. 50mm" - depth for driver in wall: min. 70mm
For concrete wall: remote mounted driver (350mA), aperture: Ø67 - depth: min. 60mm" - driver must be on distance
| Code |
Driver |
Devices Powered |
| D 3WT |
3W TRIAC/IGBT dim. |
1x |
| D 6WT |
6W TRIAC/IGBT dim. |
2x |
| D 6WP |
6W PUSH-DIM or 1-10V dim. |
1-2x |
| D 15WDA EU-US* |
15W DALI dim. |
1-2x |
| D 40WDP* |
40W PUSH-DIM, 1-10V or DALI dim. |
3-12x |
| *110V-230V |
|
- Dimensions
-
Product dimensions: D.32mm x Diameter.80mm
- Downloads
-
- Delivery and warranty
-
Delivery approximately 4-5 weeks
- About the manufacturer
-
Trizo21 is a Belgian company, designs and manufactures contemporary lighting of the highest quality. They are suitable for a large variety of lighting purposes, from private homes to commercial venues including hotels & business centres.
All products are fully designed and assembled on site with special attention given to technical perfection, quality of materials and the finishing touches.
