- Description
-
Designed to indirectly light the ceiling, the Spectrasol MEDD procognitive pendant features an artificial LED light that is as close to natural sunlight as possible. The indirect upward lighting is designed to provide ample quality light for work or study whilst having zero glare. When compared to the Spectrasol ADDAM and Sunline 45, MEDD offers up to twice the light output. MEDD is also available in biodynamic versions with direct downward facing warm relaxing light, perfect for encouraging the body natural rhythm to wind down and prepare for sleep.
Thanks to its balanced spectral composition (SPD), which positively influences the body's circadian rhythms through the non-visual system of the eye ( NIF), the MEDD suspension light offers biologically optimised full-spectrum lighting that supports overall health, physical and mental vitality, and greatly improves cognitive endurance, functions and performance.
The harmful blue light range
The majority of LEDs on the market only emit concentrated energy in the short wavelengths of the blue part of the light spectrum in the harmful blue light range, which increases the risk of macular degeneration.
Full Spectrum light range
Spectrasol LED, on the other hand, regenerates the eyes by emitting energy in the red, photobiomodulation part of the light spectrum, which acts as a compensatory factor for harmful blue light with both preventive and therapeutic effects.
Applications for MEDD
Thanks to its indirect light distribution Spectrasol MEDD linear suspension LED luminaires create the impression of a clear sky in the interior, providing a pleasant full-spectrum light that is perfect for work or study environments. Its sleek design, excellent patented light spectrum, and indirect light distribution on the ceiling makes MEDD suitable for offices, meeting rooms, clinics, surgeries, classrooms, lecture halls, showrooms and other spaces where supporting cognitive performance, work and learning abilities, attention, concentration and vitality are of upmost importance.

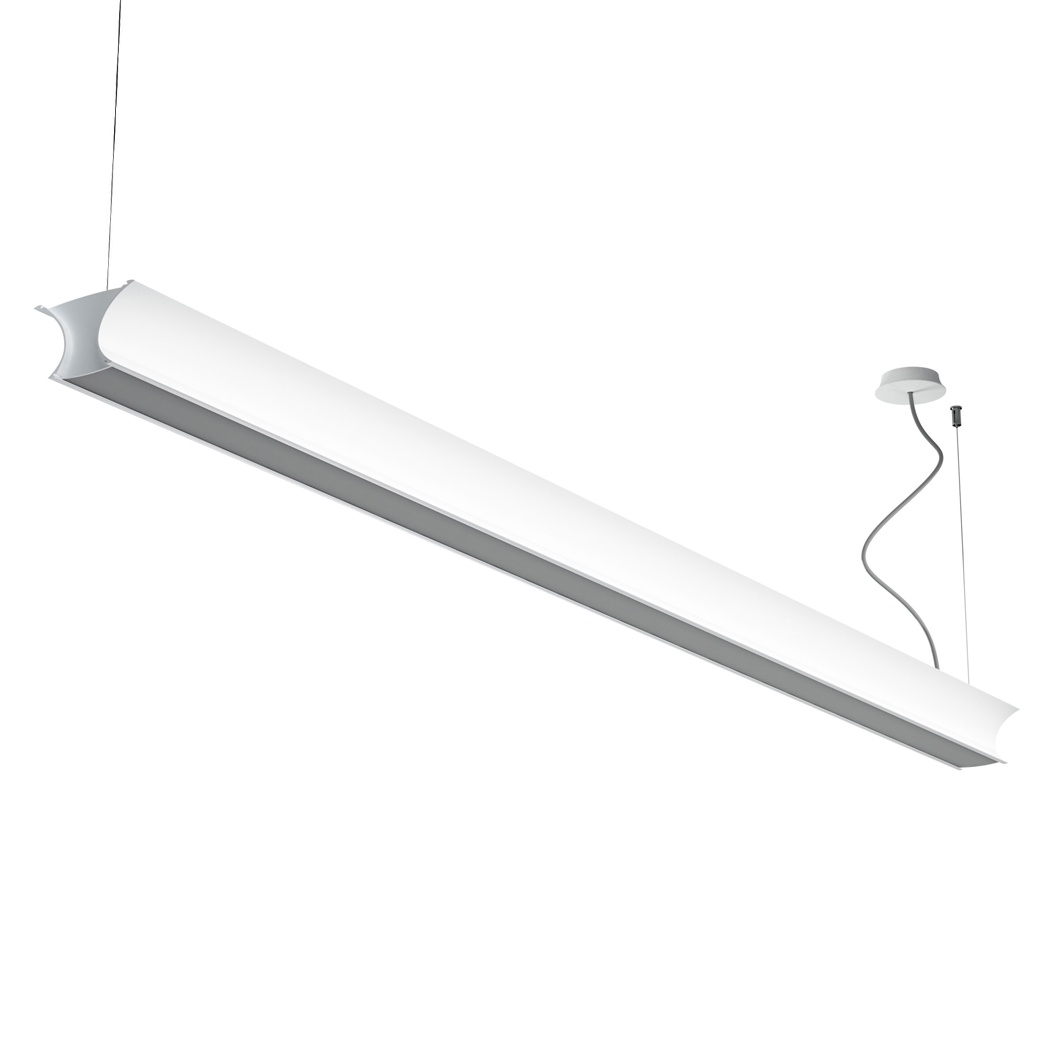

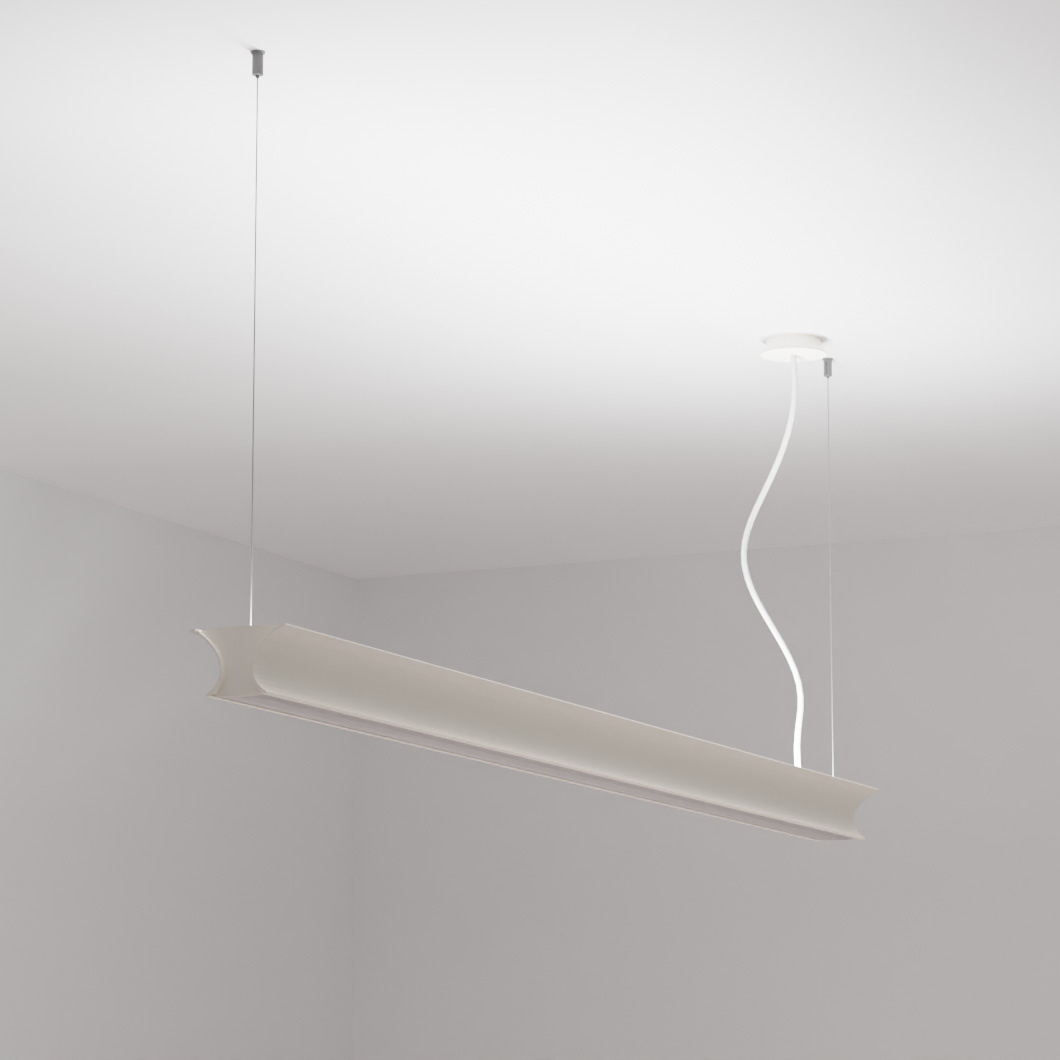

Extruded aluminium pendant with a maximum suspension drop of 0.8m. Available in 4 lengths: 1200mm, 1800mm, 2400mm or 3000mm. Can be connected in a line to create a much longer profile. On/off or DALI dimmable. In grey with white PMMA diffuser cover.
What are the benefits of Spectrasol?
- Balanced light spectrum that mimics sunlight
- Helps synchronise the circadian rhythm
- High colour rendering
- Protects the retina from harmful blue light
- Red light helps to repair retina damage
- Increased visual comfort
- Promotes alertness, concentration & quick thinking
- Improves work & study performance, reduces error rate
- Improves emotional mood
- Supports overall health & wellbeing
- Increases safety in the workplace
Still have questions?
Contact us on 01189 882294 or [email protected]
We're happy to help :)
- Specification
-
Dimensions | Wattage | Luminous flux
L1200 x D75 x H116mm | 126W | 11,600lm
L1800 x D75 x H116mm | 194W | 17,400lm
L2400 x D75 x H116mm | 252W | 23,200lm
L3000 x D75 x H116mm | 324W | 29,000lm
Max. drop: 800mm
Option to connect in line: Yes
Procognitive LED Spectrasol 5000K
Dimming: ON/OFF | DALI
Light parameters
Light distribution: Indirect (direct4)
Optical system: Clear PMMA cover (opal4)
UGR: n/a (indirect)
Real CCT1: 4800K
Specific CCT2: 5000K
CRI: >95 (>97)4
DERmel (day mode): (D65)=0,87 ; (D50)=1
Flicker: Flicker free
Calculated LED lifetime: L80B20 70.000h
Electrical parameters
Power supply: 220-240V 50-60Hz
Connection: Screwless terminals
Control options: ON/OFF, DALI
Mechanical parameters
Body: custom Aluminium extrusion
Extrusion dimensions: 116 x 75mm
Surface finish: RAL coating
Ceiling mount dimensions: 94 x 94 x 23mm
Suspension cable length: 80cm (individual cable)
Possibility of linear connection: yes3
Maximum ambient temperature: 25°C
Protection: IP20
Packaging: Miralon + protective foil
Warranty: 5 years
1real CCT in a typical illuminated room
2dimensional CCT of luminaires (spherical integrator)
3to be resolved individually within the project
4second values apply to the evening mode of the BD variant
Tolerance of photometric values +/- 10%
- Dimensions
-
Product dimensions: D.116mm x H.75mm
Cable dimensions: Cable length: 800<
- Downloads
-
- Delivery and warranty
-
Delivery
Lead times TBC
Warranty
3, 5 or 7 year guarantee / warranty
See product for specific details
- About the manufacturer
-
Proudly introducing SpectraSol, a pioneer in "Biological Procognitive Lighting" and the closest on the market to bridging the gap between artificial indoor lighting and the natural light of the sun. The latest addition to the field of Human Centric Lighting, Spectrasol supports circadian rhythm, enhances cognitive function, and provides an indoor environment that supports health and wellbeing in the workplace.
Standard LED lighting is mostly harmful to eyesight, cognition, sleep and health, due to its high blue-light peaks, spectral gaps and high levels of harmful invisible LED flicker. SpectraSol’s patented technology is flicker-free and engineered to replicate the full, continuous spectrum of natural sunlight by suppressing the harmful blue light range and balancing the precognitive cyan and regenerative red light ranges.
Based and manufactured in Prague since 2018, Spectrasol precognitive lighting combines superior visual comfort, the health benefits of full spectrum lighting, and energy efficiency in one package.
Where can I use Spectrasol light fittings?
Spectrosols cutting-edge range of full spectrum LED lighting can be used in pretty much any working environment, and is especially suited to industries that rely on high cognitive output or have limited natural light. Examples include:
Education Sector:
Classrooms, auditoriums, assembly halls & training rooms
Work areas:
Offices, production spaces, meeting rooms, laboratories & dust-proof environments
24/7 Workplaces:
Dispatch Centres & control rooms
Healthcare Sector:
Medical offices, outpatient clinics, nurse stations, inpatient facilities, phototherapy & care homes
Security & Defence Sectors:
Police stations, prisons, reform centres, laboratories & exposed workplaces
