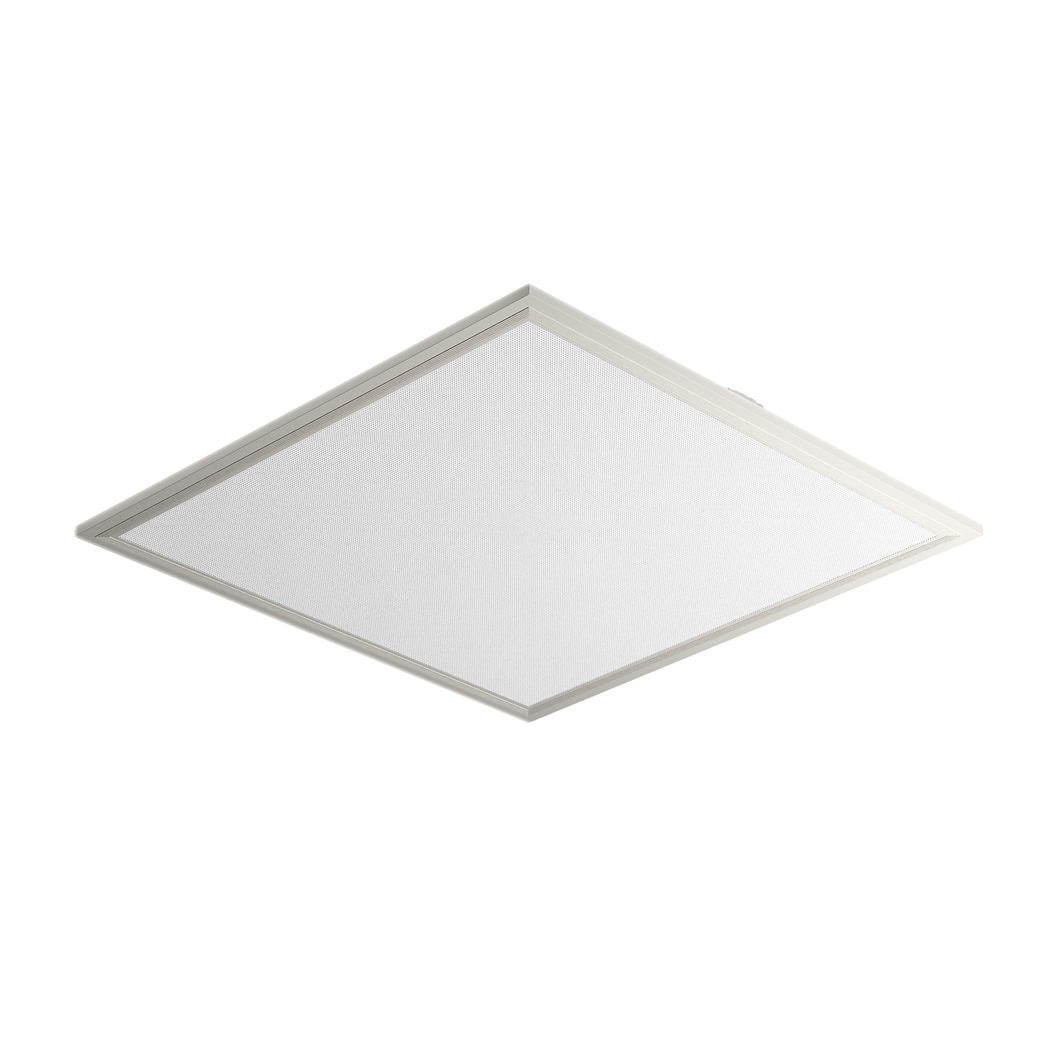

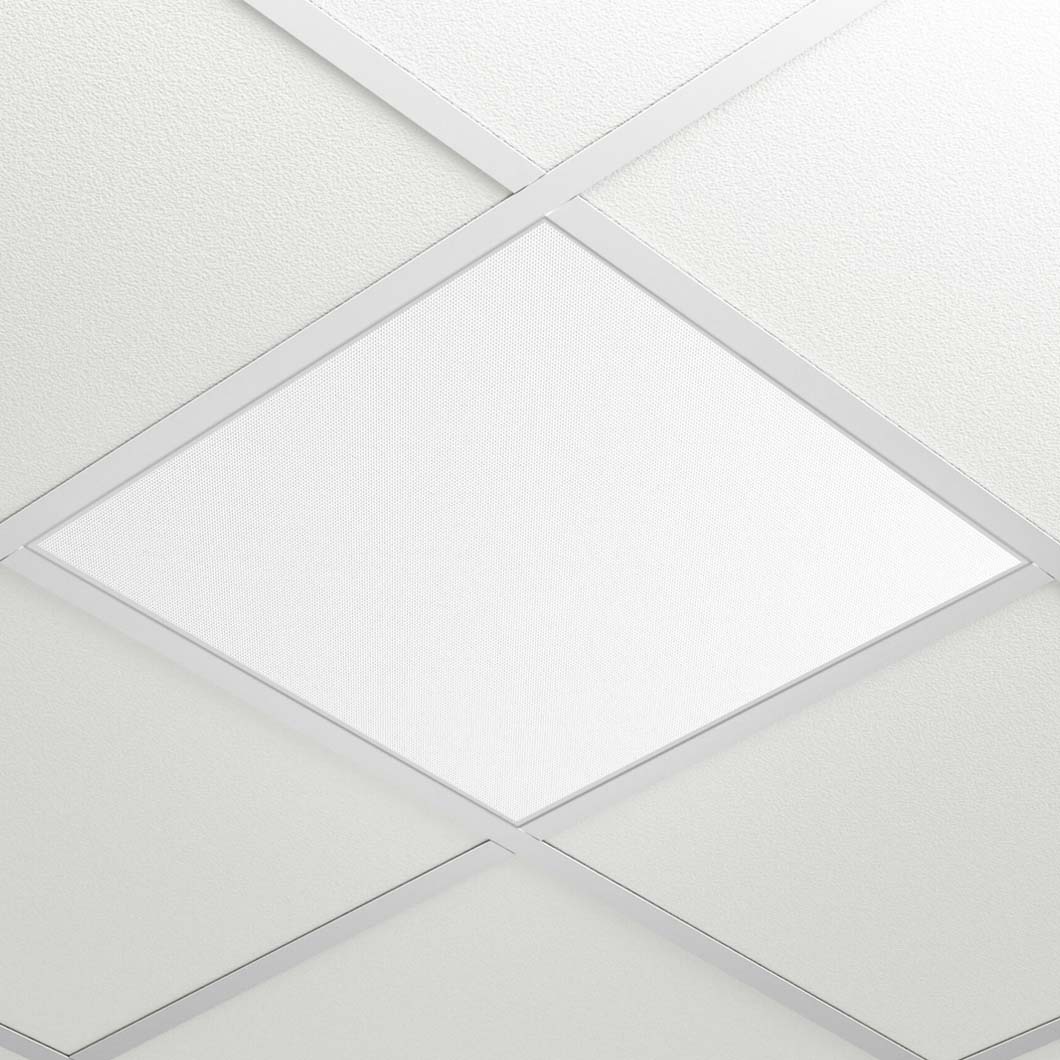

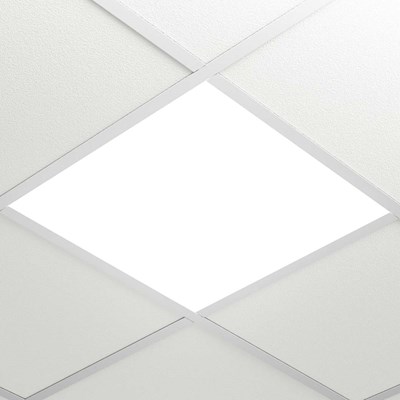

Spectrasol CBP Basic HCL Full Specrum Grid / Soffit Recessed Ceiling Panel Light

Description

The CBP Basic by Spectrasol is a simple, economical version of their patented procognitive luminaires. With a low-profile design made from thin materials, CBP Basic ensures maximum affordability while maintaining a full and balanced spectral composition and wide-area light distribution. To make these LED modules more economical, the production takes place outside the EU.

The harmful blue light range

The majority of LEDs on the market only emit concentrated energy in the short wavelengths of the blue part of the light spectrum in the harmful blue light range, which increases the risk of macular degeneration.

Full Spectrum light range

Spectrasol light panel, on the other hand, regenerates the eyes by emitting energy in the red, photobiomodulation part of the light spectrum, which acts as a compensatory factor for harmful blue light with both preventive and therapeutic effects.

Applications

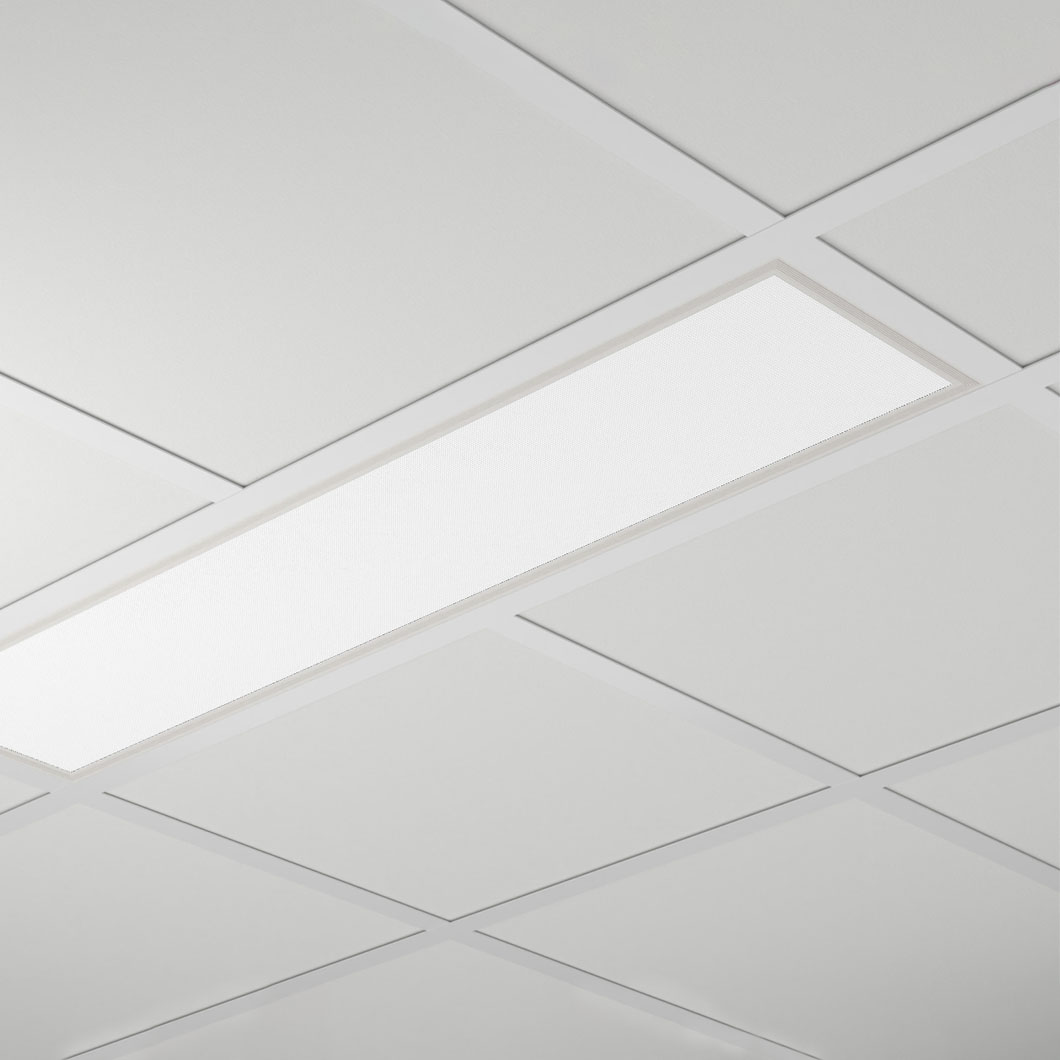

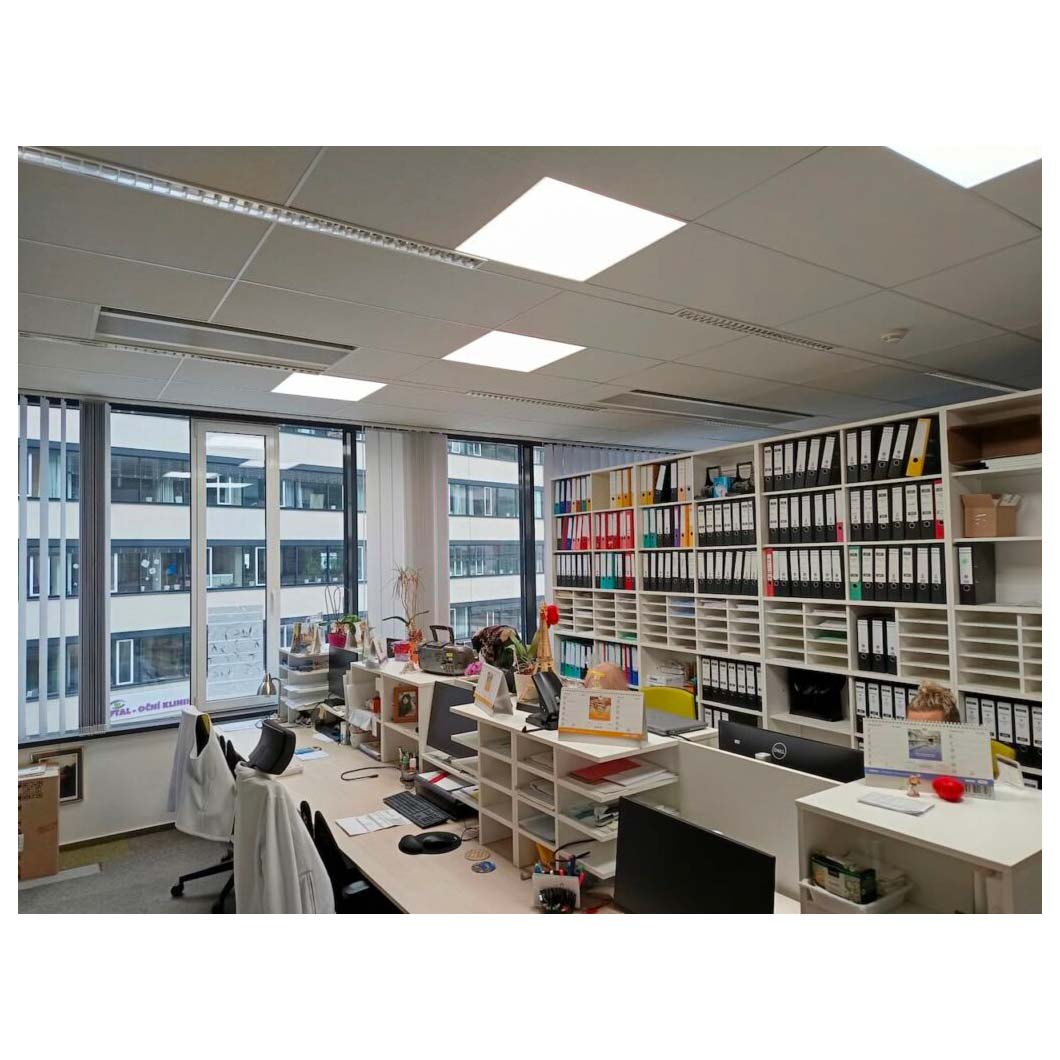

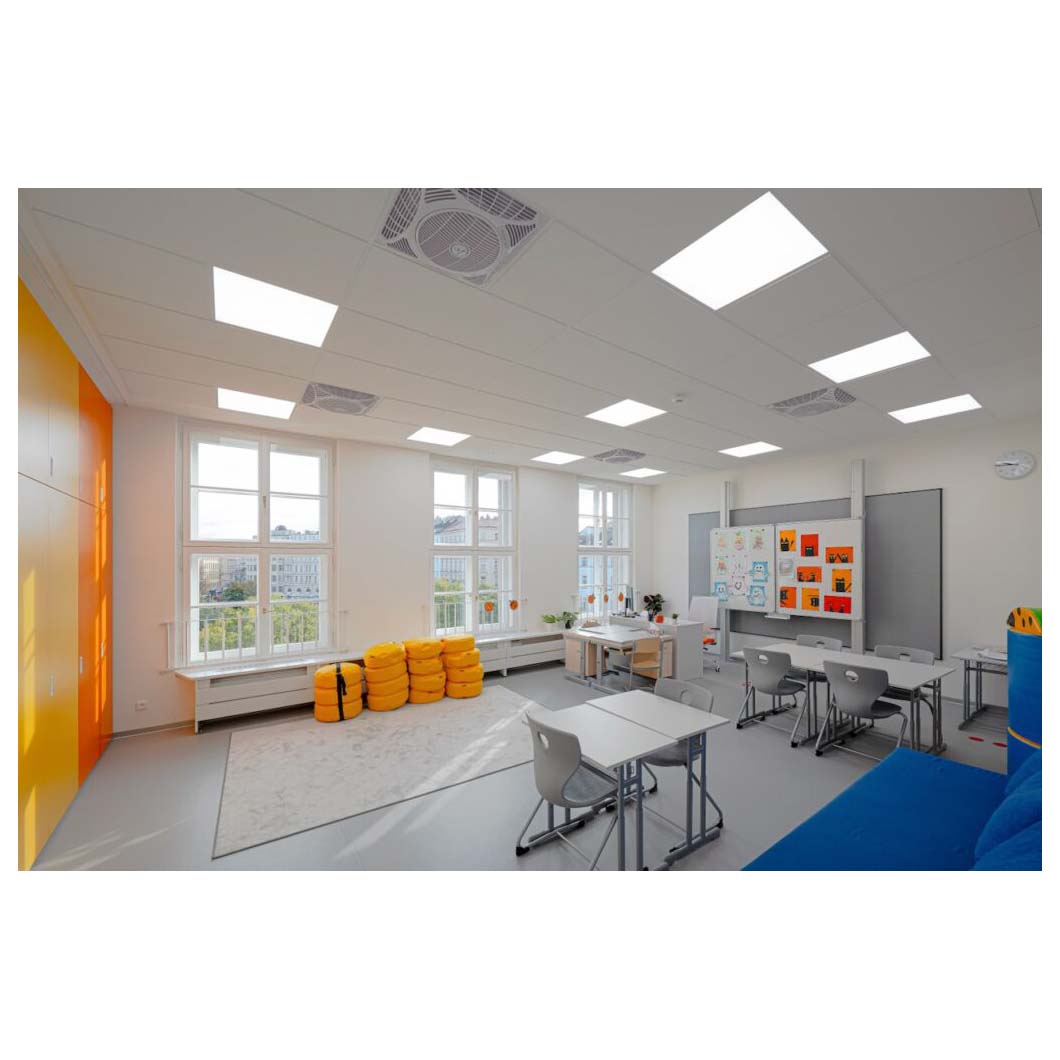

With a large emission area, CBP Basic model are designed specifically for installation in grid and plasterboard ceilings. Ideal for offices, classrooms, study rooms and other spaces where it is vital to support cognitive performance, learning skills, attention concentration and vitality while keeping the budget at the level of the standard luminaires.

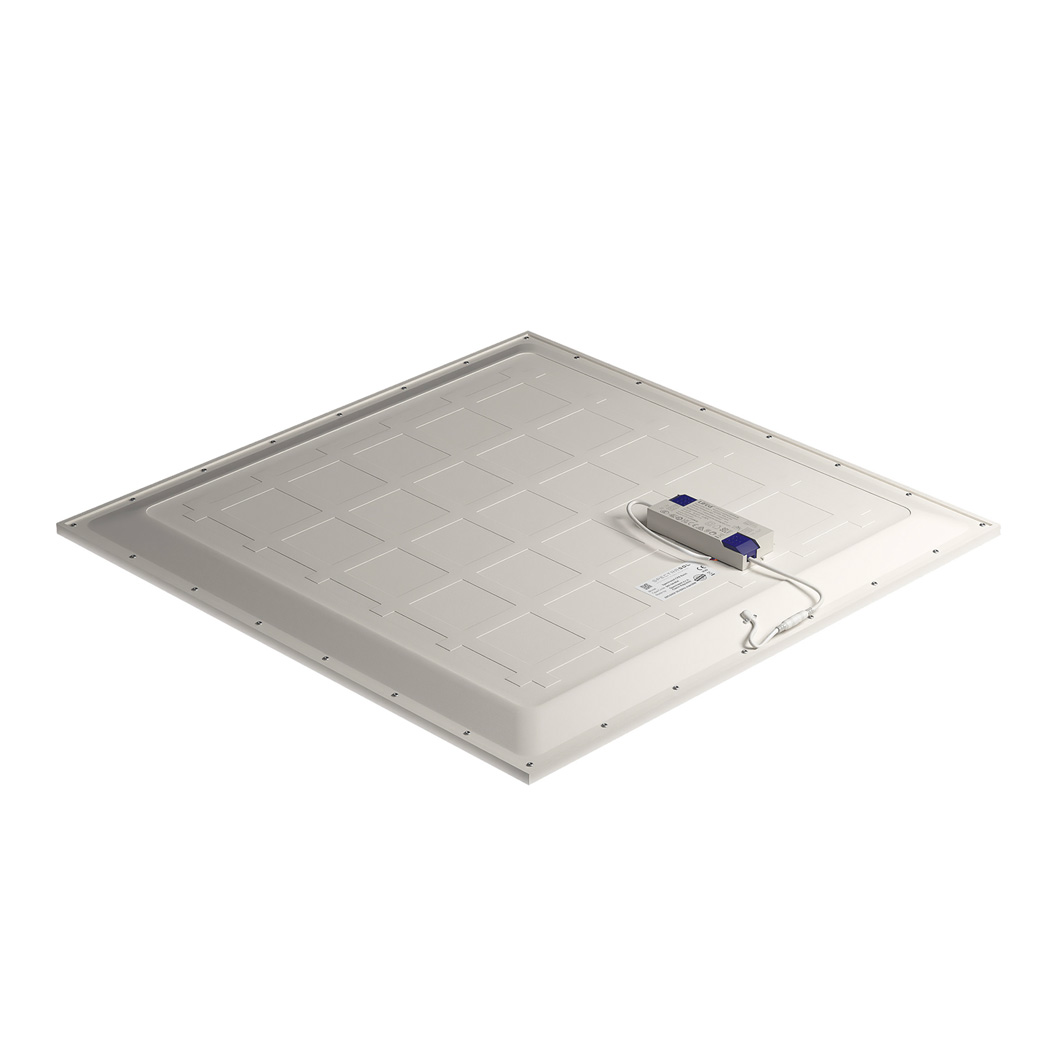

Available in 2 sizes, 600 x 600mm and 1200 x 300mm. Both versions are equipped with a low flicker effect LED driver. On/off or DALI dimmable. Supplied with a separately packaged LED driver that can be placed directly on or near the luminaire. A pair of tin-plated wires is used for connection to the network. Accessories for plasterboard and surface mounted installation are available.



What are the benefits of Spectrasol?

• Balanced light spectrum that mimics sunlight
• Helps synchronise the circadian rhythm
• High colour rendering
• Protects the retina from harmful blue light
• Red light helps to repair retina damage
• Increased visual comfort
• Promotes alertness, concentration & quick thinking
• Improves work & study performance, reduces error rate
• Improves emotional mood
• Supports overall health & wellbeing
• Increases safety in the workplace

Still have questions?

Contact us on 01189 882294 or [email protected]
We're happy to help :)



Specification

Versions

600x600
Size: 595 x 595 x 33mm

1200x300
Size: 1195 x 195 x 33mm

Light parameters

Light distribution: Direct
Optical system: Opal diffuser
UGR: <19
CCT real¹: 4800K
CCT measured²: 5000K
CRI: >95
Luminous flux: 4000 lm
EDImel (D65;D50): 3200;3720 lm
DER mel (daytime): (D65)=0.80 ; (D50)=0.93
Flicker: Flicker free
Calculated LED lifetime: L80B20 70.000h

Electrical parameters

Power consumption: 43W
Power supply: 220-240V 50-60Hz
Connection: Tinned wires
Control options: ON/OFF, DALI, SWITCH DIM

Mechanical parameters

Body: Steel plate, plastic frame
Colour: White
Maximum ambient temperature: 25°C
Protection: IP20
Packaging: Recyclable cardboard & separately packed driver
Weight: 1.8kg

Warranty: 3 years

¹real CCT in a typical illuminated room
²dimensional CCT of luminaires (spherical integrator)

tolerance of photometric values +/- 10%

Lamp type: Procognitive LED Spectrasol 5000K CRI 95

Dimensions

Downloads

• Data Sheet PDF

Delivery and warranty

 Delivery

Lead times TBC

 Warranty

3, 5 or 7 year guarantee / warranty
See product for specific details

About the manufacturer

Proudly introducing SpectraSol, a pioneer in "Biological Procognitive Lighting" and the closest on the market to bridging the gap between artificial indoor lighting and the natural light of the sun. The latest addition to the field of Human Centric Lighting, Spectrasol supports circadian rhythm, enhances cognitive function, and provides an indoor environment that supports health and wellbeing in the workplace.

Standard LED lighting is mostly harmful to eyesight, cognition, sleep and health, due to its high blue-light peaks, spectral gaps and high levels of harmful invisible LED flicker. SpectraSol’s patented technology is flicker-free and engineered to replicate the full, continuous spectrum of natural sunlight by suppressing the harmful blue light range and balancing the precognitive cyan and regenerative red light ranges.

Based and manufactured in Prague since 2018, Spectrasol precognitive lighting combines superior visual comfort, the health benefits of full spectrum lighting, and energy efficiency in one package.

Where can I use Spectrasol light fittings?

Spectrosols cutting-edge range of full spectrum LED lighting can be used in pretty much any working environment, and is especially suited to industries that rely on high cognitive output or have limited natural light. Examples include:

Education Sector:

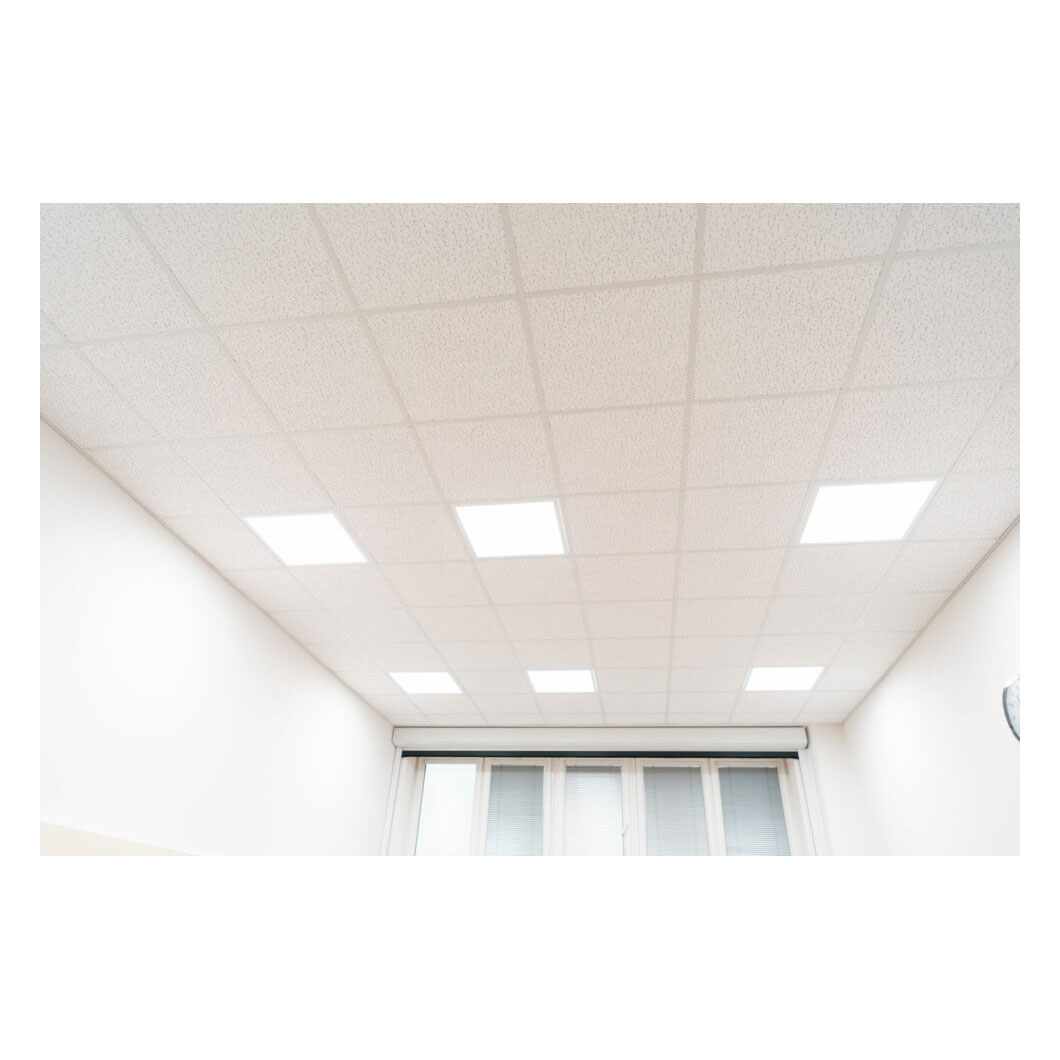

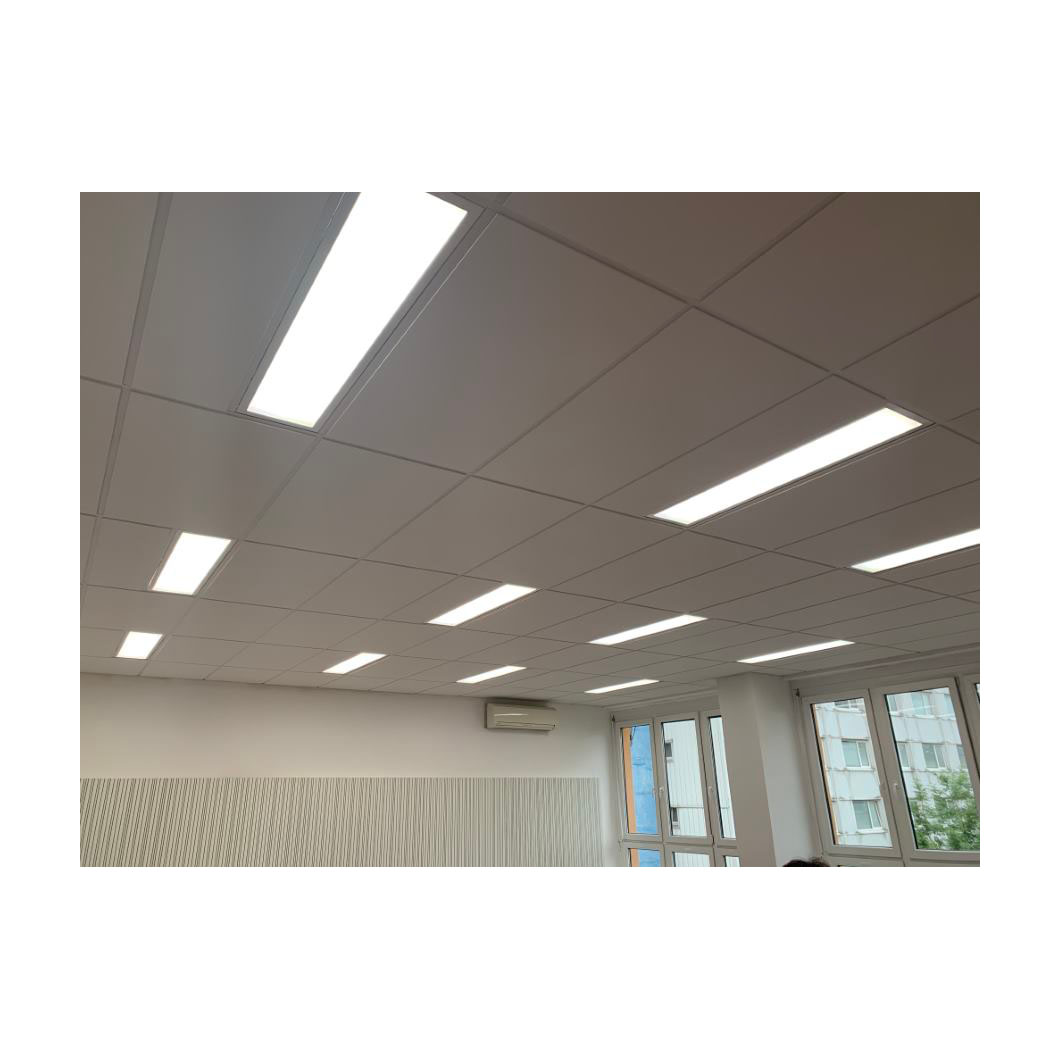

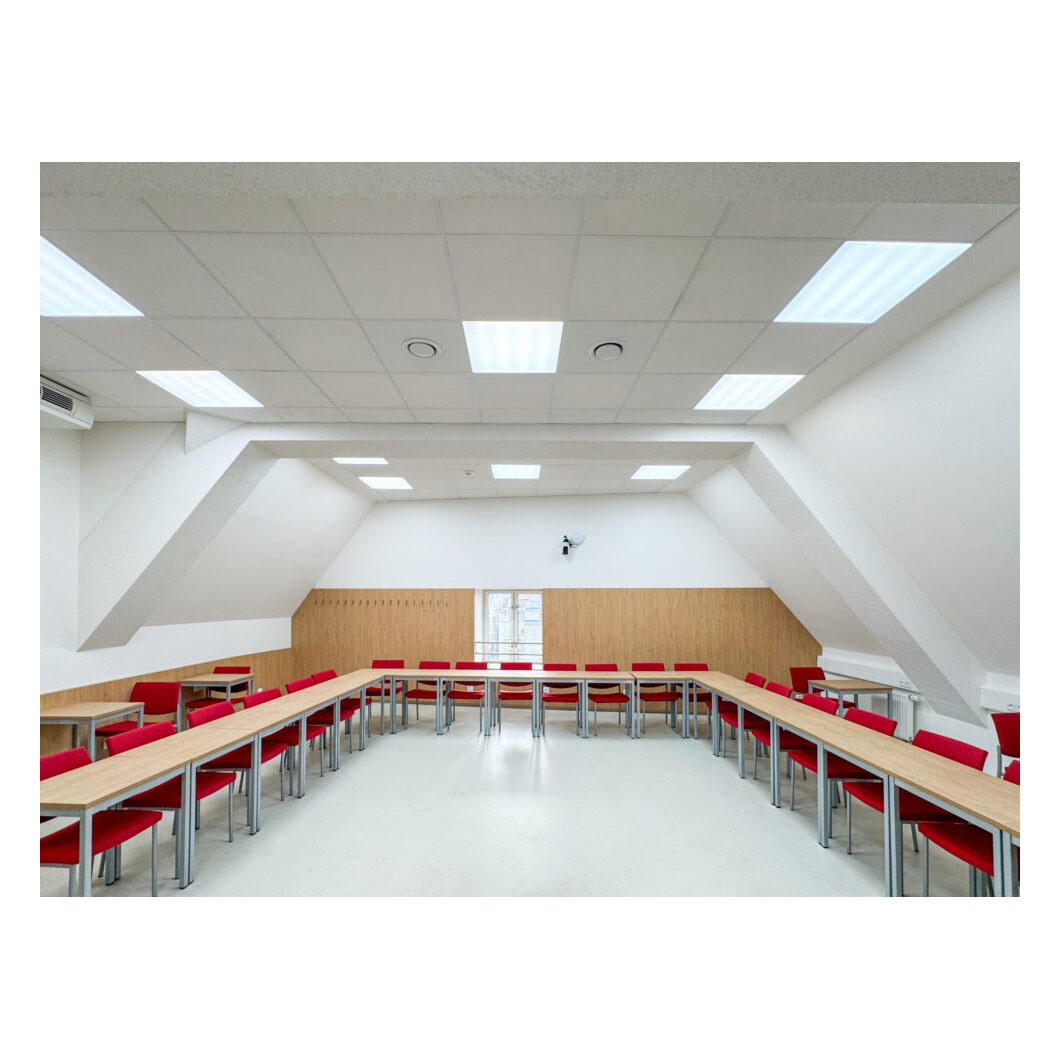

Classrooms, auditoriums, assembly halls & training rooms

Work areas:
Offices, production spaces, meeting rooms, laboratories & dust-proof environments

24/7 Workplaces:

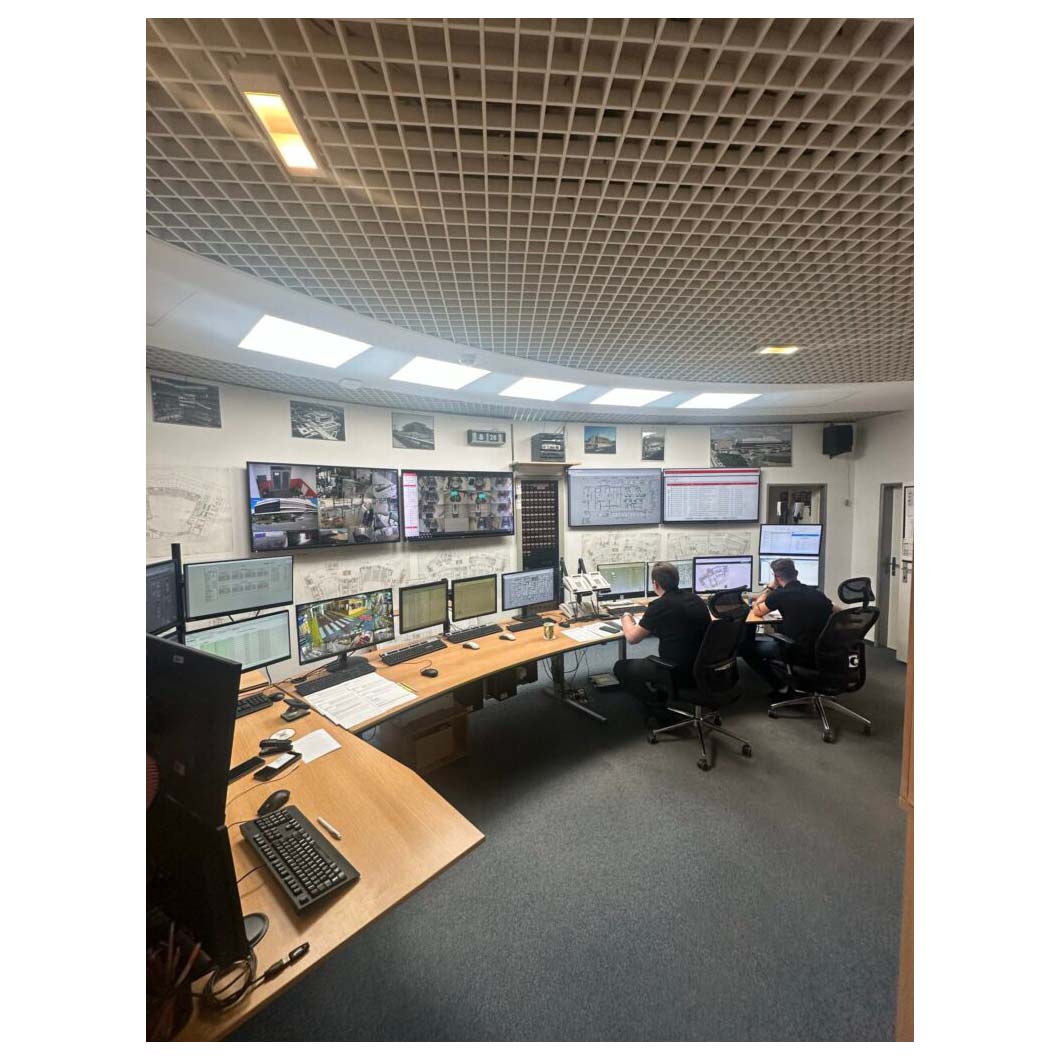

Dispatch Centres & control rooms

Healthcare Sector:

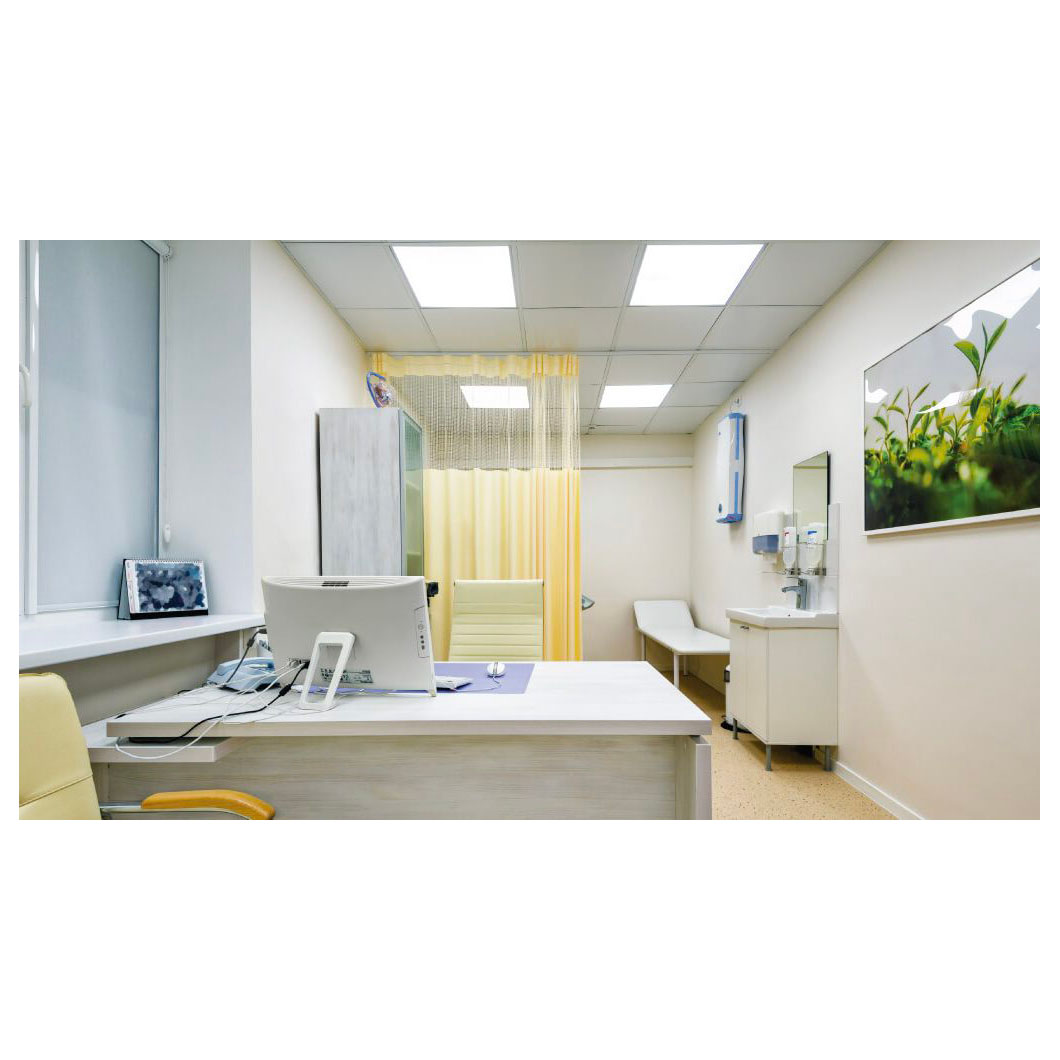

Medical offices, outpatient clinics, nurse stations, inpatient facilities, phototherapy & care homes
