Rond 230V Switch Trimless Retrofit Wall Socket

Minimalist and beautiful, the Rond 2.0 “classic” 230V Trimless Switch is ideal for renovations and projects without home automation. With a design that is uniquely contemporary, rond wall switches are rotatable every 45°.

• Trimless design (Ø48mm) for a fully flush finish
• The ultimate look but it requires perfect installation of the installation ring

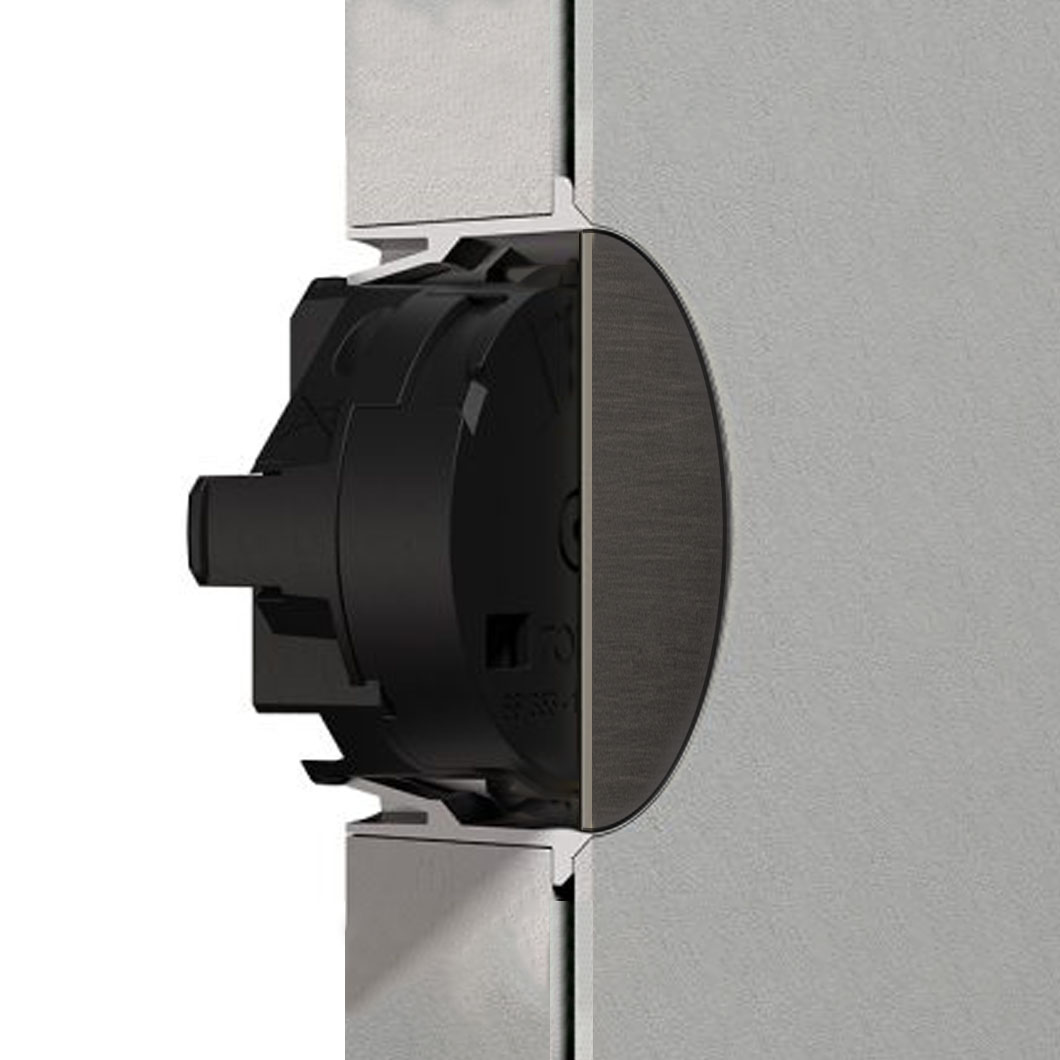

Retrofit Plaster Ring (required)

• For plasterboard and brick work installation
• Fits in universal Ø68 junction boxes. The ultimate solution for universal junction boxes, round or square
• Thanks to the rond removal tool, electrical connections remain accessible, even after plastering
• Electrical housing box (45mm deep) required - View Datasheet

Choose from 9 switch types
From two-pole switch for your bathroom to intermediate switch. See Spec tab for full list.

Multiple finishes

• Basic - white, black, cream or grey
• Aluminium - white, black, brushed grey, brushed steel or brushed bronze

Simple access after install
Removal tool for easy removal post install

Install where you want
Installing in wood, veneer, stone, brick or plaster? Choose the appropriate kit for your project - retrofit for plastered and brick walls, multifit for wood, veneer and stone panels with a min depth of 10mm and a maximum of 30mm.

Not sure which fitting you need?
Check out our rond product comparison guide.

Good To Know...

Custom finishes available: personalise with veneer to match furniture installation.

For more info contact us on:

  [email protected]

  01189 882294

or on our website Live Chat

Application: 10AX/250V
SBL load: 100W
Flush-mounting depth: retrofit/easyfit/backfit 40mm, multifit 55mm
Wire stripping length: 10.5mm
Wire capacity: up to 2 x 2.5mm² per terminal
Wire fixation: screw terminals (TX8)
Ambient temperature: -5 till 40°C
IP rating: IP41
IK rating: IK06
Marking: CE

Switch Types

• single-pole switch
• two-pole switch (for bathroom)
• two-circuit switch
• double NO/NC push button
• NO/NC push button
• two-way switch
• double two-way switch
• two-pole two-way switch (for bathroom)
• intermediate switch

Housing Box:
Product Description: 45mm Deep European Wall Box (Orange)
Dimensions: 70mm(h) x 72mm(w) x 47mm(d)
Net Weight: 21g
View Datasheet

Product dimensions: D.37mm x Diameter.48mm

• 230V Switches Wiring Diagrams PDF
• 230V Switches Data Sheet PDF
• 230V Switches Install Instructions PDF
• Retrofit Plaster Ring Short Install Instructions PDF
• Rond Product Comparison Guide PDF
• Datasheet | Housing Box | PDF

What are the RAL colours for the white and cream cover plates?

• The white cover plate is RAL 9003, and the cream cover plate is RAL 1013.

 Delivery

Currently in stock - next day UK delivery

When out of stock delivery from Belgium usually within 2-3 weeks
