Lodes MAP Surface Mounted 24V Modular Lighting System

Description

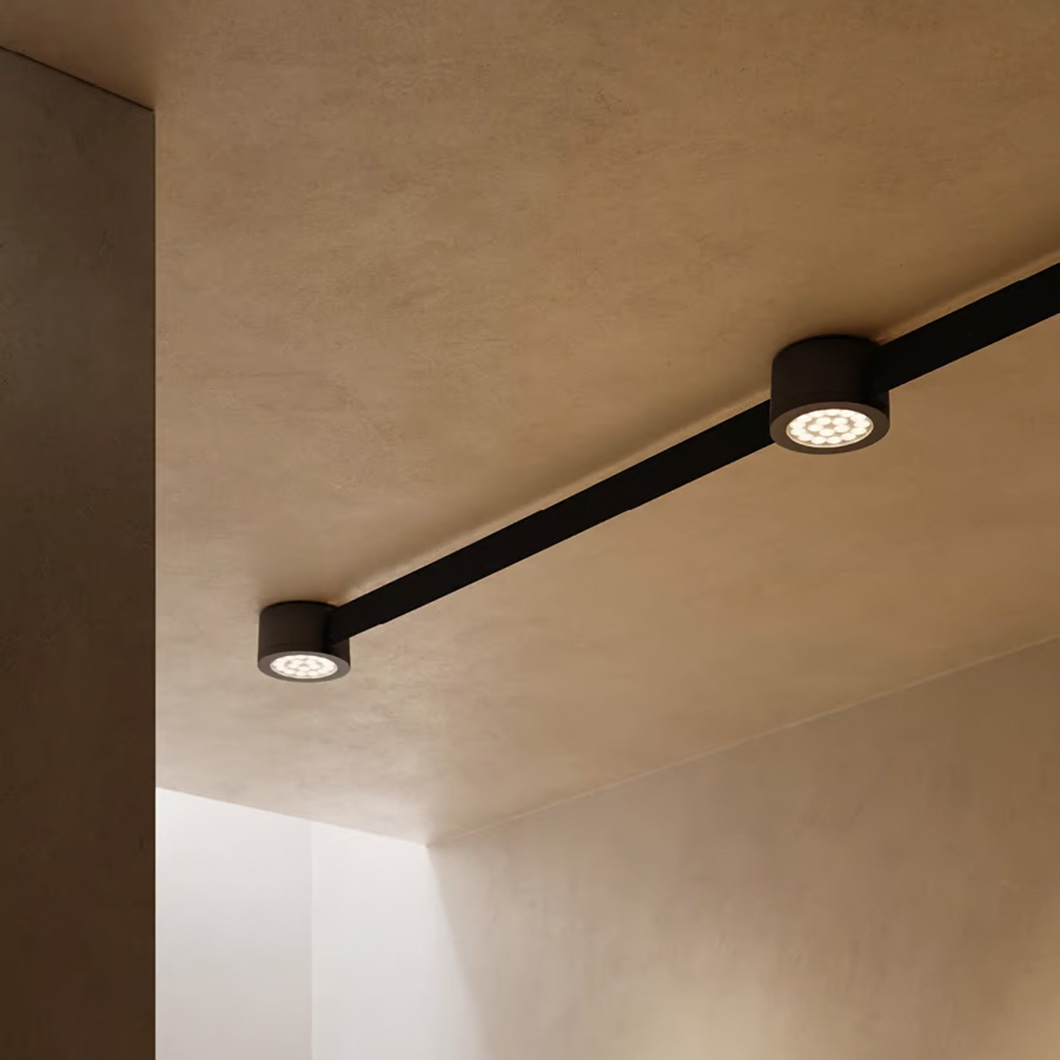

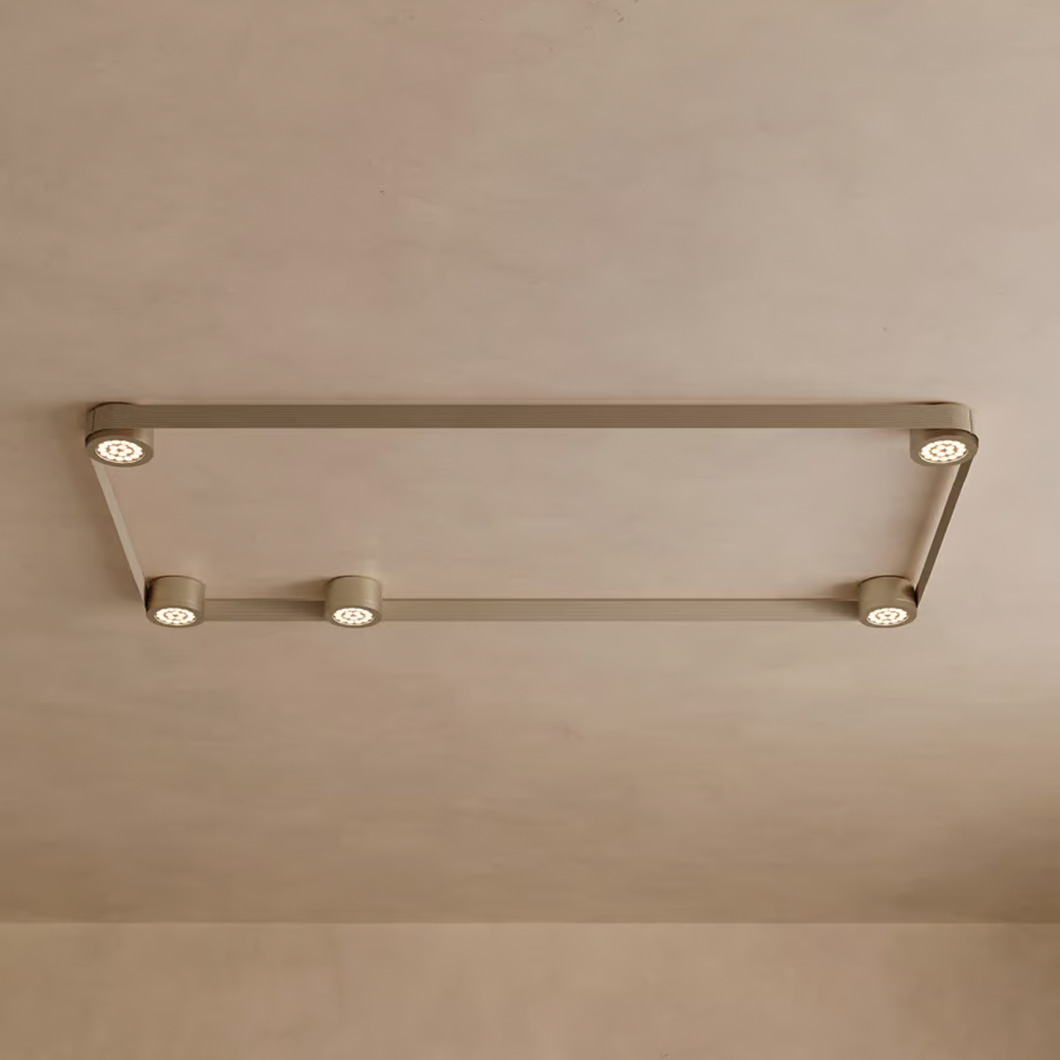

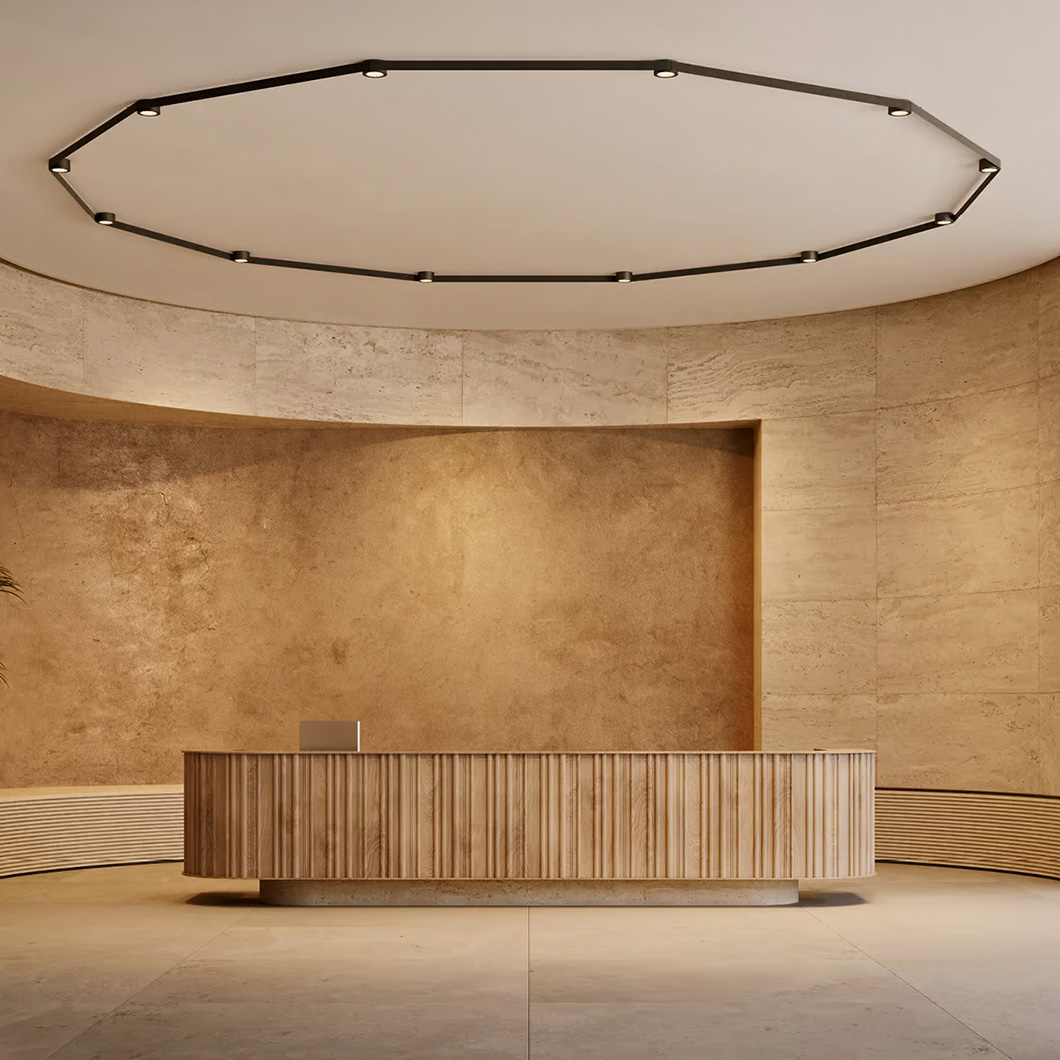

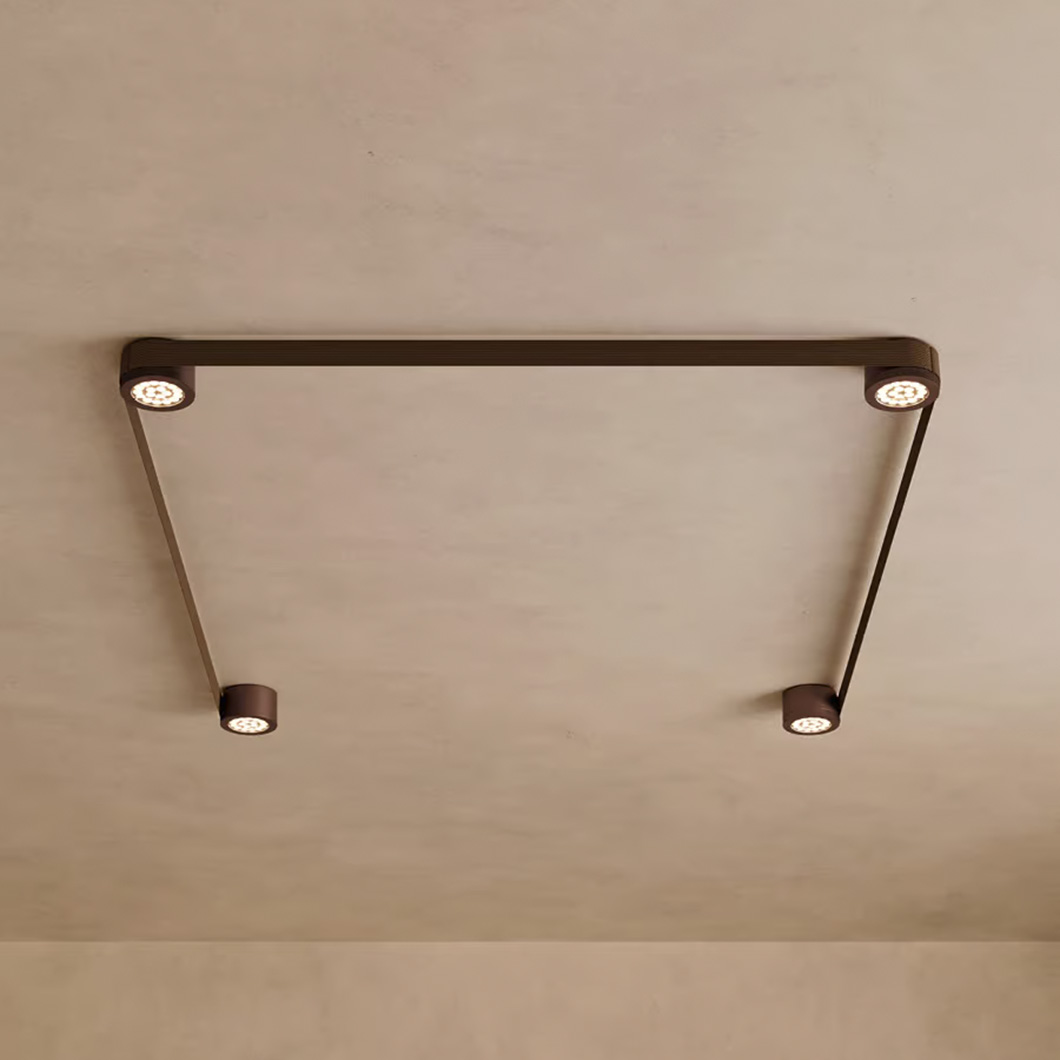

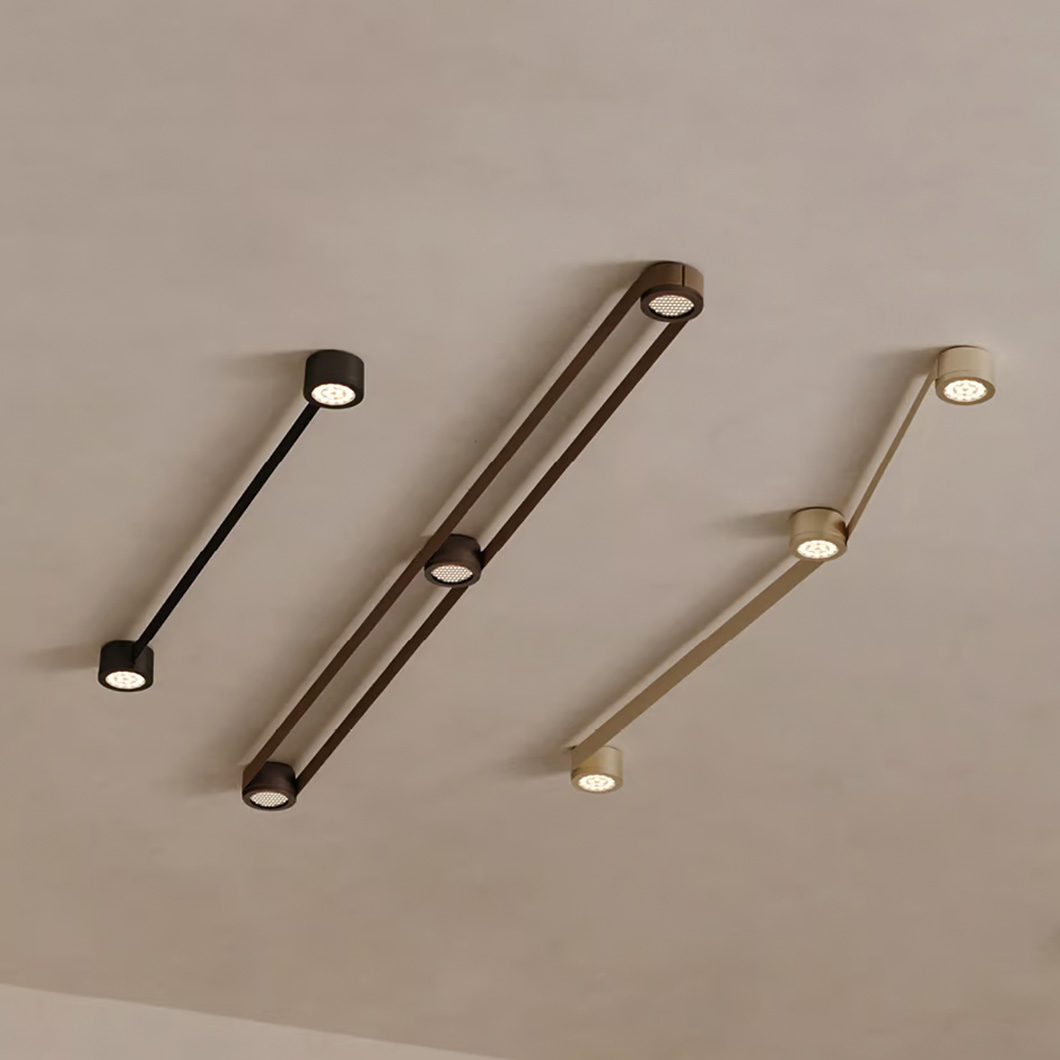

MAP by Lodes is a surface-mounted modular lighting system that can be adapted to suit various indoor environments. Designed in collaboration with Berlin-based studio GECKELER MICHELS, MAP combines efficient LED lighting with a minimalist, modern form to create a flexible system with numerous configurations. The circular light modules are connected by a fabric tape that powers the entire system, allowing you to position each light point as desired.

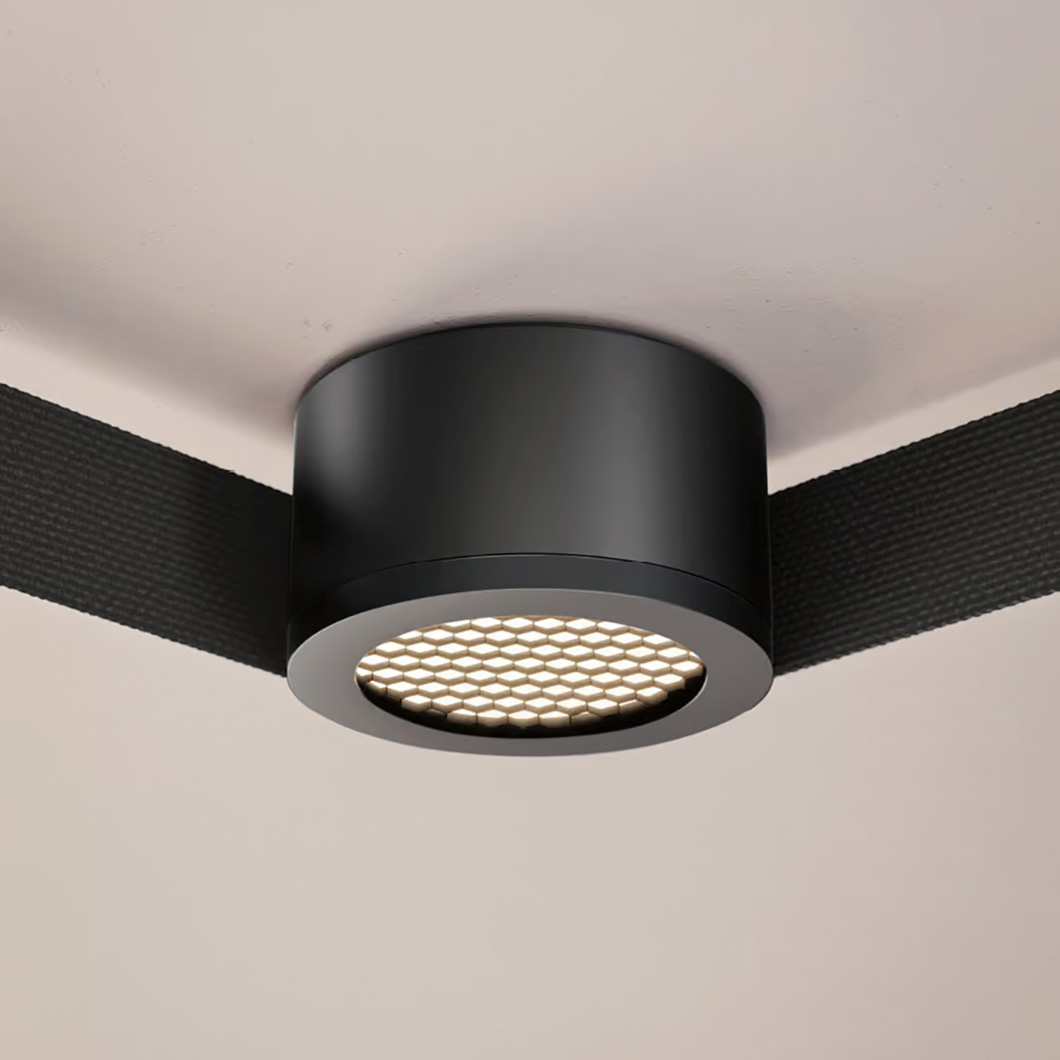

The versatile MAP system is available in three stylish finishes: matt black, matt champagne, or natural brown. The modular lighting solution allows you to decide the necessary number of light components for your space, as well as the distance between them. Each light module is available in medium 26° or wide 55° optics, Lodes Lens 80°, or as an indirect light. MAP offers TRIAC or DALI dimming, with integrated or remote drivers included.

MAP has optional accessories and tools for easier installation, such as the connection point, ceiling bracket or corner bracket.

For more information on the MAP system or for fully custom compositions, please get in touch with our team.

Specification

IP20

Light Source
LED 7,5W
Turnable White 2700K 900lm / 3000K 918lm
24V
CRI 90
TRIAC version: Integrated TRIAC driver included
DALI version: DALI/PUSH remote driver included

Starting Point TRIAC - max. 4 additional points
Starting Point DALI - max. 7 additional points

MAP additional point operates only when connected to a MAP starting point or a MAP connection point via the MAP tape

Dimensions
26°/55° optics - Ø130mm x 70mm

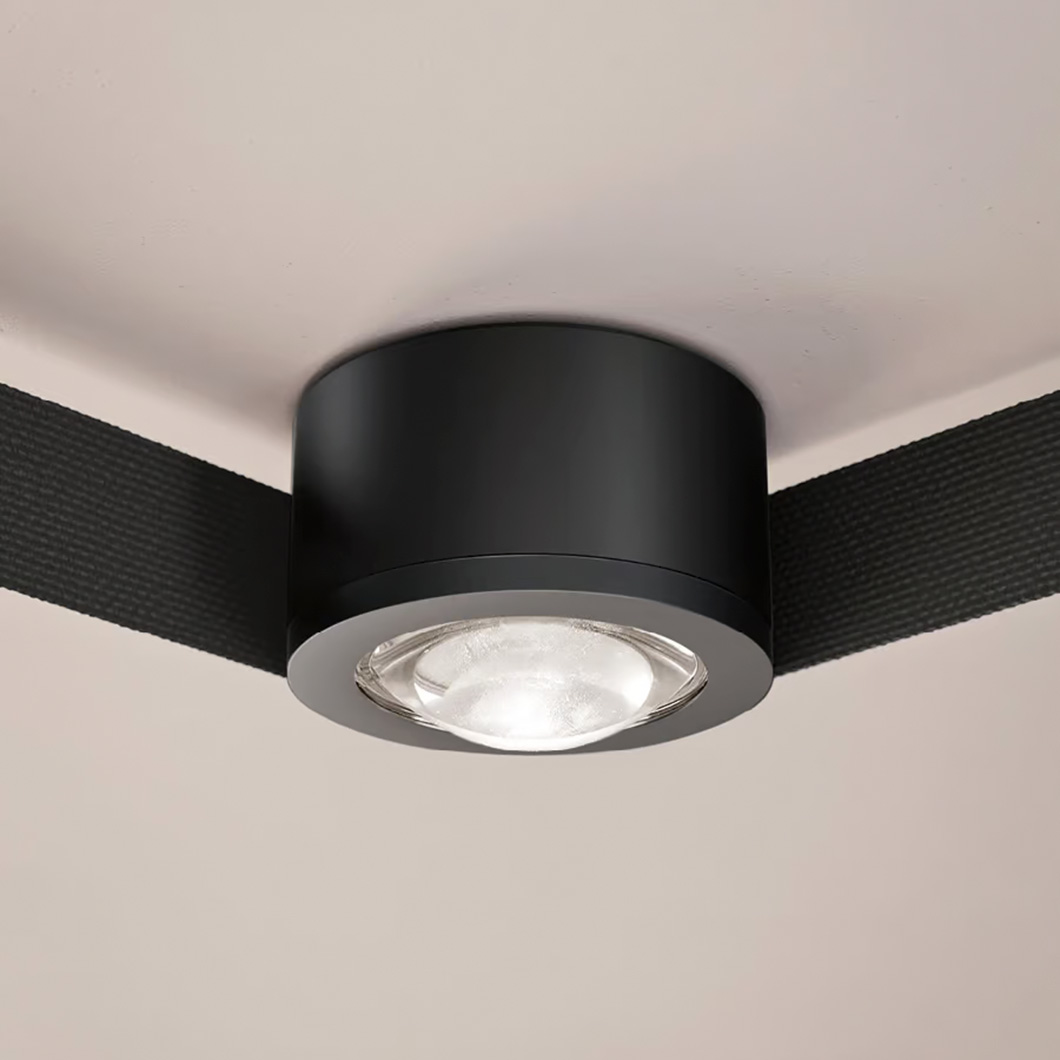

Lodes lens 80° - Ø130mm x 86.5mm

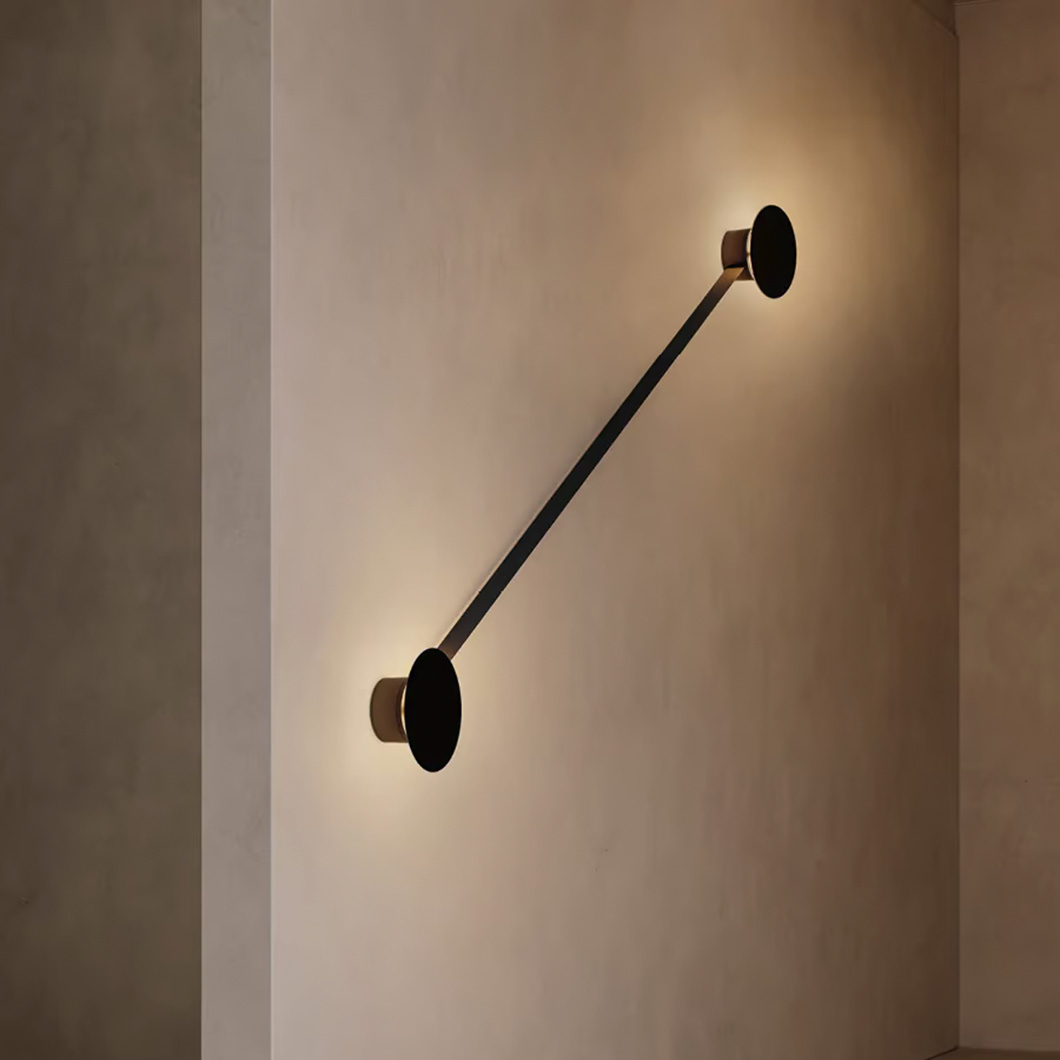

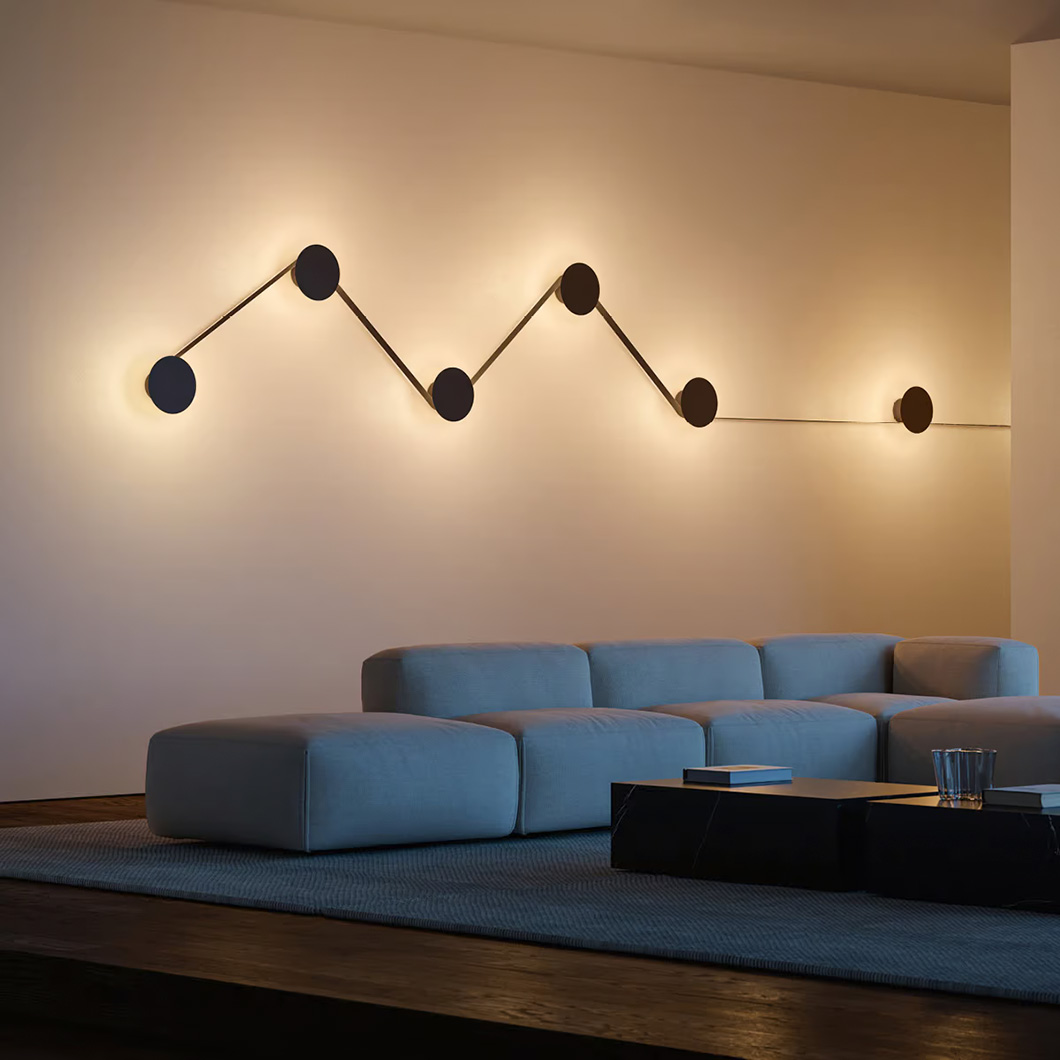

Indirect light - Ø240mm x 107mm
Connection point - Ø130mm x 70mm

Accessories
MAP ceiling bracket - to be applied when the tape exceeds 2 metres in length between lighting points.
MAP corner bracket - allows you to create ceiling-to-wall corners while keeping the tape securely in place.

Dimensions

Downloads

• MAP Datasheet PDF
• MAP Information & Assembly PDF
• MAP Optics PDF
• MAP Accessories PDF
• MAP Tape Installation PDF

Delivery and warranty

Delivery usually within 4-5 weeks
