Lena Lighting Tytan Steel LED Pro Industrial Light

Description

TBC

Specification

Ingress protection: IP66
Impact resistance: IK06

Rated power of the luminaire: 23W - 84W
Luminous flux: 3600lm - 15300lm
Colour temperature: 4000K
UGR: < 19

Material of the body: coated steel
Colour of the body: white / black
Diffuser material: PC

Diffuser type: matrix led

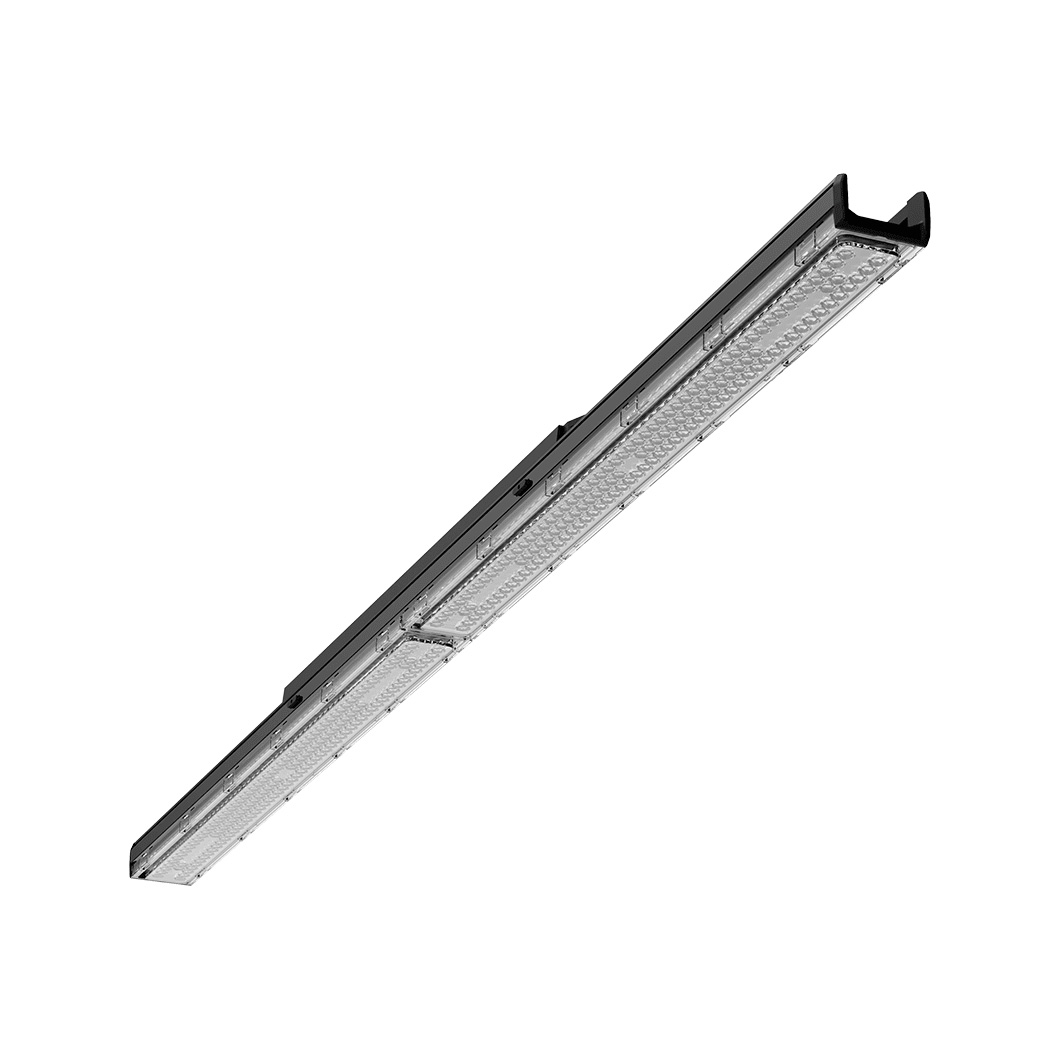

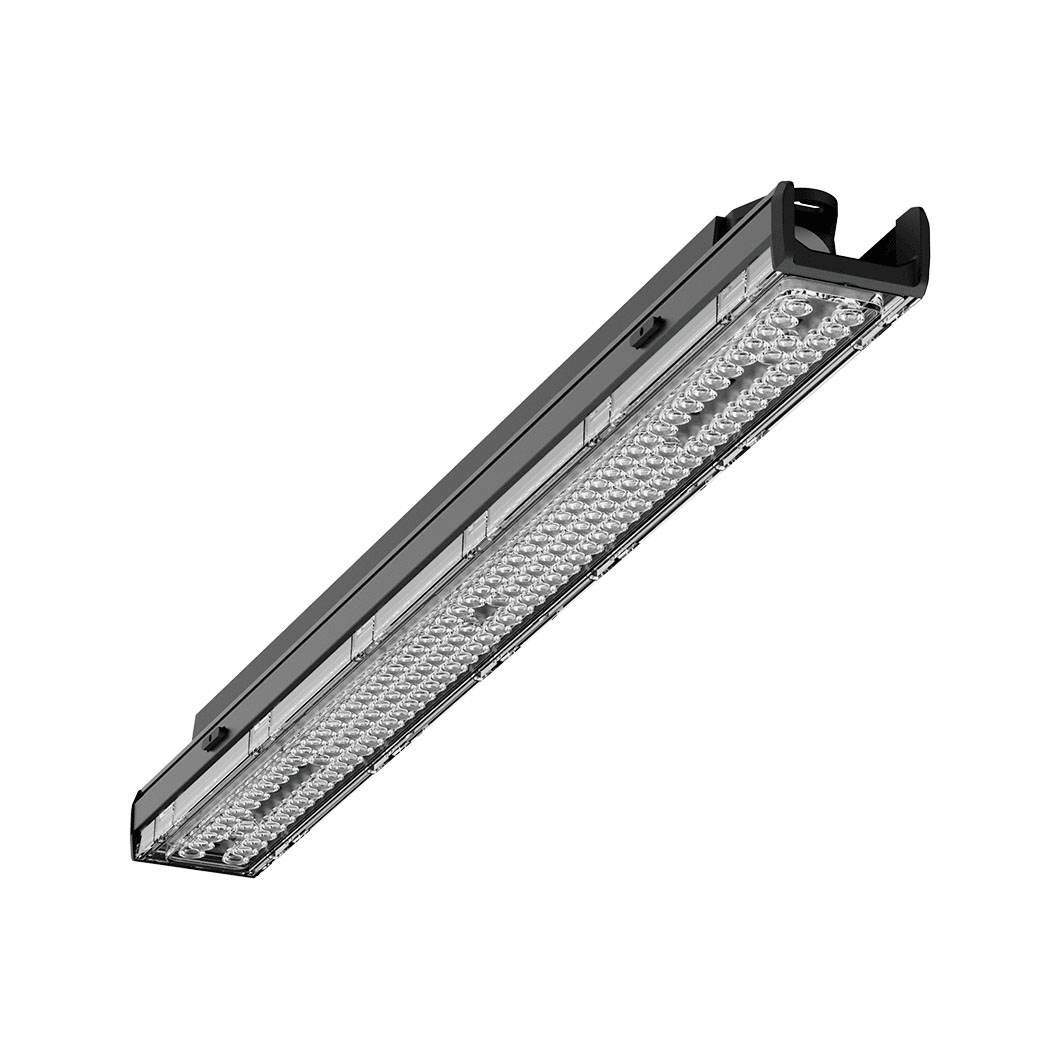

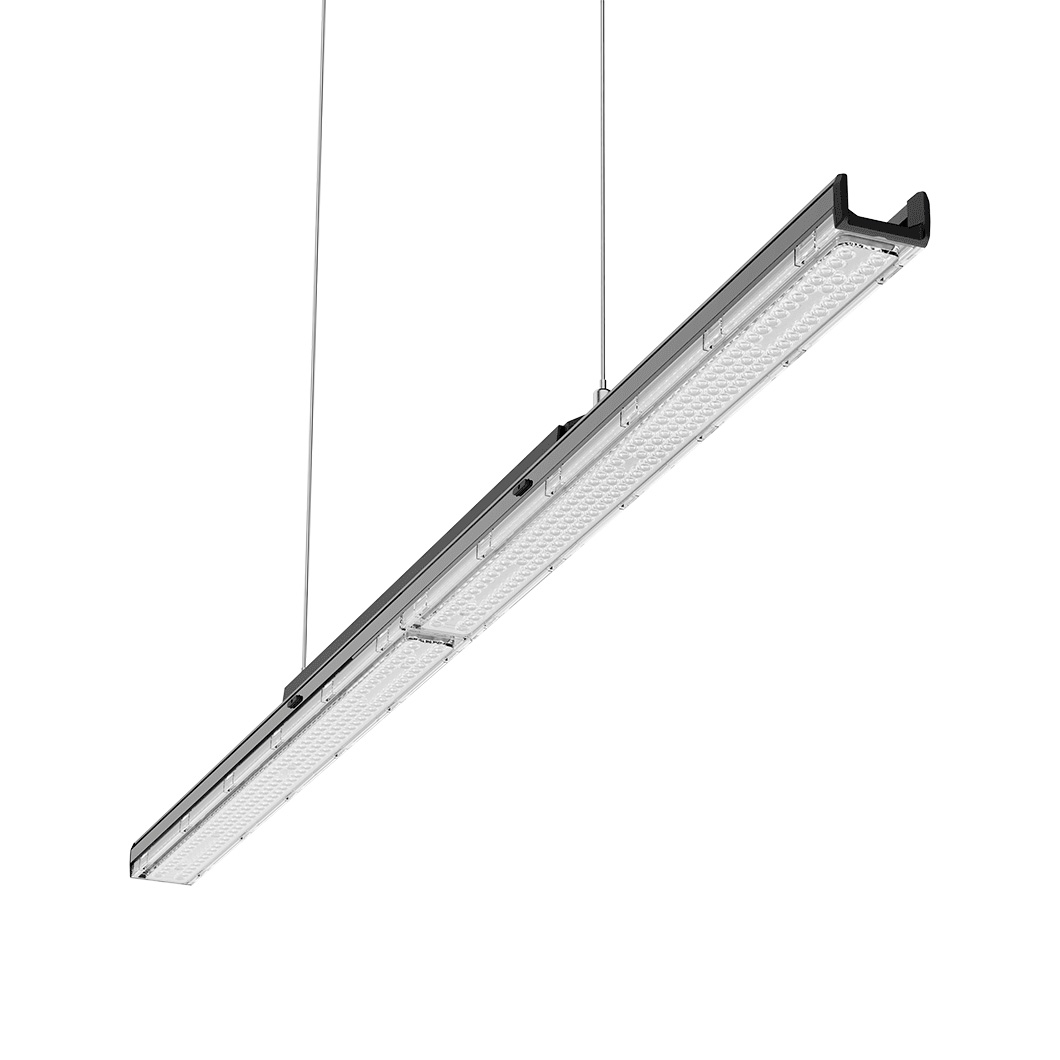

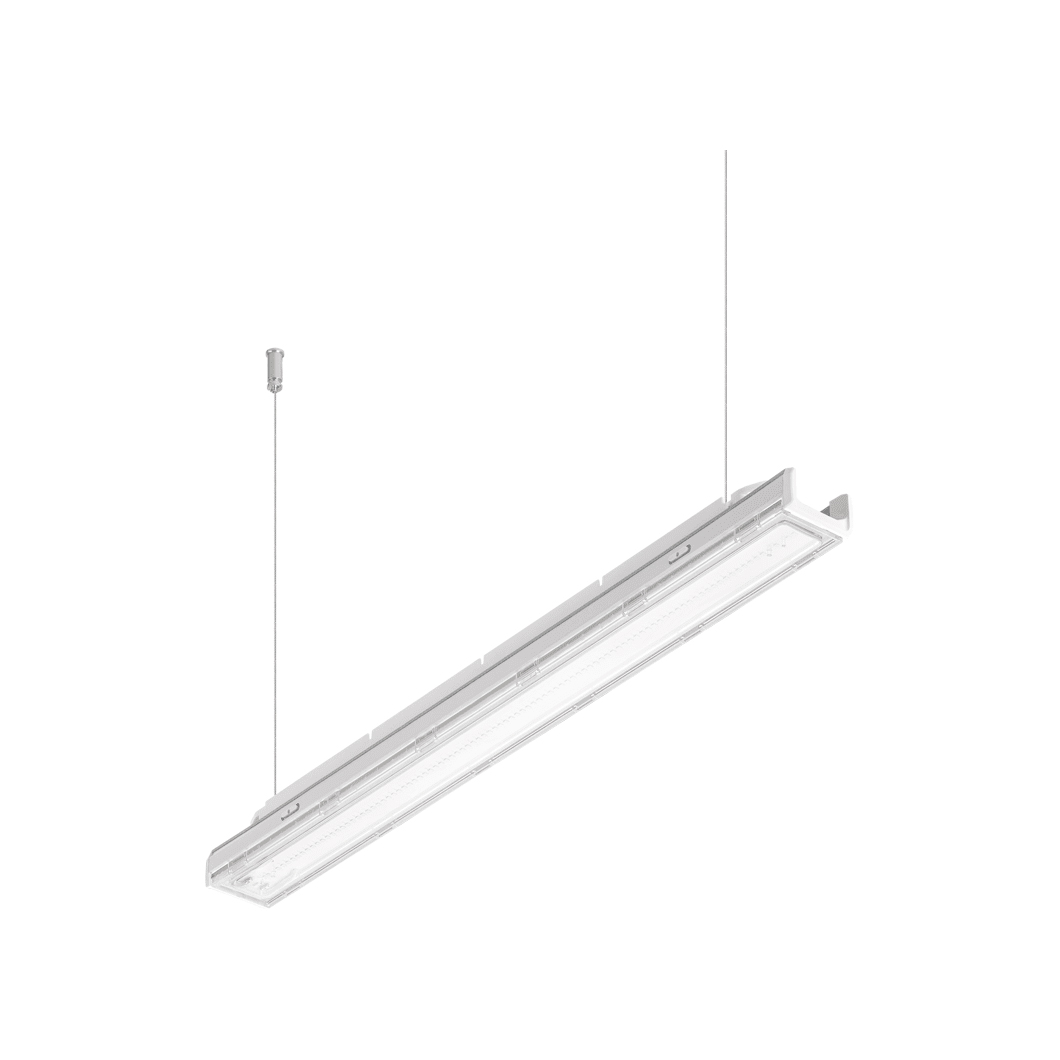

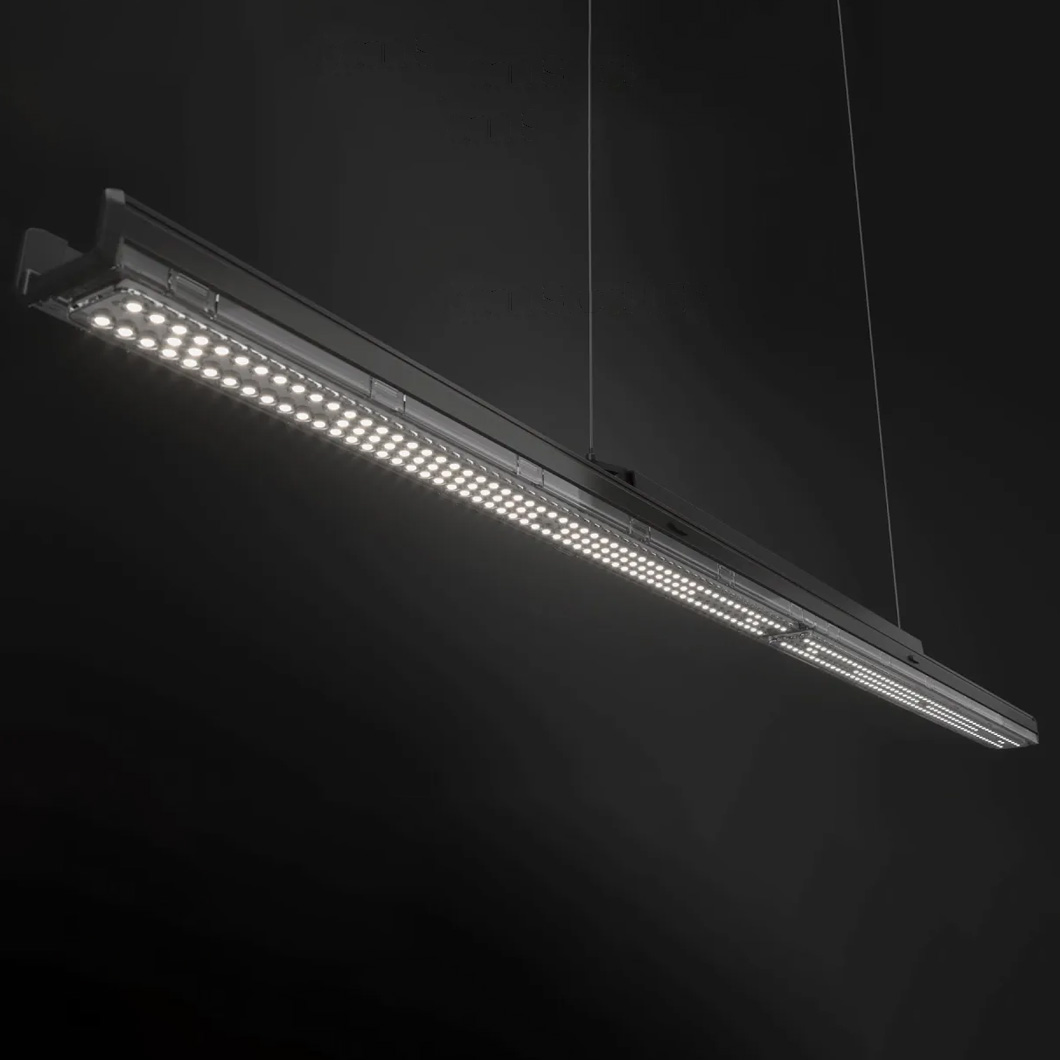

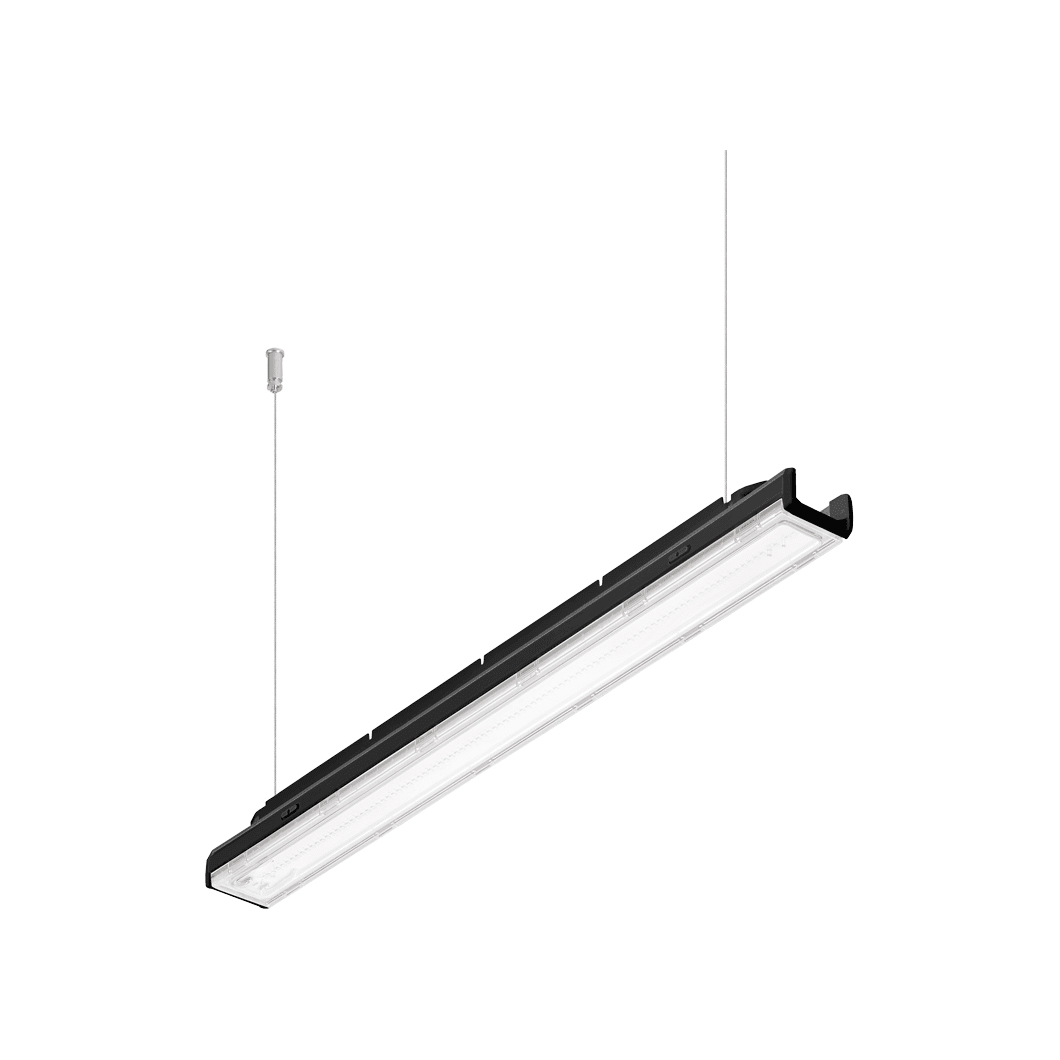

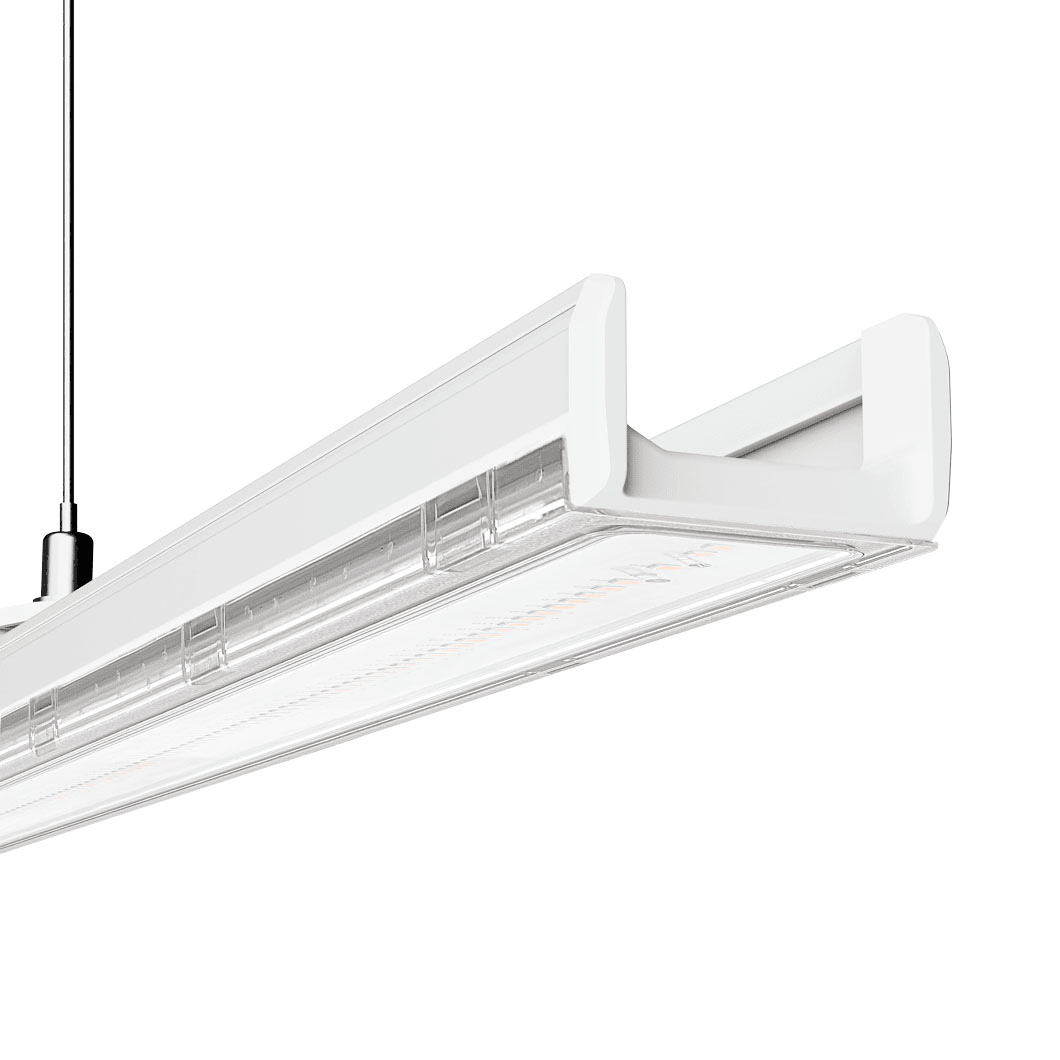

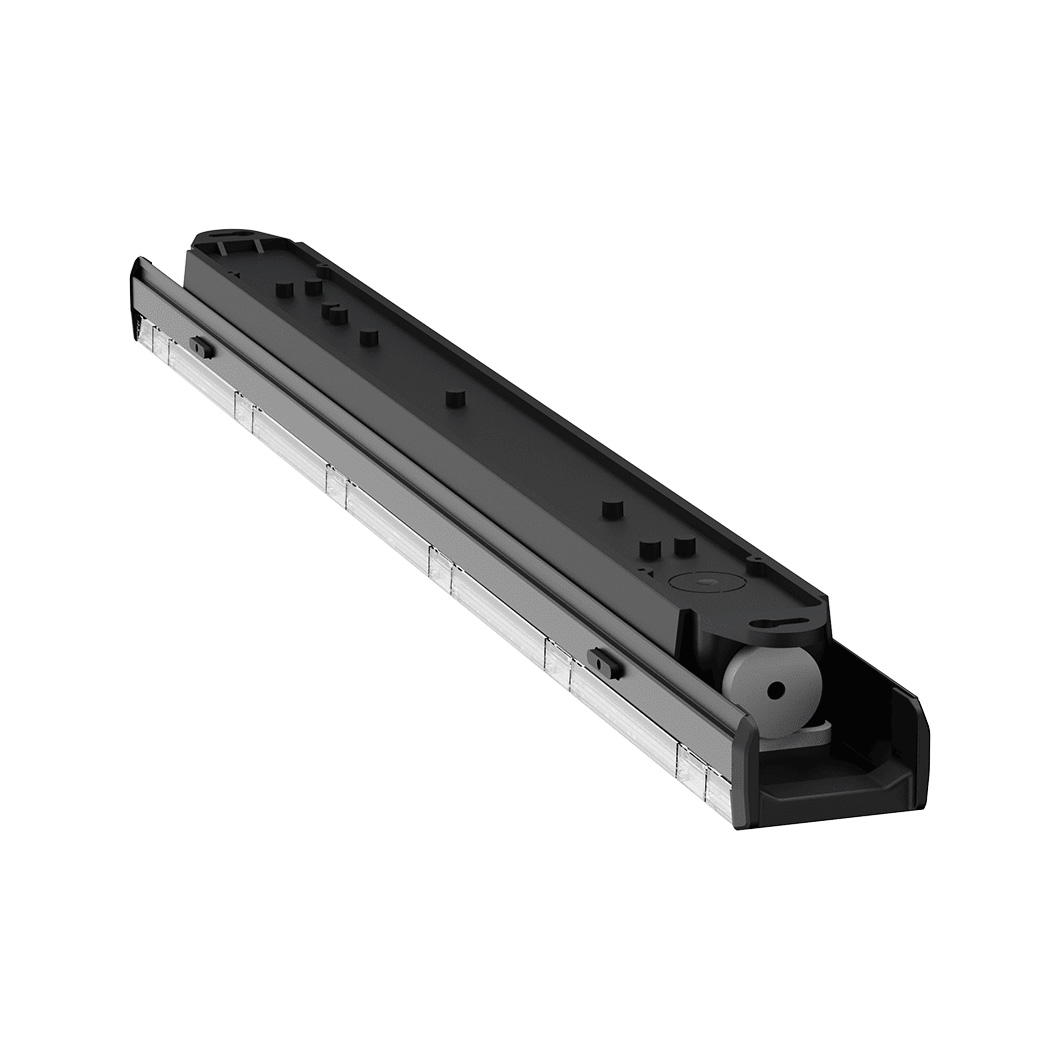

Mounting version: surface, suspended

Dimensions: L.600/1188/1315mm, 57x45mm

Beam angles:

• SW - a standard wide lens (80D conventional angle)
  Recommended for rooms where luminaires are mounted at heights of 3-8m.
• MW - medium wide lens (90D conventional angle)
  Recommended for rooms where luminaires are mounted at heights of 3-6m.
• VW - very wide lens (105D conventional angle)
  Recommended for rooms where luminaires are mounted at a height of 2.5-5m.
• SN - standard narrow lens (standard narrow, conventional angle 65D)
  Recommended for rooms where luminaires are mounted at a height of 8-12m.
• VN - very narrow lens (very narrow, conventional angle 30D)
  Recommended for premises where luminaires are mounted at heights of 13-20m.
• CN - corridor narrow lens (corridor narrow, conventional angle 35/67D)
  Suitable for rooms where luminaires are mounted at a height of 7-12m.
• DAN - butterfly lens, double asymmetric narrow
  Recommended for premises where luminaires are mounted at heights of 3-4.5m.
• SA - single asymmetric lens
  Suitable for spaces where luminaires are mounted at heights of 3-4.5m.

LDT Lighting files available on request



Dimensions

Downloads

• Data Sheet PDF
• Install Instructions PDF

Frequently asked questions

How does Tytan Steel LED effect energy costs?

• With an efficiency of up to 192 lm/W, Tytan Steel LED can reduce energy costs by up to 69% compared to traditional solutions.

Is Tytan Steel LED suitable for spaces with high dust levels?

• Yes, the fixture has an IP66 tightness class, which guarantees full protection against dust and water jets.

What are the advantages of the metal housing?

• The metal housing provides better thermal performance, resistance to UV and mechanical damage, and also increases fire safety.

Is Tytan Steel LED environmentally friendly?

• Yes, Tytan Steel LED is an Eco Friendly product, combining high energy efficiency with long service life, which contributes to reducing the carbon footprint.

How quickly does the investment pay off?

• In typical industrial applications, the return on investment is achieved in just 6 months.

Is Tytan Steel LED suitable for modern office spaces?

• Yes, thanks to its modern design, the fixture fits perfectly into offices and representative spaces.

Can Tytan Steel LED be used in the food industry?

• Yes, the luminaire is ideal for use in the food industry thanks to its high tightness class and easy cleaning.

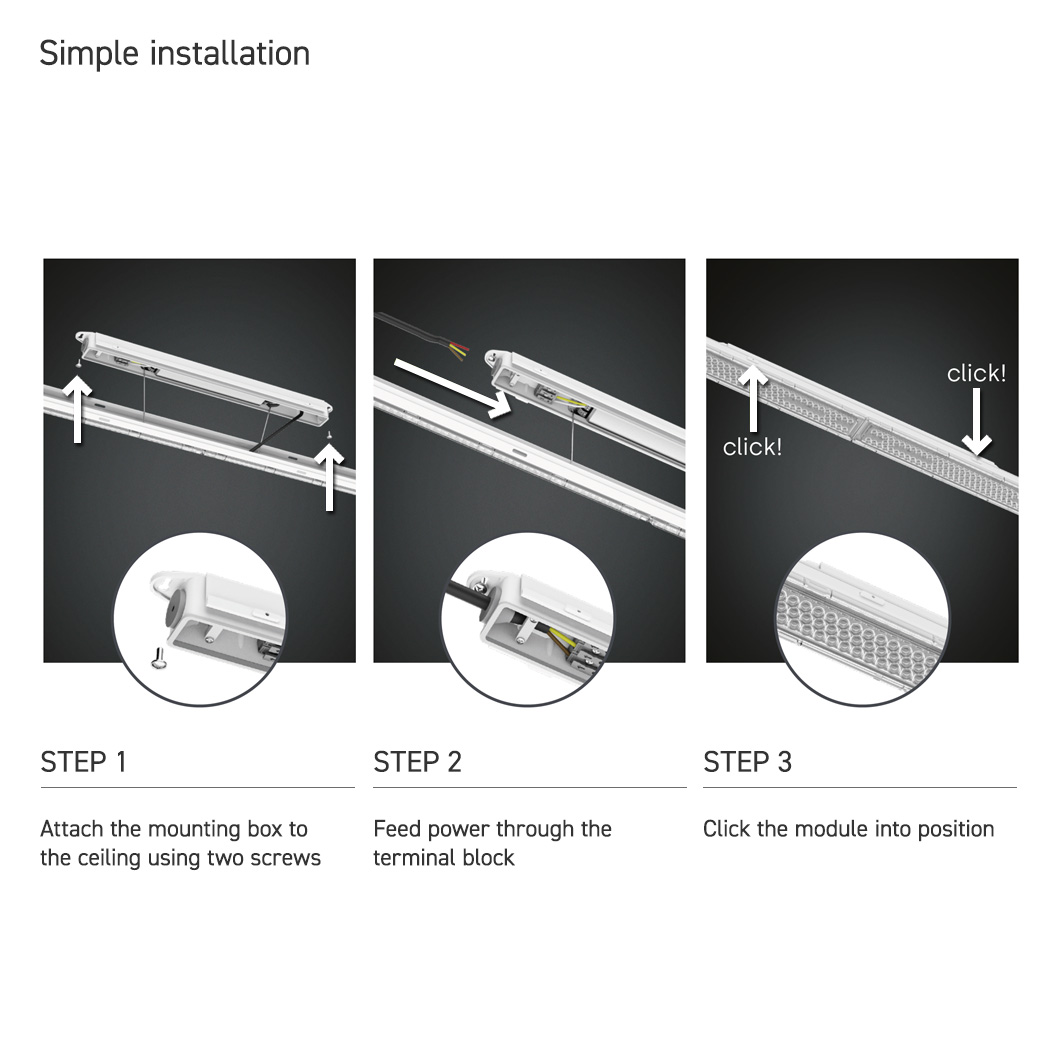

How quickly can Tytan Steel LED be installed?

• Installation is extremely quick and easy - the fixture does not require specialist tools, which significantly shortens the installation time and reduces labor costs.

Delivery and warranty

 Delivery

Delivery approximately 2-4 weeks

 August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

 Warranty

Supplied with 5 year warranty
