Lena Lighting Skver LED S Z2 WJ Industrial Street Lighting

Description

The iF Design award-winning Skver LED S Z2 WJ is a modular, pole-mounted, decorative park and city LED street light with a clean modern aesthetic. The equipment compartment has a tool-free service plate compliant with the ZhagaBook 13 and 15 standard. Made of pressure-formed aluminum, Skver is equipped with a convex stylish PC lampshade, with a maximum resistance to mechanical impacts and an increased colour rendering index. Available in variants with an omnidirectional and directed lighting.

Applications

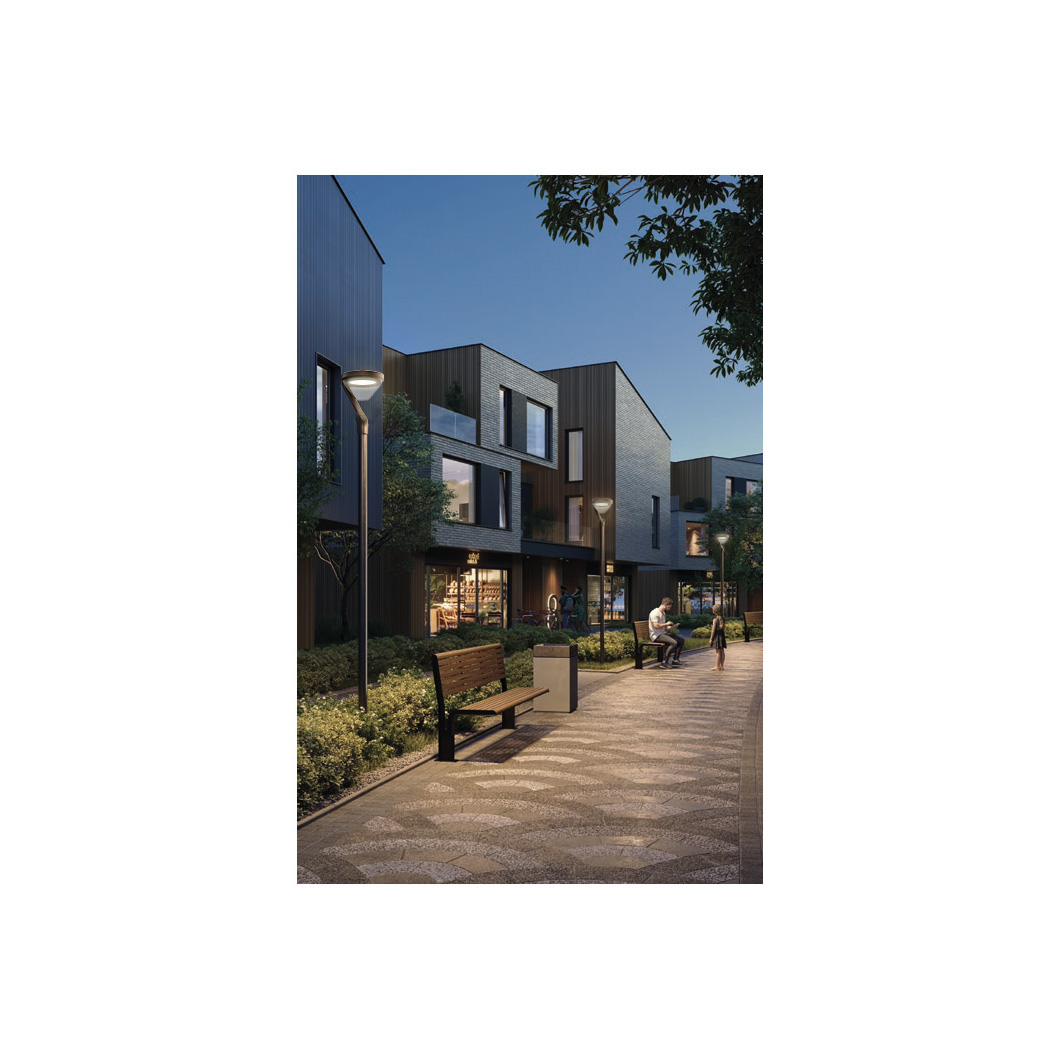

Streets and roads, public areas, non-public estate roads, squares, libraries, town halls, health facilities, schools, public gardens, recreational areas, playing fields, playgrounds, cycle paths, historical sites, old towns, bicycle paths and private outdoor areas.

Key features:

• Distinctive urban design of the luminaire

• Architectural quality of workmanship

• Omnidirectional and directed distribution

• Available variants in standard (CRI70) and increased colour rendering index (CRI80)

• Highest degree of resistance IK10

• Tool-free access to the equipment chamber

• Universal mounting socket enabling mounting of the luminaire on poles in the range of fi 48 - fi 76

• Possibility of equipping with a dedicated accessory in the form of a screen limiting disturbing glare

• Possibility of equipping the luminaire with a Zhaga connector compliant with ZD4i

• Certificates: ENEC, ENEC+, ZD4i, EPD environmental declaration

• Tool-free service plate, compliant with the ZhagaBook 13 and 15 standard

• Knife connector cutting off voltage during service work

Specification

Ingress protection: IP66
Impact resistance: IK10
Rated power: 8W - 54W
Luminous flux: 750lm - 8850lm
Luminous efficacy: 88 - 192lm/W
Colour temperature: 2200 - 5700K*
Colour rendering index: CRI >70, CRI >80, CRI >90
Electrical protection class: I & II
Optics: More than 80 distributions
Control: ON/OFF, IoT, autonomous power reduction, RCR
Luminous efficacy: 138lm/W - 170lm/W
Energy efficiency class: to A
Finish: black (RAL colours available on request)
Material: Aluminium injected die-cast, painted powder-coated
Diffuser type: transparent
Diffuser material: tempered glass
SDCM: <4, <5
Socket type: Optional connectors Zhaga, NEMA 5/7 pin

*DarkSky Approved with 3000K CCT or lower

Due to the amount of versions available, LDT Lighting files available on request

Lamp type: Integrated LED | 8W - 54W | 750lm - 8850lm | 2200 - 5700K

Dimensions

Downloads

• Data Sheet PDF
• Brochure PDF
• Install Instructions PDF

Delivery and warranty

 Delivery

Delivery approximately 3-4 weeks



 Warranty

Supplied with 5 year warranty

About the manufacturer

Established in 1989 and with decades of award-winning experience in the professional lighting industry, Lena Lighting continue to push the boundaries of industrial lighting in over 70 countries. Manufacturing from their cutting-edge base in Poland, Lena Lighting develop energy-efficient LED lighting solutions for professional, commercial and residential projects. From low-bay and high-bay lighting to floodlights and even street lighting, the unique blend of aesthetics and reliable functionality has resulted in numerous prestigious international design awards, including the Red Dot, iF Design Award, and Good Design.

The professional commercial light fittings produced by Lena Lighting are designed specifically for harsh environmental conditions, such as industrial facilities, factories and laboratories. The range of industrial luminaires are also ideal for less specialised projects including warehouses, shops, restaurants, garages and even residential applications.
