Lena Lighting Constelia LED Industrial Street Lighting

Description

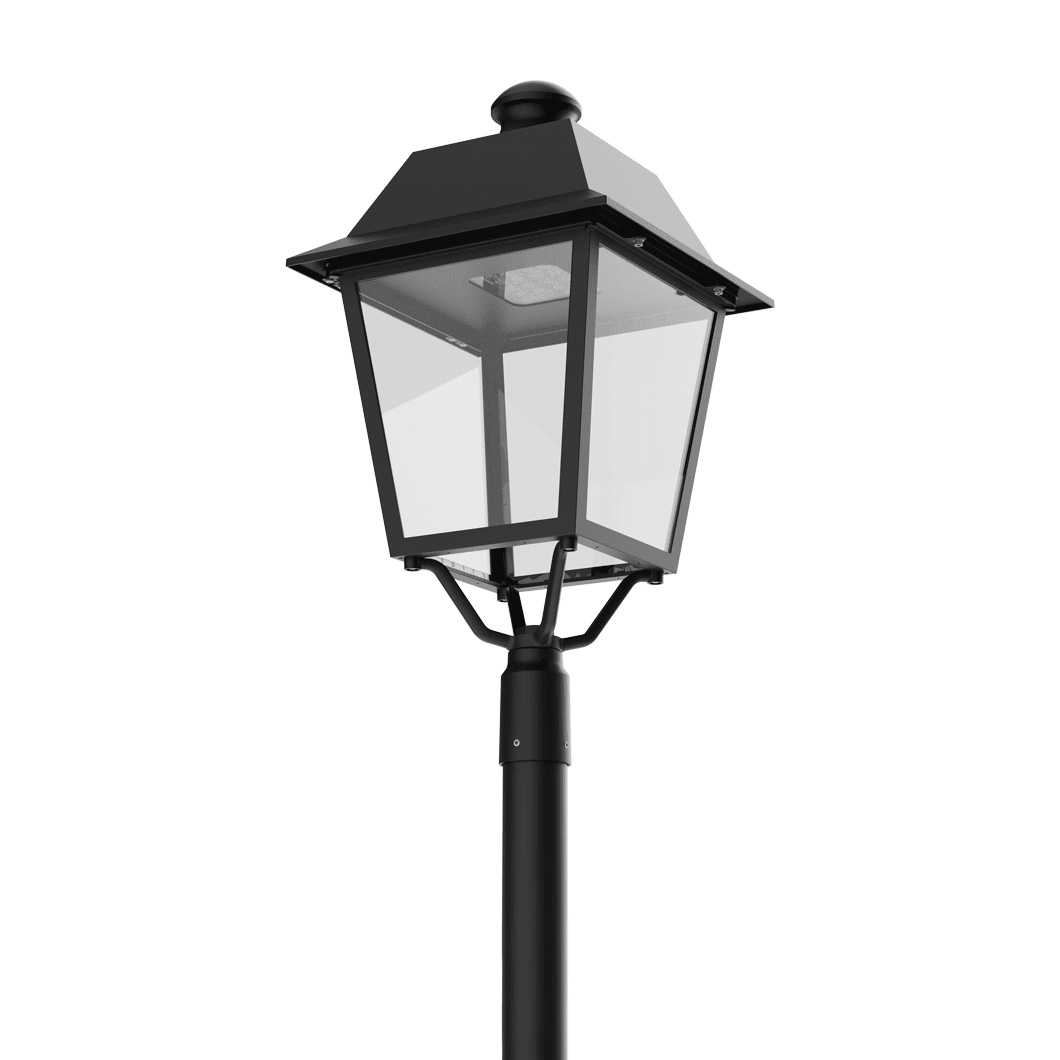

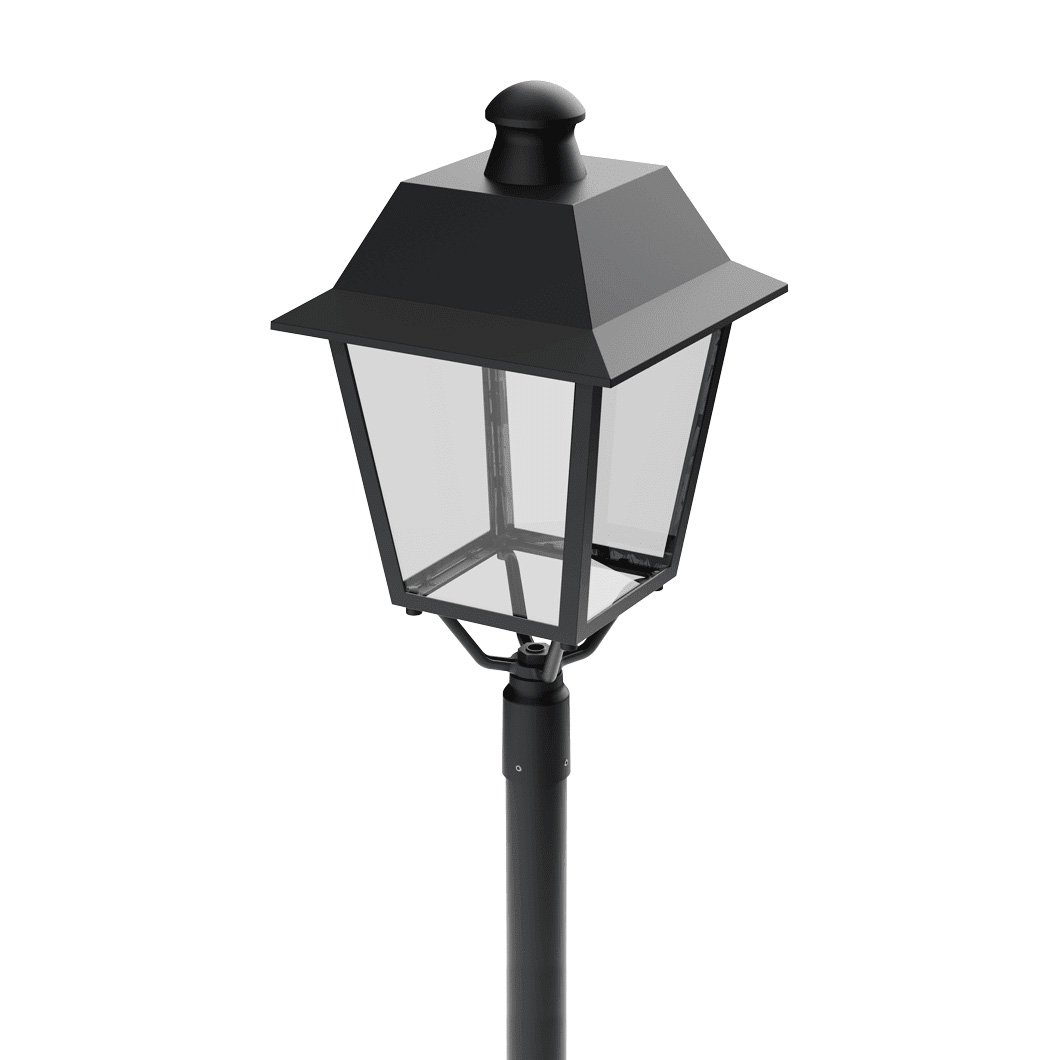

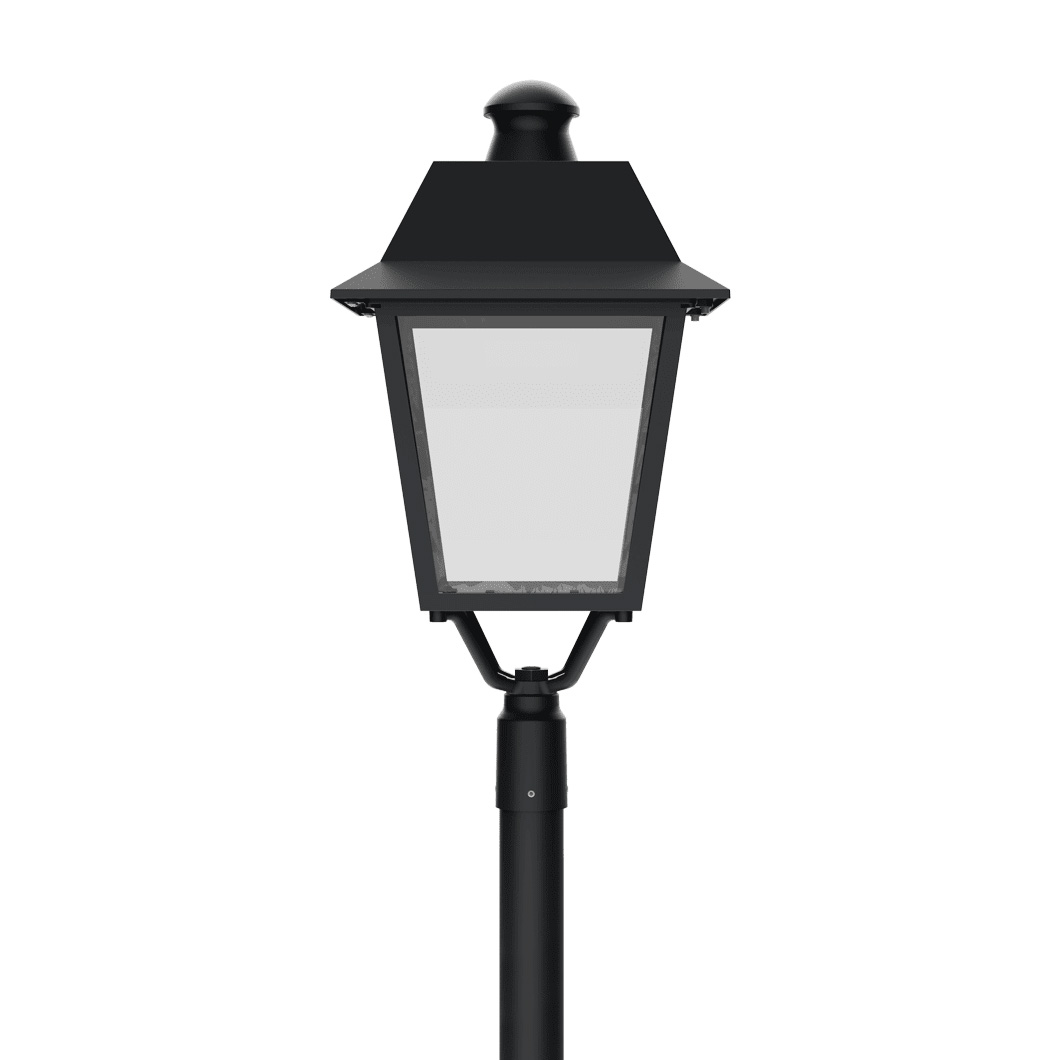

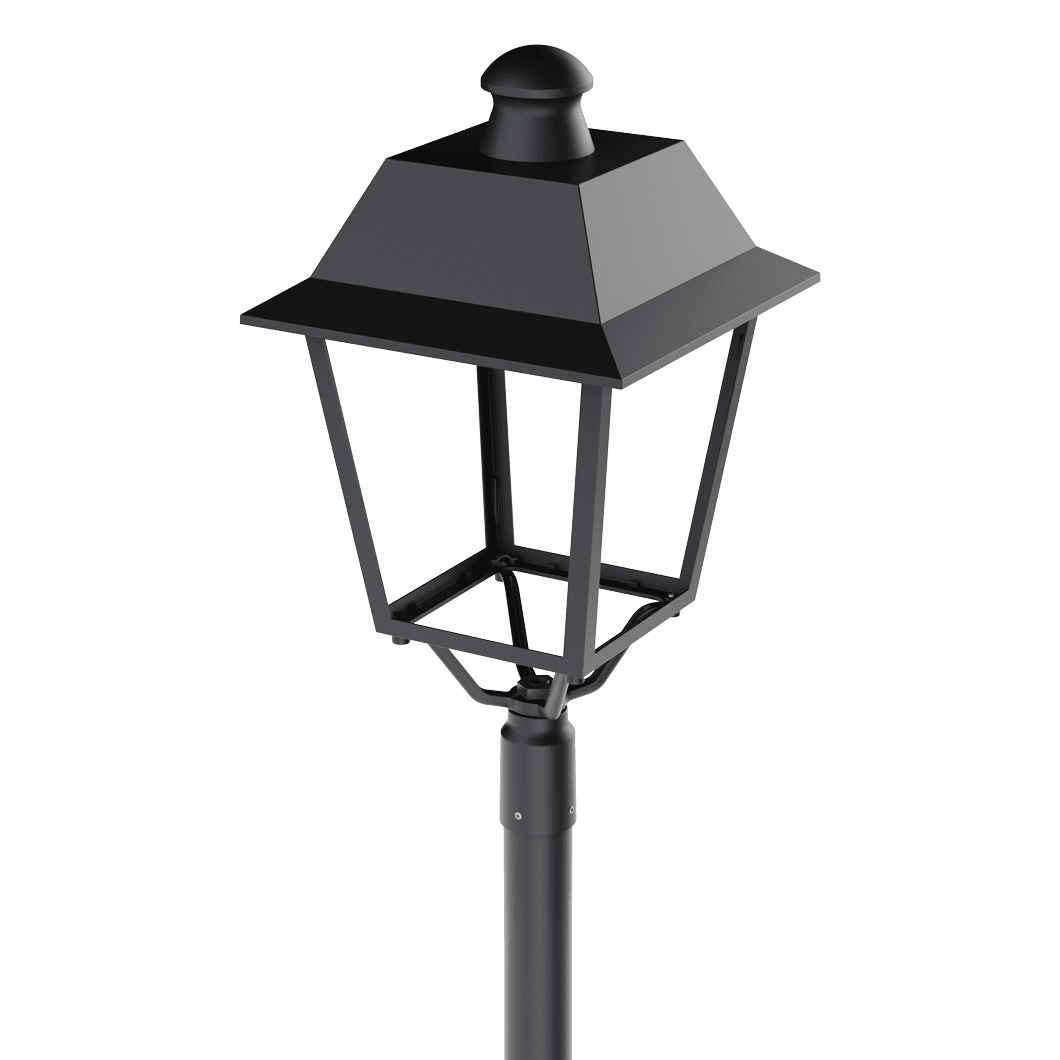

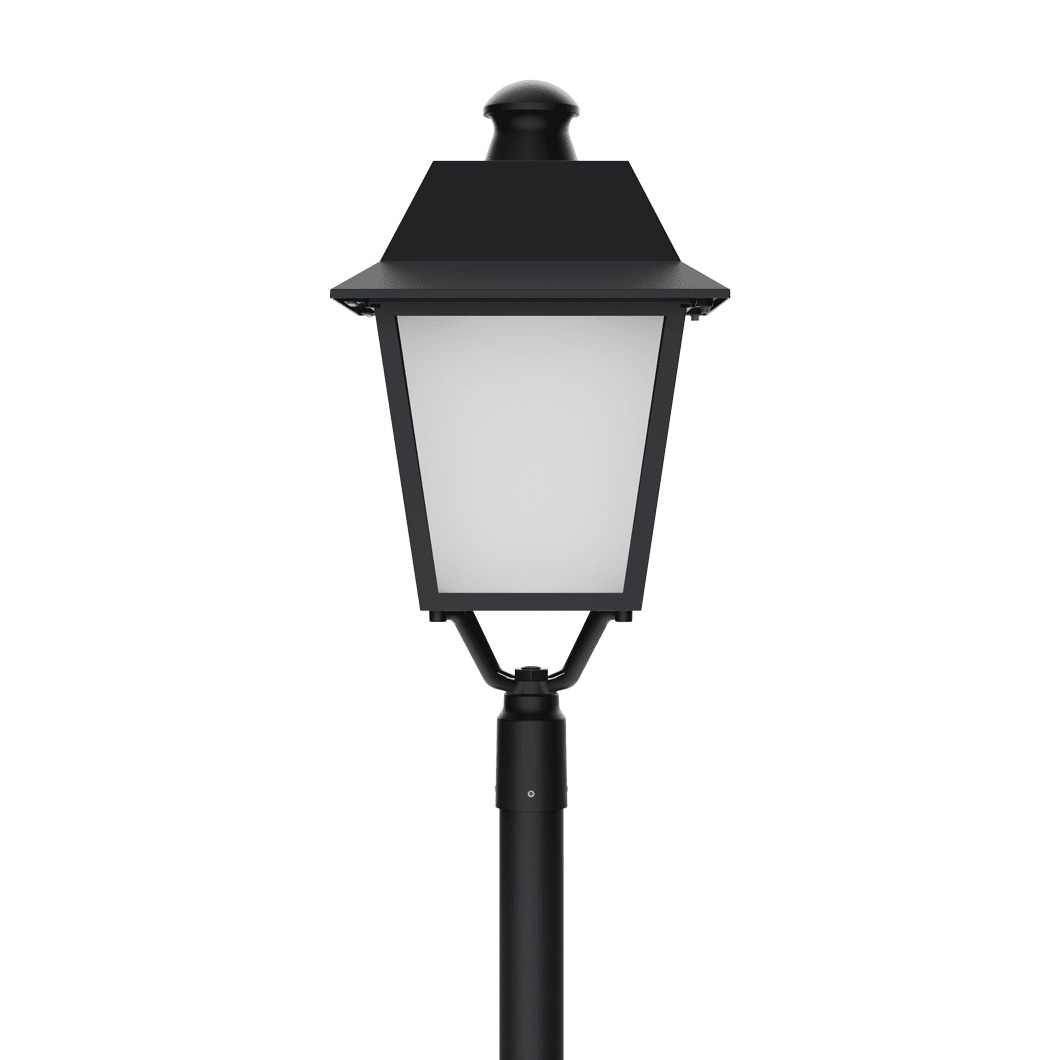

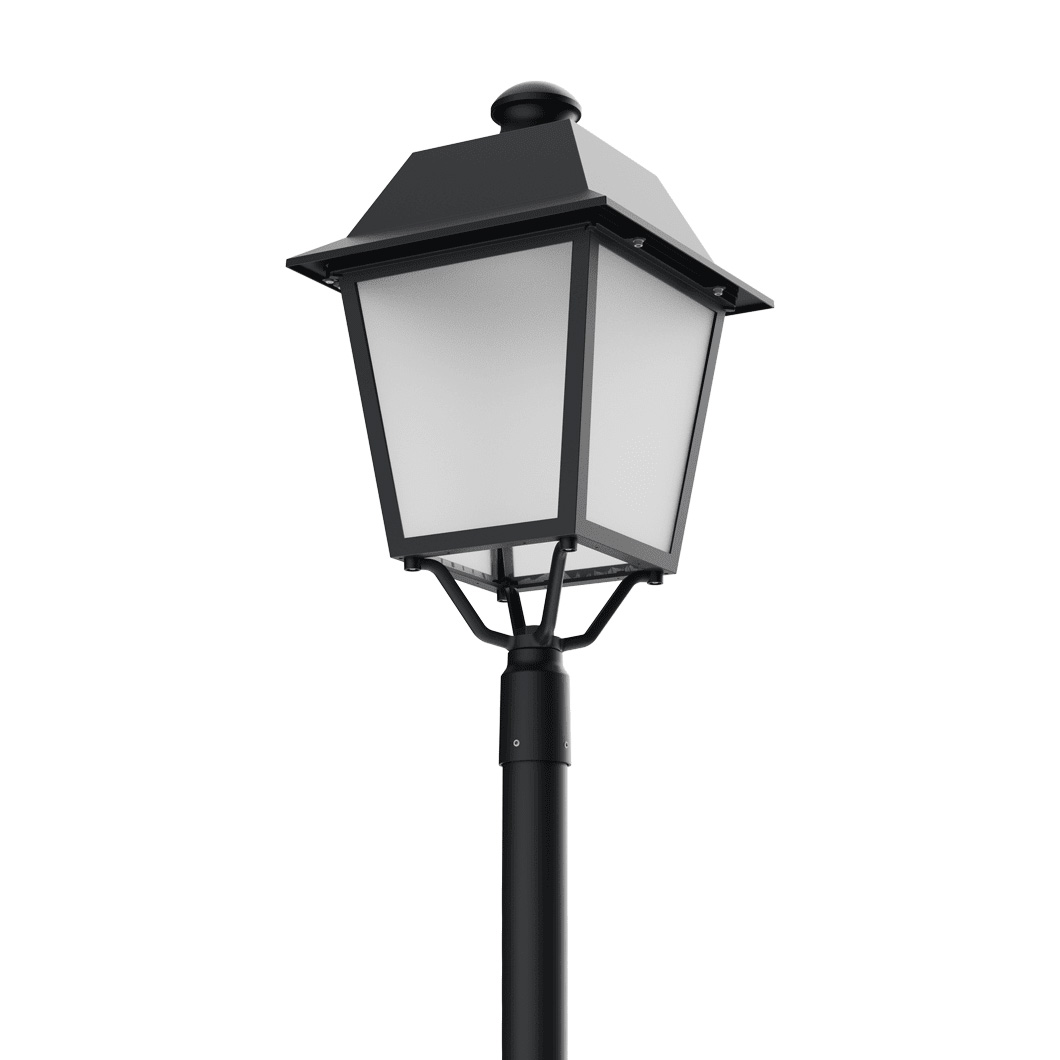

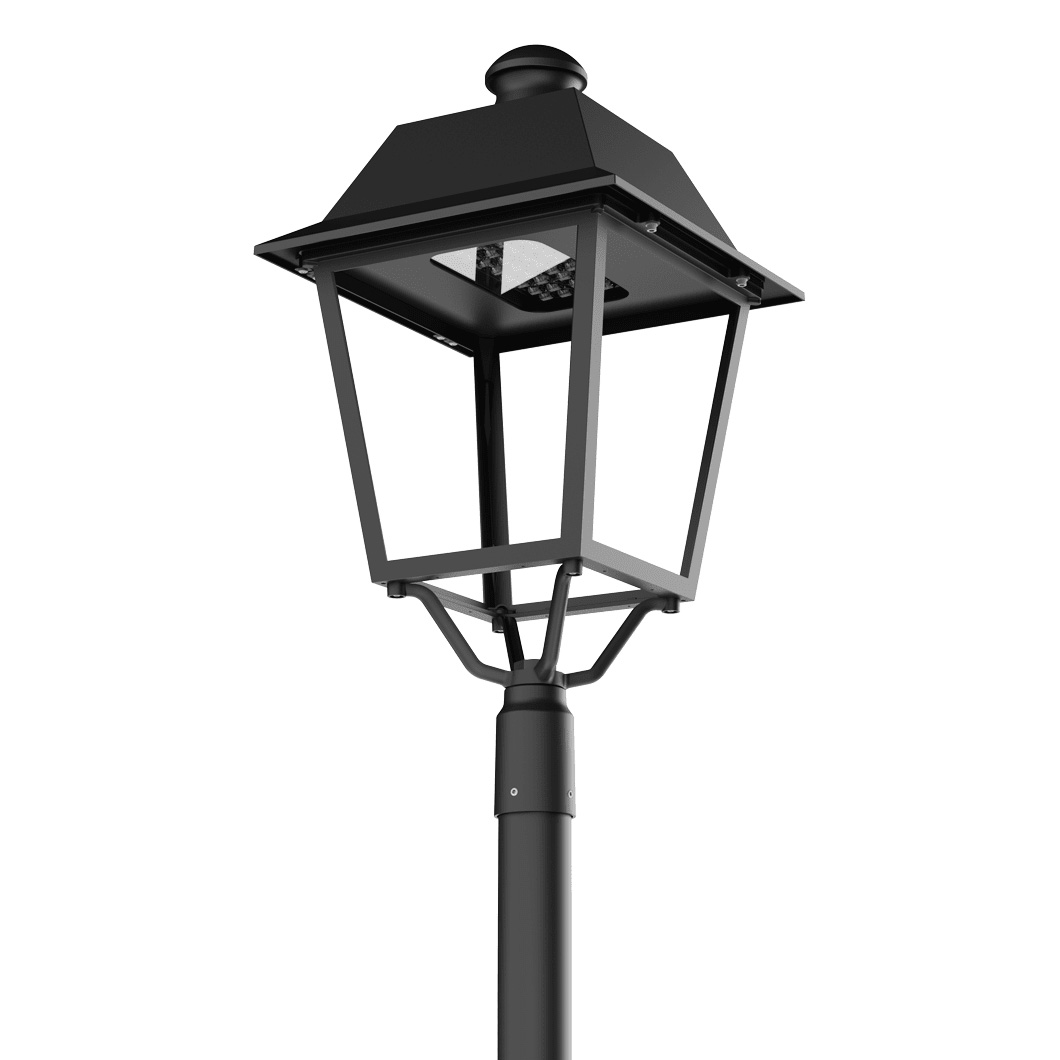

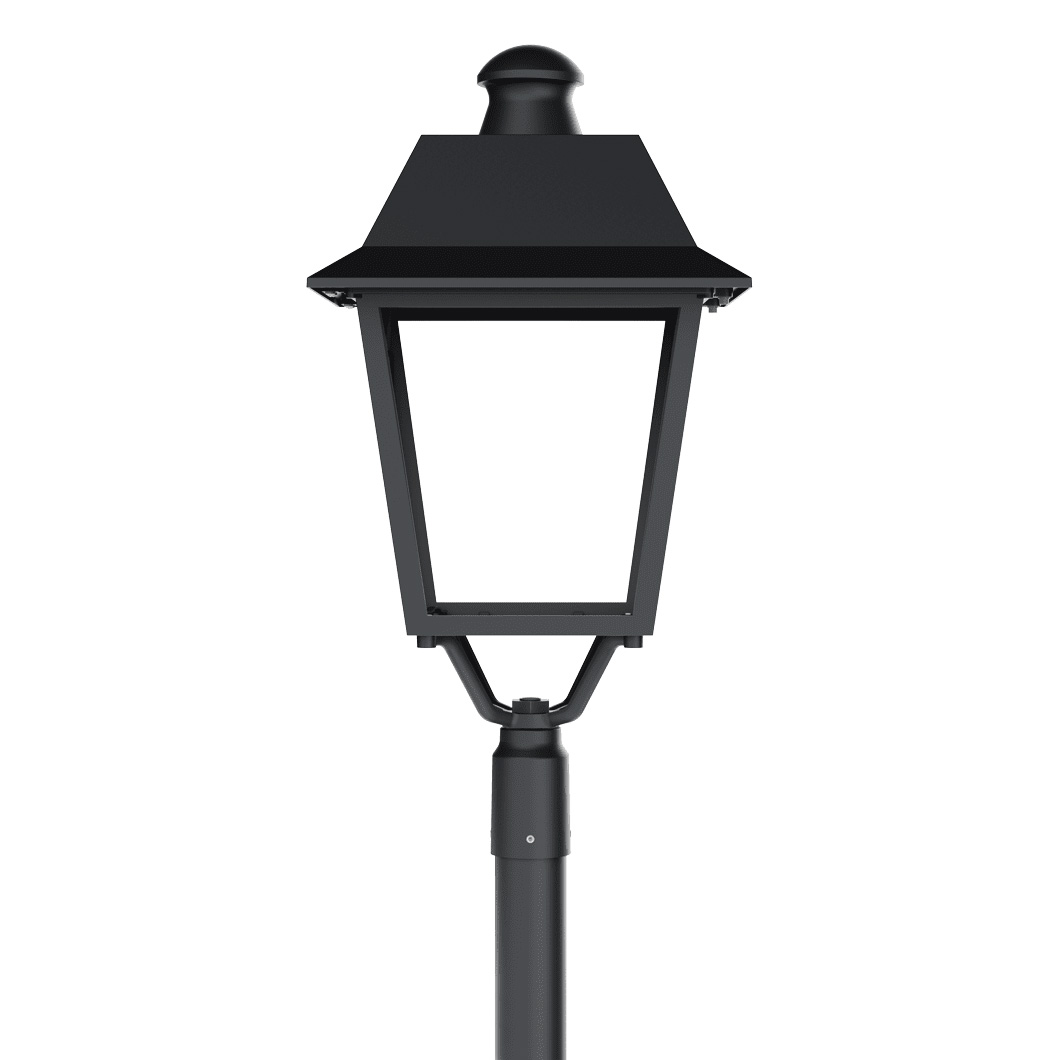

A new generation of stylish LED lighting for streets, parks and towns, Constelia LED features a modular design which makes replacement of the glass panes or integrated components without having to dismantle the whole lamp or make soldered or screwed connections. Constelia employs directional PMMA multi-lens matrices with each lens having its own individual optics. This guarantees consistent light performance over an extended period of time. Access to the electrical components is protected against vandalism or unauthorised access with anti-tamper screws. Once a module has been replaced maintenance work can be performed off-site at the service station. Made from die-cast aluminium, powder coated in black. Constelia LED has a high IP66 protection rating and IK09 impact resistance.

Applications

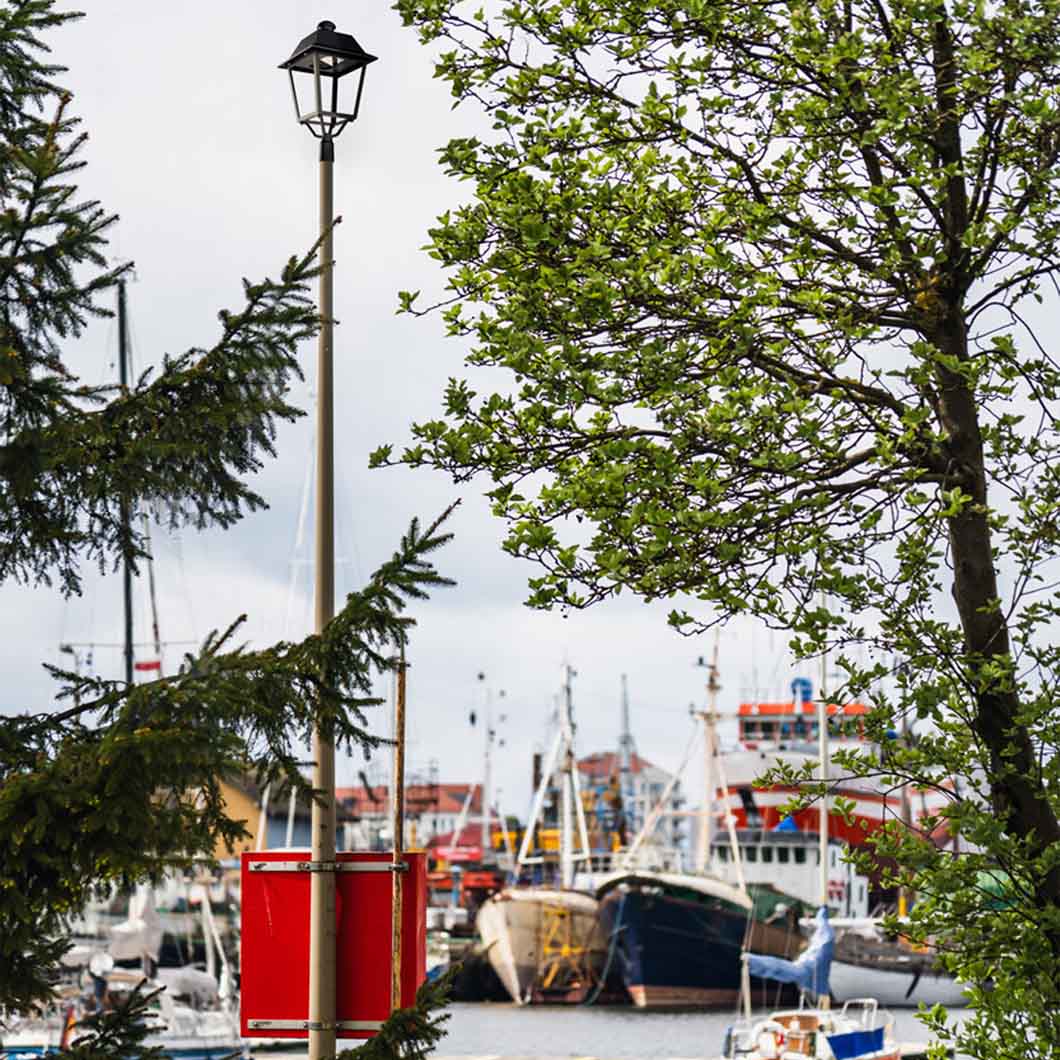

Streets and roads, public areas, non-public estate roads, squares, libraries, town halls, health facilities, schools, public gardens, recreational areas, playing fields, playgrounds, cycle paths, historical sites, old towns, bicycle paths and private outdoor areas.

Key features:

• NTC overheating protection
• Programmable DALI driver
• Luminaire CLO and Autonomous 5-step power reduction functions available
• Connection terminals
• Tool-free access protected by a knife disconnect switch to de-energise the integral module if the compartment is opened

Additional options:

• - stylised glazing to transform the external appearance of the luminaire, ZHAGA connector (ZhagaBook 18)
• interfacing with control systems, anti-vandal protection with screws
• additional SP10kV protection outside the power supply, on/off power supply without power reduction
• design with cable terminated with quick connector
• painting in any RAL colour

Specification

Ingress protection: IP66
Impact resistance: IK09
Rated power: 8W - 76W
Luminous flux: 1125lm - 10150lm
Colour temperature: 4000K
Colour rendering index: CRI70
Electrical protection class: II
Optics: RM7
Control: Yes + 5-stage power reduction
Luminous efficacy: 123lm/W - 145lm/W
Energy efficiency class: C; D
Finish: black
Material: powder coated aluminium
Diffuser type: transparent
Diffuser material: tempered glass
Socket type: ZG-DN
Optics material: PMMA + PC
Certifications: CE, RoHS, ENEC, ENEC+, Zhaga-D4i.

Due to the amount of versions available, LDT Lighting files available on request

Lamp type: Integrated LED | 8W - 76W | 1125lm - 10,150lm | 4000K

Dimensions

Product dimensions: W.425mm x D.425mm x H.827mm

Downloads

• Data Sheet PDF
• Install Instructions PDF

Delivery and warranty

 Delivery

Delivery approximately 3-4 weeks



 Warranty

Supplied with 5 year warranty
