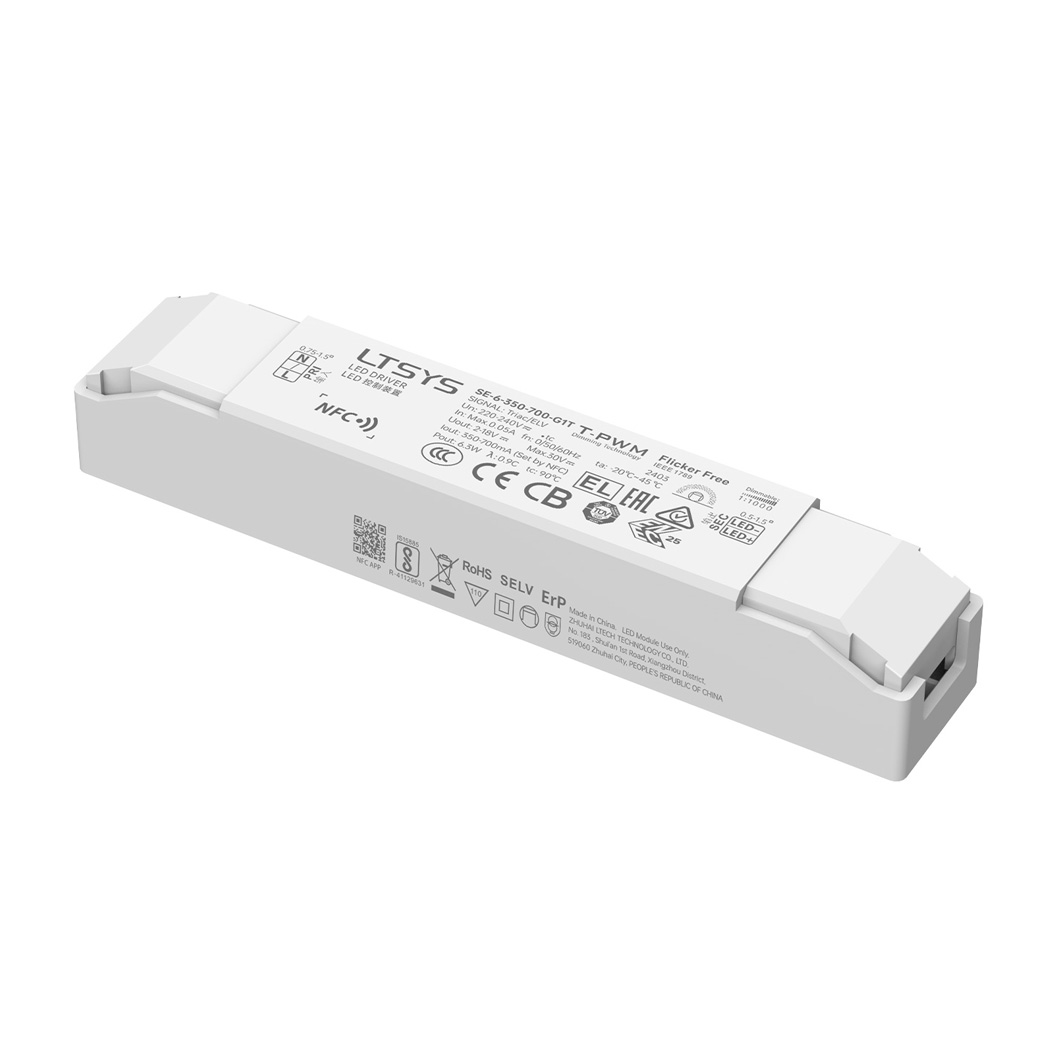

L-Tech 6W 350-700mA NFC CC TRIAC Ultra Small LED Driver

Description

Intelligent constant current TRIAC LED driver. The ultra small dimensions can fit through a ⌀30mm cutout. With soft-on and fade-in dimming function, enhancing your visual comfort (see video below). T-PWM™ dimming technology allows for continuous and flicker-free images under high-speed photography.

Key features

• Housing made from SAMSUNG/COVESTRO's V0 flame retardant PC materials
• Designed to run very small lights from 2-18V (most constant current drivers are around 9V)
• Ultra small, thin and lightweight, screwless end cap
• Adjustable output current with 1mA step
• Soft-on and fade-in dimming function enhances your visual comfort
• T-PWM super deep dimming technology, 0.01% dimming depth
• The whole dimming process is flicker-free with high frequency exemption level
• Overheat, over voltage, overload, short circuit protection and automatic recovery
• Suitable for ClassⅠ/Ⅱ/Ⅲ indoor light fixtures
• Normal service life can reach 100,000 hours
• 5-year warranty (Rubycon capacitor)

Specification

Features:
Output Type: Constant current
Dimming Interface: TRIAC/ELV
Output Feature: Isolation
Protection Grade: IP20
Insulation Grade: Class II (suitable for class I/II/III light fixtures)

Output:
Output Voltage: 2-18Vdc
Maximum Output Voltage: ≤30Vdc

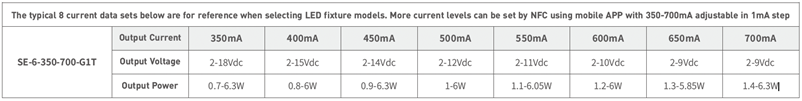

Output Current Range: 350-700mA
Output Power Range: 0.7W-6.3W
Dimming Range: 0-100%, down to 0.01%
LF Current Ripple: <3%(Maximum current for non dimming state)
Current Accuracy: ±5%
PWM Frequency: 3600Hz

Input:
DC Voltage Range: 220-240Vdc
AC Voltage Range: 220-240Vac
Input Voltage: 230Vac
Frequency: 50/60Hz
Input Current: ≤0.06A/230Vac
Power Factor: PF>0.9/230Vac (at full load)
Efficiency (Typ.): 72%
Inrush Current: Cold start 10A (Test twidth=300us tested under 50% Ipeak)/230Vac
Anti Surge: L-N: 1KV
Leakage Current: <0.5mA

Environment:
Working Temperature: ta:-20~45°C tc:90°C
Working Humidity: 20 ~ 95%RH, non-condensing
Storage Temperature/Humidity: -40~80°C, 10~95%RH
Temperature Coefficient: ±0.03%/°C(-20°C-45°C)
Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

Protection:
Overload Protection: Automatically protect the device when the load exceeds 102% of the rated power. Automatically recover once load is reduced
Overheat Protection: Intelligently adjust or turn off the current output if the PCB temperature ≥110°C. When the PCB temperature <90°C, automatically recover normal output
Overvoltage Protection: Automatically protect the device when voltage exceeds the no-load voltage. It can be recovered automatically
Short Circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically

Weight: 50g±5g



Dimensions

Product dimensions: W.119mm x D.22mm x H.20mm

Cutout dimensions: Dia.30mm

Downloads

• Data Sheet PDF

Delivery and warranty

 Delivery

In Stock - UK Next Day Delivery



About the manufacturer

With over 20 years experience in designing LED lighting control, LTech are experts in creating technologically state-of-the-art LED drivers. Transform your home into a smart home with intelligent lighting control.
