Flexalighting MiniJos S2 24VDC Surface Mounted Projector Spot Light

Description

The minimalist MiniJos S2 surface mounted spot light combines a sleek design with high optical performance. The smallest member of the family, the MiniJos S2 2W version has a ⌀20mm and a height of 80mm. With an adjustable tilt of 90° and rotation of 358°, MiniJos an be installed on the ceiling or wall and is perfect for both accent lighting or general illumination.

Quality optics and fine finishes come together in a highly reliable projector, available in white or black. The 24VDC constant voltage power supply (not supplied) allows luminaires to be wired in parallel, reducing installation costs and the number of power supplies. Available with 20° or 40° beam angle.



- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)



Specification

IP20
2W
24VDC
Parallel wiring
CRI 85
Class III

Adjustable tilt: 90°
Adjustable rotation: 358°

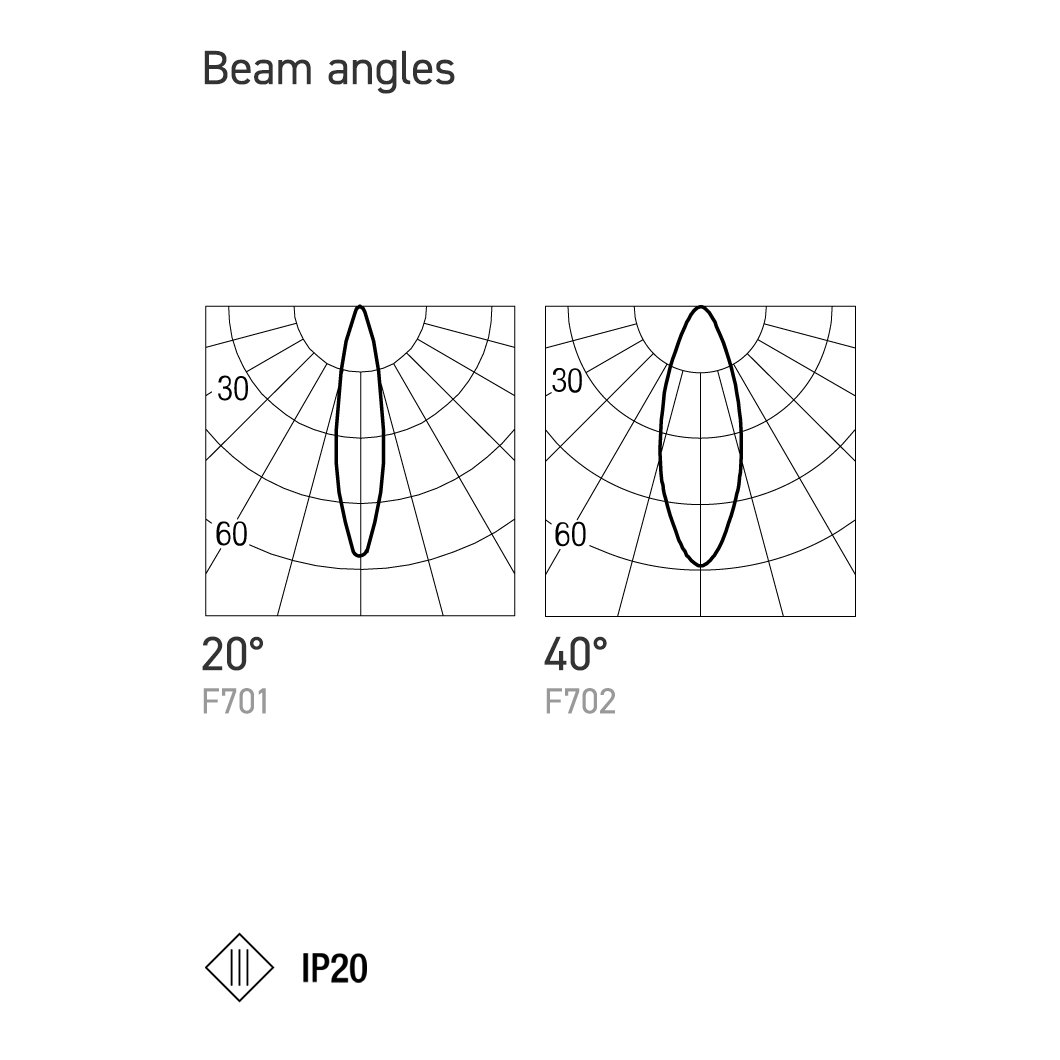

Beam angle: 20° | 40°

CCT	FLUX
2700K	128 lm
3000K	133 lm
4200K	154 lm

Driver not included - see 'You May Also Need' below:
24V Driver | No. units powered
Osram OT FIT 36W 24VDC Constant Voltage LED Driver | 1-16 units

Lamp type: 2W 24VCD LED

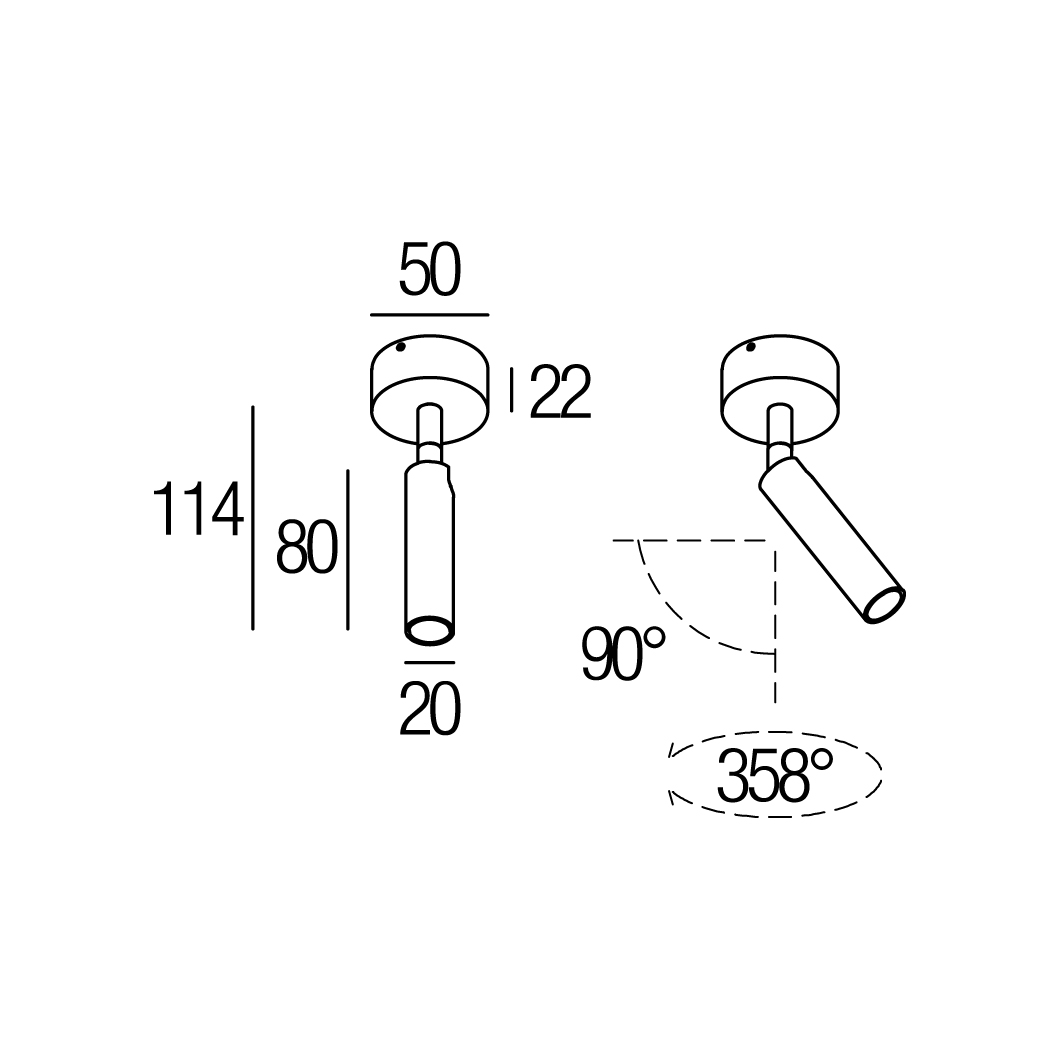

Dimensions

Product dimensions: H.114mm x Diameter.50mm

Lens dimensions: H.80mm x Dia.20mm

Downloads

• Data Sheet PDF
• Install Instructions PDF
• Lighting File | MiniJos S2 2700K 20D | IES
• Lighting File | MiniJos S2 2700K 40D | IES
• Lighting File | MiniJos S2 3000K 20D | IES
• Lighting File | MiniJos S2 3000K 40D | IES
• Lighting File | MiniJos S2 4200K 20D | IES
• Lighting File | MiniJos S2 4200K 40D | IES
• Lighting File | MiniJos S2 2700K 20D | LDT
• Lighting File | MiniJos S2 2700K 40D | LDT
• Lighting File | MiniJos S2 3000K 20D | LDT
• Lighting File | MiniJos S2 3000K 40D | LDT
• Lighting File | MiniJos S2 4200K 20D | LDT
• Lighting File | MiniJos S2 4200K 40D | LDT

Delivery and warranty

 Delivery

Delivery usually within 2-3 weeks



About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
