Flexalighting MiniJos S10 24VDC Surface Mounted Projector Spot Light

Description

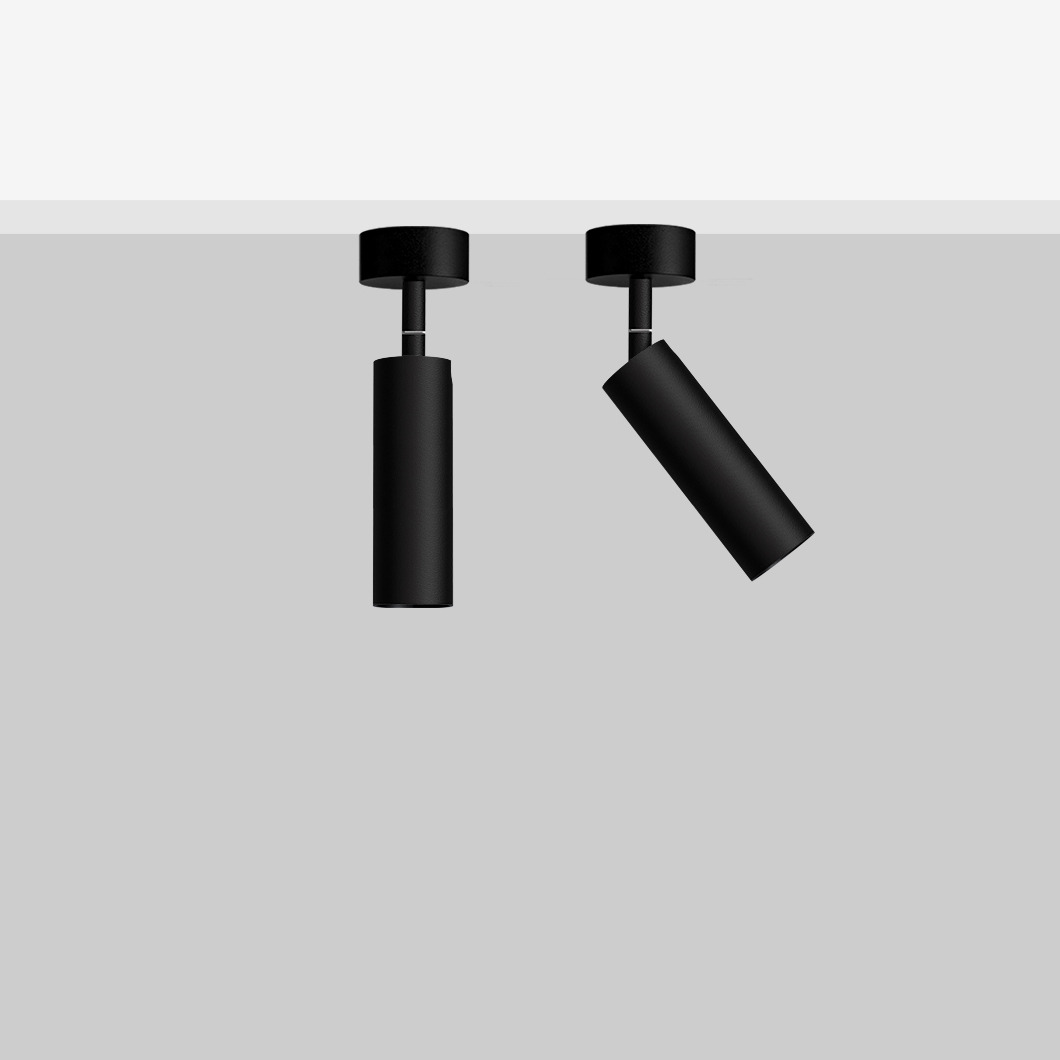

The largest member of the family, the minimalist MiniJos S10 surface mounted spot light combines a sleek design with high optical performance. The MiniJos S10 10W version has a ⌀40mm and a height of 123mm. With an adjustable tilt of 90° and rotation of 358°, MiniJos an be installed on the ceiling or wall and is perfect for both accent lighting or general illumination.

Quality optics and fine finishes come together in a highly reliable projector, available in white or black. The 24VDC constant voltage power supply (not supplied) allows luminaires to be wired in parallel, reducing installation costs and the number of power supplies. Available with 10°, 36°, 46° or 60° beam angle.

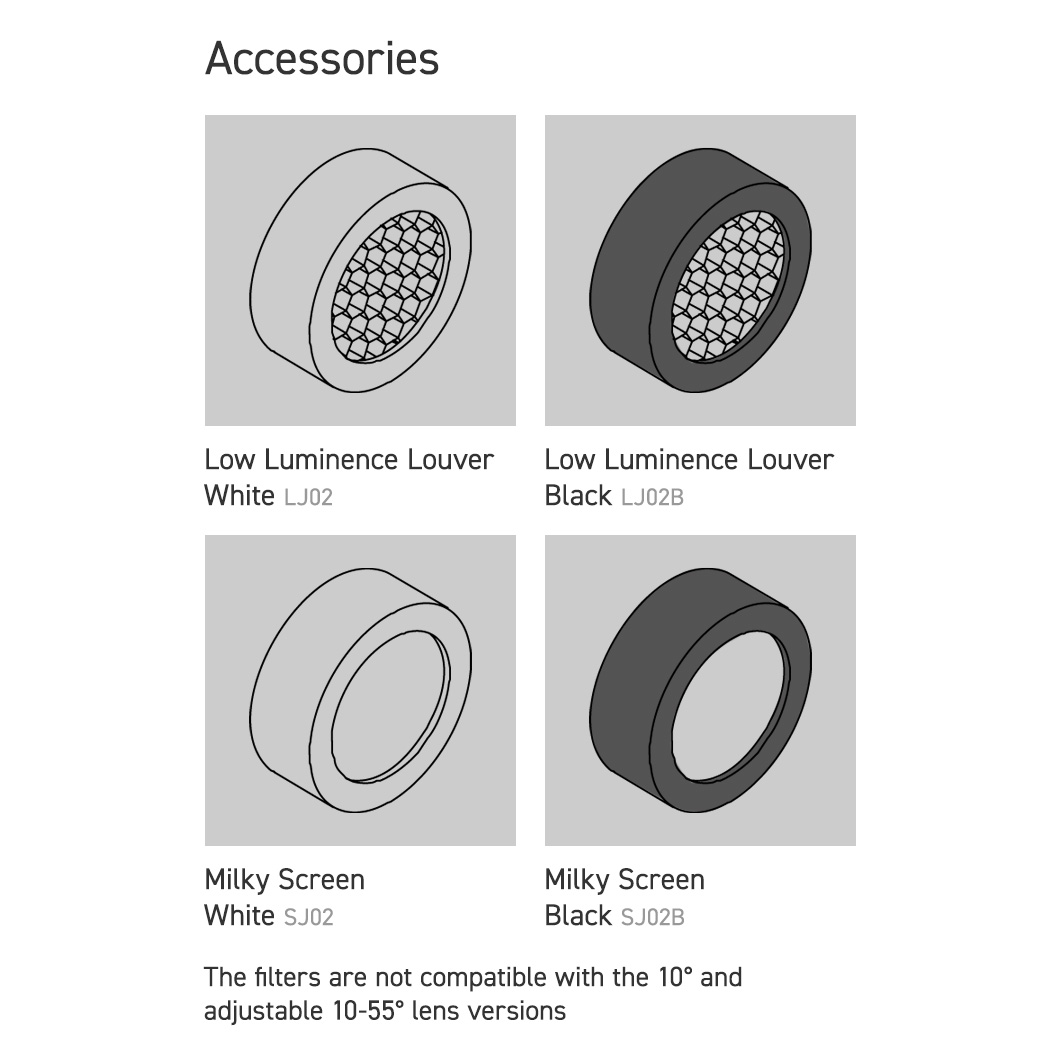

Optional louvre and milky screen filters available.



- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)



Specification

IP20
10W
24VDC
Parallel wiring
CRI 85-93
2-Step MacAdam
Class III

Adjustable tilt: 90°
Adjustable rotation: 358°

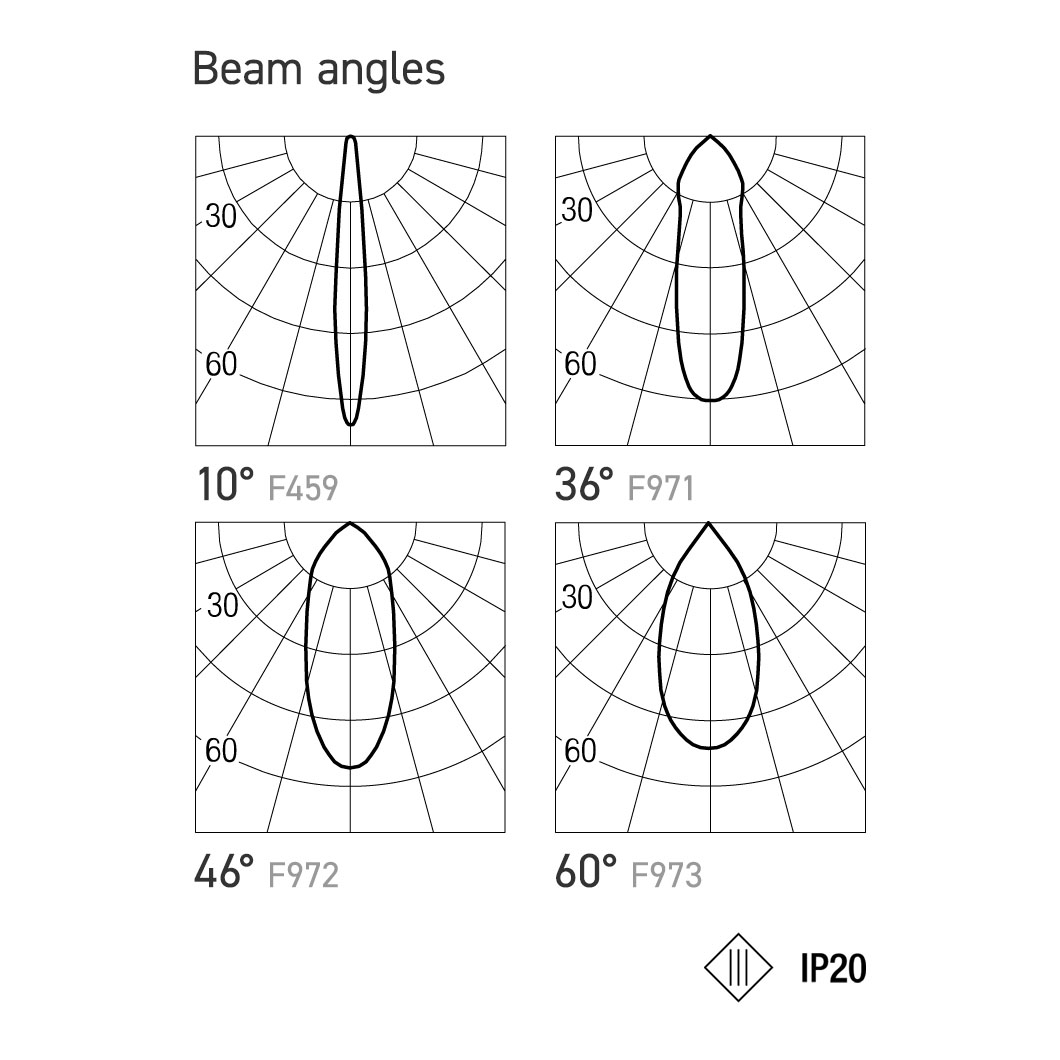

Beam angle: 10° | 36° | 46° | 60°

CCT	FLUX (CRI85)	FLUX (CRI93)
2200K	810 lm	-
2700K	890 lm	840 lm
3000K	1000 lm	930 lm
4200K	1040 lm	960 lm

Driver not included - see 'You May Also Need' below:
24V Driver | No. units powered
Osram OT FIT 36W 24VDC Constant Voltage LED Driver | 1-3 units

Lamp type: 10W 24VCD LED

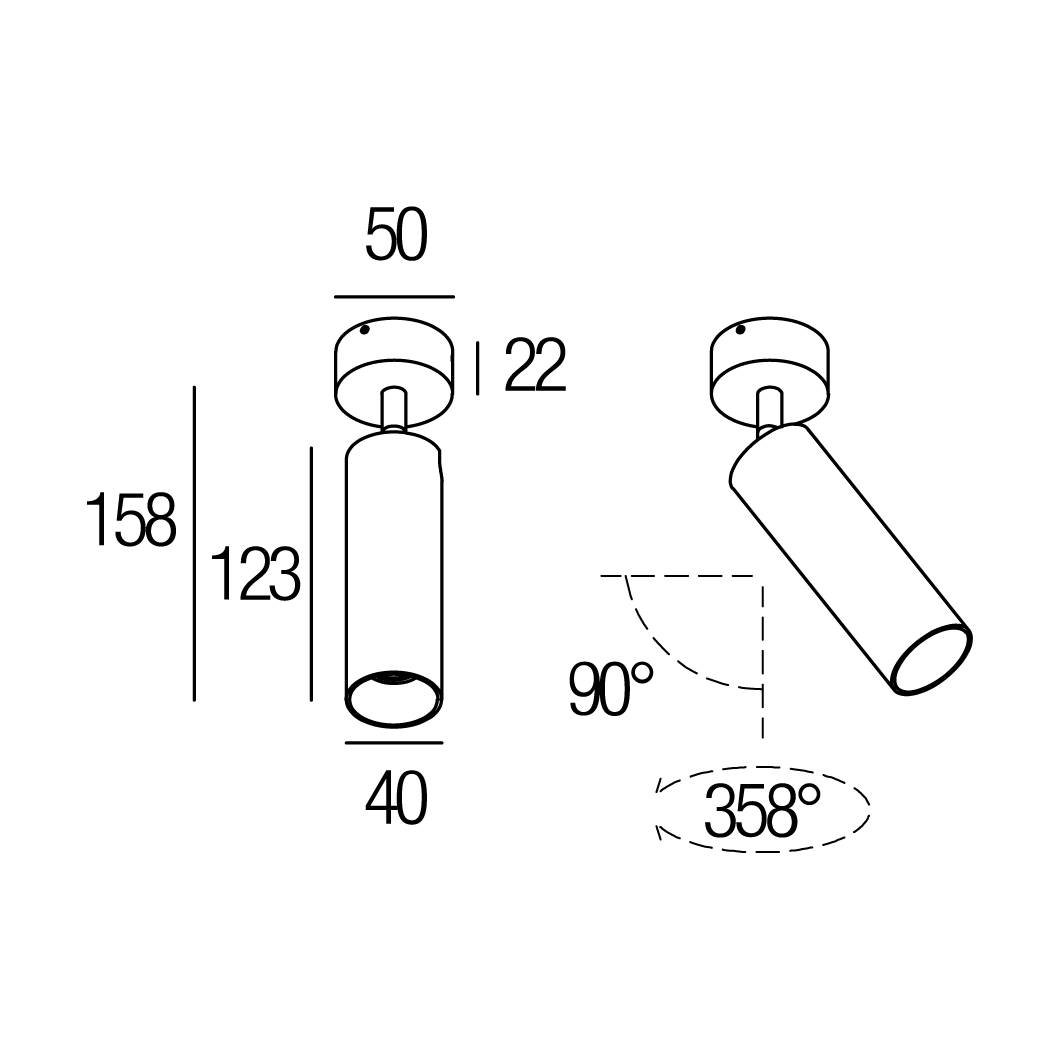

Dimensions

Product dimensions: H.158mm x Diameter.50mm

Lens dimensions: H.123mm x Dia.40mm

Downloads

• Data Sheet PDF
• Install Instructions PDF
• Lighting File | MiniJos S10 2700K 10D | IES
• Lighting File | MiniJos S10 2700K 36D | IES
• Lighting File | MiniJos S10 2700K 46D | IES
• Lighting File | MiniJos S10 2700K 60D | IES
• Lighting File | MiniJos S10 3000K 10D | IES
• Lighting File | MiniJos S10 3000K 36D | IES
• Lighting File | MiniJos S10 3000K 46D | IES
• Lighting File | MiniJos S10 3000K 60D | IES
• Lighting File | MiniJos S10 4000K 10D | IES
• Lighting File | MiniJos S10 4000K 36D | IES
• Lighting File | MiniJos S10 4000K 46D | IES
• Lighting File | MiniJos S10 4000K 60D | IES
• Lighting File | MiniJos S10 2700K 10D | LDT
• Lighting File | MiniJos S10 2700K 36D | LDT
• Lighting File | MiniJos S10 2700K 46D | LDT
• Lighting File | MiniJos S10 2700K 60D | LDT
• Lighting File | MiniJos S10 3000K 10D | LDT
• Lighting File | MiniJos S10 3000K 36D | LDT
• Lighting File | MiniJos S10 3000K 46D | LDT
• Lighting File | MiniJos S10 3000K 60D | LDT
• Lighting File | MiniJos S10 4000K 10D | LDT
• Lighting File | MiniJos S10 4000K 36D | LDT
• Lighting File | MiniJos S10 4000K 46D | LDT
• Lighting File | MiniJos S10 4000K 60D | LDT

Delivery and warranty

 Delivery

Delivery usually within 2-3 weeks



About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
