- Description
-

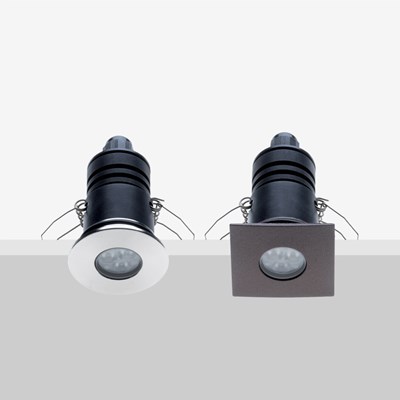

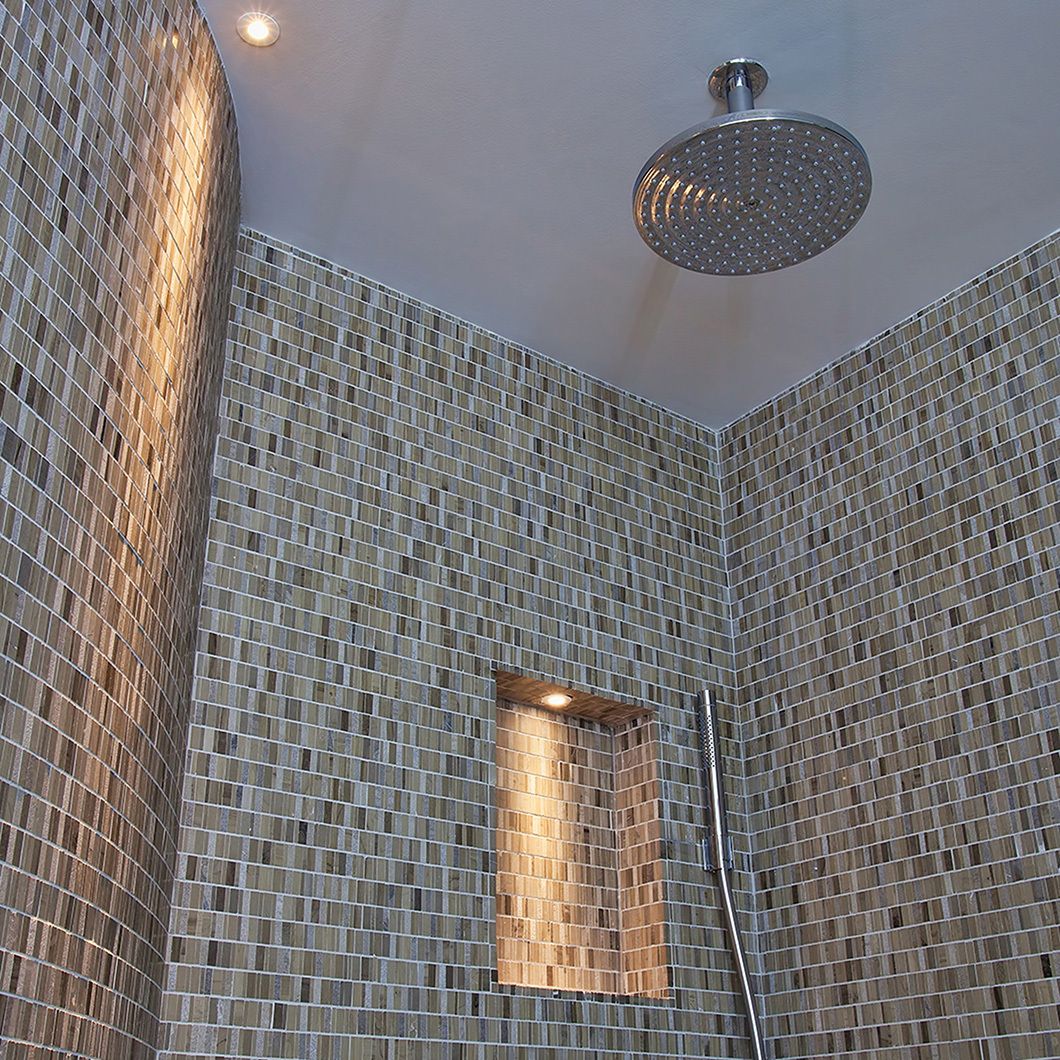

Lotus 2 by Flexalighting is a recessed downlight, complete with an IP67 rating for installation in outdoor areas, steam rooms, and wet rooms. Lotus 2 is a petite downlight available in round or square variations. Made from anodised aluminium, Lotus 2 is available in white, black, grey, CORTEN, or INOX AISI 316L finishes. Choose between four beam angles ranging from a narrow 10°, to a medium 25°, a wide 60°, or a flood 120°. The miniature downlight also offers 6 colour temperatures: 2700K, 3000K, 4200K, 6000K, Blue, Green, or Red.
Lotus 2 has optional accessories such as a recessing box and a low-luminance filter. A 300mA or 500mA driver is required for this fitting. Please see the specification and downloads tabs for more information on the options available.
- Specification
-
IP67
Class III
Materials: Anodised aluminium, extra-clear tempered glass, ATEX cable gland, and neoprene cable
Finishes: White | Grey | Black | CORTEN | INOX AISI 316L
1-2W LED
350-500mA
Series wiring
CRI 85

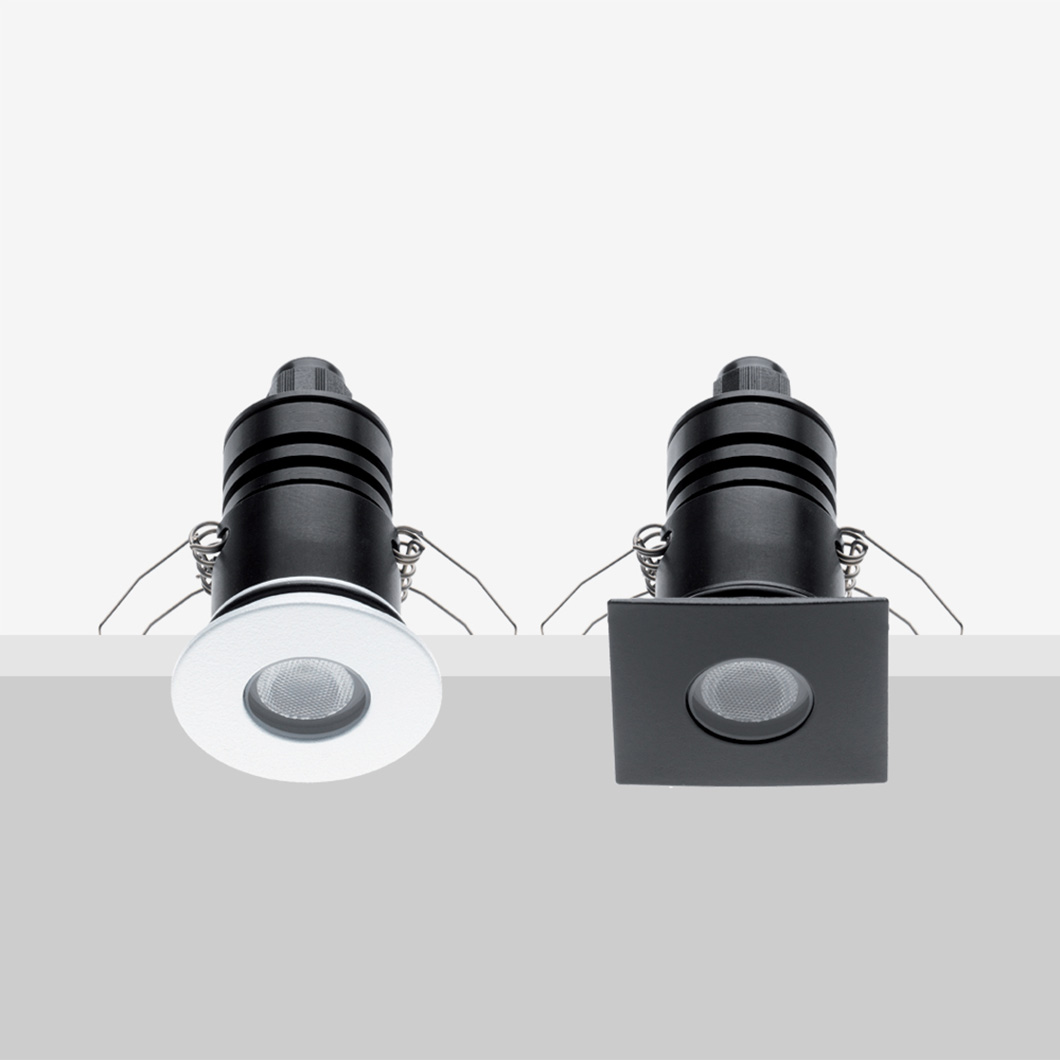

Shape: Round | Square
Optic: 10° | 25° | 60° | 120°
Colour temperatures: 2700K | 3000K | 4200K | 6000K | Blue | Green | Red
Colour temperature/Luminous Flux:
2700K - 89lm 350mA | 128lm 500mA
3000K - 93lm 350mA | 133lm 500mA
4200K - 103lm 350mA | 154lm 500mA
6000K - 114lm 350mA | 165lm 500mA
Dimensions:
Ø50mm x 80mm
Cutout: 40mm
Accessories:
Recessing box
Low-luminance louver
Drivers:
| 350mA |
500mA |
|
AL1034
ON/OFF
15W
Ø30mm cutout
|
AL1074
ON/OFF
14W
Ø30mm cutout
|
|
AL1035
ON/OFF
15W
Ø40mm cutout
|
AL1077
ON/OFF
12W
Ø40mm cutout
|
|
AL1037
ON/OFF
19W
Ø55mm cutout
|
AL1084
ON/OFF
20W
Ø55mm cutout
|
|
AL9011 - IP67
ON/OFF
15W
Ø44mm cutout
|
AL9051 - IP67
ON/OFF
20W
Ø44mm cutout
|
|
AL4000
0/1-10V PUSH
15W
Ø72mm cutout
|
AL4010
0/1-10V PUSH
21W
Ø72mm cutout
|
|
ALD435
DALI 2 PUSH
12W
Ø36mm cutout
|
ALD450
DALI 2 PUSH
12W
Ø36mm cutout
|
|
AL4051
DALI 2
17W
Ø72mm cutout
|
AL4151
DALI 2
24W
Ø72mm cutout
|
|
AL4053
PUSH IGBT - TRIAC
17W
Ø56mm cutout
|
AL4153
PUSH IGBT - TRIAC
24W
Ø56mm cutout
|
|
AL6035 - IP67
DALI 2
9,8W
Ø44mm cutout
|
AL6050 - IP67
DALI 2
10W
Ø44mm cutout
|
|
AL8035 - IP67
DALI 2
19,5W
Ø48mm cutout
|
AL8050 - IP67
DALI 2
27,5W
Ø48mm cutout
|
Lamp type: 1-2W LED
- Dimensions
-

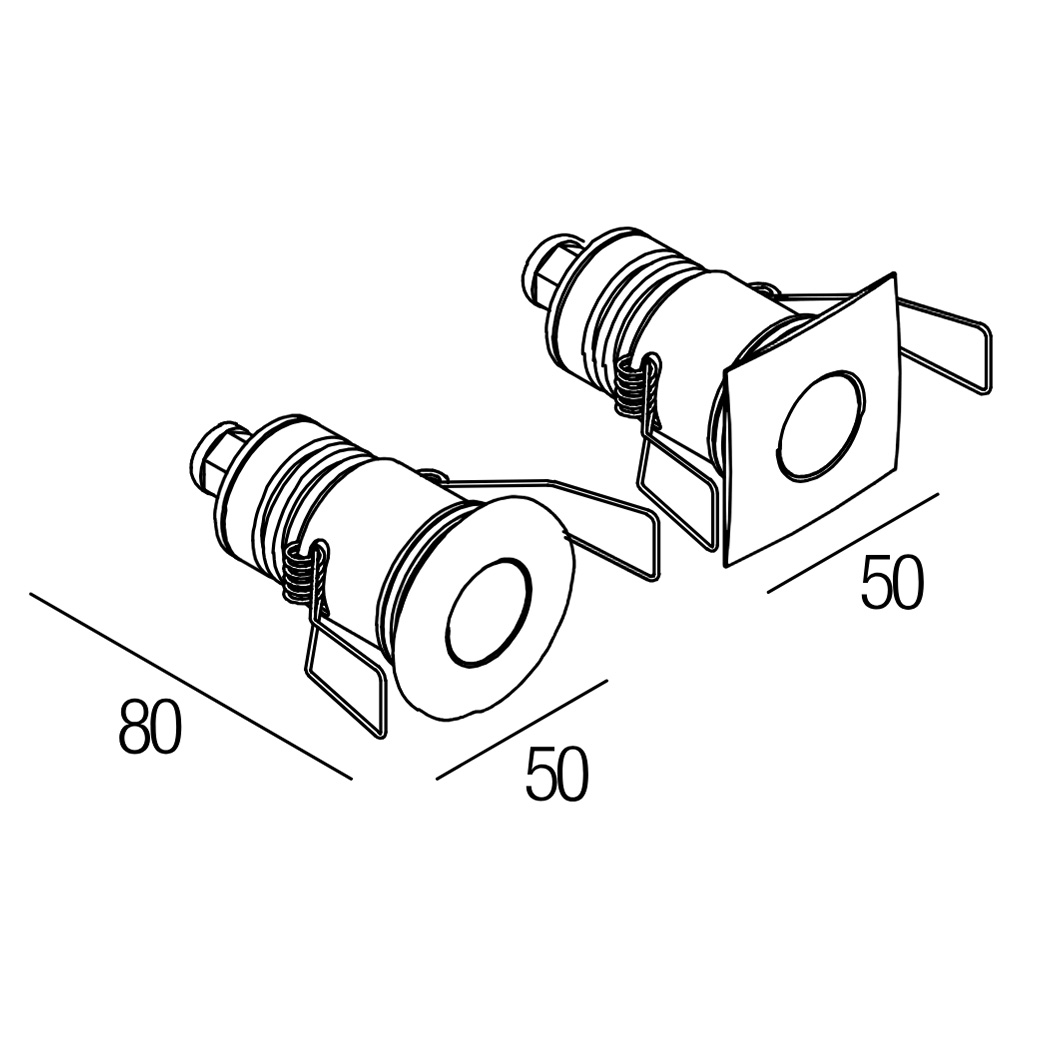

Product dimensions: D.80mm x Diameter.50mm
- Downloads
-
- Delivery and warranty
-
Delivery
Delivery usually within 2-3 weeks
- About the manufacturer
-
Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs. Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
Browse the full Flexalighting 2021 catalogue
