Flexalighting Fly 6 IP67 LED Recessed Downlight

Description

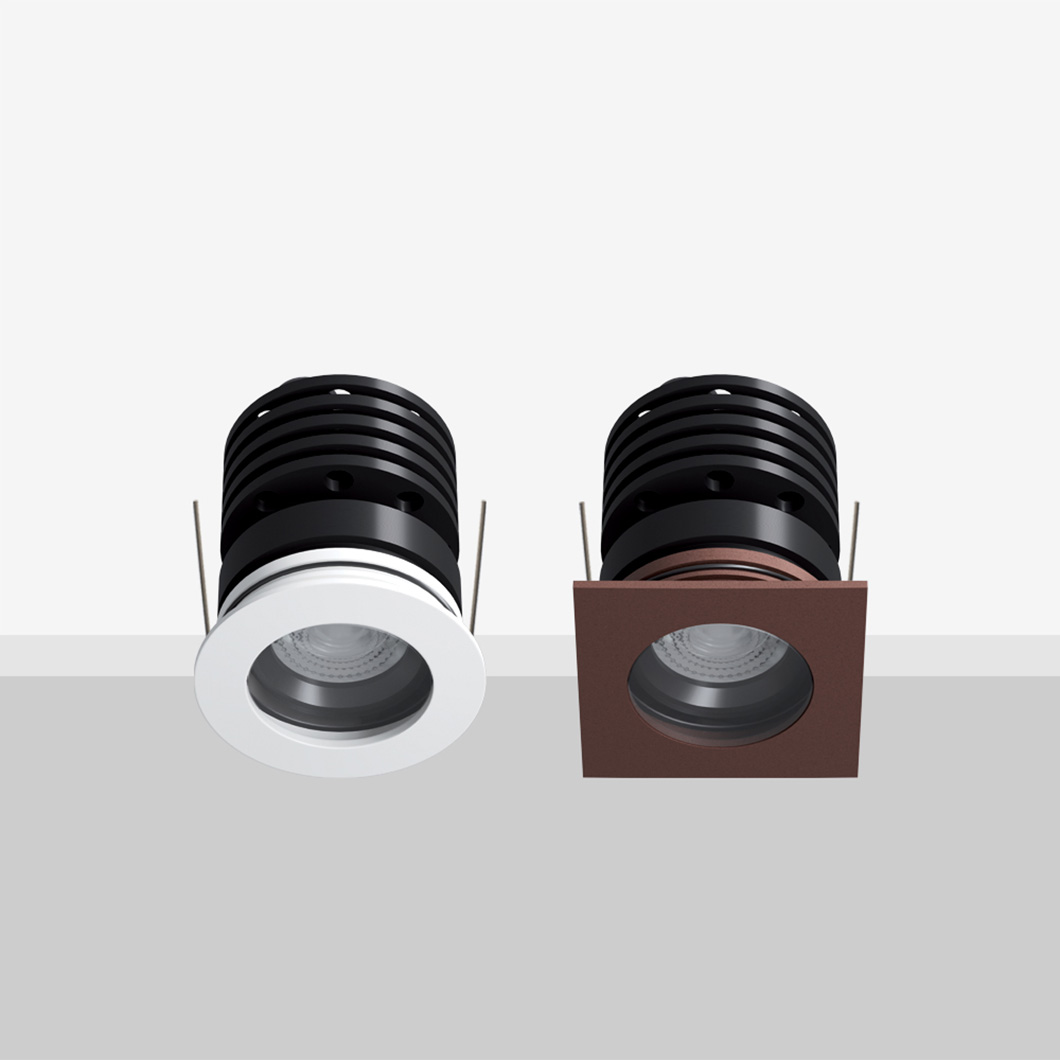

Fly 6 by Flexalighting is a recessed downlight that combines extremely small dimensions with a high lumen output. The miniature downlight is available in round or square variations, offering an IP67 rating that makes it suitable for outdoor environments, as well as for use in steam rooms or wet rooms. Fly 6 is supplied with a 6W LED, available in 2200K, 2700K, 3000K, or 4000K light temperatures. Made from anodised aluminium with extra-clear tempered glass, the minimal fitting is available in white, black, grey, CORTEN, or INOX AISI 316L. Fly 6 offers a selection of beam angles: 15°, 24°, 36°, 60°, or 120°.

Fly 6 has optional accessories, such as a recessing box or a low-luminance louver. A 500mA driver is required for this fitting. Please see the specification for more information on the options available.

Specification

IP67
Class III

Materials: Anodised aluminium, extra-clear tempered glass, ATEX cable gland, and neoprene cable
Finishes: White | Grey | Black | CORTEN | INOX AISI 316L

6W LED
500mA
CRI98

Colour temperature: 2200K (490lm) | 2700K (540lm) | 3000K (600lm) | 4000K (620lm)
Shape: Round | Square
Optic: 15° | 24° | 36° | 60° | 120°

Dimensions:
Ø58mm x 86mm
Cutout: 50mm

Accessories:
Recessing box
Low-luminance louver

Drivers:

500mA

AL1074 ON/OFF 14W Ø30mm cutout

AL1077 ON/OFF 12W Ø40mm cutout

AL1084 ON/OFF 20W Ø55mm cutout

AL9051 - IP67 ON/OFF 20W Ø44mm cutout

AL4010 0/1-10V PUSH 21W Ø72mm cutout

ALD450 DALI 2 PUSH 12W Ø36mm cutout

AL4151 DALI 2 24W Ø72mm cutout

AL4153 PUSH IGBT - TRIAC 24W Ø56mm cutout

AL6050 - IP67 DALI 2 10W Ø44mm cutout

AL8050 - IP67 DALI 2 27,5W Ø48mm cutout



Lamp type: 6W LED

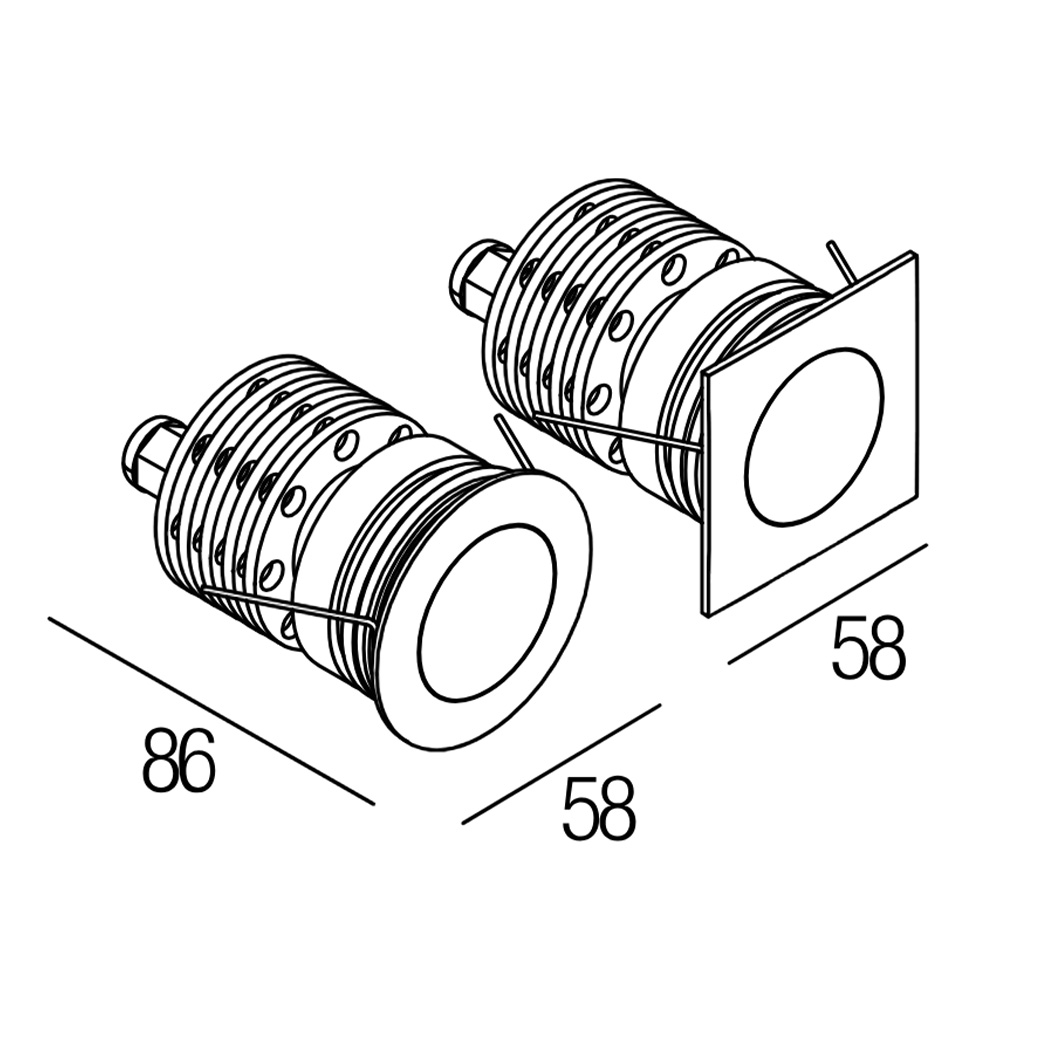

Dimensions

Product dimensions: D.86mm x Diameter.58mm

Downloads

• Fly 6 Datasheet PDF
• Fly 6 Installation Instructions PDF

Delivery and warranty

 Delivery

Delivery usually within 2-3 weeks



About the manufacturer

Flexalighting produce innovative and beautifully made architectural lighting solutions for indoor and outdoor installations. Leveraging one of the fundamental qualities of the LED source, the small size, the collection combines minimum device size with high quality luminous efficiency and high Chromatic Rendering Index LEDs.  Manufactured in Italy with a level of finishing that is at the top of the international market, Flexalighting is the perfect choice for domestic or commercial projects.
