Faro Clap Beacon 1266 LED Outdoor IP65 LED Bollard Projector Light

Description

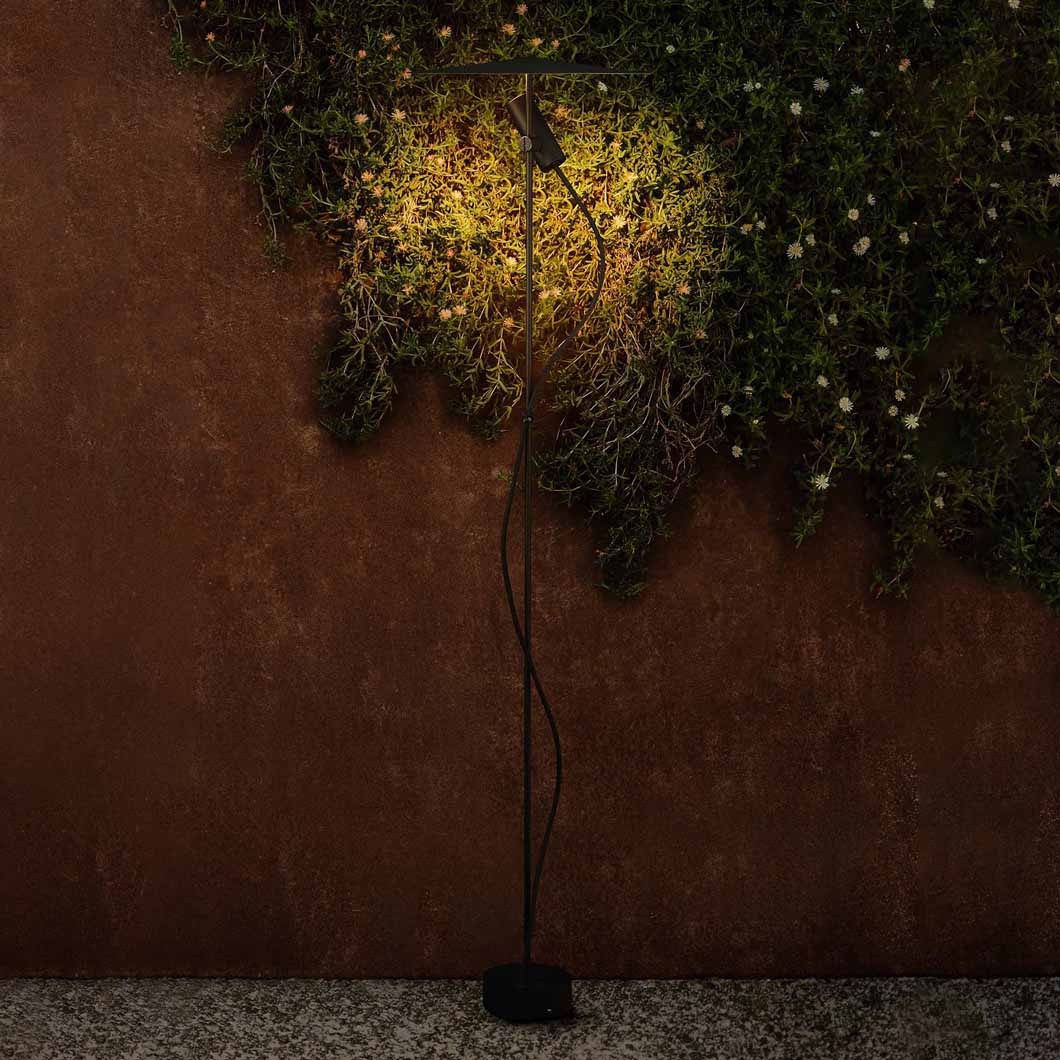

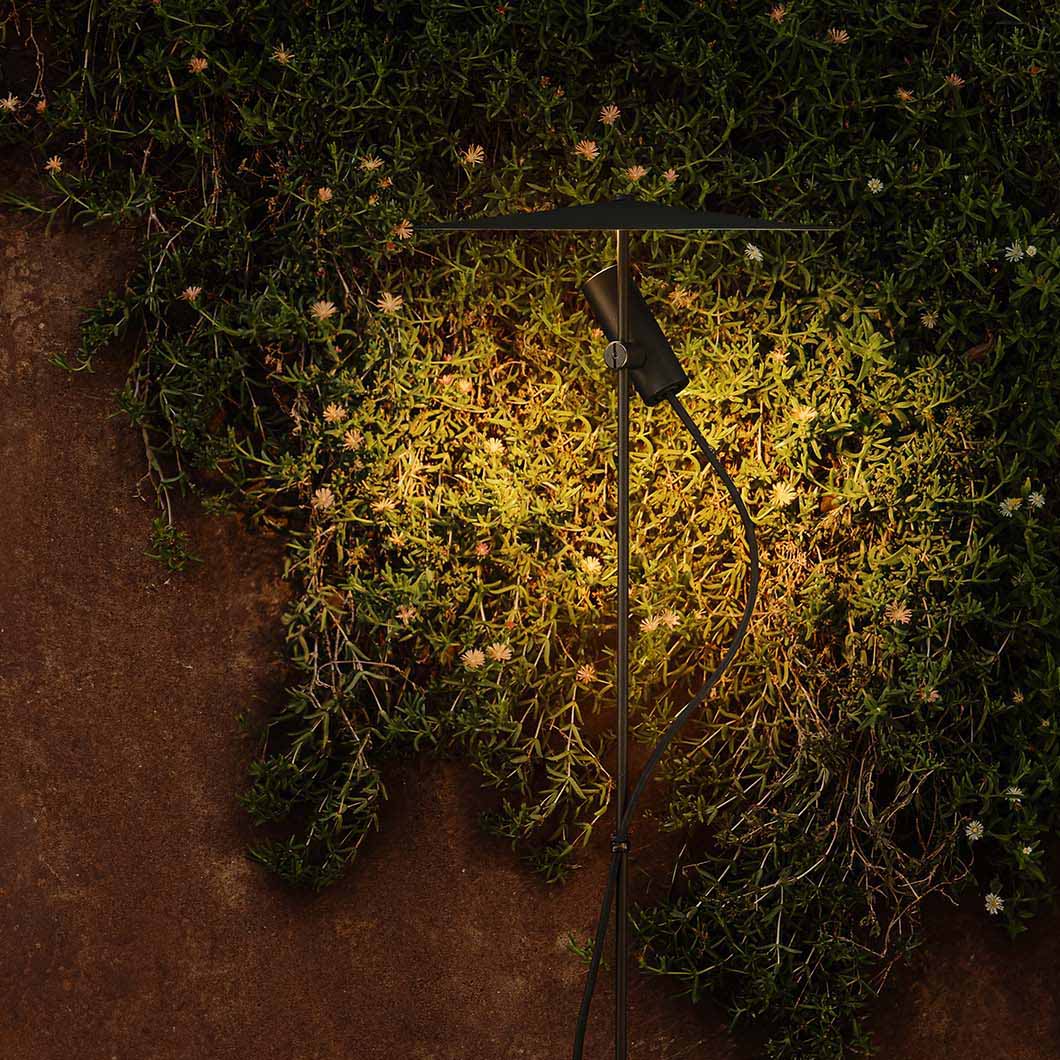

With a ø120mm base, the minimalist Clap Beacon 1266 by Faro Barcelona is the taller member of an outdoor lighting system that combines contemporary architectural and multifunctional elements. Compatible with wall mounting, spike fixing, tree mounting and pendants to maintain the continuity of design, this version is supplied with a base to free stand on solid ground - ideal for lighting both paths and flowerbeds. The emphasis of Clap is on creating an accent lighting effect.

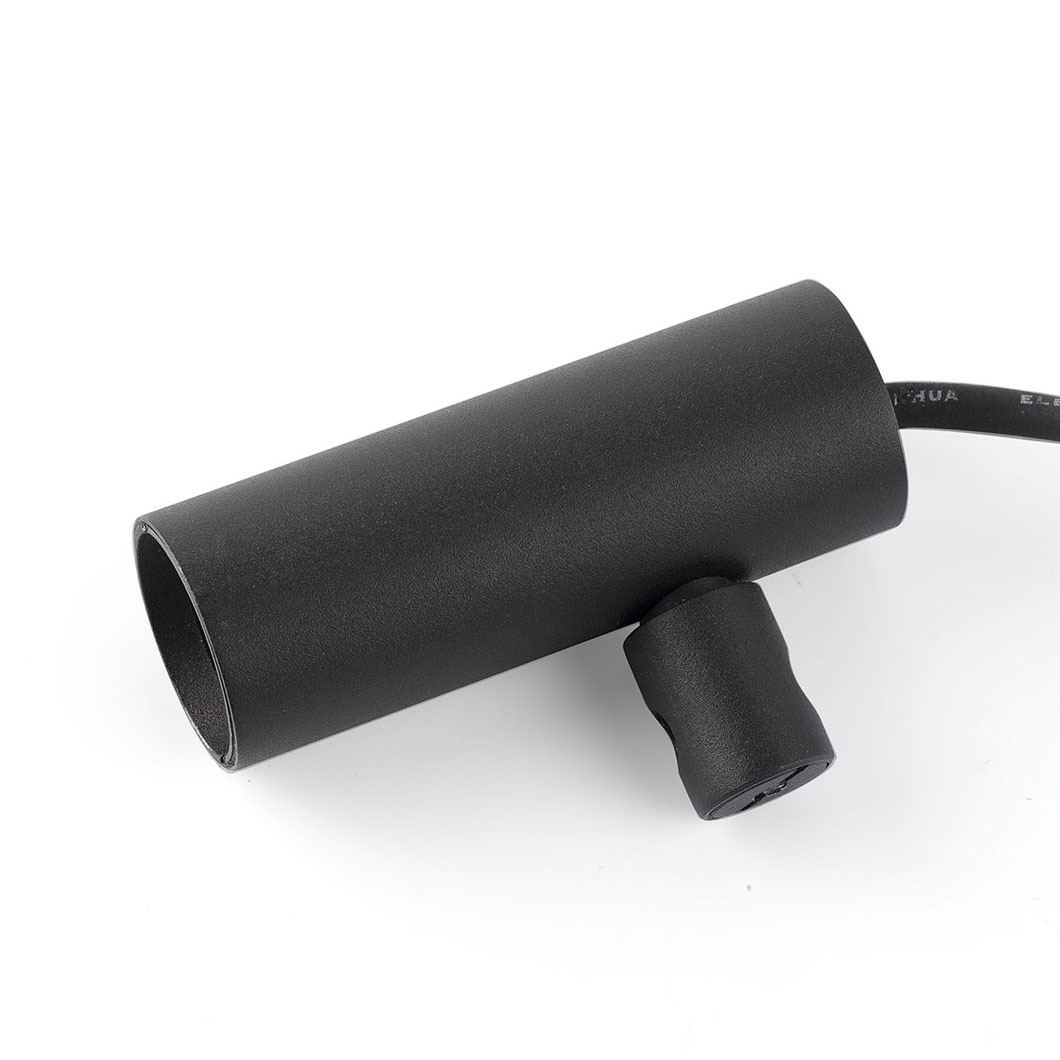

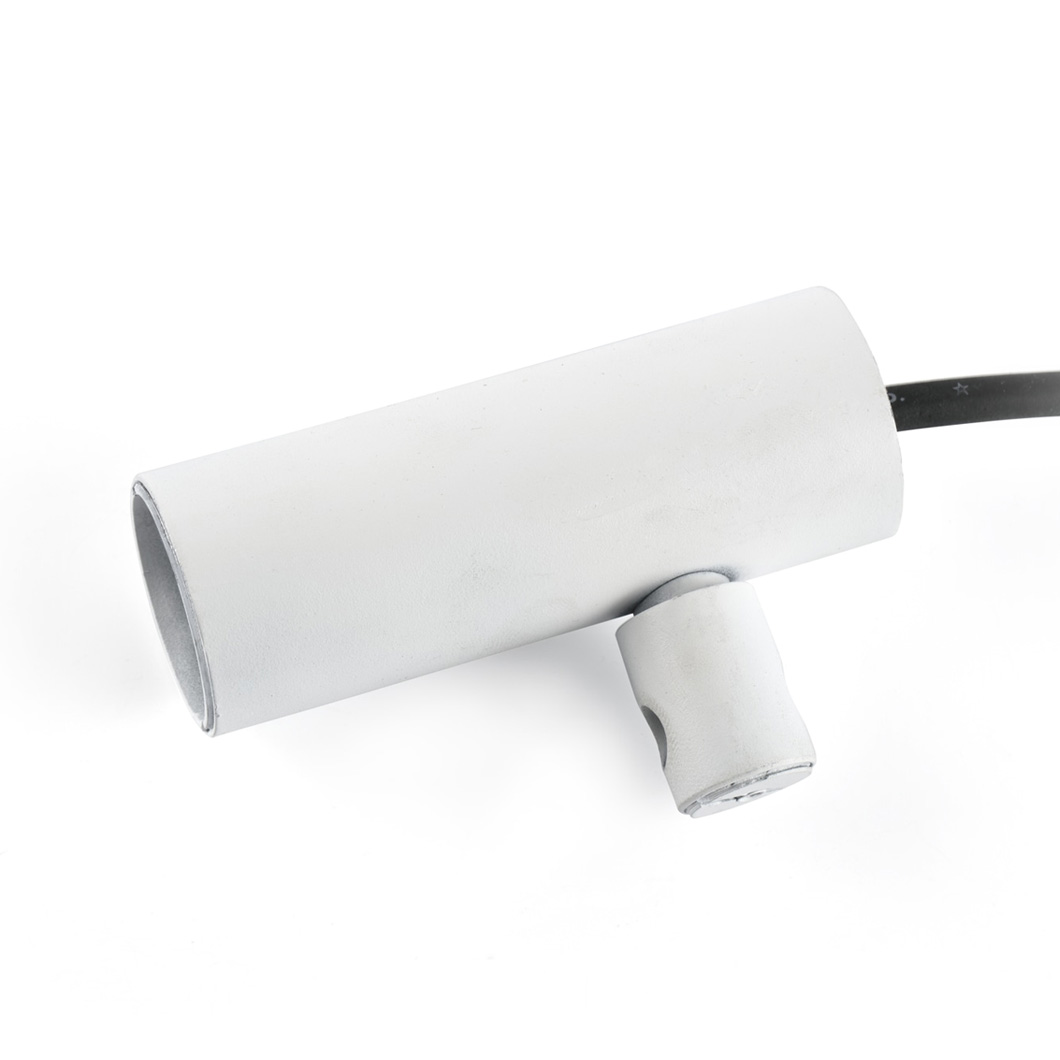

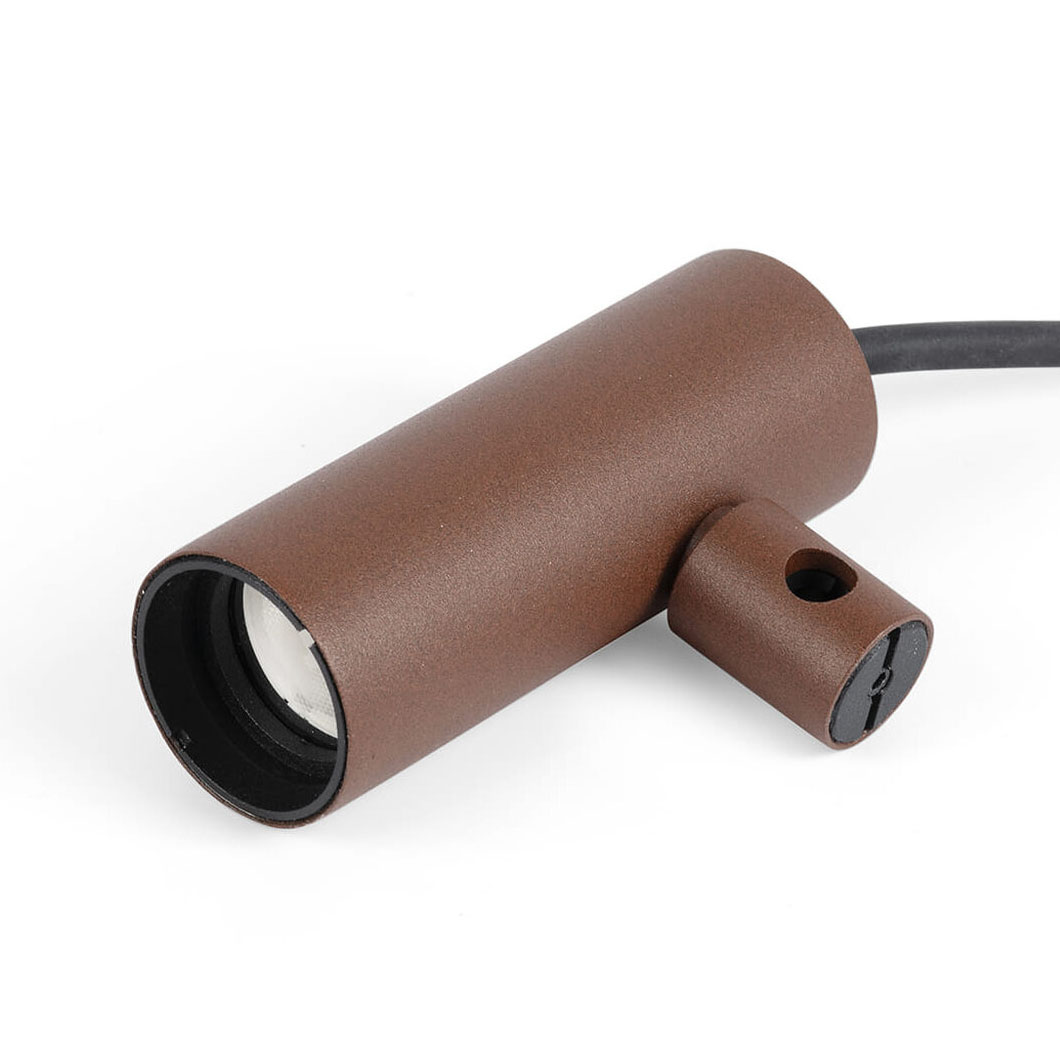

Clap projectors are available in black, white or in a new rust brown finish, and with a choice of 2700K or 3000K CCT and beam angles in 15°, 24° or 38° to suit the project requirements. Optional anti-glare visor and indirect light shade available.

Driver

• 24VDC driver required (not included)
• See 'You May Also Need' below for compatible drivers

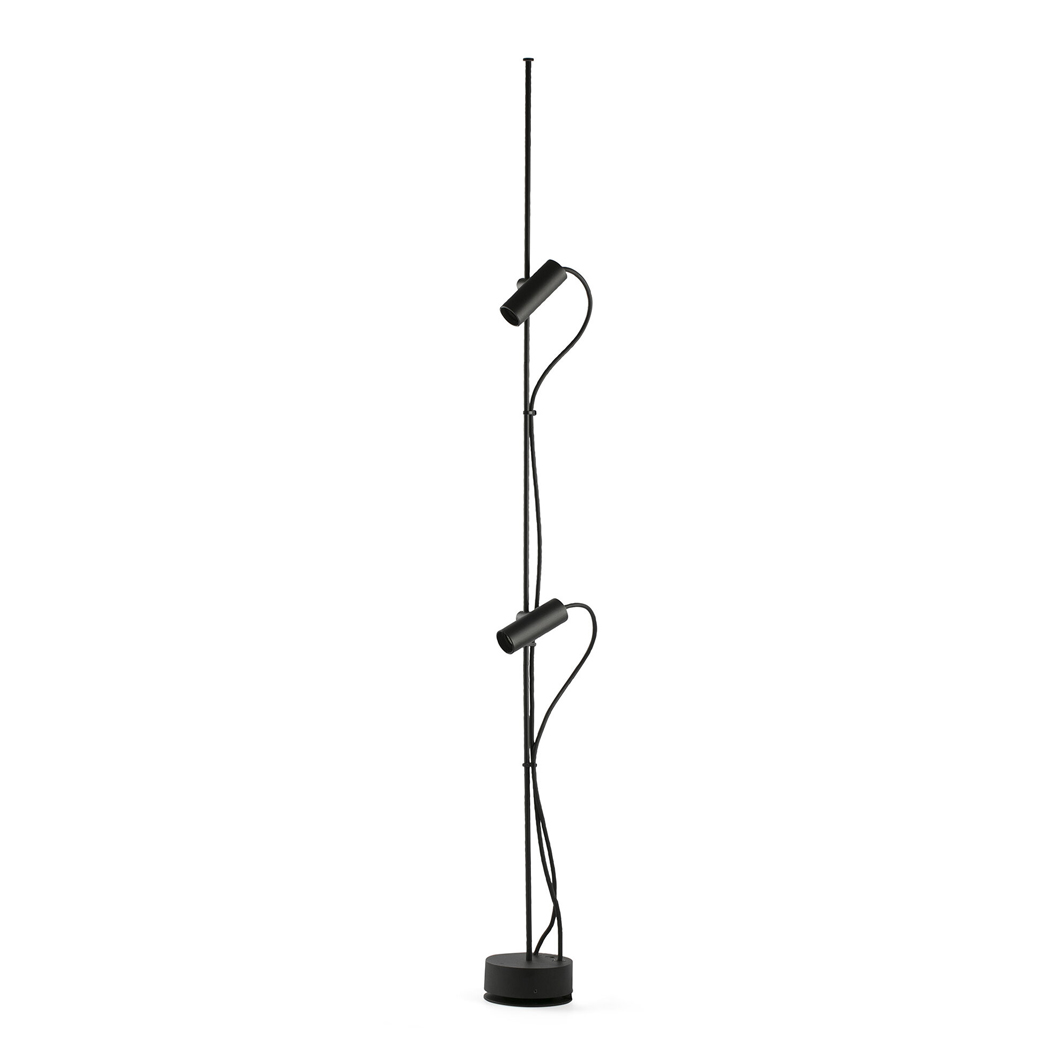

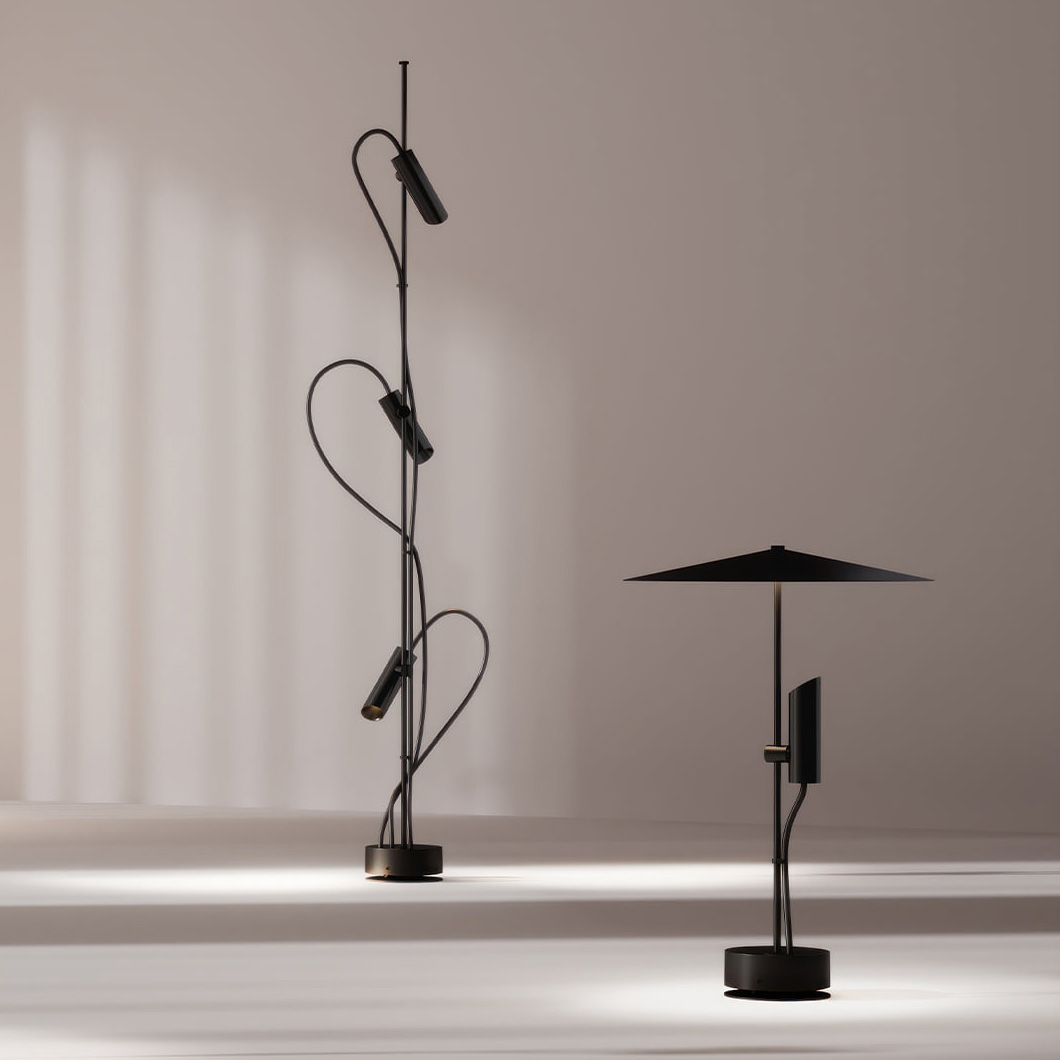

Clap Beacon 1266 can accommodate 1-3 projectors.
Contact us for further details.

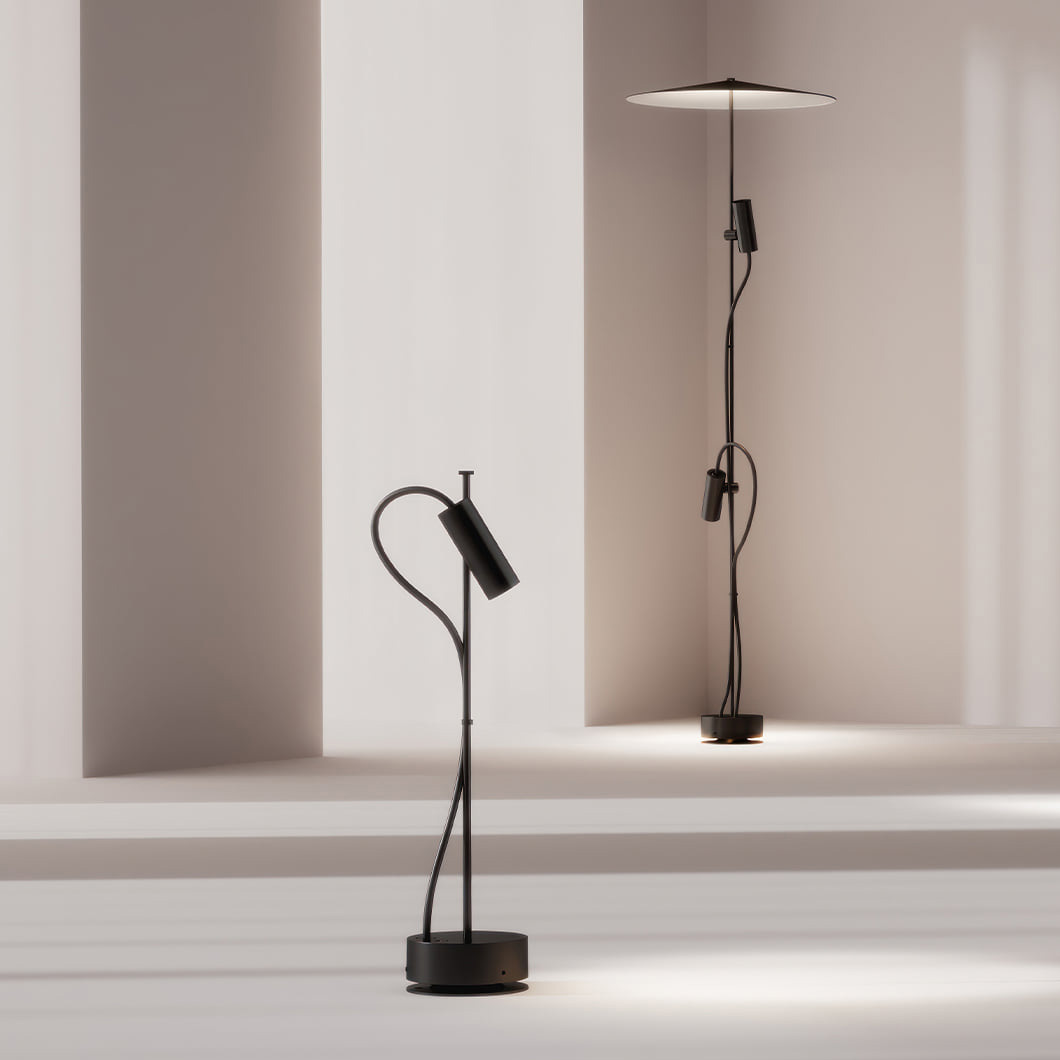

Versatile outdoor projectors

The Clap lighting collection takes aesthetic minimalism to new horizons in the illumination of outdoor spaces and gardens. With pure design and minimal structures, this family offers both direct and indirect lighting in its various versions.

Clap responds to the trend of product category hybridization, thus blurring the boundaries between indoor and outdoor luminaires. This lighting system offers great flexibility for project design thanks to its diverse categories whilst retaining a distinctive and refined aesthetic:

• spike stakes
• beacon bollards
• pendant lights
• wall sconces

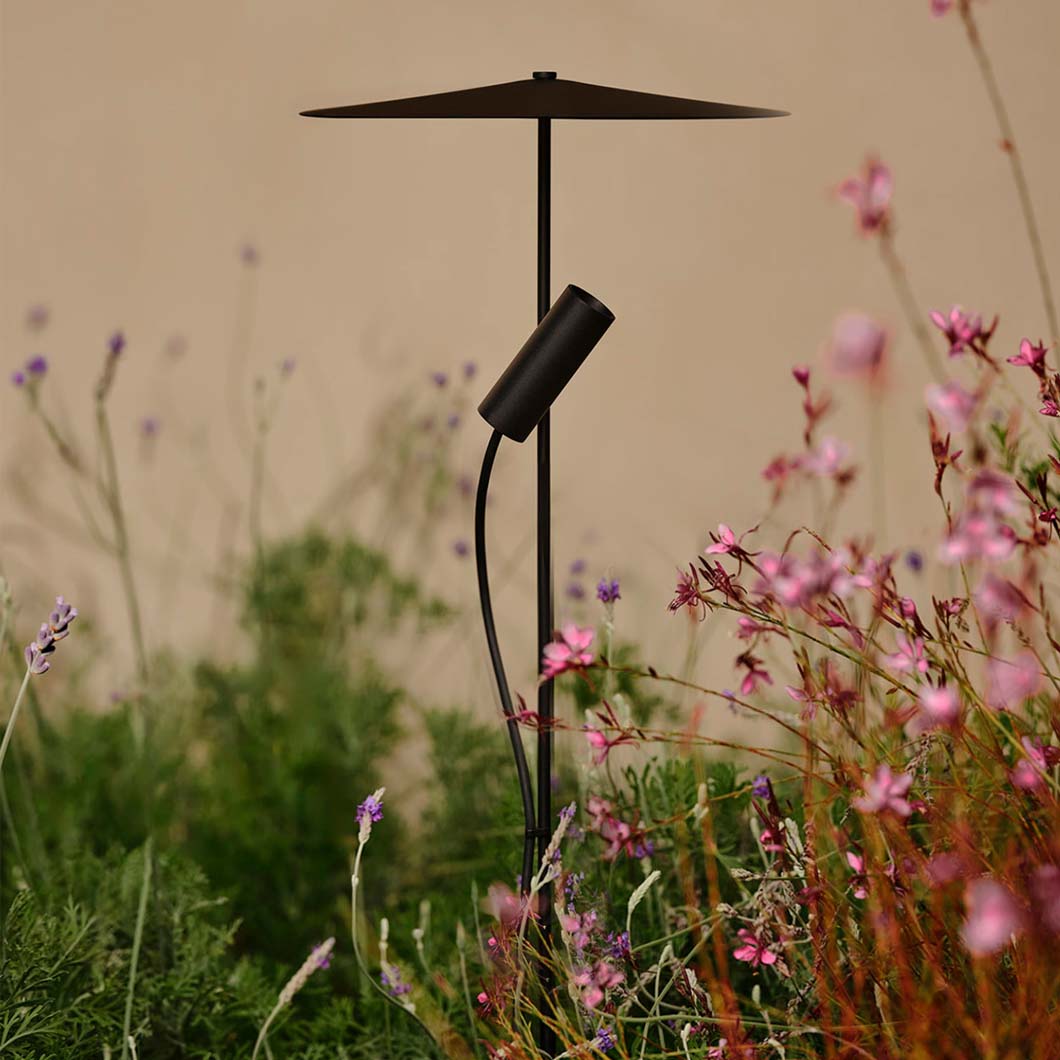

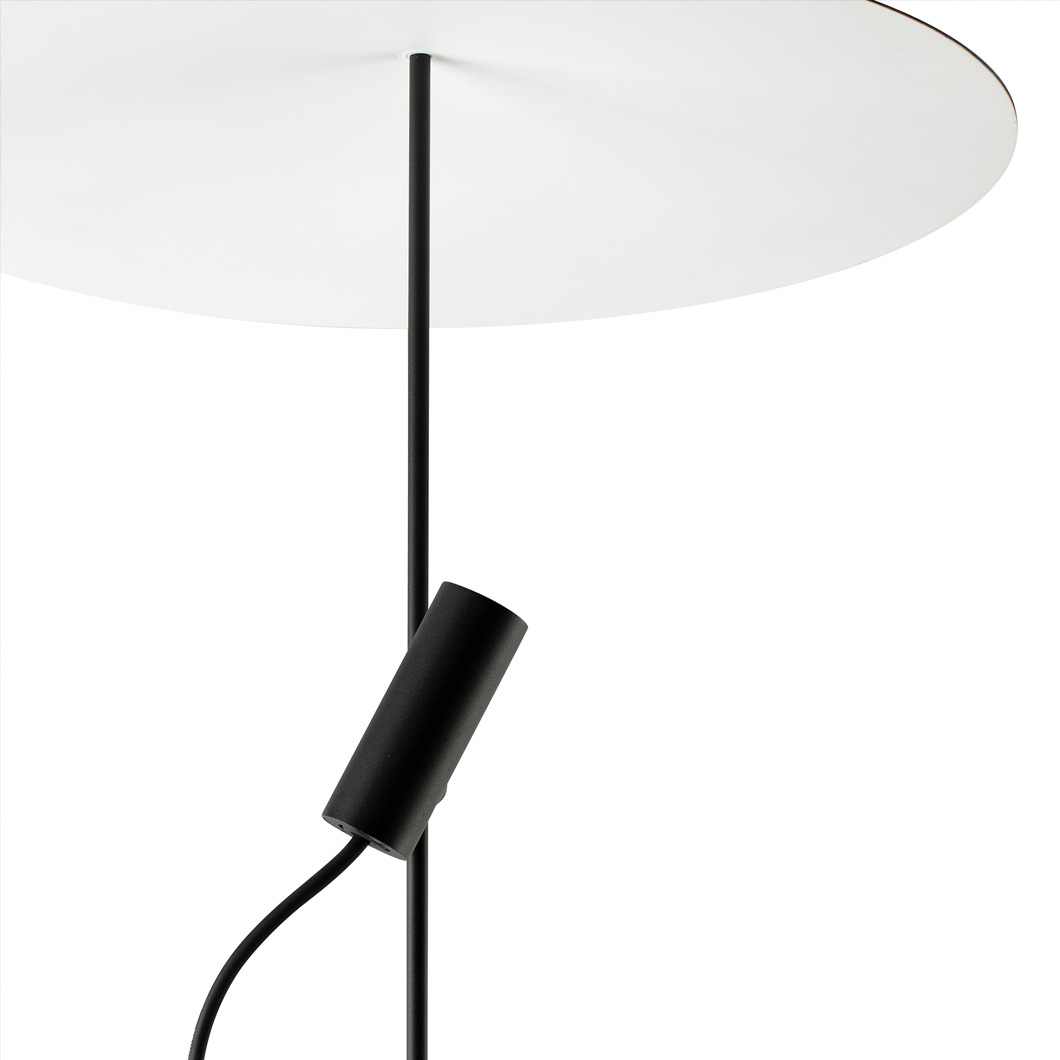

The versions with the indirect lighting shade provide high visual comfort and prevents glare, while eliminating light pollution and highlighting the surrounding vegetation. The Clap collection harmoniously integrates with the environment thanks to its elegant structures, blending seamlessly with the natural landscape.



Specification

Material: Aluminium
Power: 6W
Light Source: COB LED
Class: III
CRI: >80
Voltage: 24VDC
Cable: 2m

Finish: Black | White | Rust brown
CCT: 2700K | 3000K
Beam angle: 15º | 24º | 38º
Adjustable rotation: 360º

Lumen output

Beam Angle	CCT	Lumens
15°	2700K	481 lm
15°	3000K	496 lm
24°	2700K	553 lm
24°	3000K	570 lm
38°	2700K	508 lm
38°	3000K	524 lm

Accessories

- Beacon 1266 | Black (75705-2)

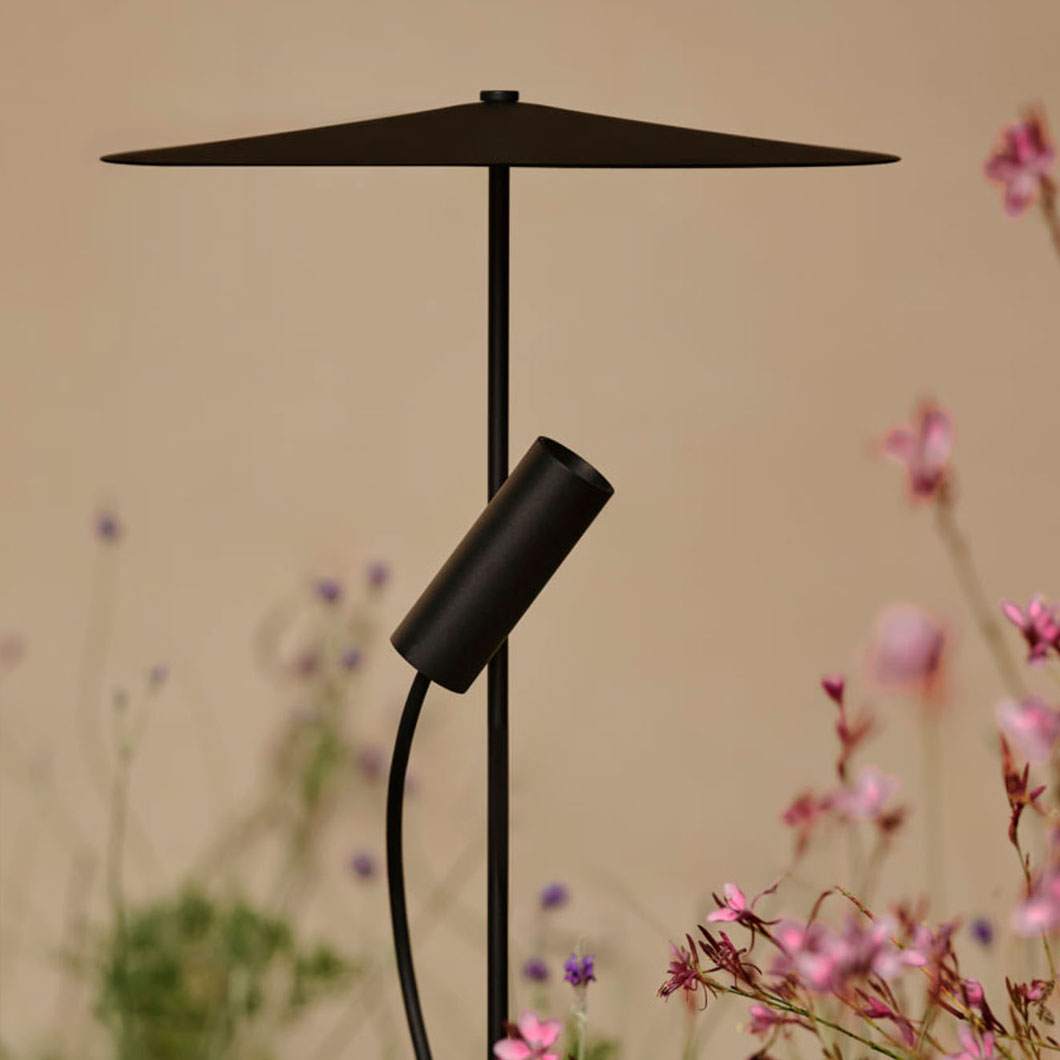

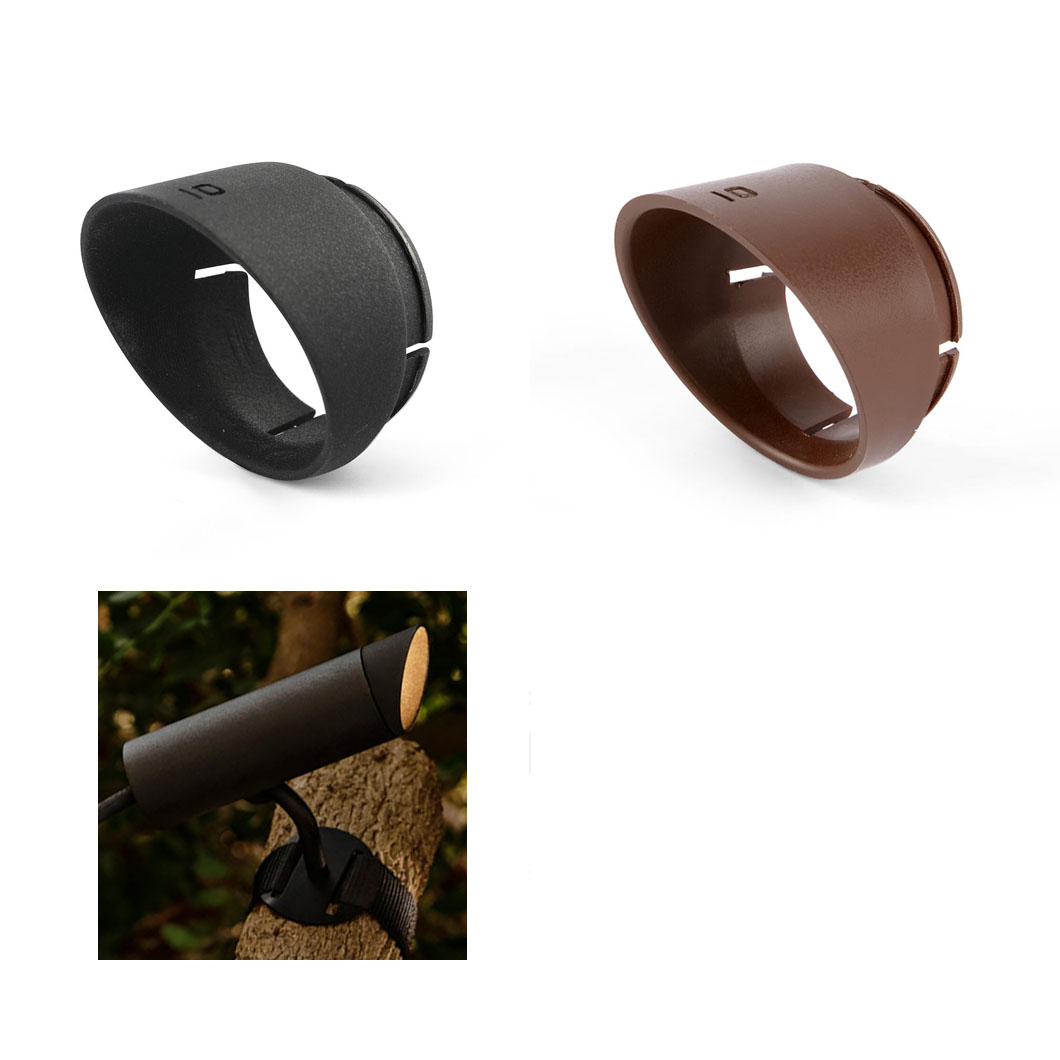

- Visor glare guard | Black (75714-2)
- Visor glare guard | Rust brown (75714-4)

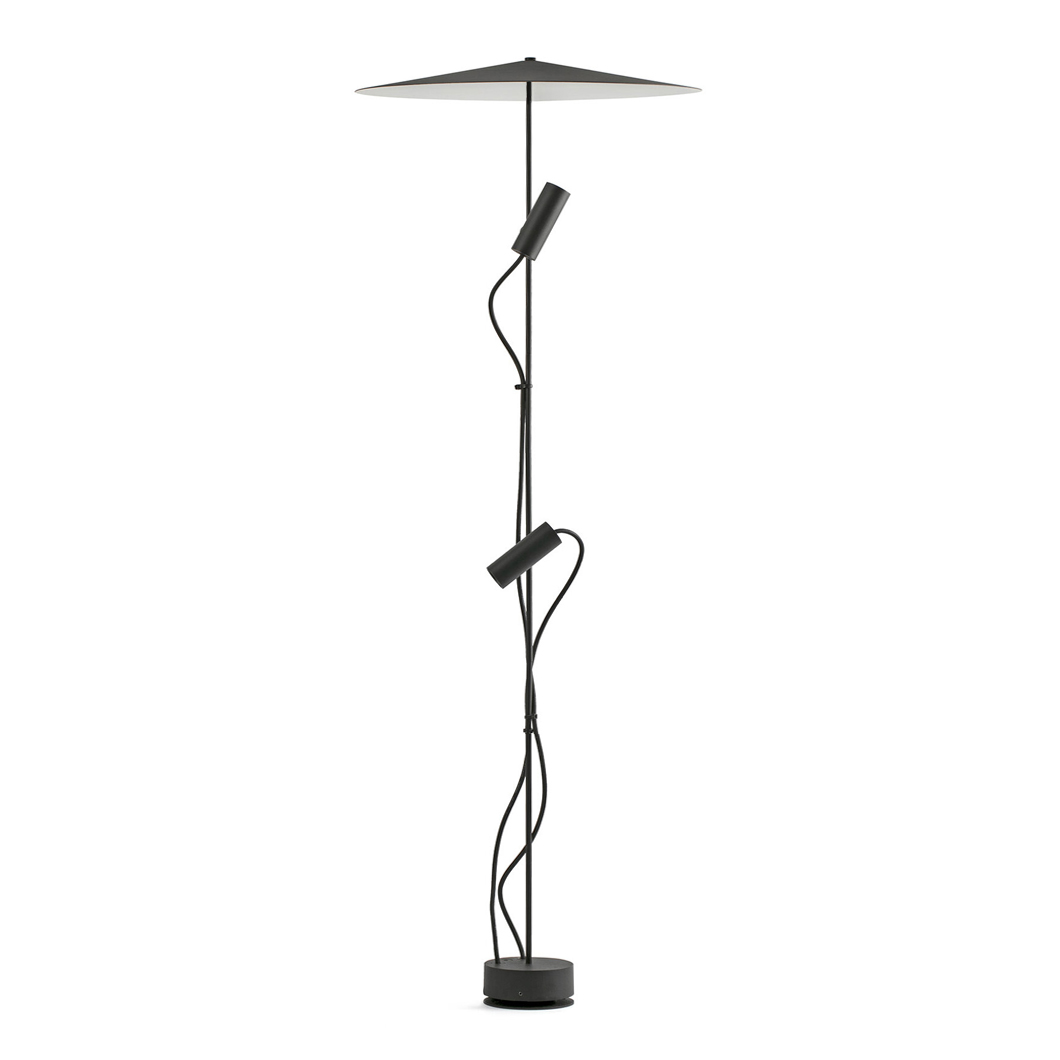

- Indirect shade ø310 | Black (75707-2)
- Indirect shade ø400 | Black (75706-2)

Driver

- 24VDC driver not included
- See 'You May Also Need' below

Lamp type: 2 x LED 6W | 2700K or 3000K

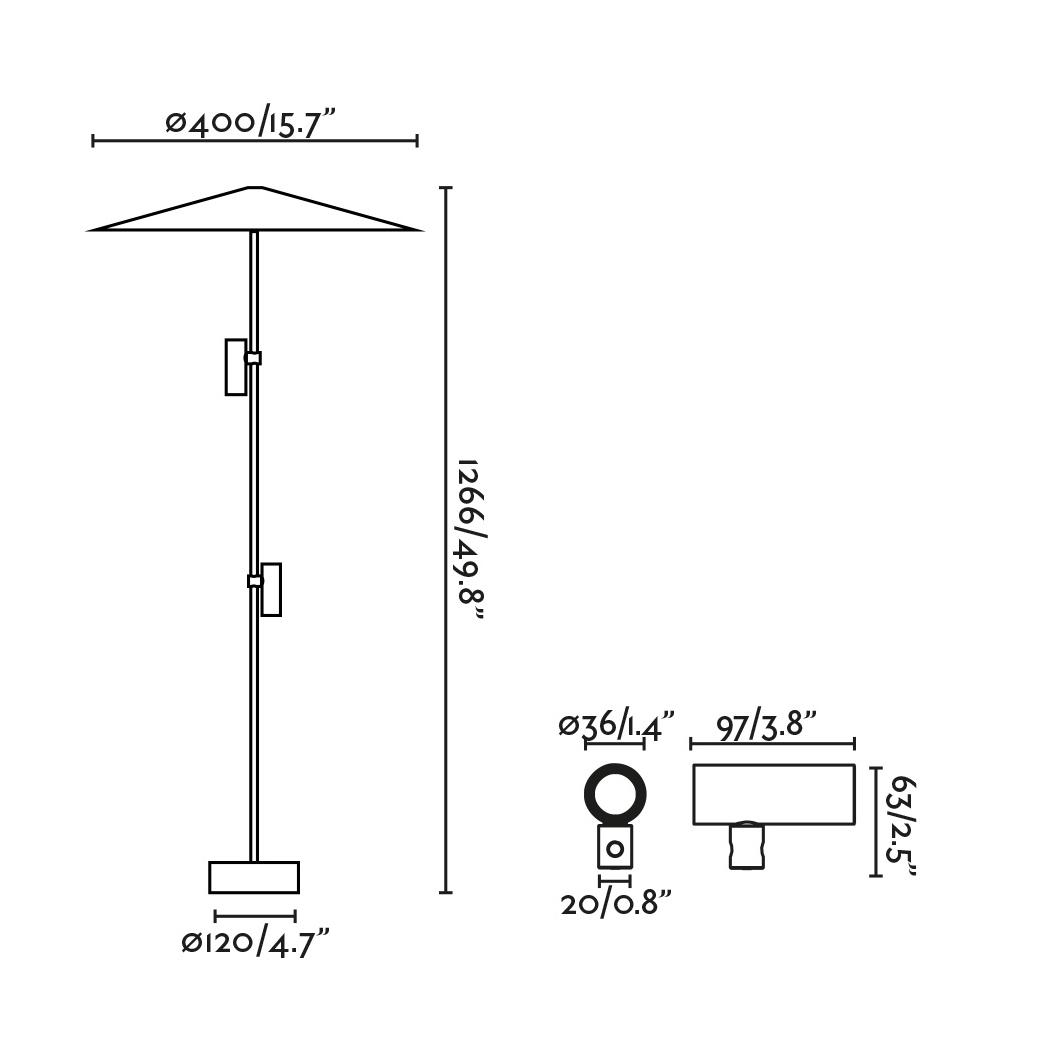

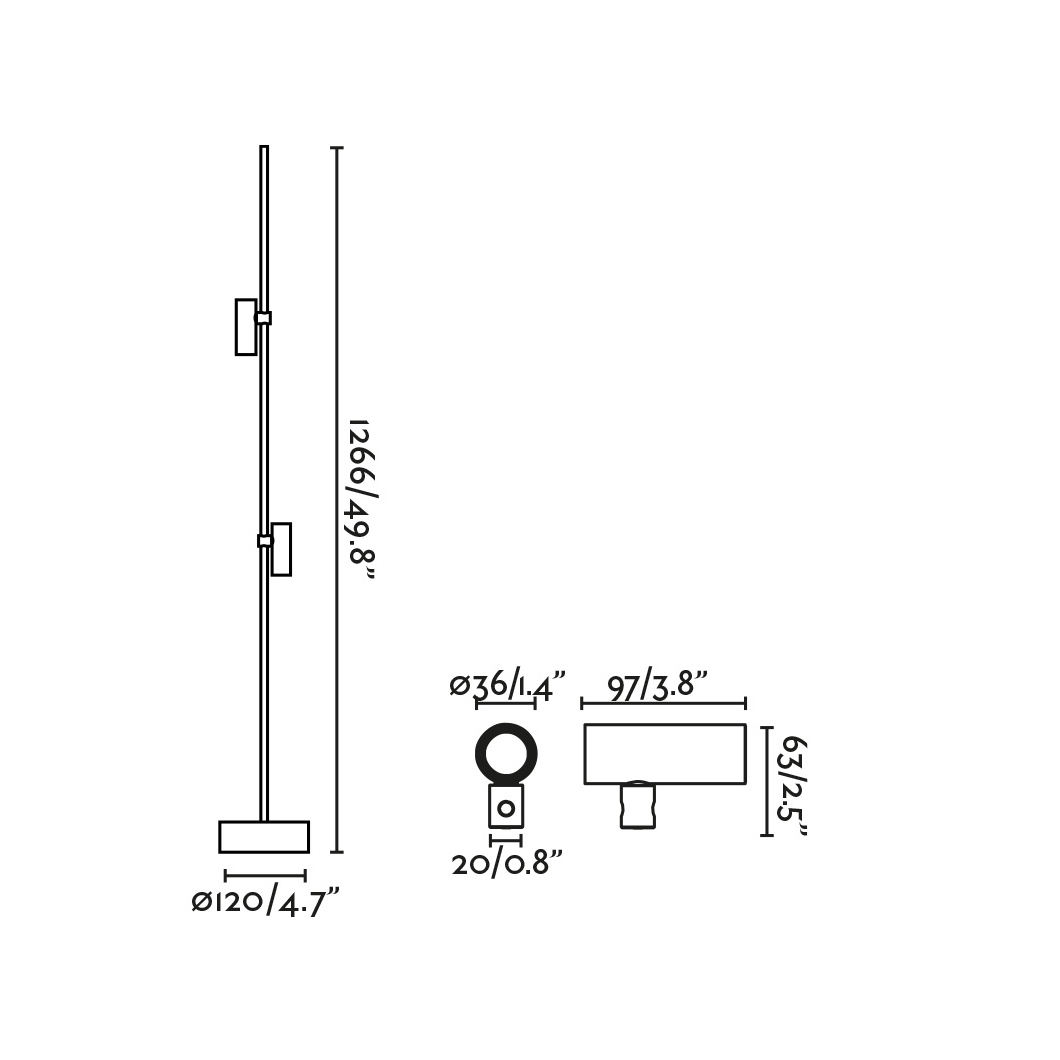

Dimensions

Product dimensions: D.97mm x H.1266mm x Diameter.120mm

Shade dimensions: Dia.310mm

Lens dimensions: Dia.36mm

Downloads

• Data Sheet | No Shade | PDF
• Data Sheet | With Shade | PDF
• Install Instructions | PDF
• Lighting File | No Shade | LDT

Delivery and warranty

Estimated delivery time 2-3 weeks.
