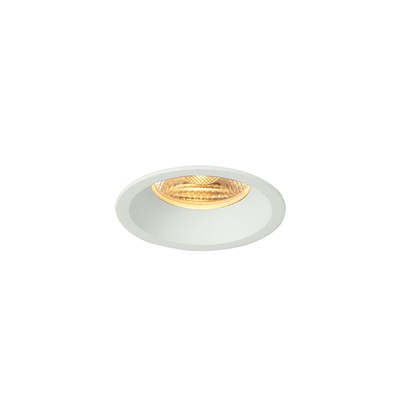

Trizo21 Audinni IP55 LED Recessed Downlight

Description

Audinni by Trizo21 is a recessed downlight, presenting a minimalist look that integrates into a modern indoor space. Protected by an IP55 rating, Audinni is suitable for installation in wet zones such as bathrooms. Powered by a 4,32W LED, Audinni provides effective illumination that can be diffused through a medium 23° or wide 40° beam angle. Choose between a warm 2700K colour temperature or a neutral 3000K.

Audinni's range of metallic finishes makes it a sleek and stylish addition that will complement various contemporary settings. Choose between 6 finishes to tailor the fitting to the space's style: white, black, brass, gunmetal, bronze, or nickel. The downlight is available in two versions for installation in a false ceiling or a concrete ceiling—see the downloads tab below for full installation instructions.

A remote-mounted driver is required for this fitting - see the specification tab for more information.

Specification

IP55

Materials:
Brass/aluminium

Lightsource:
1x LED array 4,32W
2700K 487lm / 3000K 517lm
CRI 95

Beam angle:
Medium (M) = 23°
Wide (W) = 40°

Connection:
500mA - requires remote mounted driver

Code	Driver	Devices Powered
D 6WT500	6W TRIAC/IGBT dim.	1x
D 10WT500	10W TRIAC/IGBT dim.	2x
D 15WP*	15W PUSH-DIM or 1-10V dim.	1-4x
D 15WDA EU-US*	15W DALI dim.	1-4x
D 40WDP*	40W PUSH-DIM, 1-10V or DALI dim.	3-12x
*110V-230V



Lamp type: Integral LED | 4,32W | 500mA

Dimensions

Product dimensions: Diameter.46mm

Cutout dimensions: Dia.41mm

Downloads

• Audinni IP55 Installation Instructions PDF
• Bathroom Zones & IP Ratings Explained PDF

Delivery and warranty

Delivery approximately 4-5 weeks

About the manufacturer

Trizo21 is a Belgian company, designs and manufactures contemporary lighting of the highest quality. They are suitable for a large variety of lighting purposes, from private homes to commercial venues including hotels & business centres.

All products are fully designed and assembled on site with special attention given to technical perfection, quality of materials and the finishing touches.
