LED Profilelement V30 Profile

Description

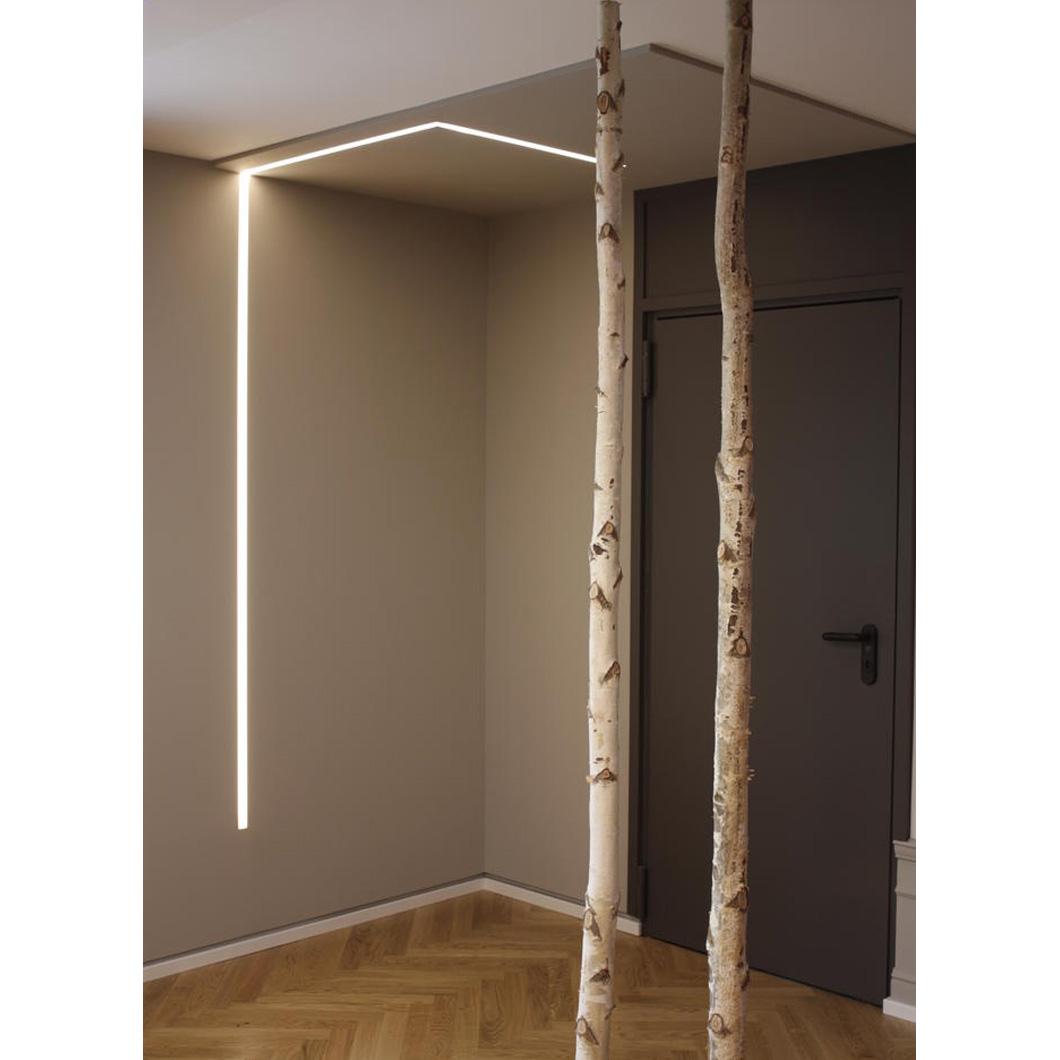

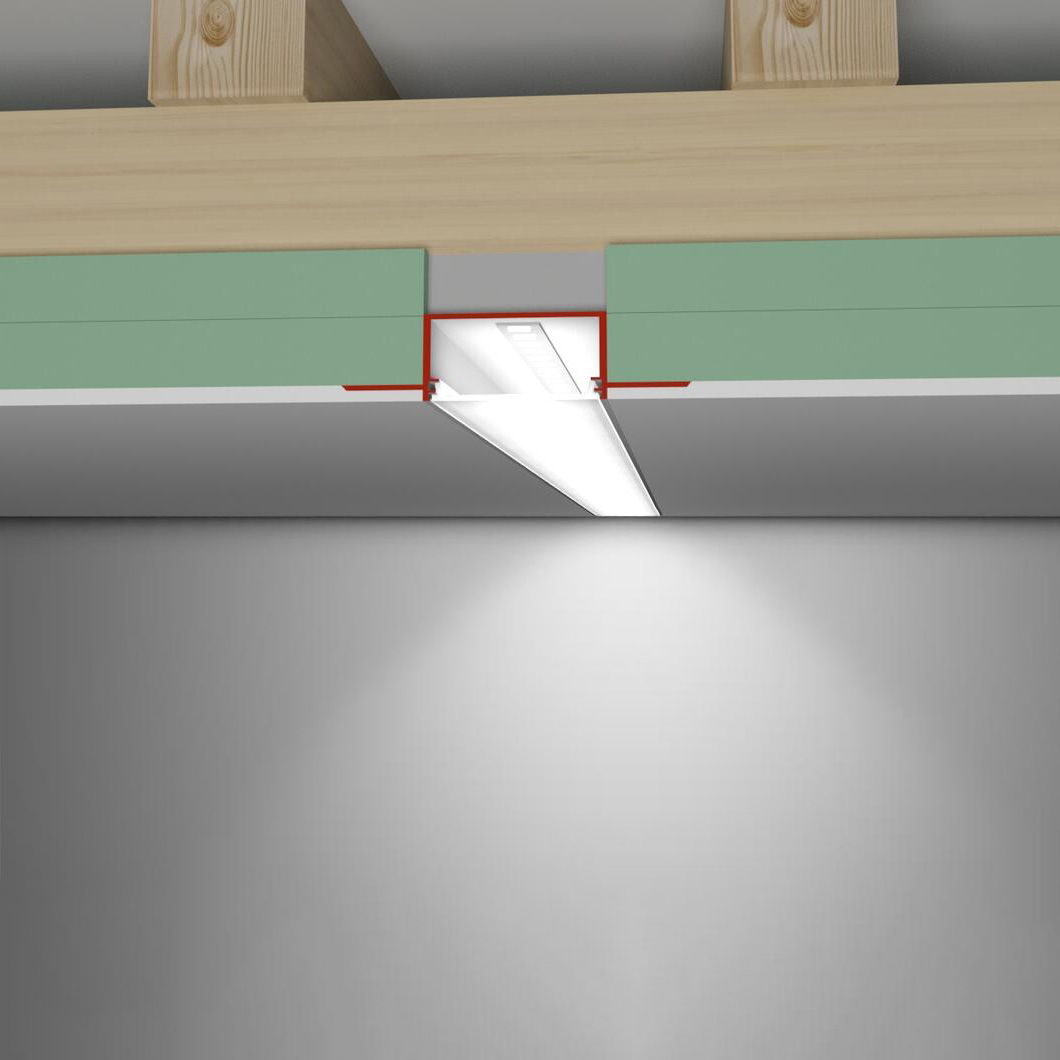

LED Profilelement V30 profile is for concealed and integrated installation in walls and ceilings. The V30 LED recessed profile is made from high-grade aluminium, in which a 3cm wide channel allows for more than one length of LED tape (if desired) to run through. If the distance of the LED chips is less than 15mm, a homogeneously illuminated line (without visible points) is created. Perfect for creating dramatic indirect lighting effects behind 'floating' structures. Opal supplied diffuser cover made of polycarbonate (PC) is weathering and UV-resistant and flame-retardant. The optional end caps, made of polypropylene (PP), additionally seal the profile.

Installing two LED strips in the profile means that V30 can be used as a primary light source that is energy-efficient.

See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

Supplied in 2m lengths.

See install instructions PDF in the Downloads tab.

- Our Top Tips -

• Why do I need a diffuser?
  The diffuser is final piece of the jigsaw, with it you will create a nice soft halo of light. Without it you will create a hard wonky line – not a great look.


• How do I avoid cracks in the plaster?
  Use 60mm fleece lining or 90mm fleece lining over the join of the profile and plasterboard (or joining to other profiles) before applying the final layers of plaster. See 'You May Also Need' below.

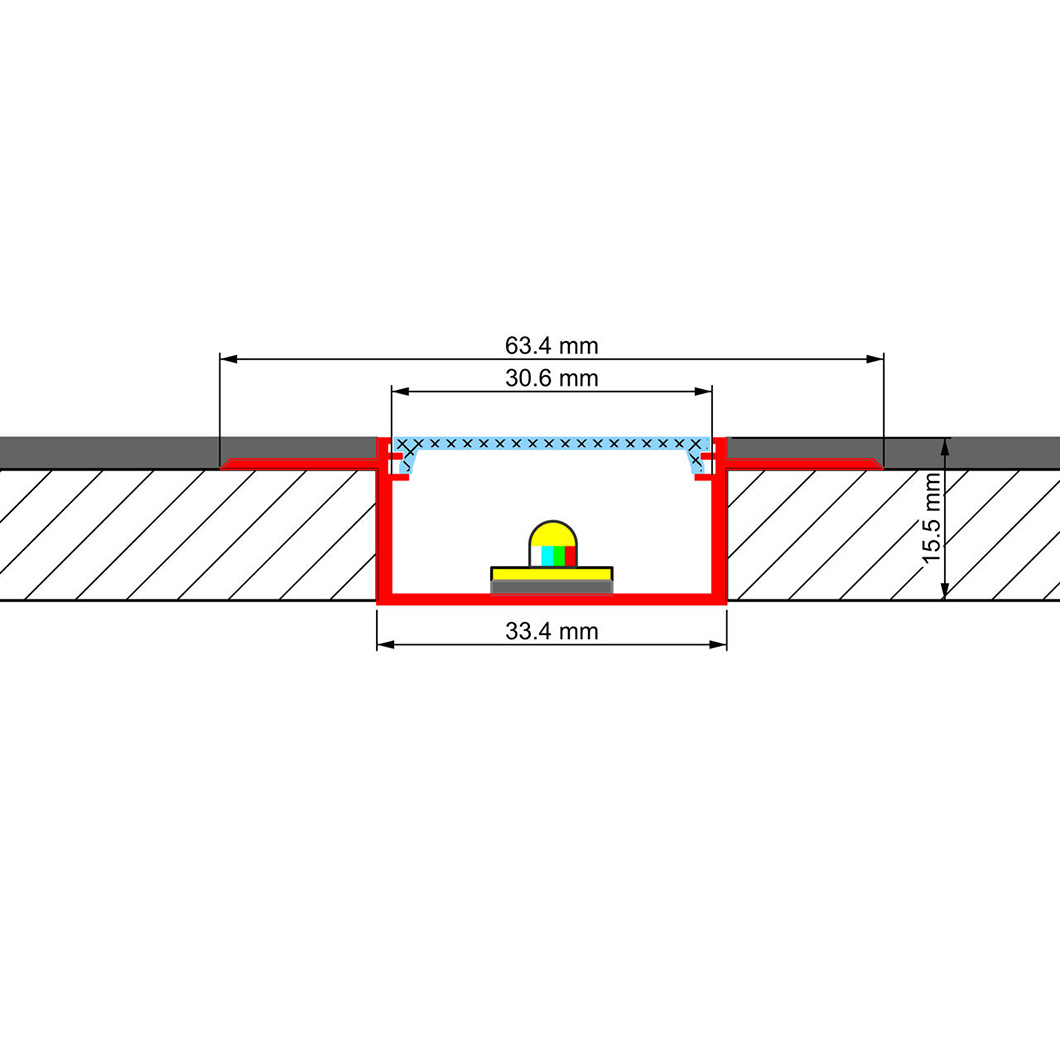

Specification

Length 2000mm
Internal width 30.6mm
Profile: aluminium
Opal diffuser cover: polycarbonate (PC) included

Dimensions

Product dimensions: W.2000mm

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

Supplied with a 3 year warranty

About the manufacturer

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

The LED Profilelement edit below showcases the most popular products in the range.

 Browse the full LED Profilelement catalogue

For prices on any product that isn't shown below please contact us.



Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.

Got a question? Email us or call 01189 882294
