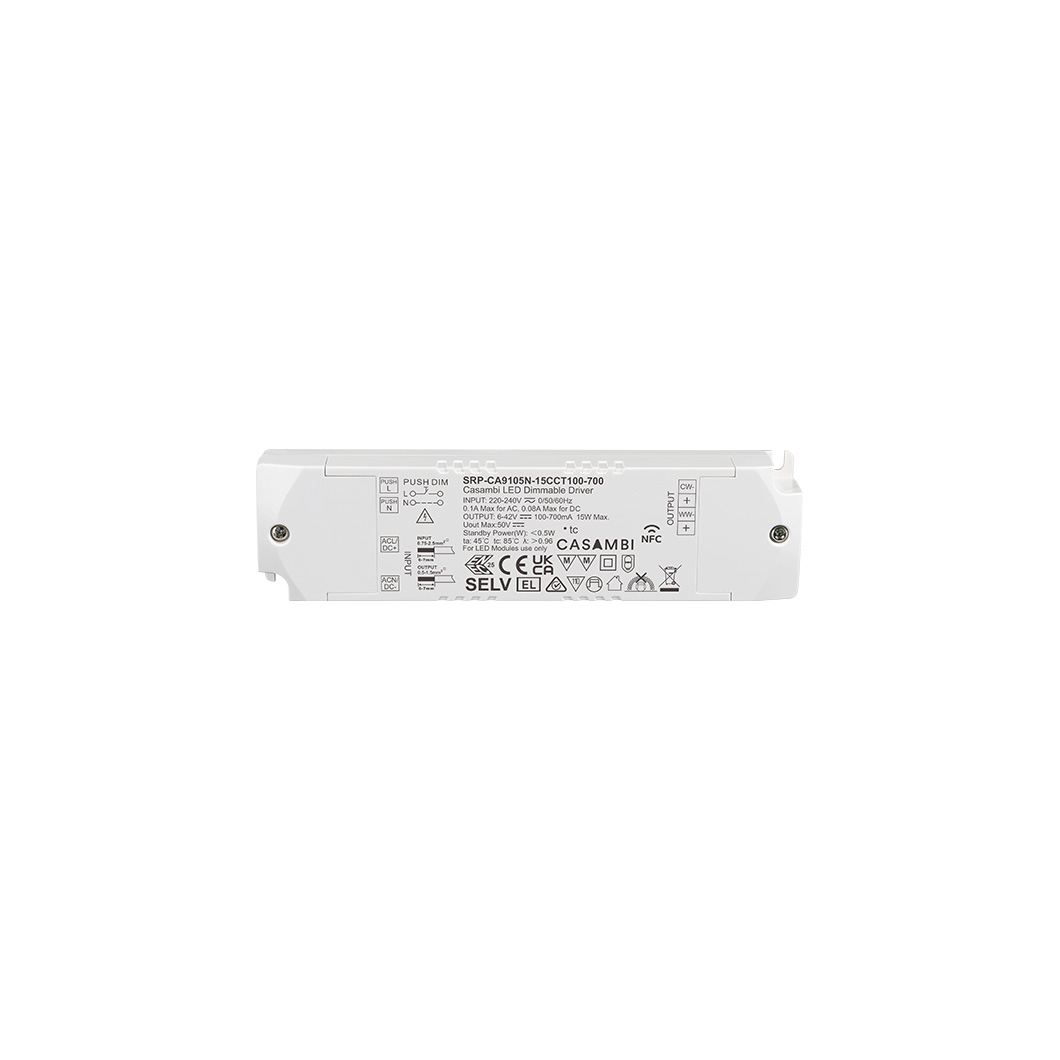

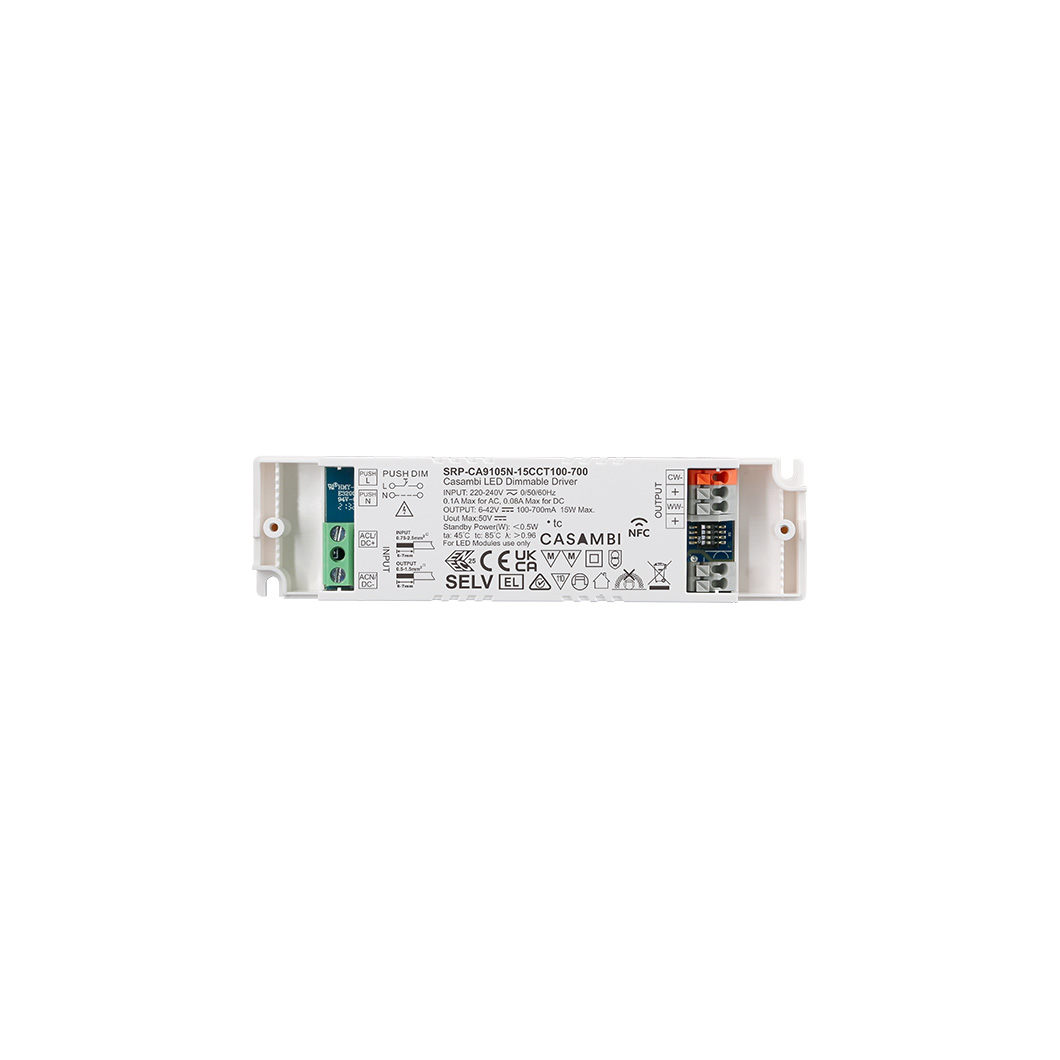

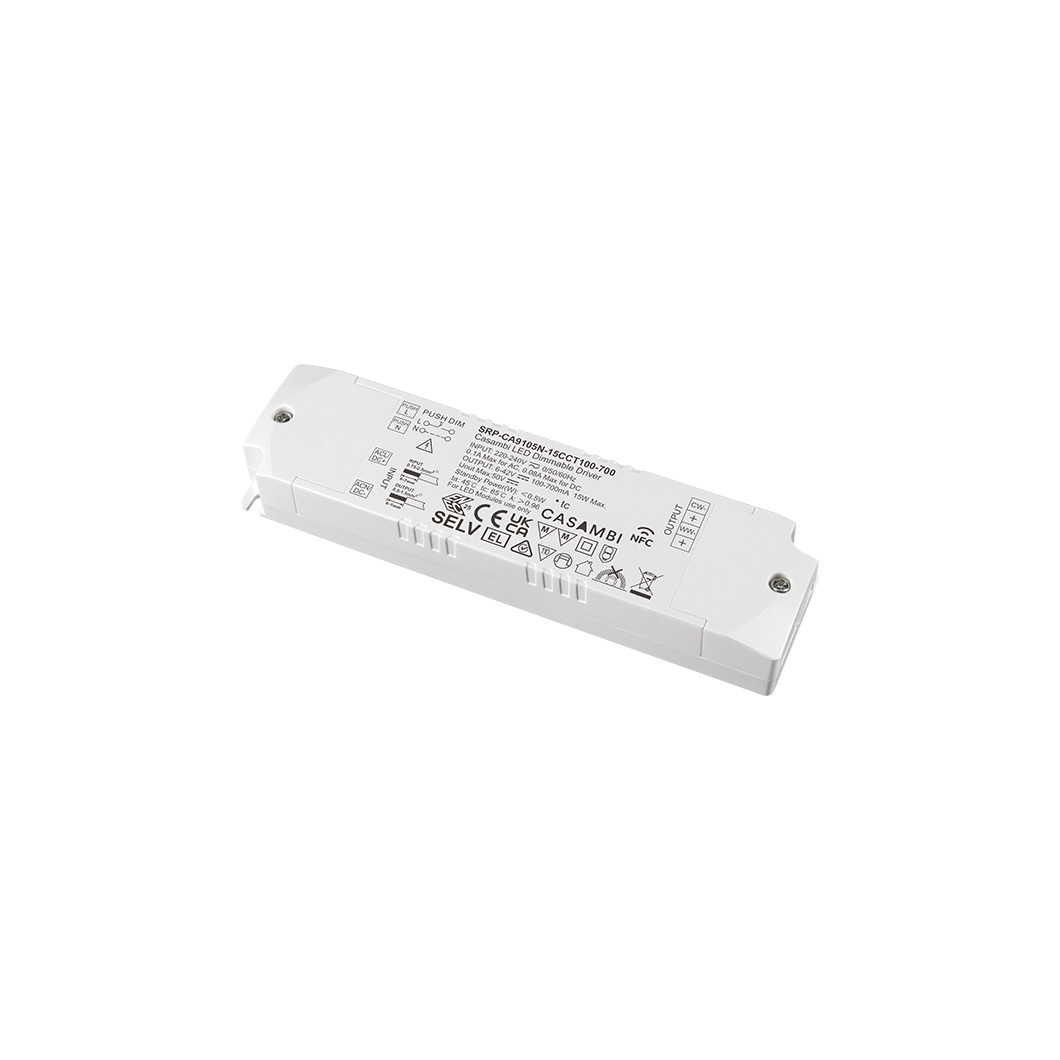

Product Code: SRP-CA9105N-15CCT100-700
Output
LED channel: 2
DC Voltage: 6-42V, max. 50V
Current: 100-700mA via NFC tool; Min.current gear lower to 0.1mA, default 350mA
Current Accuracy: ±3%( ±1%@Certain full load) @ full load
Rated Power: 15W max.
Input
Voltage Range: 220-240VAC/220-240VDC
Absolute Voltage Range: 196-264VAC/196-264VDC
Frequency Range: 0/50/60Hz
Power Factor (Typ.): > 0.96 @ 230VAC Full load*
Total Harmonic Distortion: THD ≤ 12% (@ full load / 230VAC)*
Efficiency (Typ.): ＞77% @ 230VAC full load*
AC Current (Typ.): 0.1A Max.
Inrush Current (Typ.): Max. 3.96A at 230VAC; 90μs duration
Leakage Current: < 5mA /230VAC
Anti Surge: L-N:2KV
Control
Dimming Interface: Casambi
Dimming Range: 0.01%-100%@ Max current
Dimming Method: Amplitude/CCR dimming
Dimming Curve: Linear/ Logarithmic optional
Protection
Short Circuit: Yes, remove the fault conditions and re-power the device.
Over Current: Yes, remove the fault conditions and re-power the device.
Over Temperature: Yes, remove the fault conditions and re-power the device.
Environment
Working Temp.: -25℃ ~ +45℃
Max. Case Temp.: Tc=85℃
Working Humidity: 10% ~ 95% RH non-condensing
Storage Temp. & Humidity: -40℃ ~ +80℃, 10% ~ 95% RH
Safety & EMC
Safety Standards: EN61347-1, EN61347-2-13, GB/T 19510.1-2023, GB/T 19510.213-2023
Withstand Voltage: I/P-O/P: 3.75KVAC
Isolation Resistance: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC Emission: EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
EMC Immunity: EN61547, EN61000-4-2,3,4,5,6,8,11
Clever tech brand Casambi lets you instantly upgrade your existing lights into a whole new smart lighting system. It's driven by Bluetooth Low Energy (BLE) - an innovative wireless technology which is built-in to all smartphones and considered a more reliable alternative to WiFi and Zigbee. Incredible user experience is guaranteed as you can effortlessly control luminaires with a simple swipe of the app. Casambi lighting control works with its own native devices or with any manufacturers’ existing luminaires and wall switches, and it’s easily integrated into LED bulbs, drivers and modules. Based on wireless mesh networks with no single point of failure, this fully scalable smart lighting solution transforms lighting for the home and commercial spaces. It’s smart lighting made simple.
Founded by ex-Nokia workers Timo Pakkala and Elena Lehtimäki, Casambi provides the best smart home lighting. Save time by grouping luminaires together and creating one-tap scenes. Make morning and bedtime routines easier using the timer function. What’s more, you can boost your home security - as well as saving money and energy - by scheduling your holiday lighting requirements on the system’s calendar. In business, Casambi also powers cost-effective lighting automation for office and commercial environments. Daylight sensors and occupancy sensors achieve maximum lighting quality while reducing energy consumption; no gateway module is required thereby keeping costs down; and as part of an IoT system it’s got plenty to offer too. In retail spaces its firmware extension interface creates heat maps of people's movements, whilst in art galleries and exhibitions, location awareness technology triggers apps to display on visitors’ devices informing them about the object they’re viewing. Casambi supports many major standards, including Bluetooth 4.0 DALI and Philips Hue, and is compatible with all lighting manufacturers. What more do you need to know? No seriously, any questions just give us a call on 01189 882294, Live Chat with us, or email us at [email protected].
