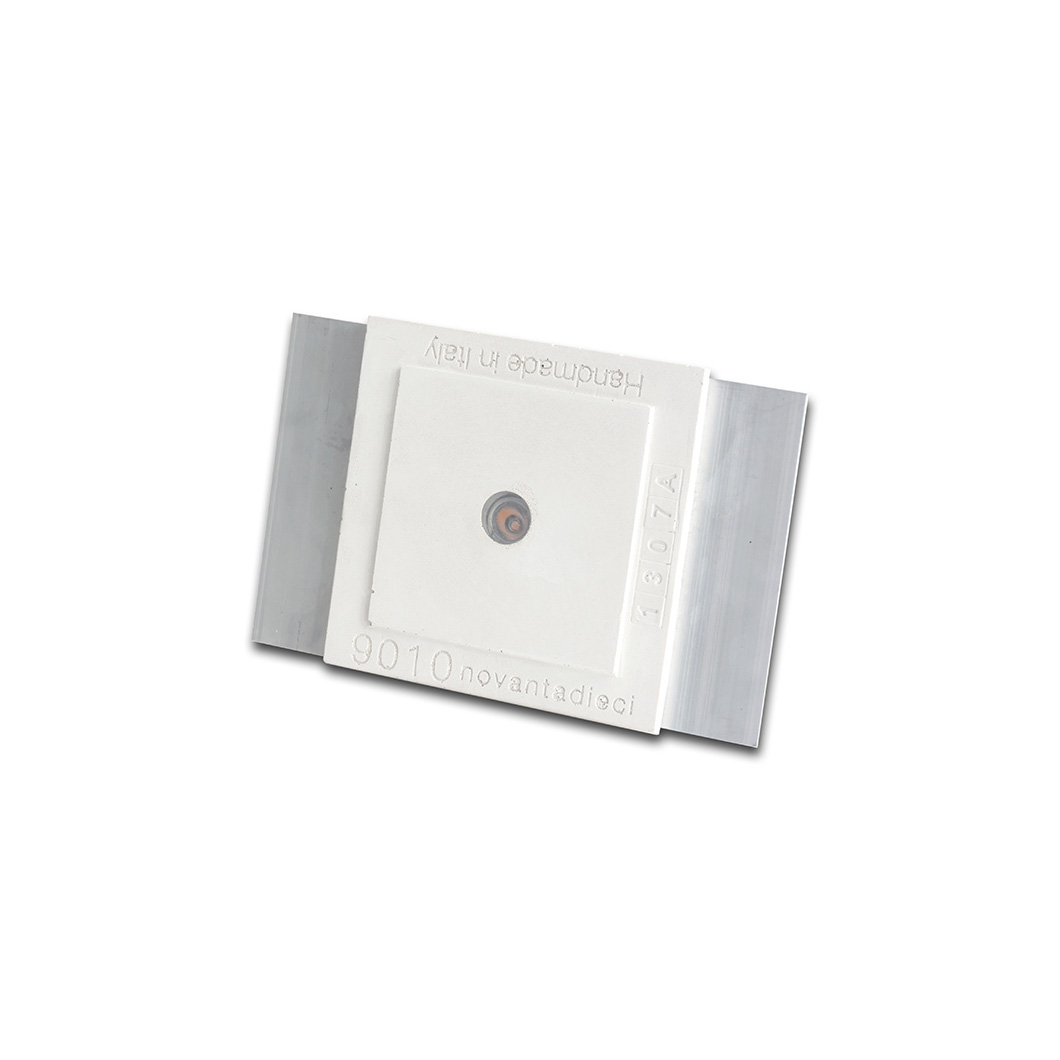

9010 MiniLed Est 1307A LED Outdoor Plaster In Recessed Pin Hole Ceiling Light

Description

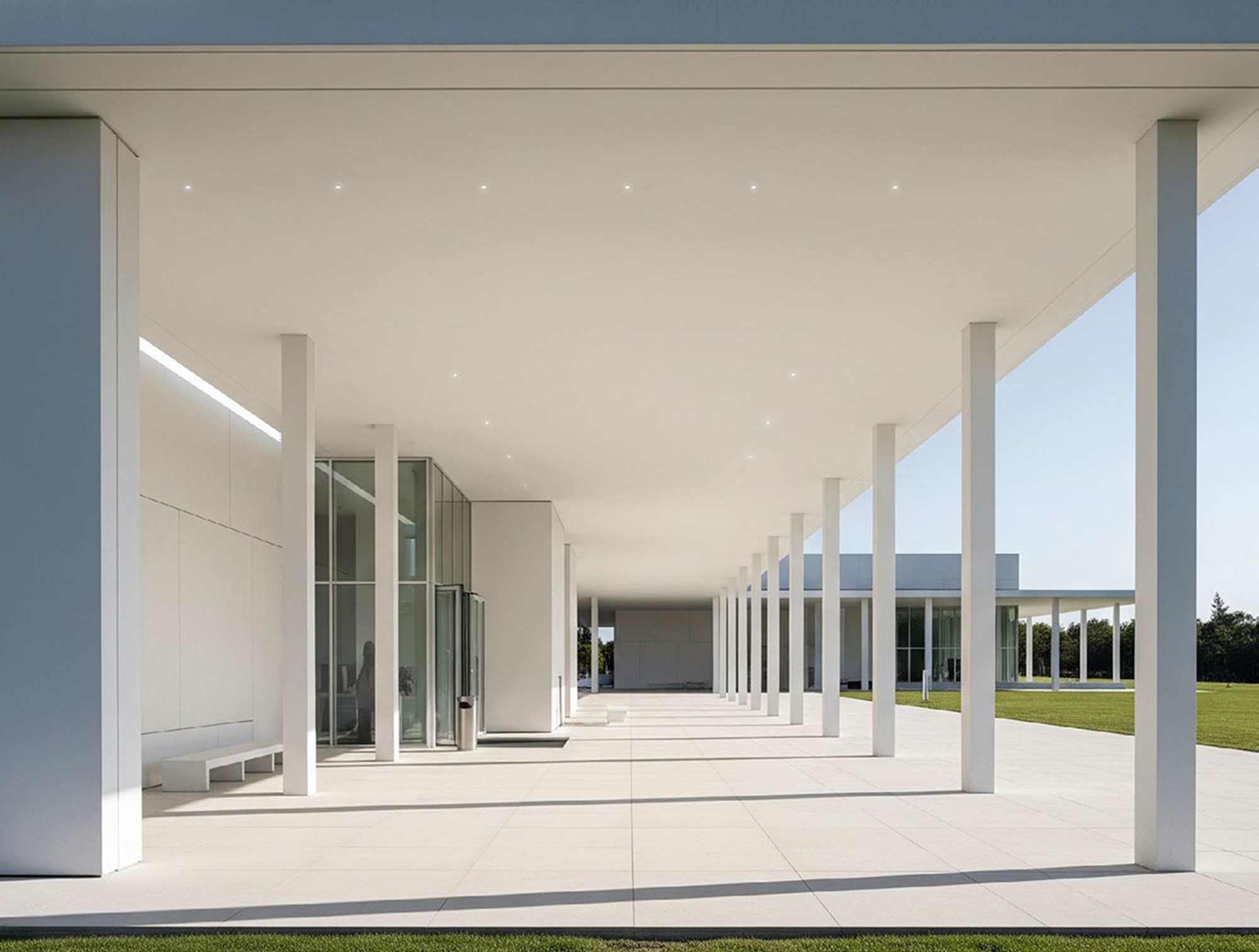

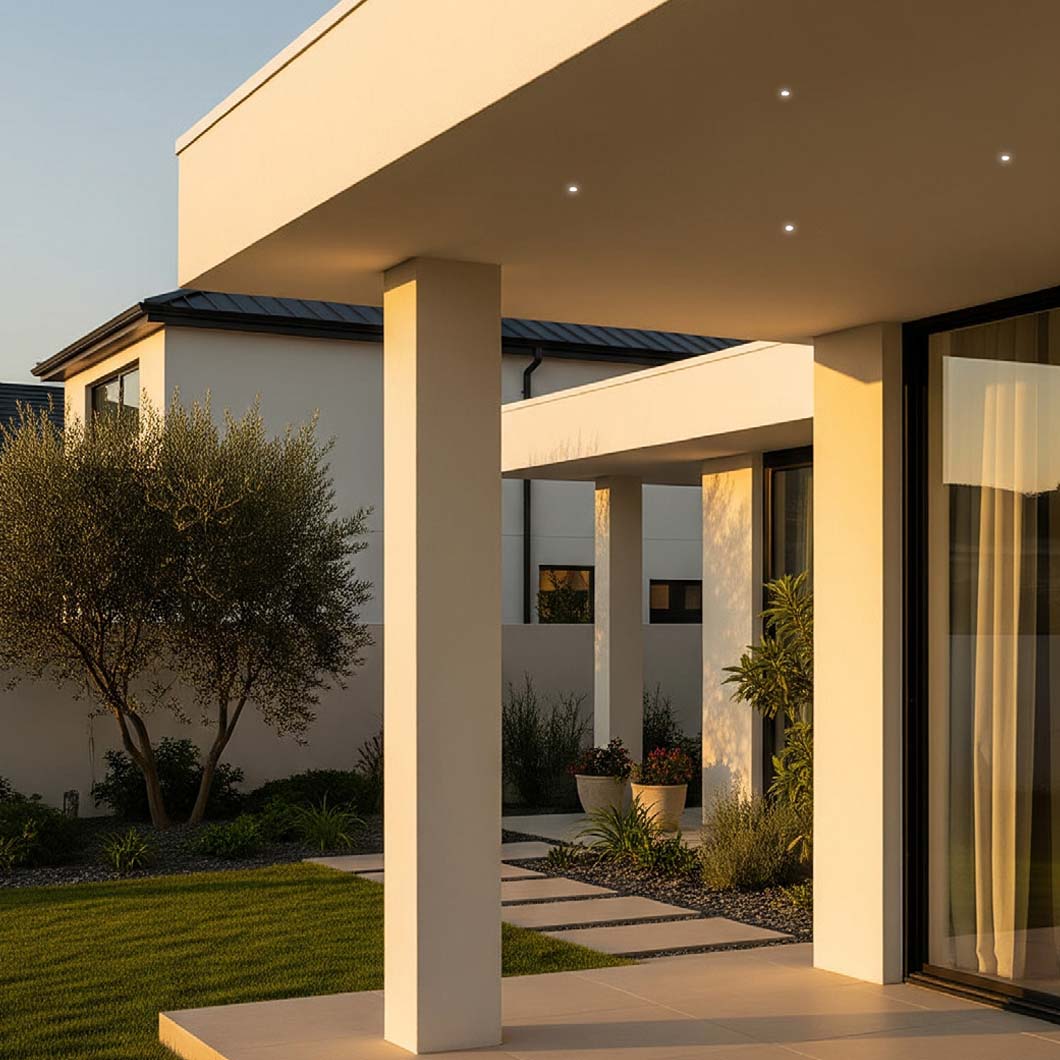

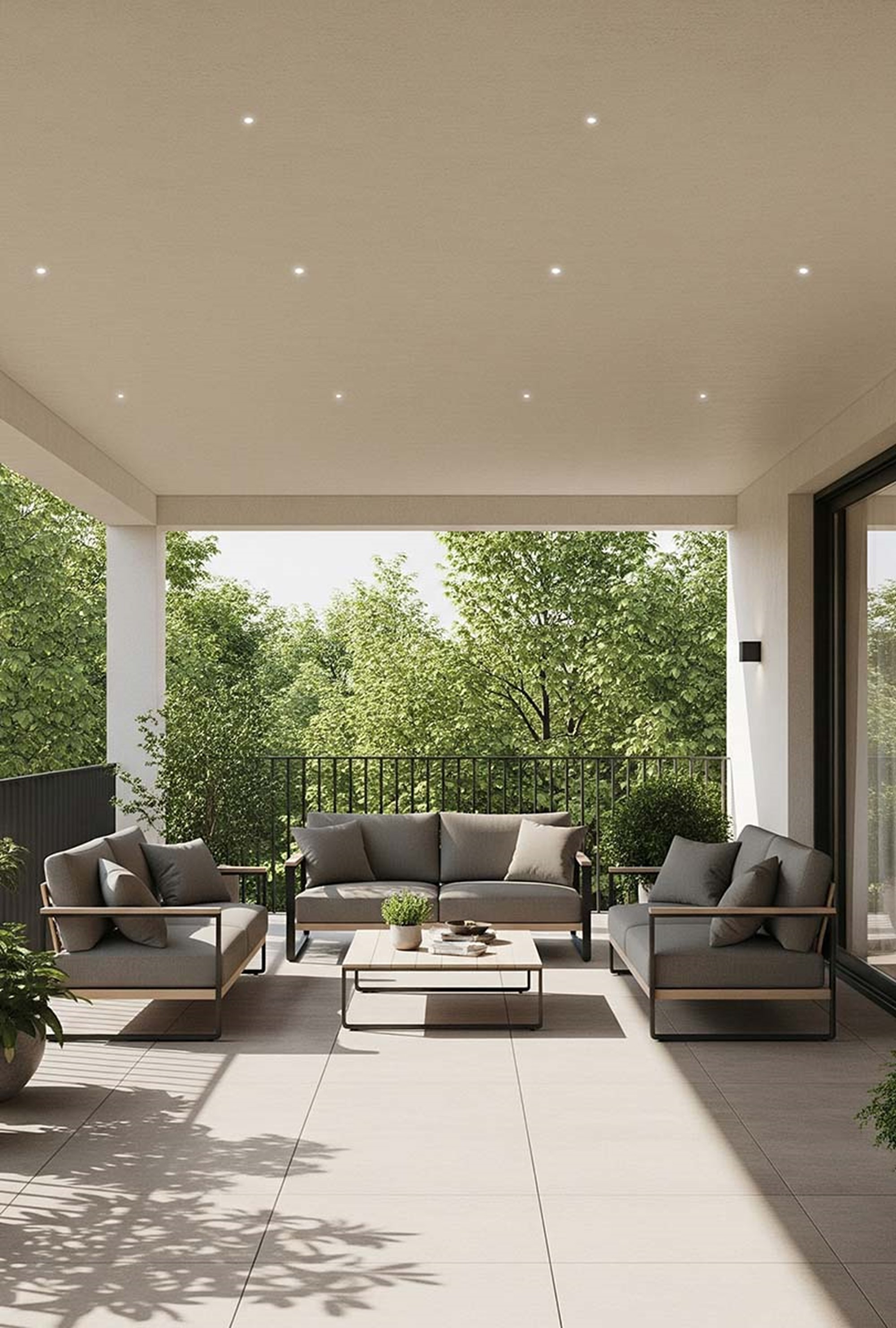

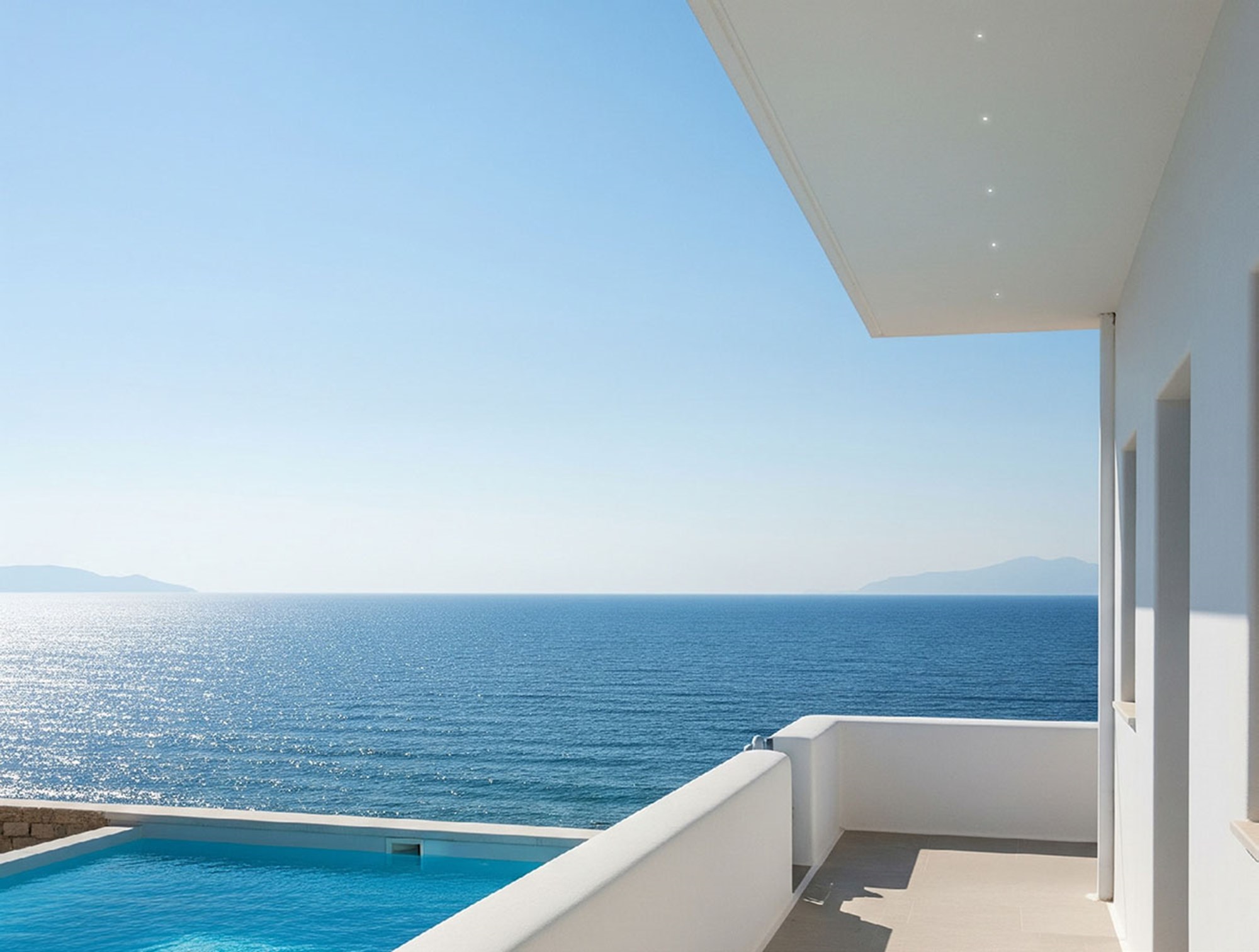

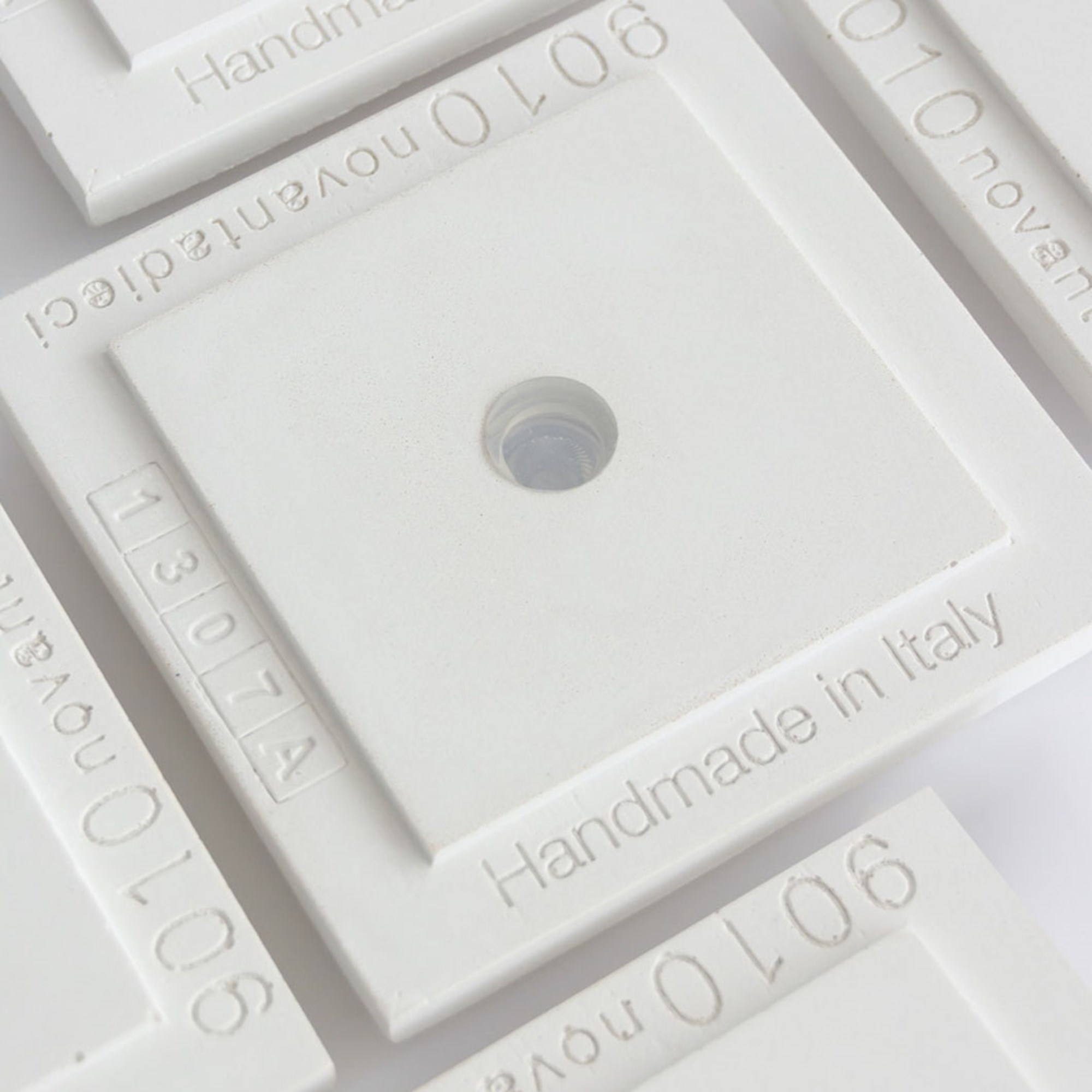

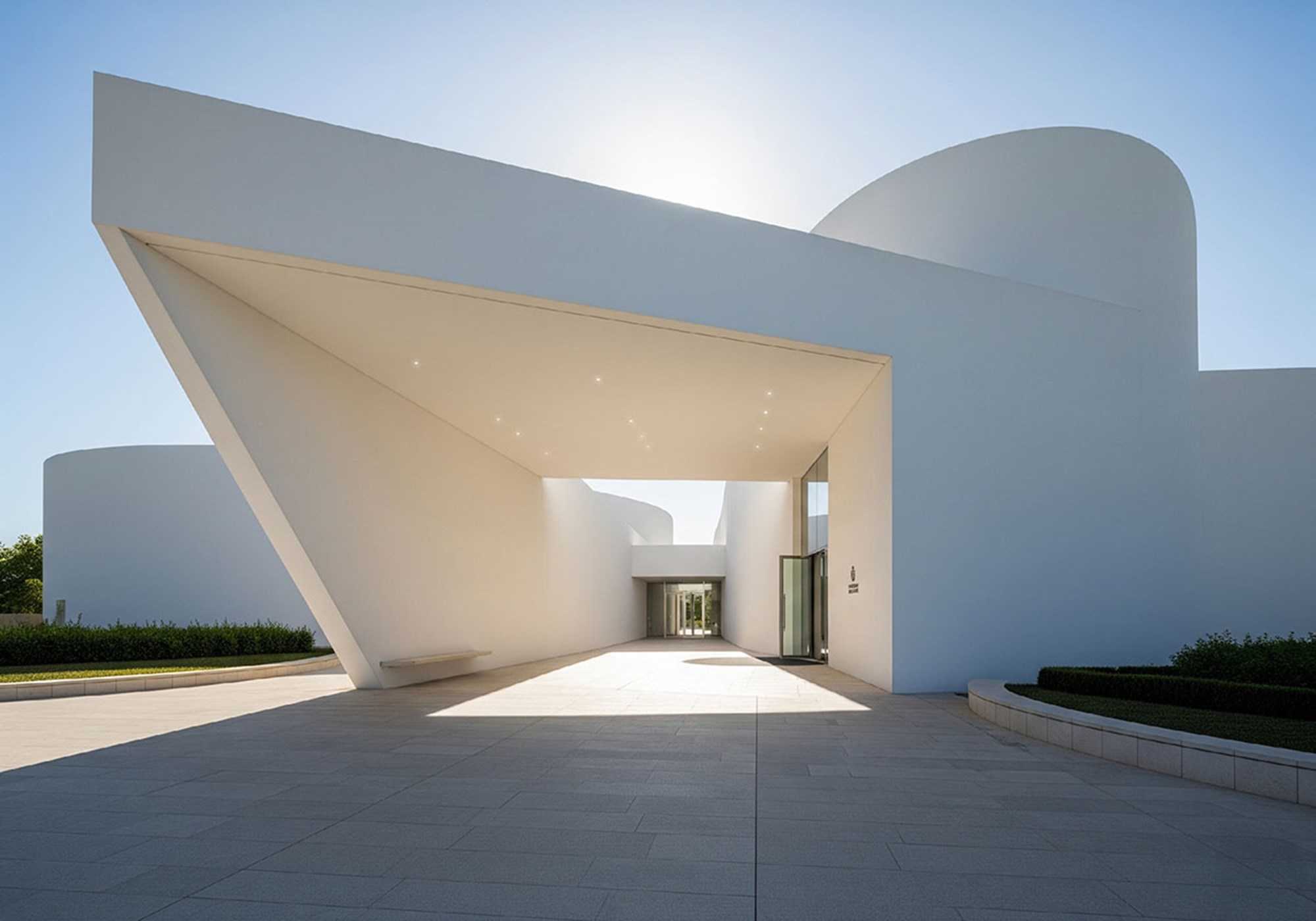

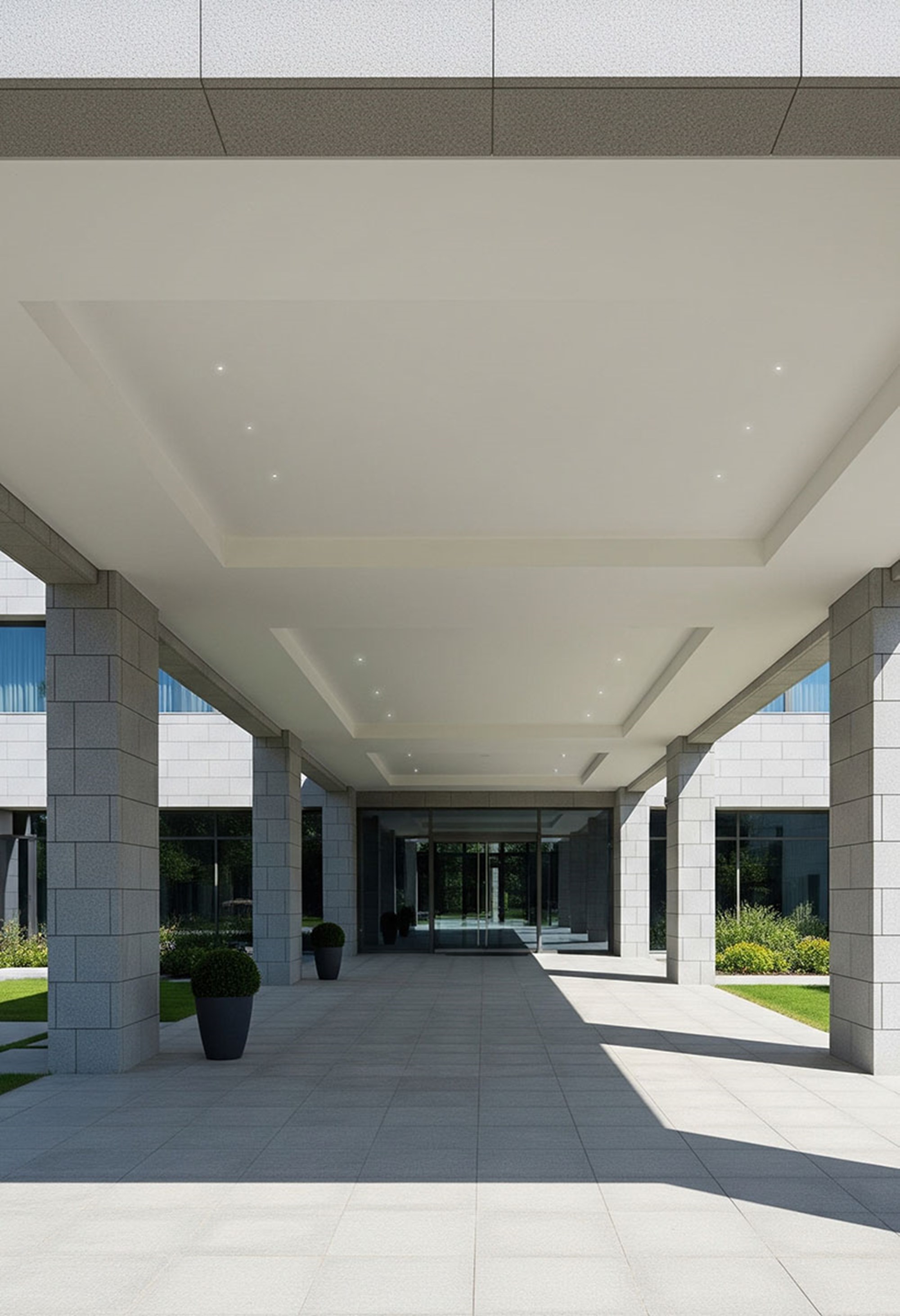

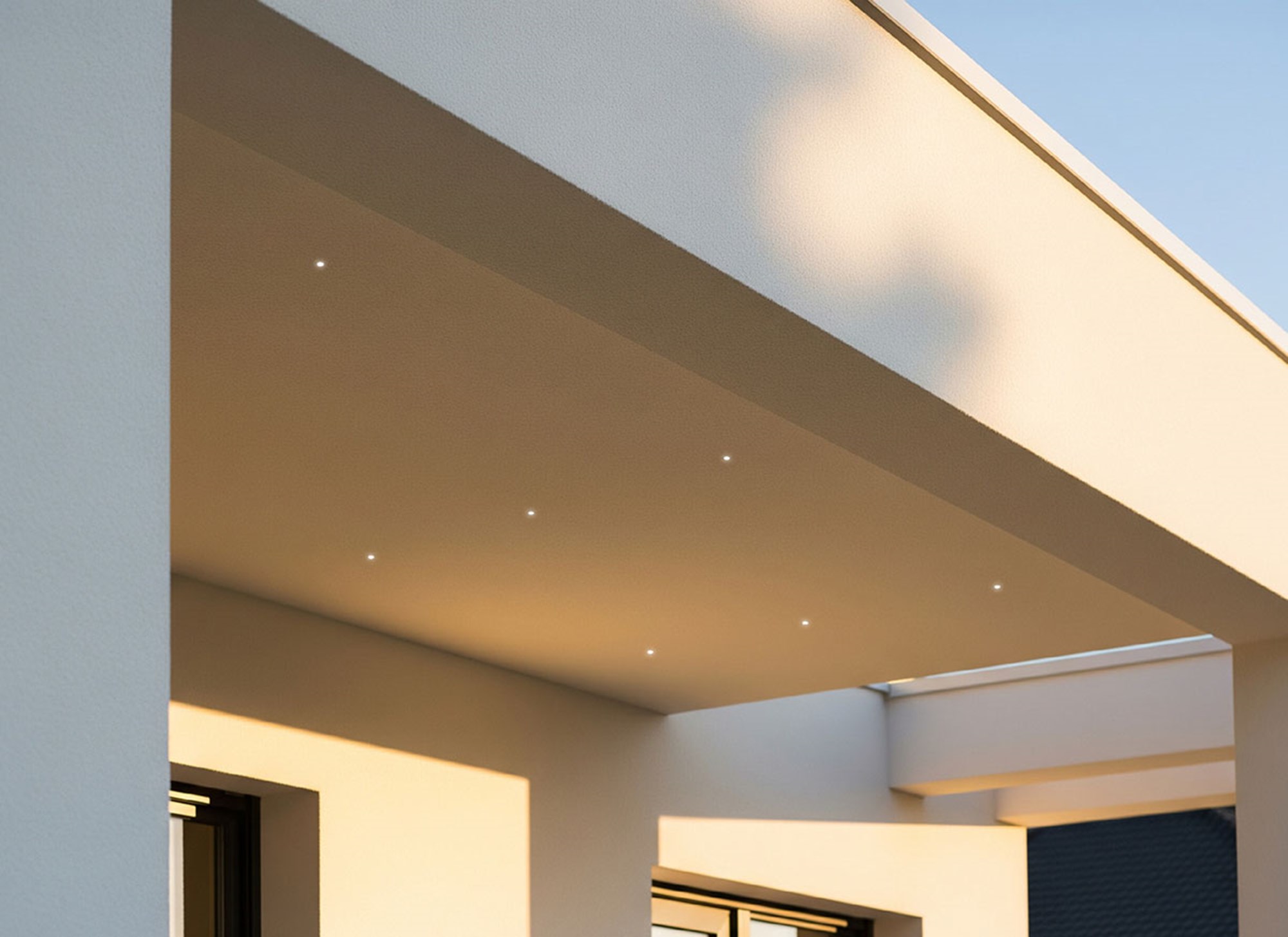

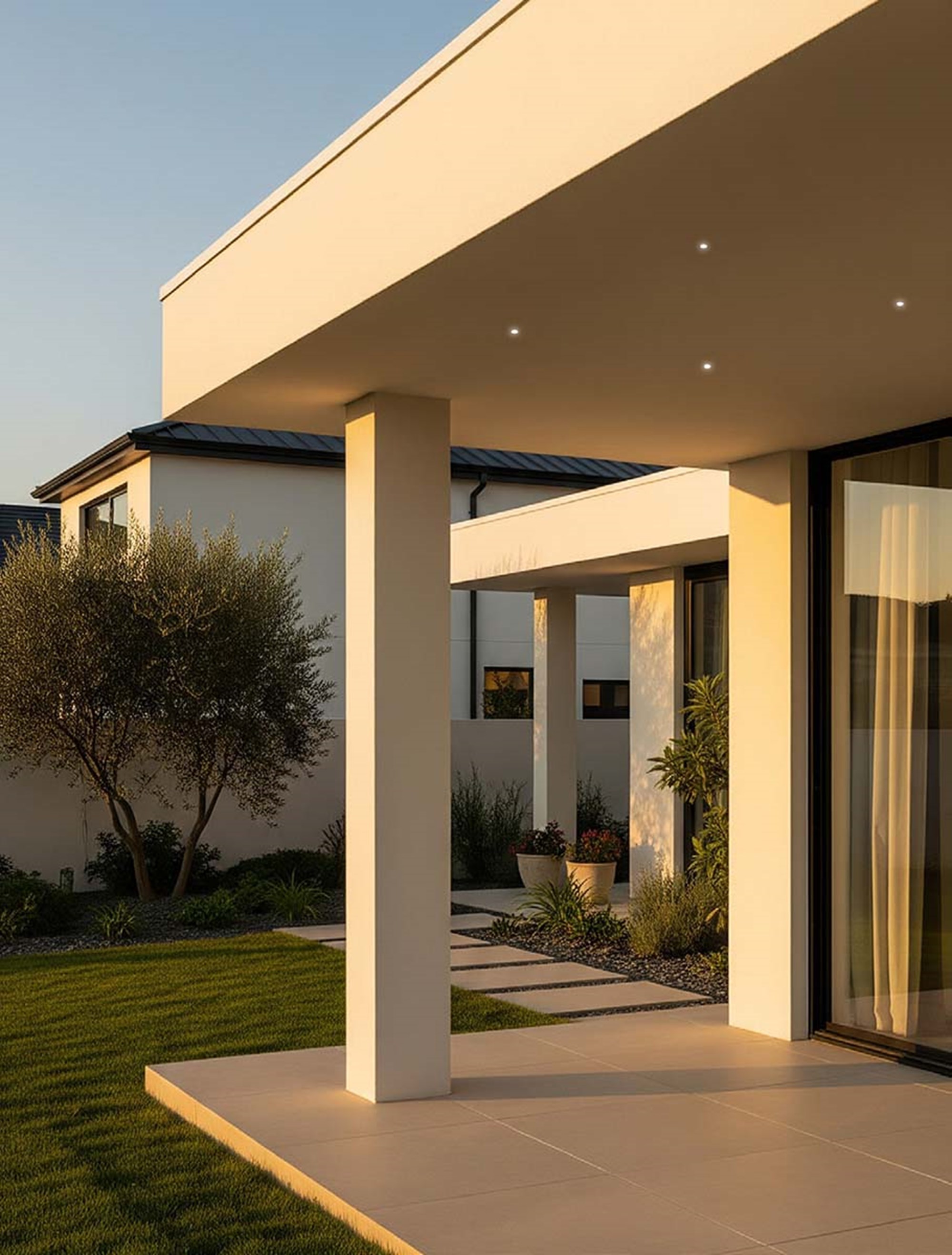

Versatile yet durable, the MiniLed Est 1307A is a recessed plaster-in ceiling light perfect for both outdoor and indoor installation. The BETALY® structure means MiniLed Est has outstanding resistance to atmospheric agents. The silicone lens gives the fitting an IP65 protection rating, which makes MiniLed Est ideal for outdoor ceilings such as terraces or porches. The durable design means the fitting can also be installed in particularly humid indoor environments, such as shower areas and saunas. With just a 16mm pin hole light aperture visible, MiniLed blends perfectly into any environment.

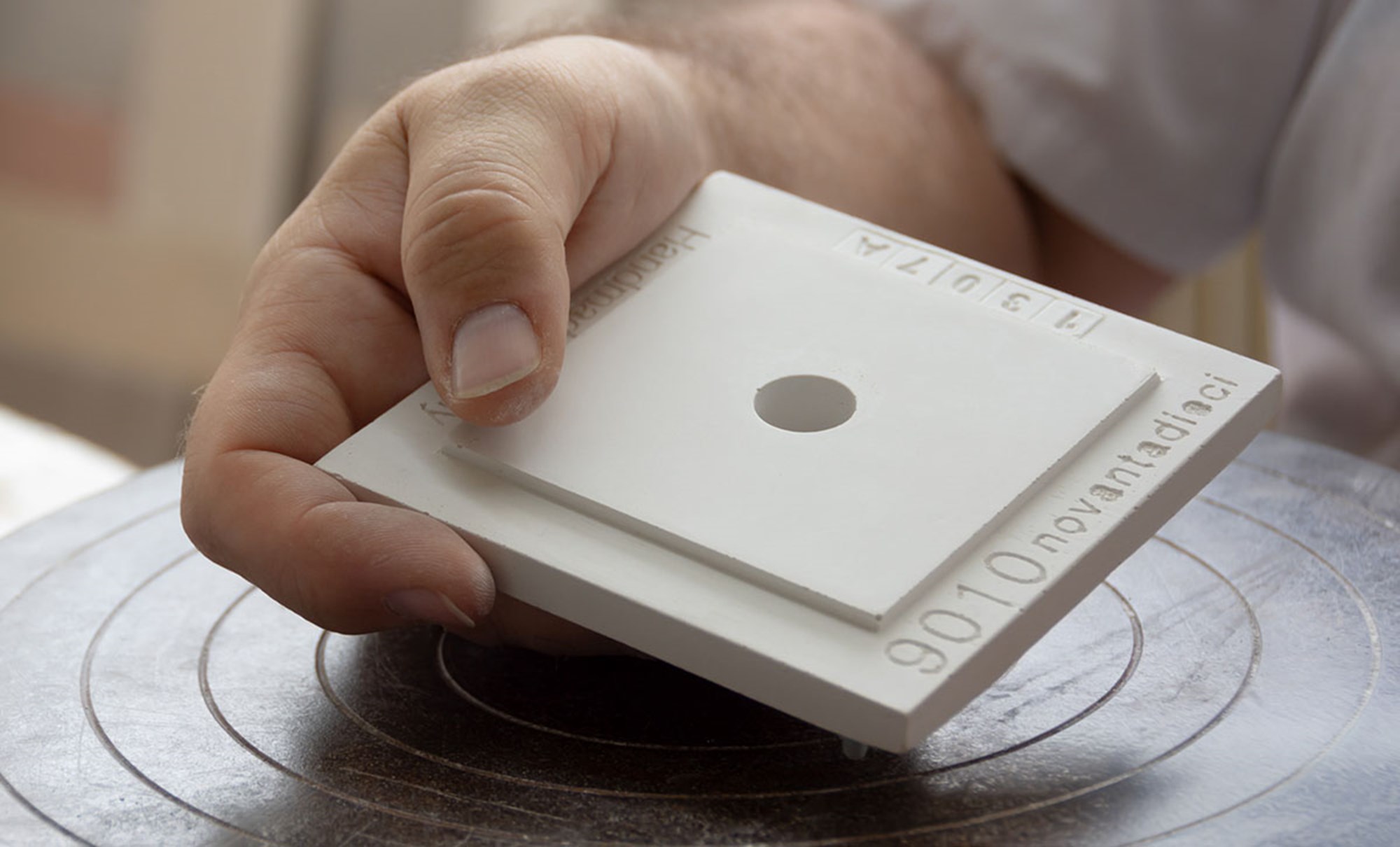

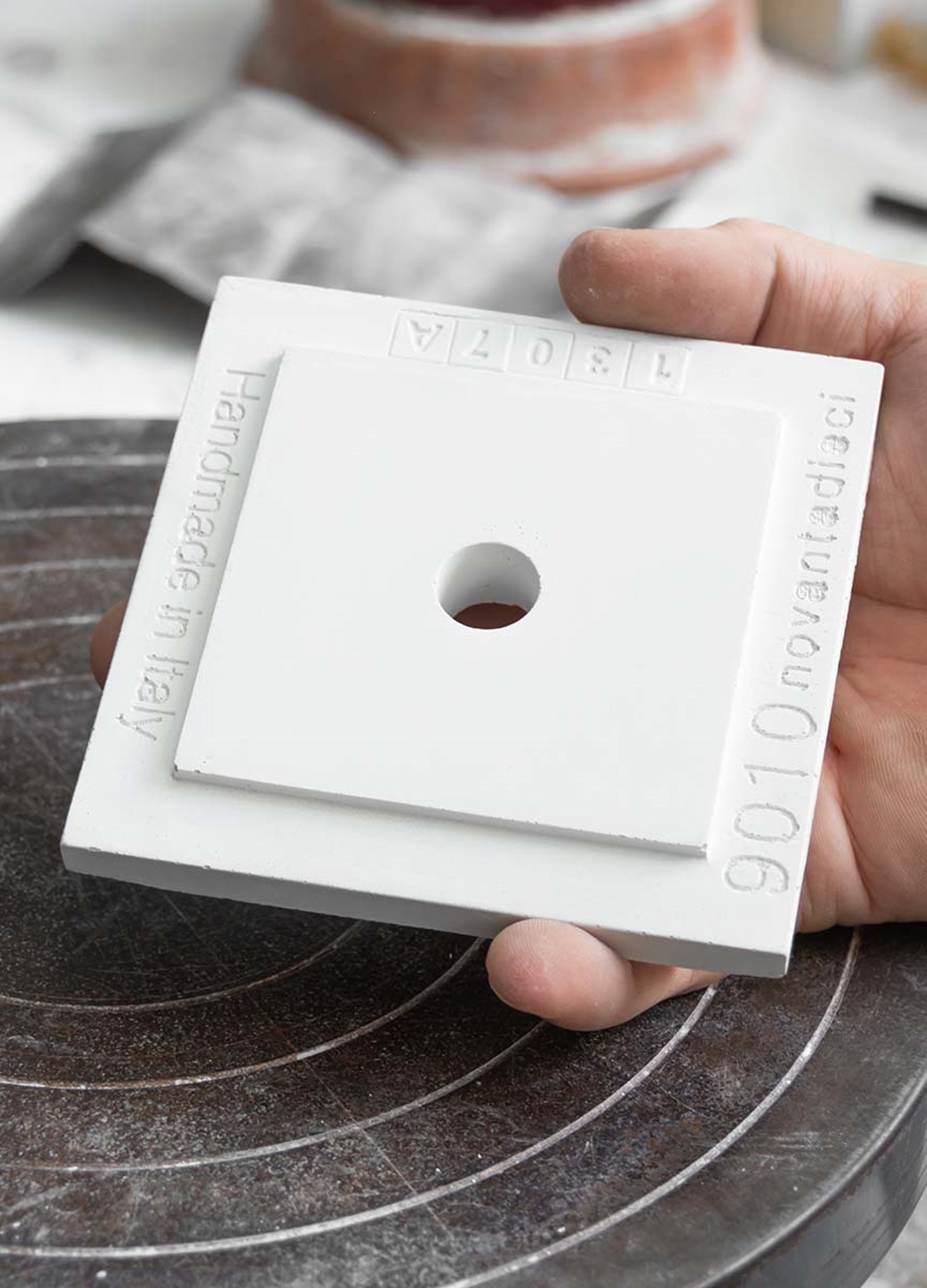

Handmade in Italy, the slim profile means MiniLED Est can be used either with a masonry counter-box or in an ultra-thin recess of only 30mm between the plasterboard panels and the ceiling. Designed specifically for projects where the distance between the plasterboard and ceiling is minimal, MiniLed Est uses high performance LEDs and aluminium plate heat diffuser to radiate a soft light. The LED source can be powered at different currents up to a maximum of 700mA or 8.5W, allowing you to choose the most appropriate light intensity, or to be dimmed with dimmable drivers. The beam angle can easily be adjusted even after installation thanks to the interchangeable lens -  available in 20°, 30°, 40° or 50°.

LED driver required - see 'You May Also Need' below for compatible drivers

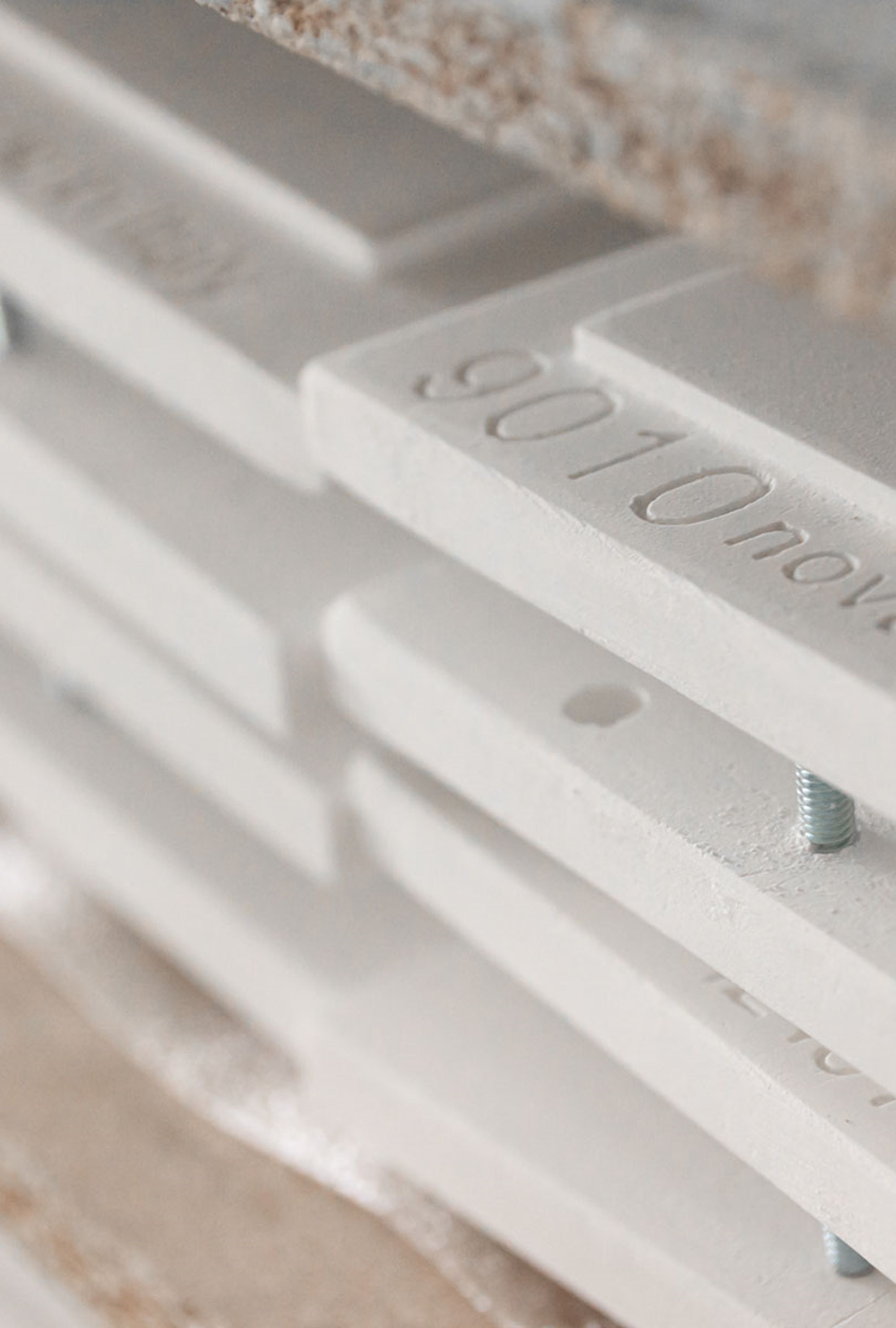

BETALY® - Artisanal raw material

Made from 9010 Novantadieci's very own material, BETALY® is a blend of:

• cements
• precious marbles
• quartz
• fluvial sands

which creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about BETALY® by 9010 Novantadieci in the Downloads tab.



Specification

Light Source Flux: Max 850lm
Real Flux: Max 580lm
Efficiency: 70%
Power: Max 8,5W
CRI: ≥90
Light Temp.: 2700K | 3000K | 4000K
Beam Angle: 20° | 30° | 40° | 50°

CRI 90
IP20 (back) IP65 (front)
Class III

LED driver required - see 'You May Also Need' below for compatible drivers

Constant Current: Max 700mA
Dimmability: AMPLITUDE, PWM (With dimmable driver)
Multiple modules require a series connection

Current	Power	Source Lumens (@3000K)	Delivered Lumens
350mA	4W	480lm	325lm
500mA	6W	660lm	440lm
700mA	8,5W	850lm	580lm

Video - how to install:

Lamp type: Integral LED | max. 700mA | max. 8.5W | max. 580lm

Dimensions

Product dimensions: W.180mm x D.28mm x H.115mm

Cutout dimensions: W.120mm x H.120mm

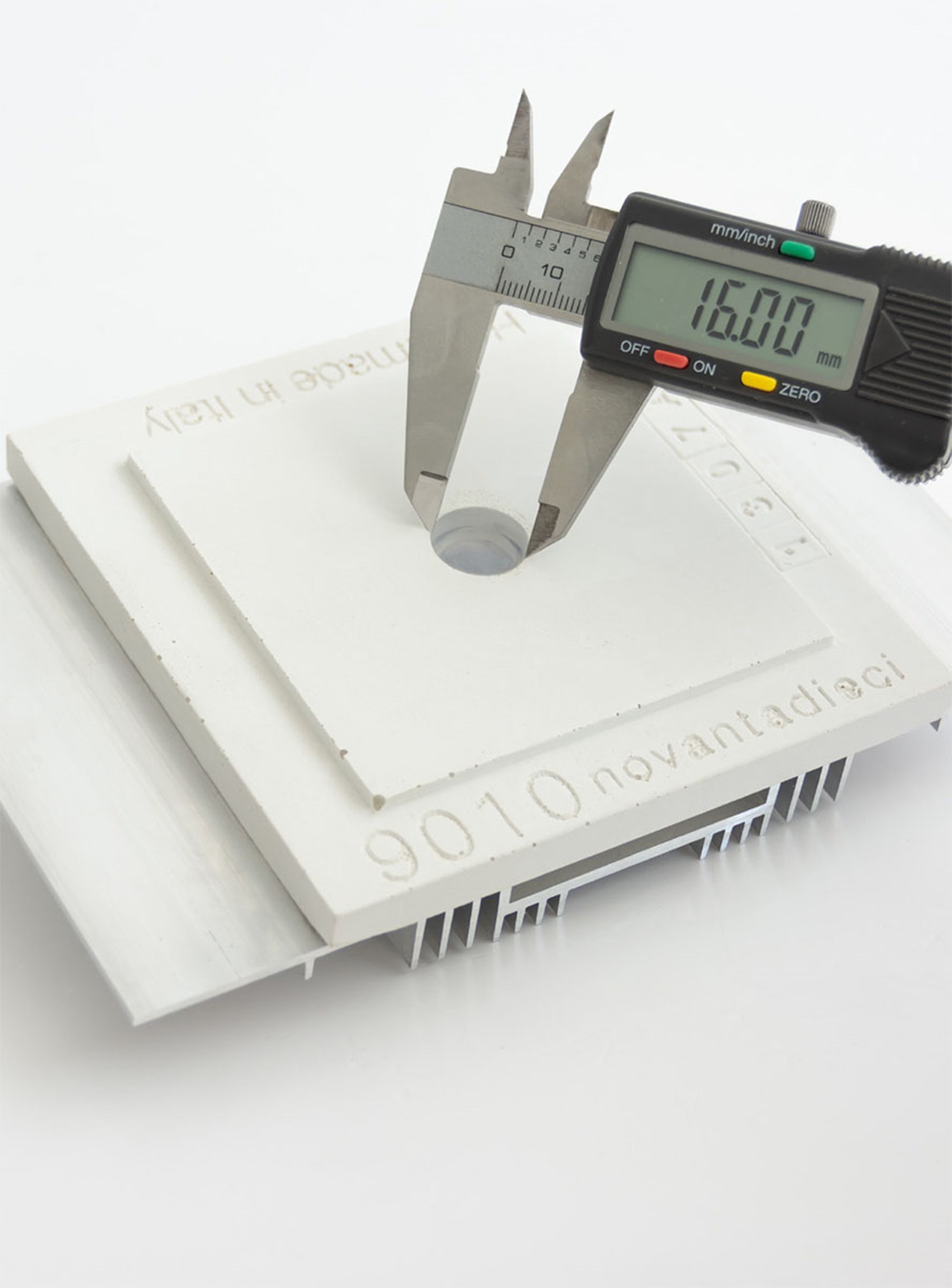

Lens dimensions: Dia.16mm

Downloads

• Data Sheet PDF
• Materials | BETALY® PDF

Delivery and warranty

 Delivery

Handmade in Italy - delivery usually within 4-5 weeks



About the manufacturer

The 9010 Novantadieci collection is a benchmark in recessed plaster-in lighting - evolving into an ever more complete range utilising innovative designs, creative lighting applications and the ultimate generation of LEDs. Vast experience as a leading Italian ceramic and lighting company has led to the creation of CRISTALY® - successfully combining mineral elements and stabilizers to create a matt surface finish with high UV and thermal resistance, and is non-allergenic, non-toxic and paintable with any water based paint. It is this fusion of tradition with technology that puts 9010 at the forefront of plaster in lighting.
