9010 MiniLed 4247R LED Plaster In Recessed Pin Hole Ceiling Light

Manufacturer: 9010 Novantadieci

View product details

Description

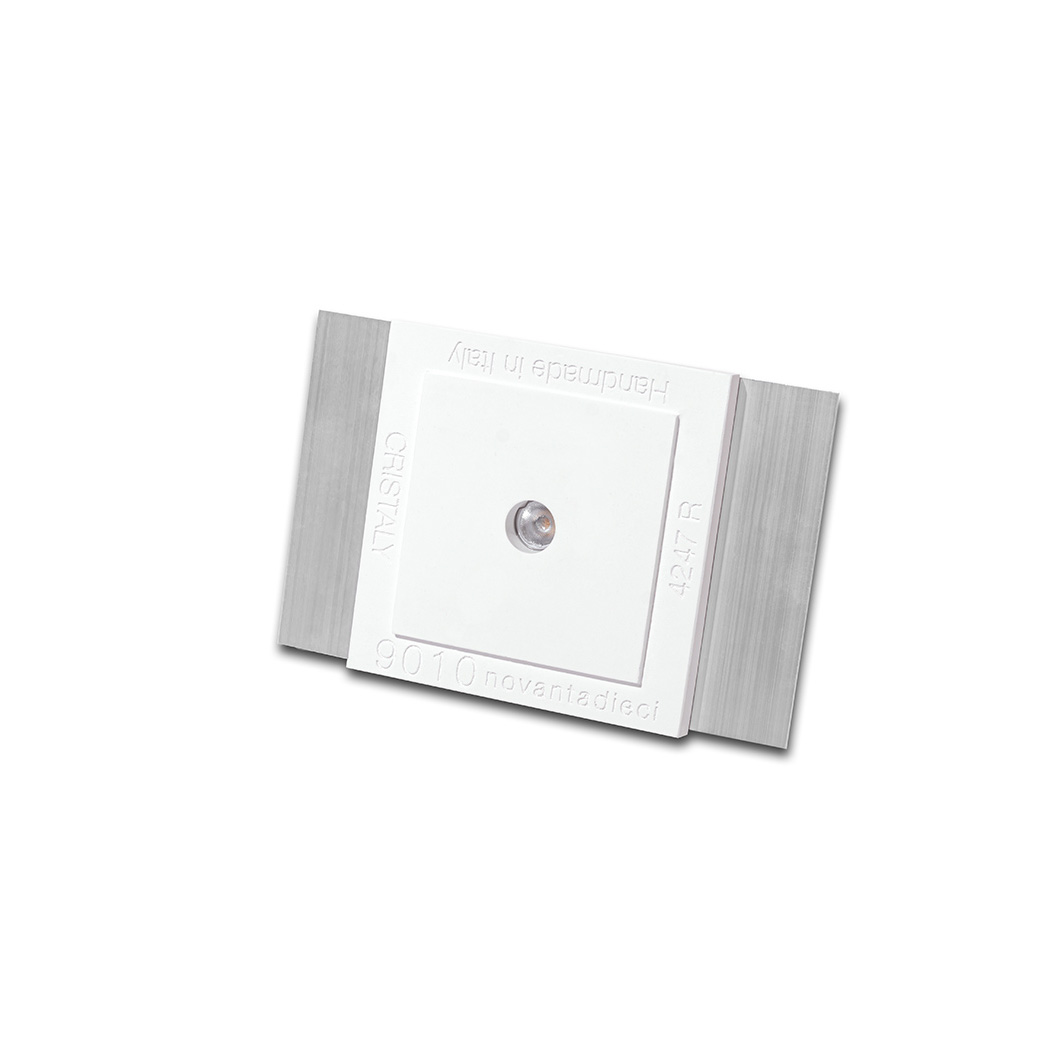

A plaster-in recessed light that blends into the ceiling, the MiniLed 4247R combines minimalist styling, a ⌀16mm pin hole aperture with exceptional lumen output from the energy saving LED. The beam angle can easily be adjusted even after installation thanks to the interchangeable lens - available in 20°, 30°, 40° or 50°. The LED source can be powered at different currents up to a maximum of 900mA or 11W, allowing you to choose the most appropriate light intensity, or to be dimmed with dimmable drivers.

Handmade in Italy, the slim profile means MiniLED can be used either with a masonry counter-box or in an ultra-thin recess of only 30mm between the plasterboard panels and the ceiling. Designed specifically for projects where the distance between the plasterboard and ceiling is minimal, MiniLed uses high performance LEDs and aluminium plate heat diffuser to radiate a soft light.

LED driver required - see 'You May Also Need' for compatible drivers

CRISTALY® - A compound that enhances light

Handmade in Italy from CRISTALY®, a new compound invented by 9010 Novantadieci that combines mineral elements and stabilizers to create a sensation of pureness and a matt surface finish. Compatible with plasterboard installations, the compound is:

Non-toxic, chemically inert and hypoallergenic
Air purification - transforms harmful bacterial substances in the air into harmless substances with a process similar to chlorophyll photosynthesis (the process works both in light and in dark)
UV resistant
Low thermal conductivity
Non-deforming
Non-flammable
Dust repellent
Perfect pure white surface
Suitable for decoration with any water-based paint

This creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about CRISTALY® by 9010 Novantadieci in the Downloads tab.

handmade in Italy (handwritten)

Specification

Light Source Flux: Max 1050lm
Real Flux: Max 850lm
Efficiency: 80%
Power: Max 11W
CRI: ≥90
Light Temp.: 2700K | 3000K | 4000K
Beam Angle: 20° | 30° | 40° | 50°

CRI 90
IP20 (back) IP44 (front)
Class III

LED driver required - see 'You May Also Need' below for compatible drivers

Constant Current: Max 700mA
Dimmability: AMPLITUDE, PWM (With dimmable driver)
Multiple modules require a series connection

Current	Power	Source Lumens (@3000K)	Delivered Lumens
350mA	4W	480lm	380lm
500mA	6W	660lm	520lm
700mA	8,5W	850lm	680lm
900mA	11W	1050lm	850lm

Video - how to install:

Lamp type: Integral LED | max. 900mA | max. 11W | max. 850lm

Dimensions

Product dimensions: W.180mm x D.28mm x H.115mm

Cutout dimensions: W.120mm x H.120mm

Lens dimensions: Dia.16mm

Downloads

Delivery and warranty

Delivery

Handmade in Italy - delivery usually within 4-5 weeks

About the manufacturer

The 9010 Novantadieci collection is a benchmark in recessed plaster-in lighting - evolving into an ever more complete range utilising innovative designs, creative lighting applications and the ultimate generation of LEDs. Vast experience as a leading Italian ceramic and lighting company has led to the creation of CRISTALY® - successfully combining mineral elements and stabilizers to create a matt surface finish with high UV and thermal resistance, and is non-allergenic, non-toxic and paintable with any water based paint. It is this fusion of tradition with technology that puts 9010 at the forefront of plaster in lighting.
