- Description
-

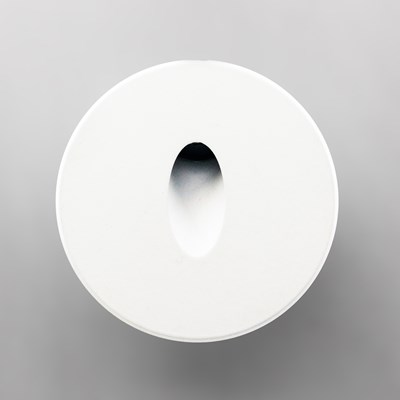

Modux V1 is a small low-voltage dimmable indoor or outdoor recessed wall light. Designed for recessing low down into walls to project an asymmetrical wash across paths and steps. It combines an ultra discreet profile without glare with an IP65 ingress protection rating.
Precision machined from aluminium and available in natural anodised satin silver, or in E-Coat matte powdercoat colours (see Downloads tab for additional colour options). Fixing available in coiled springs for plasterboard installation or leaf spring for use with optional mounting canister. The fixing springs and mounting canister are in marine grade 316 stainless steel.
The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED.
Delivery usually with 1 - 2 weeks
- Specification
-
Power: 1W @350mA
Input Current: 500mA max
Forward Voltage: ≈ 3V
Colours: 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
Beam angle: Asymetric wash
CRI (3000°K): Ra 85
Efficacy: 55 lm/W
Standards: IP65, LM79, CE
Light Engine: Replaceable dimmable module equipped with the Cree® XT-E LED
Cut out: 34.5mm circular
Supplied with 150mm H05RN cable
Driver: External remote constant current driver required
Optional driver: Sunpower 500mA 18W IP20 TRIAC Dimmable Driver (below)
Powers 3-12 lights
For further information please contact us on 01189 882294 or [email protected].
Lamp type: 1W CREE XT-E LED
- Dimensions
-
Product dimensions: W.36mm x D.31mm x H.81mm
- Downloads
-
- Delivery and warranty
-
When in stock: 3-5 day delivery
Not in stock: Delivery approximately 4-5 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Confidence Body Warranty
Copper, and stainless steel components have a 10 year warranty against defective workmanship and deterioration, while the powder coated aluminium components have a 5 year warranty. Both warranties are subject to standard conditions listed below:
Confidence Electronics Warranty
The electronic components in all LuxR Modux luminaires have a 3 year warranty against defective workmanship and failure, subject to standard conditions listed below:
Standard Conditions:
The environment in which the luminaire is to be installed must be considered carefully when selecting the finish. Solid copper and stainless steel luminaires are recommended for corrosive environments such as near salt water. Aluminium fixtures may not be covered by the full warranty in these situations.
Stainless steel requires regular cleaning in salt air environments to protect againt crevice corrosion and tea staining in particular.
Warranty excludes impact damage (except for lenses), incorrect installation and incorrect re-assembly. Luminaires must be kept properly maintained, including replacement of gaskets whenever they are serviced.
- About the manufacturer
-
Engineered in New Zealand with the highest quality materials sourced from around the world, including natural copper, 316 stainless steel and machine-grade alloys, LuxR LED has been specifically developed to deliver practical yet stylish outdoor lighting.
LuxR light fittings are ingeniously crafted to harness the advantages of LED technology, incorporating a host of unique innovations to minimise energy use, reduce maintenance requirements and simplify installation. The discrete size of the LuxR LED range ensures that the right level of light can be delivered in a way that optimises the natural ambiance of the space.
