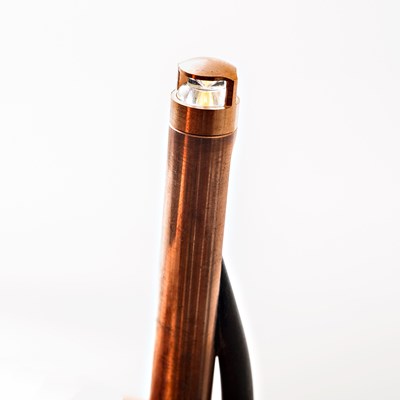

Modux Micro Diamond 180 spike spot light is a miniture low-voltage dimmable outdoor spot light with a 100mm spike for installation into garden soil. Ideal for illuminating shrubbery and small trees, or used in planters and larger pots. Simply plant and orient - the light is projected slightly upwards from horizontal and is perfect for illuminating the underside of foliage.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see downloads).
Finished in natural copper (which ages over the years to give a weathered patina - see Downloads tab) or 316 stainless steel.
Delivery usually with 1 - 2 weeks
Power: 1W max.
Input Current: 60mA - 350mA max.
Forward Voltage: ≈ 3V
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
Diamond Beam angle: 180°
CRI (3000°K): Ra 85
Standards: IP68, LM79, CE, UL1838
Light Engine: Plug-in dimmable module equipped with the Cree® XT-E LED
Supplied with 500mm H05RN exterior cable
Driver: Remote constant current driver required, 350mA or less
Optional driver: Sunpower 350mA 18W IP20 TRIAC Dimmable Driver (below)
Powers 6-18 spot lights
For further information please contact us on 01189 882294 or [email protected].
Lamp type: 1W CREE XT-E LED
Product dimensions: H.160mm x Diameter.12mm
When in stock: 3-5 day delivery
Not in stock: Delivery approximately 4-5 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Confidence Body Warranty
Copper, and stainless steel components have a 10 year warranty against defective workmanship and deterioration, while the powder coated aluminium components have a 5 year warranty. Both warranties are subject to standard conditions listed below:
Confidence Electronics Warranty
The electronic components in all LuxR Modux luminaires have a 3 year warranty against defective workmanship and failure, subject to standard conditions listed below:
The environment in which the luminaire is to be installed must be considered carefully when selecting the finish. Solid copper and stainless steel luminaires are recommended for corrosive environments such as near salt water. Aluminium fixtures may not be covered by the full warranty in these situations.
Stainless steel requires regular cleaning in salt air environments to protect againt crevice corrosion and tea staining in particular.
Warranty excludes impact damage (except for lenses), incorrect installation and incorrect re-assembly. Luminaires must be kept properly maintained, including replacement of gaskets whenever they are serviced.
Engineered in New Zealand with the highest quality materials sourced from around the world, including natural copper, 316 stainless steel and machine-grade alloys, LuxR LED has been specifically developed to deliver practical yet stylish outdoor lighting.
LuxR light fittings are ingeniously crafted to harness the advantages of LED technology, incorporating a host of unique innovations to minimise energy use, reduce maintenance requirements and simplify installation. The discrete size of the LuxR LED range ensures that the right level of light can be delivered in a way that optimises the natural ambiance of the space.
