- Description
-

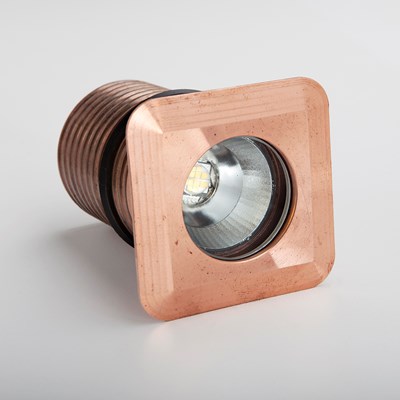

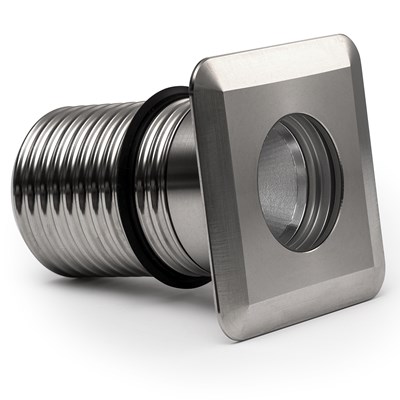

Modux 4 Squarelight recessed washer is a low-voltage dimmable outdoor feature light that produces a wash distribution 5 degrees below the flange lip in a narrow decorative band. Can be used to illuminate the wall surface adjacent to the step treads, step treads themselves, above a doorway, or as a path light wayfinder among other applications.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind. The Cree 4 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is in glass and there is an allowance around the optic to allow for pressure jet washing and flushing.

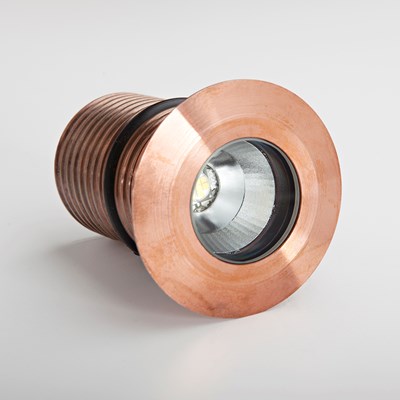

Finished in natural copper (which ages over the years to give a weathered patina - see Downloads tab), 316 stainless steel or black powdercoated passivated aluminium.
Delivery usually with 1 - 2 weeks
- Specification
-
Power: 4W
Input Current: 700mA
Forward Voltage: ≈ 6V
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
Path beam: -5°, +10°
CRI: Ra 85
Optic: Glass
Standards: IP68, LM79, CE, UL1838
Light Engine: Plug-in dimmable module equipped with the Cree® XT-E LED
Driver: Remote constant current driver required
Optional driver: Sunpower 700mA 18W IP20 TRIAC Dimmable Driver (below)
Powers 1-4 lights
For further information please contact us on 01189 882294 or [email protected].
Lamp type: 4W CREE XT-E LED
- Dimensions
-
Product dimensions: W.53mm x D.53mm x H.79mm
- Downloads
-
- Delivery and warranty
-
When in stock: 3-5 day delivery
Not in stock: Delivery approximately 4-5 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Confidence Body Warranty
Copper, and stainless steel components have a 10 year warranty against defective workmanship and deterioration, while the powder coated aluminium components have a 5 year warranty. Both warranties are subject to standard conditions listed below:
Confidence Electronics Warranty
The electronic components in all LuxR Modux luminaires have a 3 year warranty against defective workmanship and failure, subject to standard conditions listed below:
Standard Conditions:
The environment in which the luminaire is to be installed must be considered carefully when selecting the finish. Solid copper and stainless steel luminaires are recommended for corrosive environments such as near salt water. Aluminium fixtures may not be covered by the full warranty in these situations.
Stainless steel requires regular cleaning in salt air environments to protect againt crevice corrosion and tea staining in particular.
Warranty excludes impact damage (except for lenses), incorrect installation and incorrect re-assembly. Luminaires must be kept properly maintained, including replacement of gaskets whenever they are serviced.
- About the manufacturer
-
Engineered in New Zealand with the highest quality materials sourced from around the world, including natural copper, 316 stainless steel and machine-grade alloys, LuxR LED has been specifically developed to deliver practical yet stylish outdoor lighting.
LuxR light fittings are ingeniously crafted to harness the advantages of LED technology, incorporating a host of unique innovations to minimise energy use, reduce maintenance requirements and simplify installation. The discrete size of the LuxR LED range ensures that the right level of light can be delivered in a way that optimises the natural ambiance of the space.
