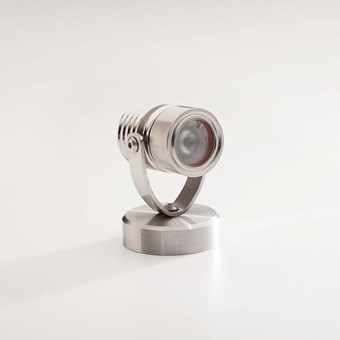

Modux 1 Round surface mounted is a very small low-voltage dimmable outdoor spot light with a stiff metal bracket for installation onto any ceiling, wall or floor surface with a <4mm diameter screw. Fully adjustable, this spot light typically produces 85 lumens.
Precision machined in marine grade 316 stainless steel, copper or powdercoated aluminium, the luminaire achieves IP68 water ingress rating for piece of mind. The Cree 1 watt max LED can be easily replaced if required or substituted for a colour LED. The optic is also simple to change if you wish to alter the beam width (see downloads).
Finished in natural copper (which ages over the years to give a weathered patina - see Downloads tab), 316 stainless steel or black powdercoated passivated aluminium.
Clear or frosted lens cover.
Delivery usually with 1 - 2 weeks
Input Current: 350mA
Forward Voltage: ≈ 3V
Colours: 2700°K, 3000°K, 4000°K, 5000°K, Red, Green, Blue, Amber
Beam angle: 15°, 30°, 53°, 50+17° (oval)
Glass lenses: Clear, Frosted
CRI (3000°K): Ra 85
Efficacy: 85 lm/W
Standards: IP68, LM79, CE, UL1838
Light Engine: Plug-in dimmable module equipped with the Cree® XT-E LED
Driver: Remote constant current driver required, 350mA or less
Optional driver: Sunpower 350mA 18W IP20 TRIAC Dimmable Driver (below)
Powers 6-18 spot lights
For further information please contact us on 01189 882294 or firstname.lastname@example.org.
Lamp type: 1W CREE XT-E LED
Product dimensions: H.42mm x Diameter.43mm
Delivery usually with 1-2 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
Confidence Body Warranty
Copper, and stainless steel components have a 10 year warranty against defective workmanship and deterioration, while the powder coated aluminium components have a 5 year warranty. Both warranties are subject to standard conditions listed below:
Confidence Electronics Warranty
The electronic components in all LuxR Modux luminaires have a 3 year warranty against defective workmanship and failure, subject to standard conditions listed below:
The environment in which the luminaire is to be installed must be considered carefully when selecting the finish. Solid copper and stainless steel luminaires are recommended for corrosive environments such as near salt water. Aluminium fixtures may not be covered by the full warranty in these situations.
Stainless steel requires regular cleaning in salt air environments to protect againt crevice corrosion and tea staining in particular.
Warranty excludes impact damage (except for lenses), incorrect installation and incorrect re-assembly. Luminaires must be kept properly maintained, including replacement of gaskets whenever they are serviced.
Engineered in New Zealand with the highest quality materials sourced from around the world, including natural copper, 316 stainless steel and machine-grade alloys, LuxR LED has been specifically developed to deliver practical yet stylish outdoor lighting.
LuxR light fittings are ingeniously crafted to harness the advantages of LED technology, incorporating a host of unique innovations to minimise energy use, reduce maintenance requirements and simplify installation. The discrete size of the LuxR LED range ensures that the right level of light can be delivered in a way that optimises the natural ambiance of the space.
