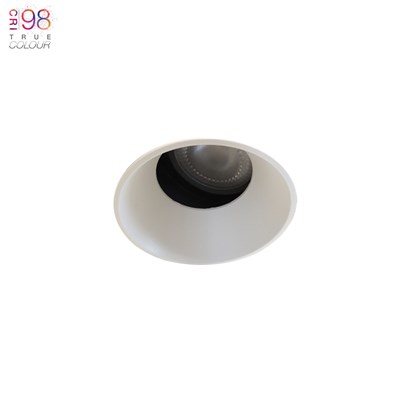

The K2 LED fixed plaster in downlight fully recesses into the ceiling, creating a neat trim-less finish. Featuring a removable light engine and available with a beam angle of 13º, or 40º. The inner structure's design is a smooth dome shape (in white or black), keeping the light source subtle yet effective. The plaster frames are shaped so that multiple downlights can be installed directly next to each other, allowing for architectural lighting compositions whilst keeping the spacing consistent. K2 is a seamless flexible fitting is suitable for using as a focused spotlight / wall washer or to flood an area with light. Utilising the up-to-date True Colour CRI98 LED COB technology, the K2 range render colours with outstanding accuracy.
Made from die-cast aluminium with steel housing, while the forged aluminium heatsink allows the fitting to stay cool with optimum heat dissipation. Bezel available in black or white. Reflector in PC plastic. K2 has an IP65 rating and is perfect for lighting bathroom zones 1, 2 and 3 and in outdoor lighting projects. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdown options.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Currently in stock:
White finish | 13 degree beam angle | 2700K & 3000K
Orders placed before midday are delivered next working day
Versions not in stock: delivery usually with 1-2 weeks
Lumen: 1045lm (3000ºK)
Beam angle: 13º, 40º
Colour temperature: 2700ºK, 3000ºK or 4000ºK
Cutout: Ø 76mm
- Mains dimmable driver: Osram TRIAC OSR/OTE13/220−240/350PC
- 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
- DALI dimmable driver: Osram OTi DALI 15/220…240/1A0 LT2 NFC
- See datasheets in Downloads tab for further details
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
LED fitting removable from the plaster-in housing post installation
Driver fits through the cut-out hole diameter
Driver can be housed remotely from the fitting (check maximum distance with us)
Product dimensions: H.97mm x Diameter.70mm
Delivery varies for each product, please see product description
Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Darklight Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
