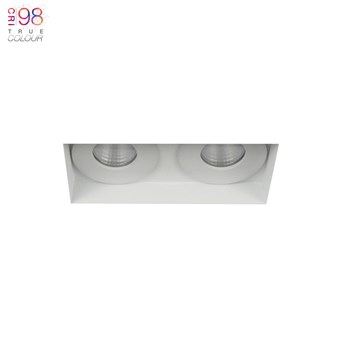

Utilising the latest True Colour CRI98 LED COB to render colour as authentically as possible, the twin downlight version of our plaster-in trimless Eiger Mini is perfect for achieving a high quality lighting output with a totally integrated architectural finish. Once the twin frame is installed into the ceiling and plastered in for a seamless finish, the LED downlights can be simply popped in and removed at will, keeping maintenance easy post installation.
Boasting a 24º adjustable tilt and coupled with an IP54 rating which allows the luminaire to be installed in bathroom zone 2, the Eiger Mini twin is a truly versatile trimless twin downlight. Alongside the CRI98 colour rendering with outstanding accuracy Eiger Mini produces around 400 lumens per downlight, and combined with its subtle size is an ideal light fitting for residential lighting schemes. Pick from a narrow 15º beam angle for 2 focused spots of light, or a wider 36º beam angle for more general lighting. Die-cast aluminium luminaire with steel housing. The heat sink is made from forged aluminium for optimum heat dissipation. In white or black.
Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see dropdowns above. Eiger Mini is available in single or twin versions, and with or without trim.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Delivery usually within 1-2 weeks
IP54 - suitable for bathroom zone 2
Wattage: 2x 7.7W
Current: 2x 180mA
Beam angle: 15º | 24º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
Beam Angle | Colour Temperature | LM/W | Delivered Lumens:
15d | 2700ºK | 50lm | 400lm
36d | 2700ºK | 51lm | 408lm
15d | 3000ºK | 52lm | 416lm
36d | 3000ºK | 54lm | 432lm
15d | 4000ºK |
36d | 4000ºK |
Plaster-in frame: 183mm x 110mm
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
Product dimensions: W.136mm x D.63mm x H.87mm
Cutout dimensions: W.140mm x H.68mm
