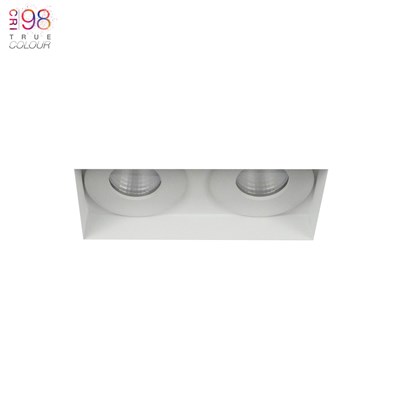

The slimline sibling to our flagship Eiger downlight range, the Eiger Mini is smaller by around 1/5 yet still offers a light output just over 400 lumens. Featuring a square plaster-in frame for a geometric finish, the fixed version of the Eiger Mini 1-S square trimless downlight is perfect for a more discreet fitting. Eiger Mini features our very own cutting edge True Colour CRI98 LED chip which display colours in crystal clear perfection. Combined with an IP65 rating (bathroom friendly up to zone 1), the Eiger Mini is a versatile flush luminaire that can be used in most applications.
Installation is fuss free - simply fit the frame into the ceiling and fully plaster in and decorate prior to wiring up the LED light engine. If maintenance access is needed post install, it's easy to remove the LED fitting from the plaster-in housing. 15º or a medium 36º beam angles are available. Die-cast aluminium luminaire with steel housing. The heat sink is made from forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white or black.
Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Fully dimmable, supporting 0-10V, TRIAC or DALI drivers - see dropdowns above. Eiger Mini is available in single or twin versions, and with or without trim.
4000K colour temperature on demand - please contact for details.
Wireless dimming from your smartphone
This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch. See the 'You May Also Need...' section below for the available options and technical information.
Emergency lighting compatible
Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.
Delivery usually within 1-2 weeks
IP65 - suitable for bathroom zone 1
Beam angle: 15º | 24º | 36º
True Colour CRI 98
Beam Angle | Colour Temperature | LM/W | Delivered Lumens:
15d | 2700ºK | 50lm | 400lm
36d | 2700ºK | 51lm | 408lm
15d | 3000ºK | 52lm | 416lm
36d | 3000ºK | 54lm | 432lm
15d | 4000ºK |
36d | 4000ºK |
Plaster-in frame: 110mm x 110mm
60+ minute FR rating
Independently tested by Cambridge Fire Service
Emergency pack (optional)
1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations
Maintenance & Access
Product dimensions: W.63mm x D.63mm x H.87mm
Cutout dimensions: W.66mm x H.66mm
Delivery varies for each product, please see product description
