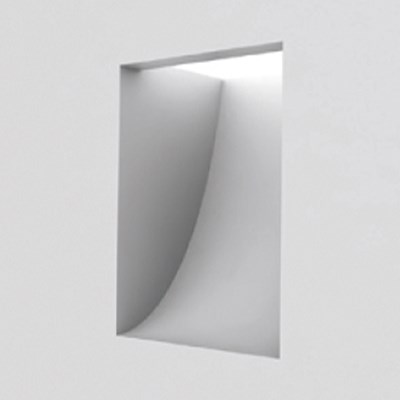

The Mini & Nano range is the baby brother of the original Normall range of wall fixtures that was created over 17 years ago. Pure and simple lines are combined with state of the art, energy efficient LED units to create a timeless and minimalist design. The Mini & Nano repeat the design language of the Normall range, but now as an orientation light. Use Mini & Nano as an uplight or downlight : the curved back is optimized to create a great indirect orientation lighting experience. Use them in a linear pattern, or use them by the pair, to create a different approach. Mini & Nano will blend perfectly with your interior. Choose for Mini with a rectangular or square shape. Or go for the miniminal dimensions of the Nano. As all CALCYT® plaster fittings, the Mini & Nano range is fully paintable. And because CALCYT® plaster fittings share the same thermal expansion characteristics as regular plaster or plasterboard, the installations will remain free of plaster cracks.
Delivery approximately 2-3 weeks
3x Available on next day delivery, with plaster kit
Internal dims: 70mm x 70mm
Mini Square LED Dim 100lm: 1W - current controlled 350 mA - IP40 - excluding LED driver
Mini Square LED Dim 400lm: 4W - current controlled 350 mA - IP40 - excluding LED driver
Remote LED Driver On/Off: 8W, 15W or 25W - 230V/50Hz - current controlled
Remote LED Driver Dim: 6W 1-10V, 15W 1-10V, 15W DALI, 25W 1-10V DALI PUSH, 40W 1-10V DALI PUSH, 9W PHASE DIM (tr. edge) or 17W PHASE DIM - 230V/50Hz - current controlled
Ready for installation in solid walls
Optional plasterkit for installation into gypsum walls
Lamp type: LED 1W / 4W
Product dimensions: W.94mm x D.80mm x H.182mm
Delivery usually within 4-5 weeks
August factory shutdown
Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.
THE 'BRICK IN THE WALL' CONCEPT IS CHARACTERIZED BY A SEAMLESS INTEGRATION OF LIGHT.
This results in a minimalistic plaster-in design that is only driven by its function, with light and architecture as a true amalgam. Brick in the Wall developed its own plaster, Calcyt, to obtain heat resistance with a high density and hardness. The plaster fittings can be painted in the same colour as the wall or ceiling - perfectly integrating into almost every interior.
A selective range of shapes, combined with a variety of light sources and the flexibility of creative custom-made solutions, will satisfy every architect's needs. For technical help with Brick In The Wall, please call 01189 882294
Got a question? Email us or call 01189 882294
