Brick In The Wall Mini LED Plaster In Recessed Light

Description

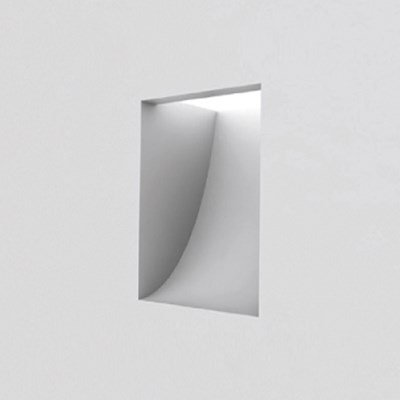

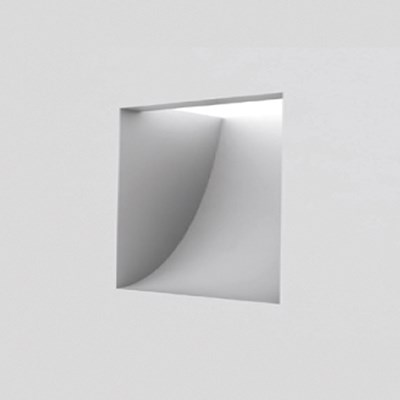

The Mini & Nano range is the baby brother of the original Normall range of wall fixtures that was created over 17 years ago. Pure and simple lines are combined with state of the art, energy efficient LED units to create a timeless and minimalist design. The Mini & Nano repeat the design language of the Normall range, but now as an orientation light. Use Mini & Nano as an uplight or downlight : the curved back is optimized to create a great indirect orientation lighting experience. Use them in a linear pattern, or use them by the pair, to create a different approach. Mini & Nano will blend perfectly with your interior. Choose for Mini with a rectangular or square shape. Or go for the miniminal dimensions of the Nano. As all CALCYT® plaster fittings, the Mini & Nano range is fully paintable. And because CALCYT® plaster fittings share the same thermal expansion characteristics as regular plaster or plasterboard, the installations will remain free of plaster cracks.

Delivery approximately 2-3 weeks

Specification

Mini LED Dim 100lm: 1W - current controlled 350 mA - IP40 - excluding LED driver

Mini LED Dim 400lm: 4W - current controlled 350 mA - IP40 - excluding LED driver

Remote LED Driver On/Off: 8W, 15W or 25W - 230V/50Hz - current controlled

Remote LED Driver Dim: 6W 1-10V, 15W 1-10V, 15W DALI, 25W 1-10V DALI PUSH, 40W 1-10V DALI PUSH, 9W PHASE DIM (tr. edge) or 17W PHASE DIM - 230V/50Hz - current controlled

Ready for installation in solid walls

Optional plasterkit for installation into gypsum walls

Lamp type: LED 1W 100lm or 4W 400lm

Dimensions

Product dimensions: W.94mm x D.80mm x H.220mm

Downloads

• Brick In The Wall Mini LED Data Sheet

Delivery and warranty

Delivery usually within 4-5 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

THE 'BRICK IN THE WALL' CONCEPT IS CHARACTERIZED BY A SEAMLESS INTEGRATION OF LIGHT.

This results in a minimalistic plaster-in design that is only driven by its function, with light and architecture as a true amalgam. Brick in the Wall developed its own plaster, Calcyt, to obtain heat resistance with a high density and hardness. The plaster fittings can be painted in the same colour as the wall or ceiling - perfectly integrating into almost every interior.

A selective range of shapes, combined with a variety of light sources and the flexibility of creative custom-made solutions, will satisfy every architect's needs. For technical help with Brick In The Wall, please call 01189 882294
