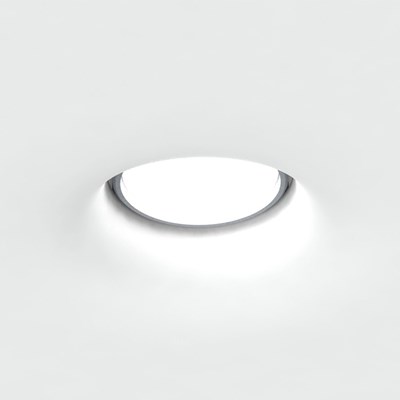

Brick In The Wall Level 111 LED Plaster In Recessed Downlight

Description

The Level combines the minimalistic and soft edge design approaches from Brick In The Wall. The seamless light fixture seems to float across the ceiling, only to disappears gently into the architecture. The minimalistic design continues into the lamp unit, which is fully adjustable with a single, almost invisible metal ring. The recessed lamp source offers glare free visual comfort, and is ideally suited for energy efficient LED retrofit lamps. The fully paintable Level range is without any doubt a great addition to your interior design, and demonstrates our approach to the art of the ‘invisible integration of light’. Finally, it is worth mentioning that all CALCYT® plaster fittings share the same thermal expansion characteristics as regular plaster or plasterboard. This ensures installations of the Level series will remain free of plaster cracks for the long haul.

Delivery approximately 2-3 weeks

Specification

Level 111 LED 1300lm CRI 97: Xicato LED - 17,6 W - 1300lm @ 70°C - 230V/50Hz - IP20 - inclusive LED driver

Level 111 LED 1300lm CRI 80: Xicato LED - 11,7 W - 1300lm @ 70°C - 230V/50Hz - IP20 - inclusive LED driver

Level 111 LED 2000lm CRI 80: Xicato LED - 19,5 W - 2000lm @ 70°C - 230V/50Hz - IP20 - inclusive LED driver

Included: installation system for gypsum ceiling 9 - 12 - 15mm

Optional: installation system for gypsum ceiling 25mm, 30mm or concrete box in galvanised steel

Lamp type: LED 11.7W / 17.6W / 19.5W

Dimensions

Product dimensions: W.320mm x D.320mm x H.175mm x Diameter.280mm

Downloads

• Brick In The Wall Level 111 LED Data Sheet

Delivery and warranty

Delivery usually within 4-5 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

THE 'BRICK IN THE WALL' CONCEPT IS CHARACTERIZED BY A SEAMLESS INTEGRATION OF LIGHT.

This results in a minimalistic plaster-in design that is only driven by its function, with light and architecture as a true amalgam. Brick in the Wall developed its own plaster, Calcyt, to obtain heat resistance with a high density and hardness. The plaster fittings can be painted in the same colour as the wall or ceiling - perfectly integrating into almost every interior.

A selective range of shapes, combined with a variety of light sources and the flexibility of creative custom-made solutions, will satisfy every architect's needs. For technical help with Brick In The Wall, please call 01189 882294
