Brick In The Wall 200cent Square Fix Trim Plaster In Recessed Downlight

Description

200cent Fix Trim appears as a compact circle of powerful downlight illumination that is excellently hidden from view, ensuring the light fixture doesn't obscure or overpower the overall interior design. The 200cent family are a best-selling collection of compact minimalist fixtures perfect for modern style interiors. Plaster in downlights allow for smooth integration between the light source and ceiling, perfect for those not wanting light fixtures to obscure or overpower the overall interior design. The 200cent Fix range provides high-quality LED downlighting, covering the space below in a clean, diffused and powerful glow.

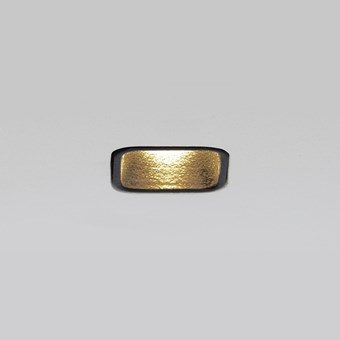

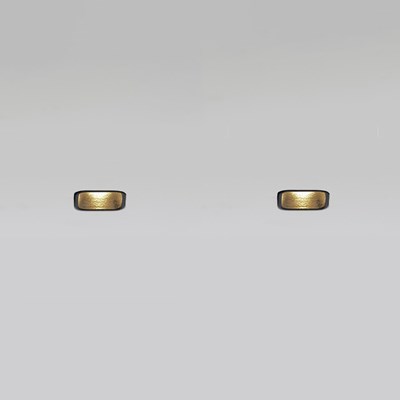

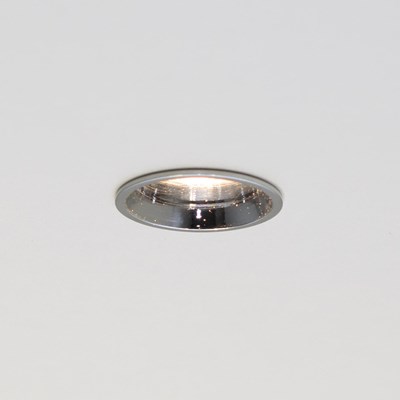

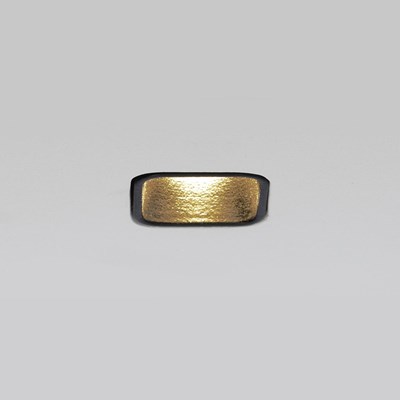

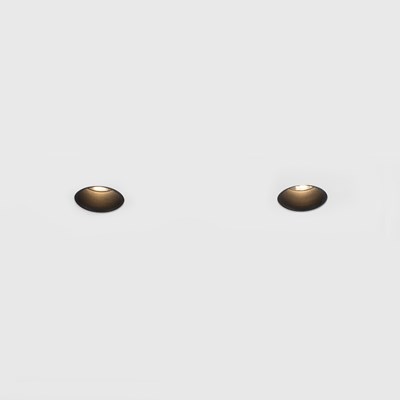

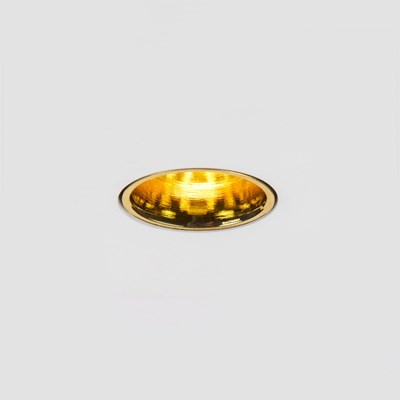

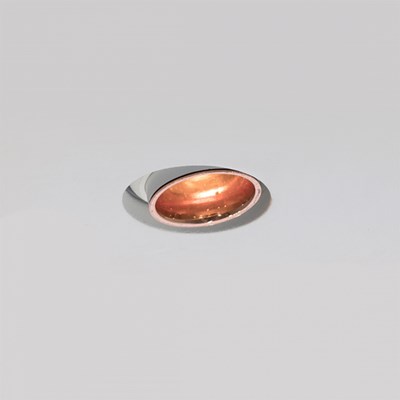

Choose from a variety of versions and options, allowing for complete personalisation. Select from two classic finishes: white or black. 200cent also offers a choice of three luminous flux, three colour temperatures, and additional optional installation kits and drivers. LED included. Drivers and installation kits are not included by default but are required. Singular and twin trimless versions also available, see below in More Like This for more information. Round variants of the 200cent family are also available below.

Specification

IP54

Finish: black or white

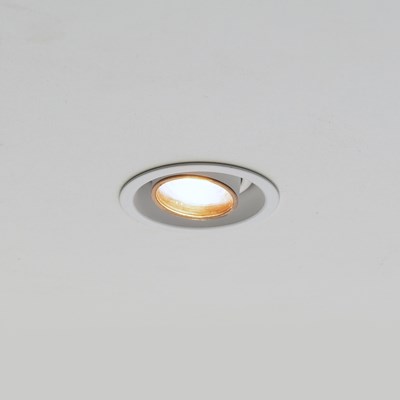

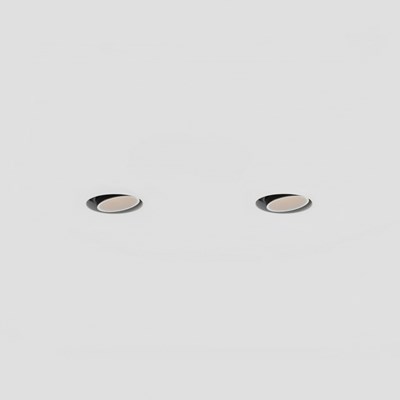

Fixed (non-adjustable). For an adjustable version, see below in More Like This.

Material: CALCYT® plaster, aluminium

Versions: 250lm, 500lm, or 750lm

250lm version:
3W

Beam angle: 12º.

500lm version:
5.9W

Beam angle: 24º.

750lm version:
6.2W

Beam angle: 36º.

Colour temperatures: 2700K, 3000K, or 4000K. (2200K also available on request, please contact us for more information).

Installation kits:

Standard holesaw Ø32mm (not included as standard; required)

Drivers: (IP20)

Remote LED driver on/off switching (non-dimmable): 350mA/700mA/1050mA / min. 2W max. 39W

Remote LED driver on/off switching (non-dimmable): 350mA/700mA/1050mA / min. 2W max. 50W

Remote LED driver dimmable 350mA/1050mA / min. 3W max. 60W / 1-10V/DALI/Push


Lamp type: LED 3W-6.2W / 250lm-1000lm / 2 step MacAdam (included)

Dimensions

Product dimensions: W.27mm x D.27mm x H.95mm

Downloads

• Brick-In-The-Wall-200Cent-Square-Fix-Trim-250LM-Datasheet
• Brick-In-The-Wall-200Cent-Square-Fix-Trim-500LM-Datasheet
• Brick-In-The-Wall-200Cent-Square-Fix-Trim-750LM-Datasheet

Delivery and warranty

Delivery usually within 2-3 weeks

About the manufacturer

THE 'BRICK IN THE WALL' CONCEPT IS CHARACTERIZED BY A SEAMLESS INTEGRATION OF LIGHT.

This results in a minimalistic plaster-in design that is only driven by its function, with light and architecture as a true amalgam. Brick in the Wall developed its own plaster, Calcyt, to obtain heat resistance with a high density and hardness. The plaster fittings can be painted in the same colour as the wall or ceiling - perfectly integrating into almost every interior.

A selective range of shapes, combined with a variety of light sources and the flexibility of creative custom-made solutions, will satisfy every architect's needs. For technical help with Brick In The Wall, please call 01189 882294
