Prado Pradovent Trimless Recessed Ventilation Valve

Manufacturer: Prado

View product details

Description

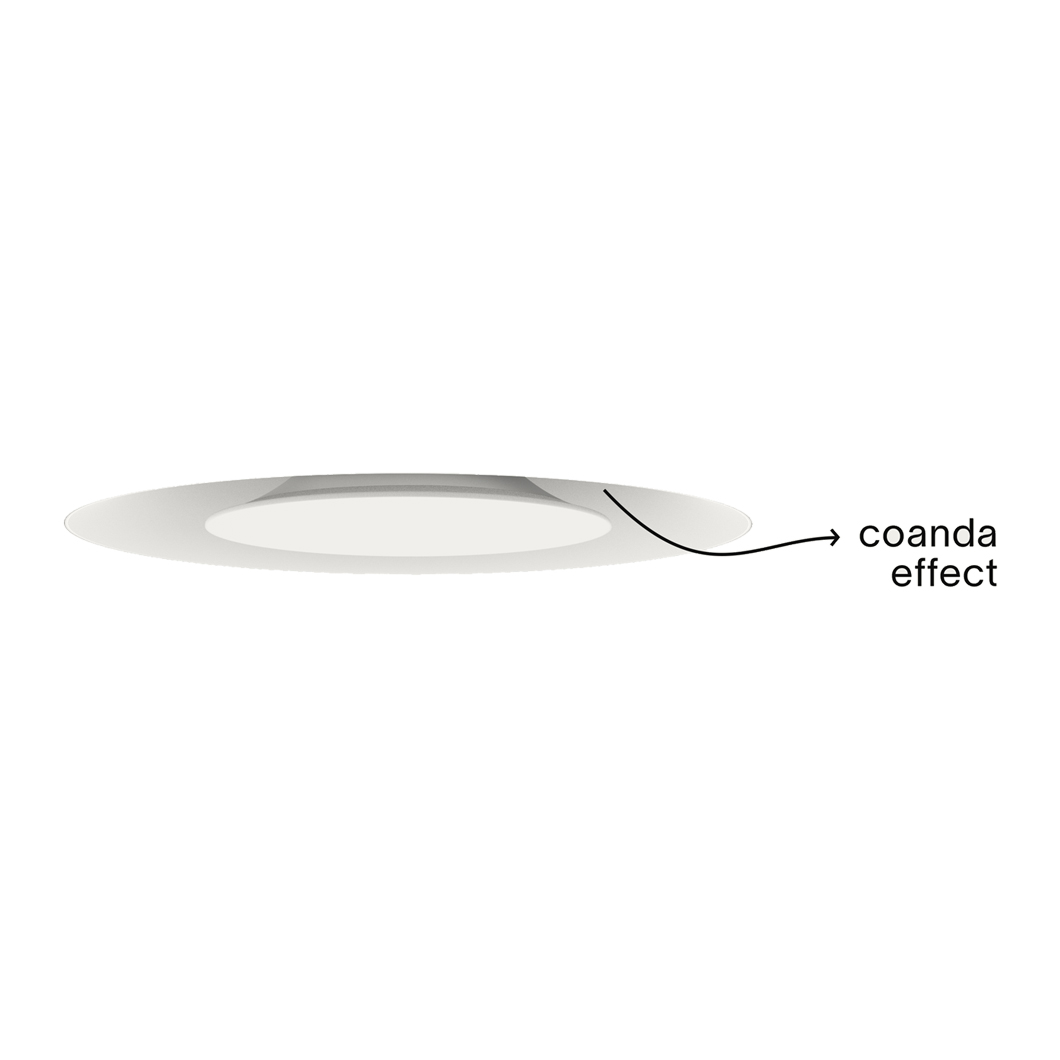

Meet pradovent. Trimless, flush, fully adjustable and with an integrated lock. Made for air supply. And air extraction. Up to 50m³/h. The first recessed ventilation valve with Coanda effect. Fits into every Ø125 ventilation duct. Show what you want, hide what you need.

Award winning design makes ventilation disappear

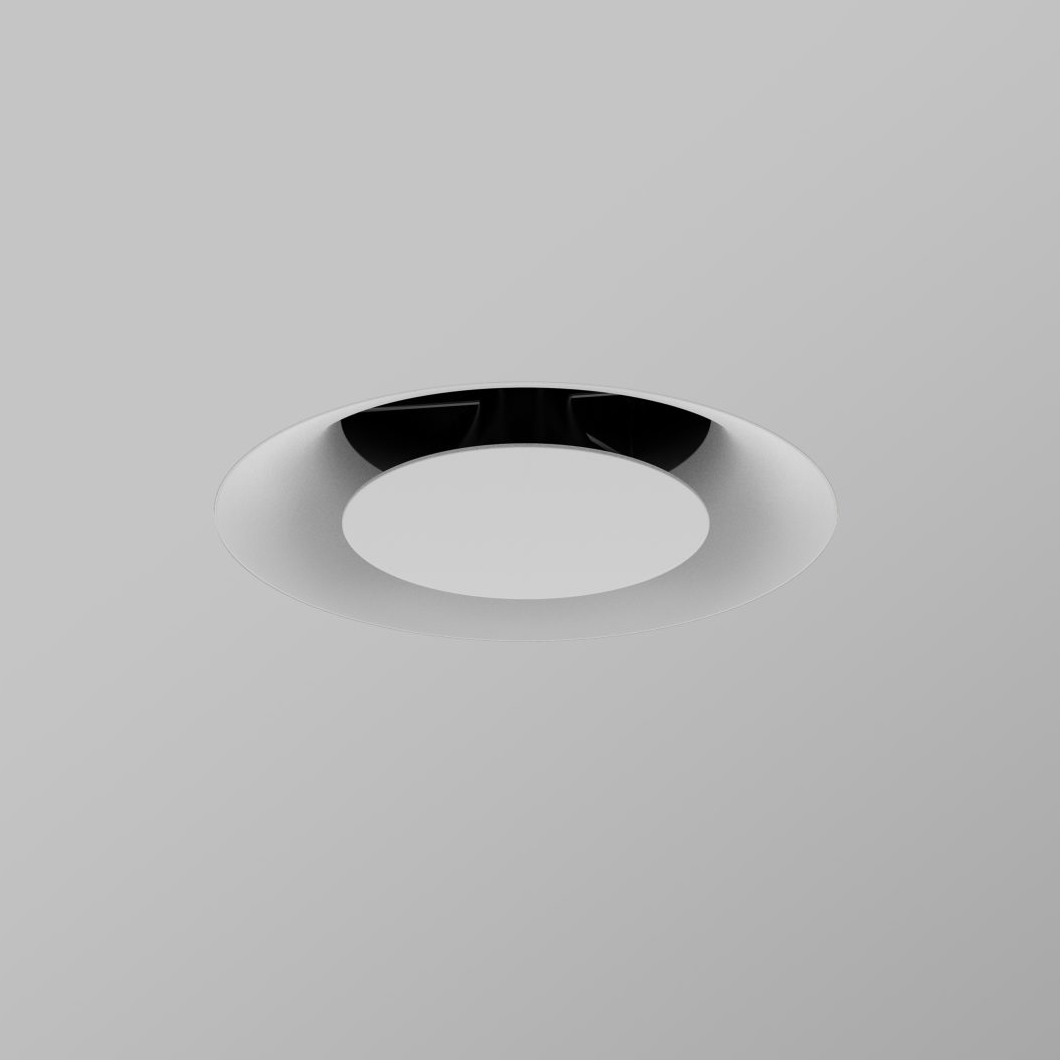

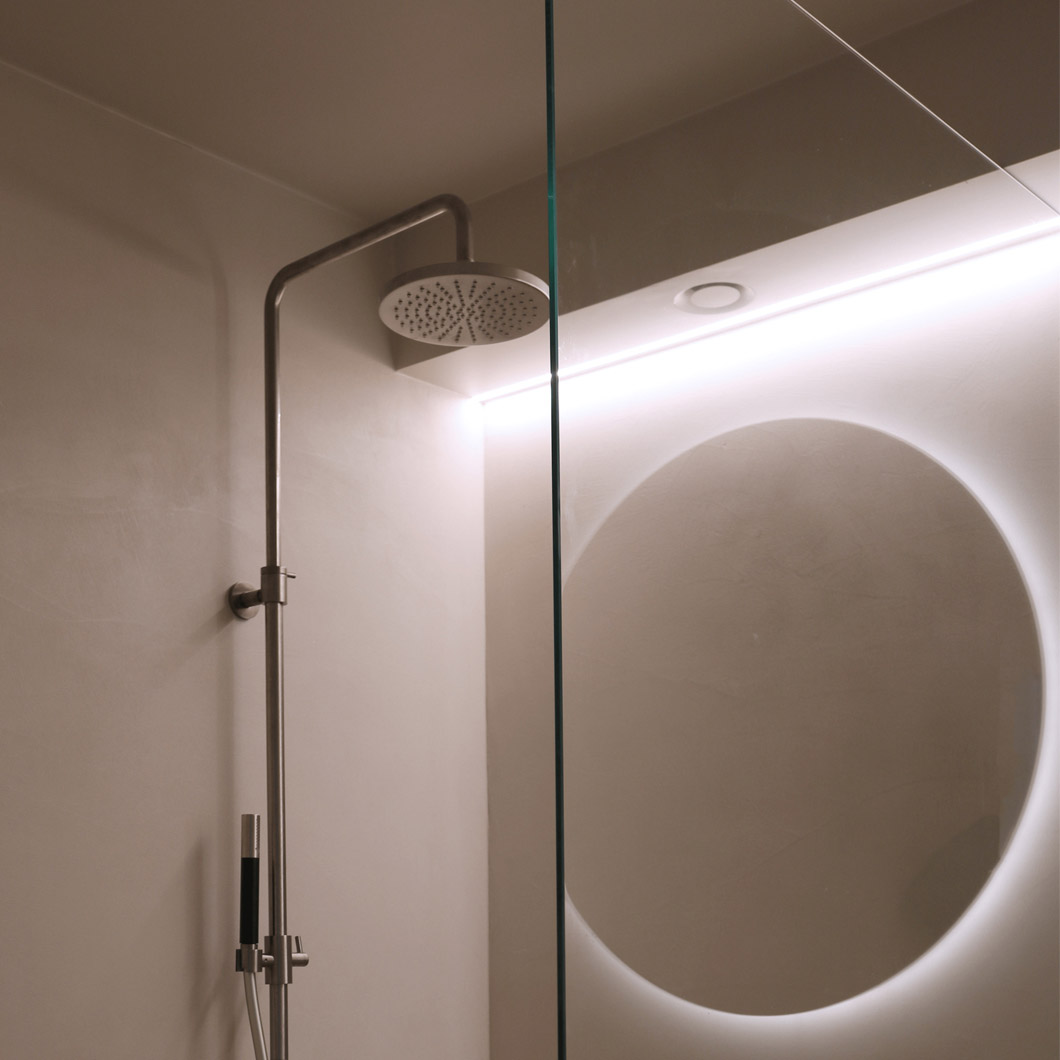

Invisible air supply and extraction, up to 50m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room. Trimless design with paintable design ring to match the colour scheme of the ceiling.

Ventilation valves that work with every system
Extract up to 50m³/h. Completely invisible and incredibly quiet. The installation ring fits in every Ø125 ventilation duct, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist to start adjust the flow. The valve is easily retractable, ideal for maintenance. An integrated lock prevents from accidentally modifying the air flow after installation. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other Ø125 ventilation system.

Trimless

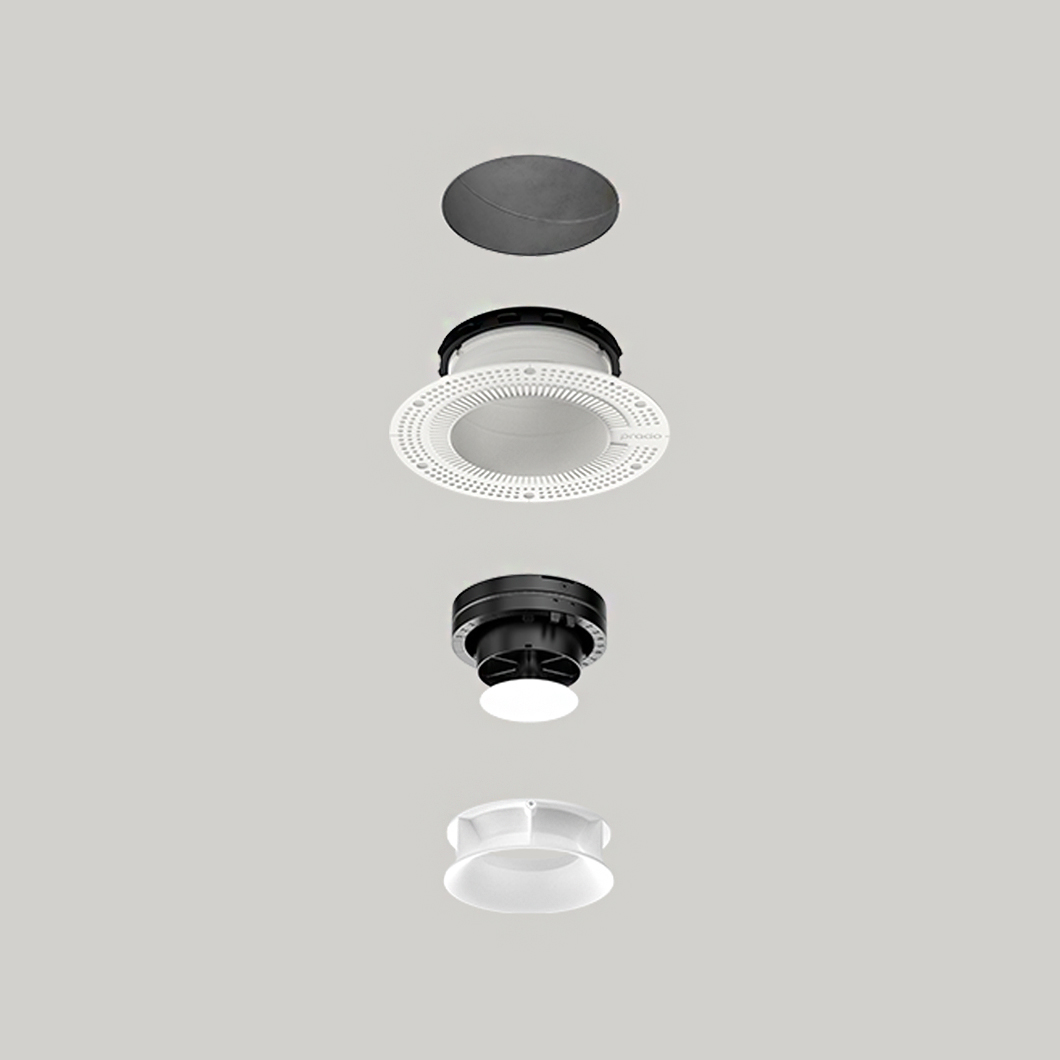

Installation ring required - standard Ø108 ring included by default but other specialist install rings available for CLT (cross laminated timber), CSC (cold stretch ceilings) and concrete ceilings. Specialist installation tool also available, see video below.

Specification

Ventilation: supply or exhaust
Air flow: max. 50 m³/h
Noise: < 27 dB(A)
Pressure: 7 – 75 Pa

Adjustability: 32 steps
Locking mechanism: integrated
Colour: white RAL 9003
Other: patent pending

Paintable design ring

Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø108 (8000 - 0001)
Data Sheet PDF - Adjustable plaster ring Ø108 (8000 - 0101)
Data Sheet PDF - CLT CSC (cross laminate timber & cold stretch ceiling) ring Ø108 (8000-0011)
Data Sheet PDF - Concrete Ring Cap Ø108 (8000-0111)

Lamp type: Integrated LED

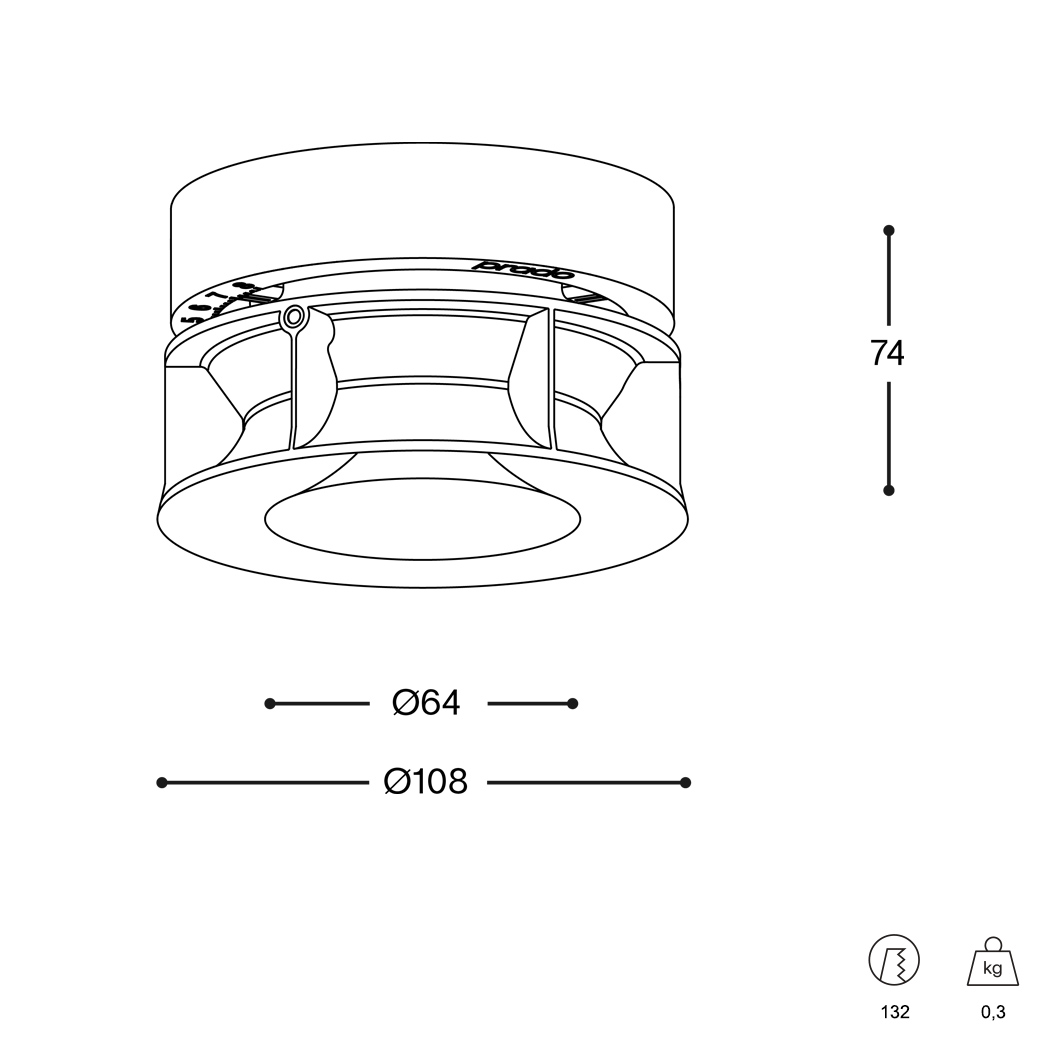

Dimensions

Product dimensions: H.74mm x Diameter.108mm

Cutout dimensions: Dia.132mm

Downloads

Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.

Available now for EU but coming soon in UK versions - Rond applies the same principles to the wall with sockets, switches and data ports with a unique design.

Got a question? Email us or call 01189 882294
